  • Class: 2-3 T
  • Width: 700
  • Adapter: MS03

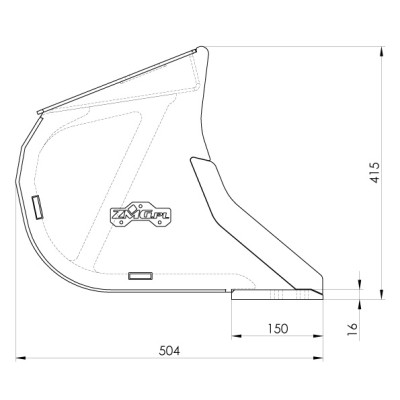

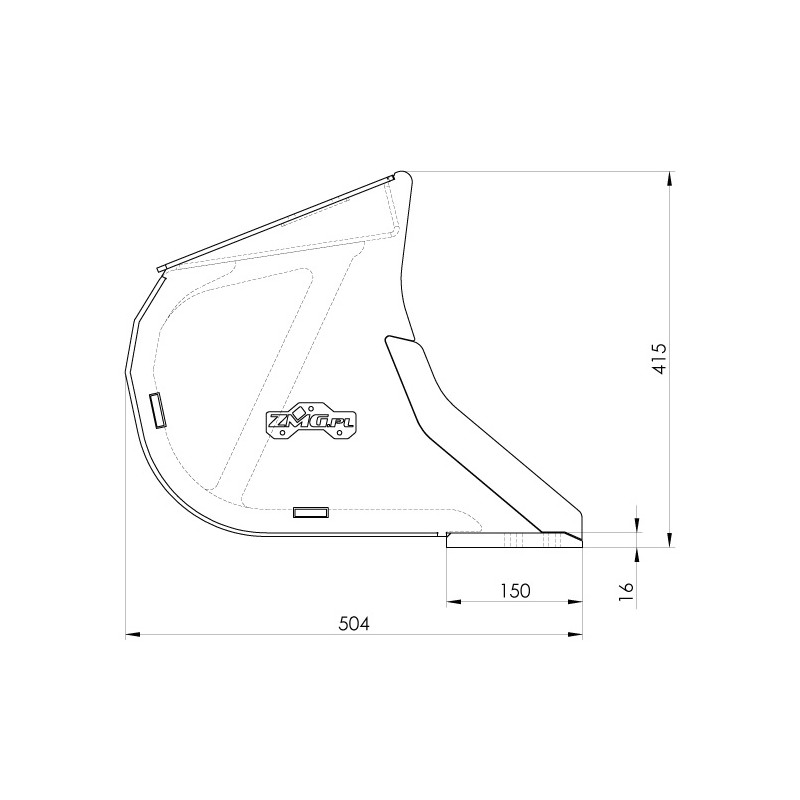

Skeleton bucket 700mm MS03 class 2-3t
Skeleton bucket 700mm MS03 class 2-3t
Skeleton bucket 700mm MS03 class 2-3t
Skeleton bucket 700mm MS03 class 2-3t
Skeleton bucket 700mm MS03 class 2-3t
    Skeleton bucket 700mm MS03 class 2-3t
    Skeleton bucket 700mm MS03 class 2-3t
    Skeleton bucket 700mm MS03 class 2-3t
    Skeleton bucket 700mm MS03 class 2-3t
    Skeleton bucket 700mm MS03 class 2-3t

Skeleton bucket 700mm MS03 class 2-3t

2,554.71 zł
Tax included
In stock Lead time: up to 3 business weeks

Other models:

Width
Adapter

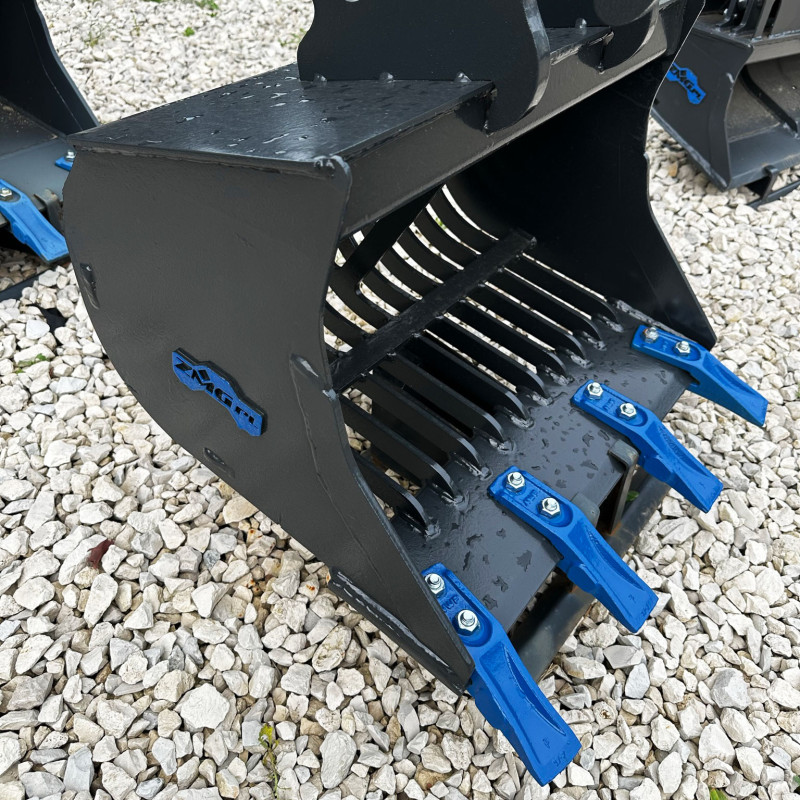

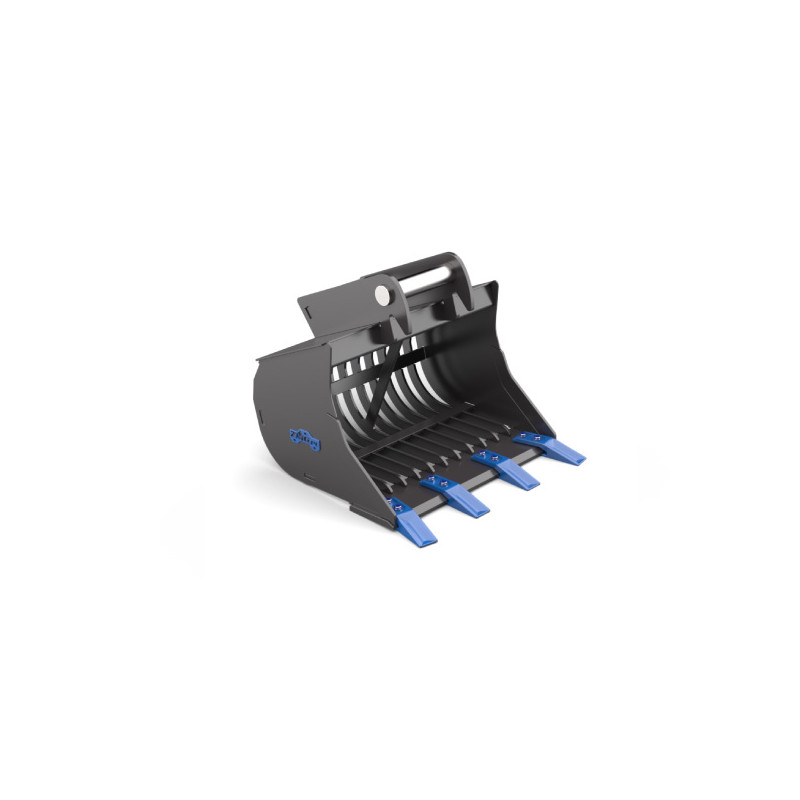

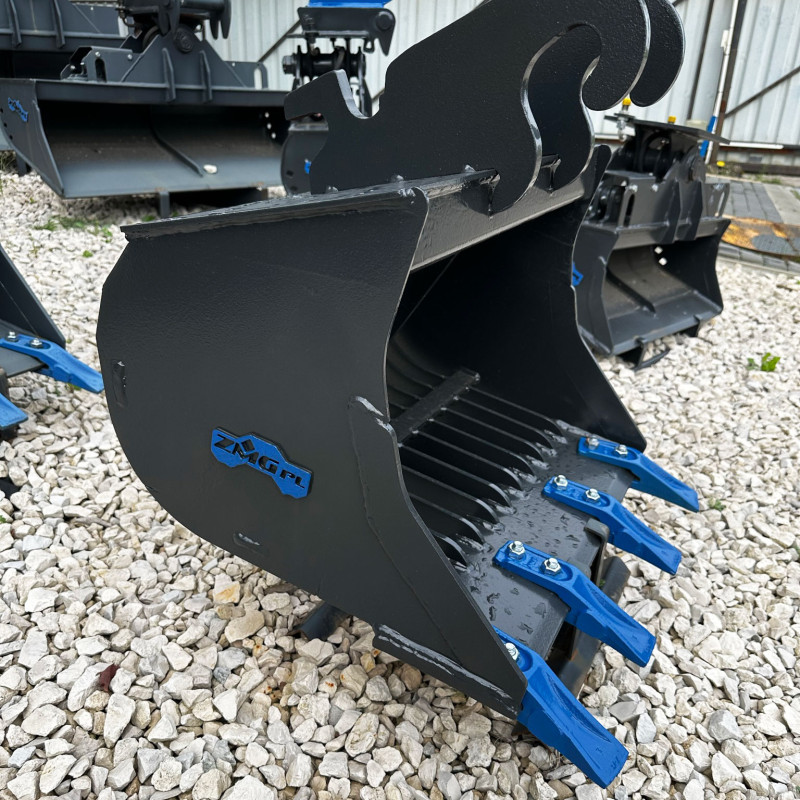

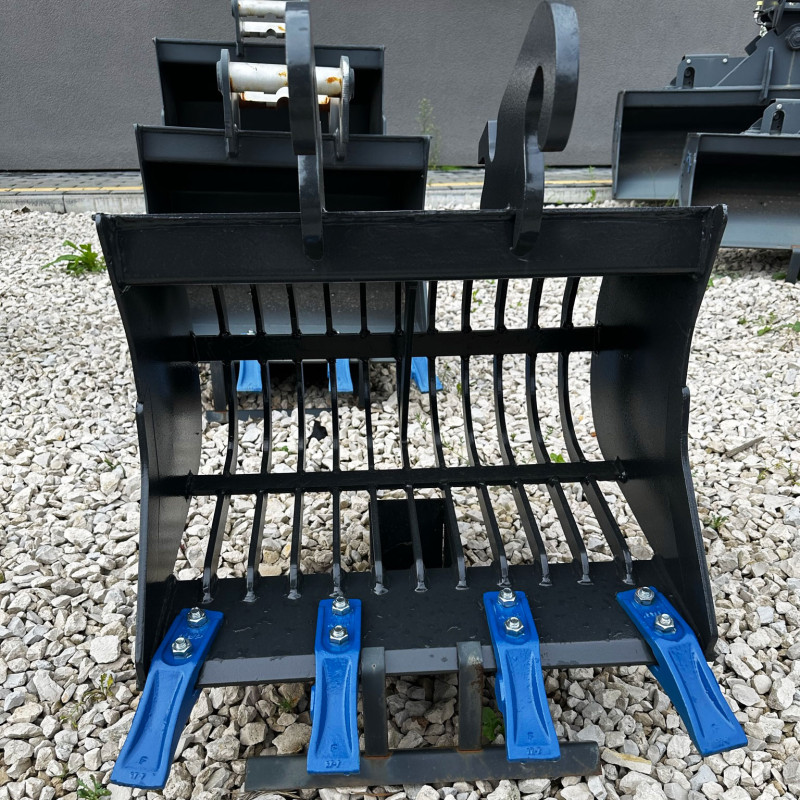

Model LAP-ZMG2-700-MS03 is a 700 mm skeleton bucket dedicated to small excavators in the 2–3 t class. Its perforated structure enables efficient aggregate sorting, soil sieving, and selective material collection without transporting unwanted water or fine particles. The Lehnhoff MS03 quick coupler provides reliable attachment and efficient tool changes for medium-class machines. The solid welded structure and steel bars guarantee durability and deformation resistance during intensive use.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Quantity
Add to wishlist

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG2

LAP-ZMG2-700-MS03

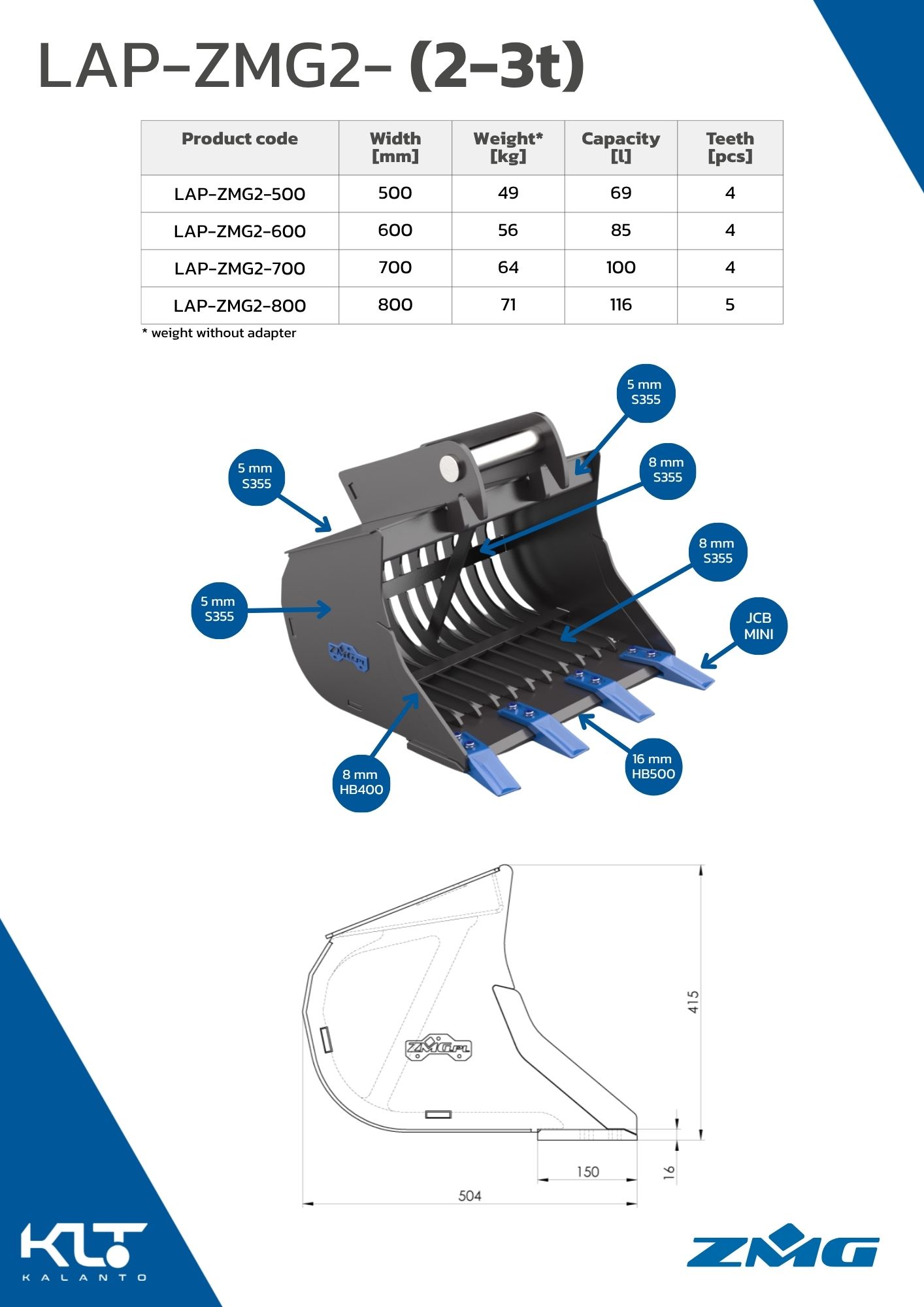

Data sheet

Lead time
up to 3 business weeks
For the machine
2-3
Adapter
MS03
Width
700
Weight without adapter
64
Capacity
100
Side/rear plate
5 S355
Side cutters
8 HB400
Ribs
8 S355
Rib spacing
40
Cutting edge
16 HB500
Top plate
5 S355
Bend plate
5 S355
Number of teeth
4
Type of teeth
JCB Mini
