Class: 0-2 T
Width: 800
Adapter: S30/150

Skeleton bucket 800mm S30/150 class 0-2t

Skeleton bucket 800mm S30/150 class 0-2t

Skeleton bucket 800mm S30/150 class 0-2t

Skeleton bucket 800mm S30/150 class 0-2t

Skeleton bucket 800mm S30/150 class 0-2t

Skeleton bucket 800mm S30/150 class 0-2t

Skeleton bucket 800mm S30/150 class 0-2t

Skeleton bucket 800mm S30/150 class 0-2t

Skeleton bucket 800mm S30/150 class 0-2t

Skeleton bucket 800mm S30/150 class 0-2t

Skeleton bucket 800mm S30/150 class 0-2t

2,301.33 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
500	41	49	4
600	48	61	4
700	54	73	4
800	61	85	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Ribs:	8 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Rib spacing:	40 mm

	Type
Teeth:	JCB Mini

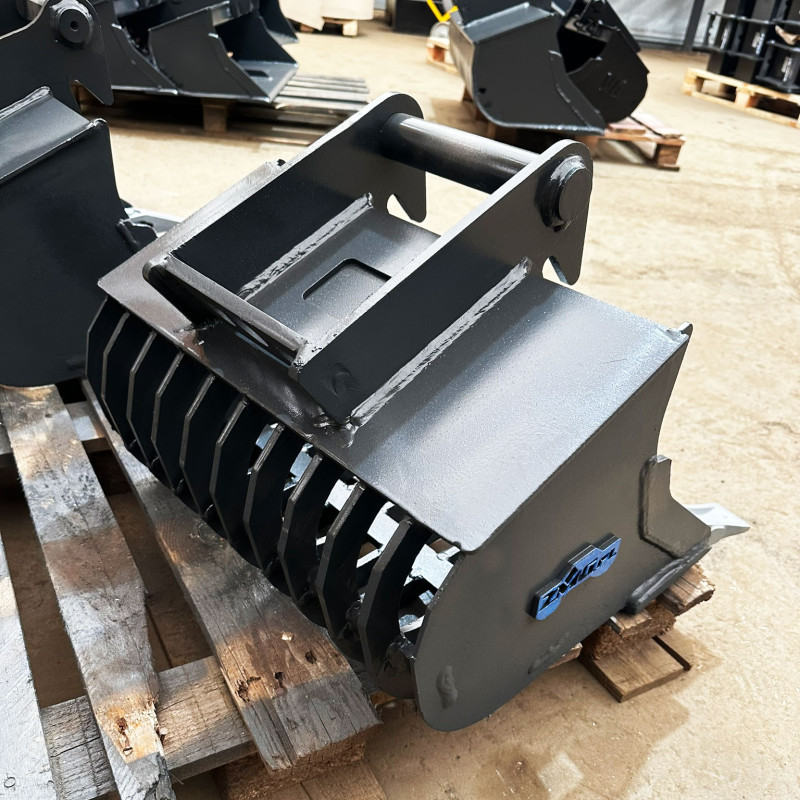

Model LAP-ZMG1-800-S30/150 is a 800 mm skeleton bucket dedicated to mini and compact excavators up to 2 t. Its perforated structure enables efficient aggregate sorting, soil sieving, and selective material collection without transporting unwanted water or fine particles. The S30/150 adapter enables bucket mounting on machines with the S30 standard, ensuring compatibility across a wide range of attachments in this class. The solid welded structure and steel bars guarantee durability and deformation resistance during intensive use.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG1

Reference LAP-ZMG1-800-S30/150

Data sheet

Lead time: up to 3 business weeks
For the machine: 0-1
1-2
Adapter: S30/150
Width: 800
Weight without adapter: 61
Capacity: 85
Side/rear plate: 4 S355
Side cutters: 8 HB400
Ribs: 8 S355
Rib spacing: 40
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 5
Type of teeth: JCB Mini
