Class: 6-8 T
Width: 1000
Adapter: CW10

Skeleton bucket 1000mm CW10 class 6-8t

Name: Skeleton bucket 1000mm CW10 class 6-8t
Brand: ZMG
SKU: LAP-ZMG4-1000-CW10
Price: 5384.94 PLN
Availability: InStock

5,384.94 zł Tax included

In stock Lead time up to 3 business weeks

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Verachtert system- CW10 without base plate

Reference: AD-WOP-CW10

The AD-WOP-CW10 is a base-plate-free design fully compatible with the Verachtert CW10 standard. It ensures quick and secure connection of work tools and maintains durability even under intensive use. A practical option for operators who prefer a lighter and more flexible setup.

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Lead time: up to 48 hours
For the machine: 4-5, 5-6, 6-7, 7-8, 8-9, 9-10, 10-11
Adapter: CW10
Side plate: 20 S355
Pin diameter: 50
Inner width: 320
Pin spacing: 560
Weight: 16

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
CW05	40	180	200
CW10	50	320	300
CW20/30/40	60	560	475

Parameters

The main components are made of the following materials and thicknesses:

	CW05		CW10		CW20/30/40
	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	35mm	HB400

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
600	117	193	4
800	157	269	5
900	173	307	5
1000	190	345	5
1100	207	384	6
1200	224	430	6

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Ribs:	10 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	12 mm	HB400
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Rib spacing:	55 mm

	Type
Teeth:	JCB

Alternative products with a different lead time:

up to 7 business days Class: 6-9 T Kalanto 6,045.45 zł

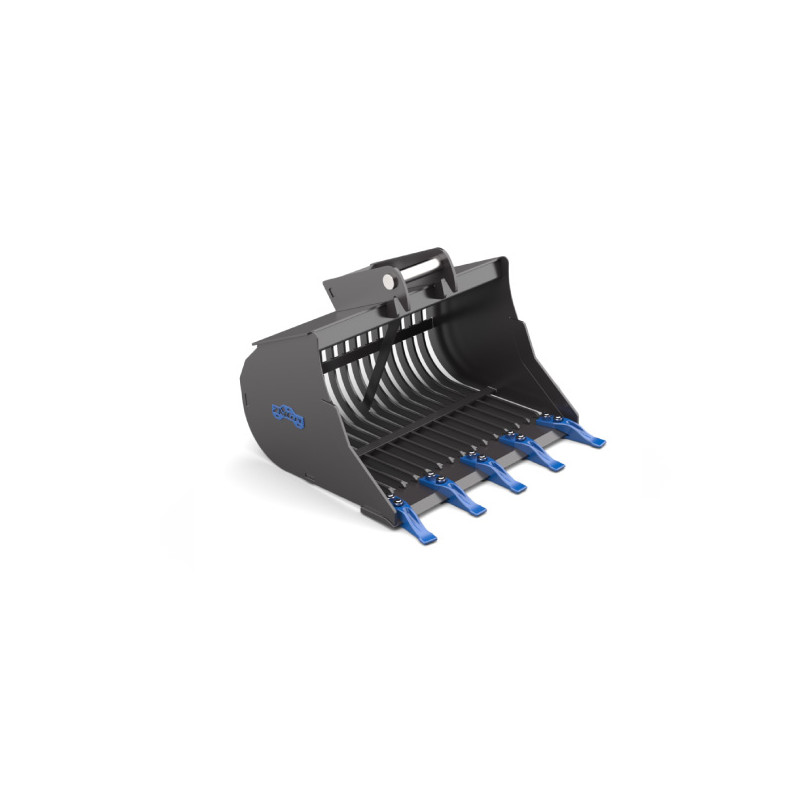

The LAP-ZMG4-1000-CW10 series is a 1000 mm skeleton bucket dedicated to excavators in the 6–8 t class. Openings in the base and sides let fine material fall through freely, making it indispensable for stone-soil separation, recycling, and landscaping work. The Verachtert CW10 quick coupler system, designed for heavier applications, provides reliable and stable attachment-to-machine connection. The steel frame and reinforced S355 steel bars ensure long service life even when working with hard, abrasive materials.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG4

Reference LAP-ZMG4-1000-CW10

Data sheet

Lead time: up to 3 business weeks
For the machine: 6-7
7-8
Adapter: CW10
Width: 1000
Weight without adapter: 190
Capacity: 345
Side/rear plate: 6 S355
Side cutters: 12 HB400
Ribs: 10 S355
Rib spacing: 55
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 5
Type of teeth: JCB
