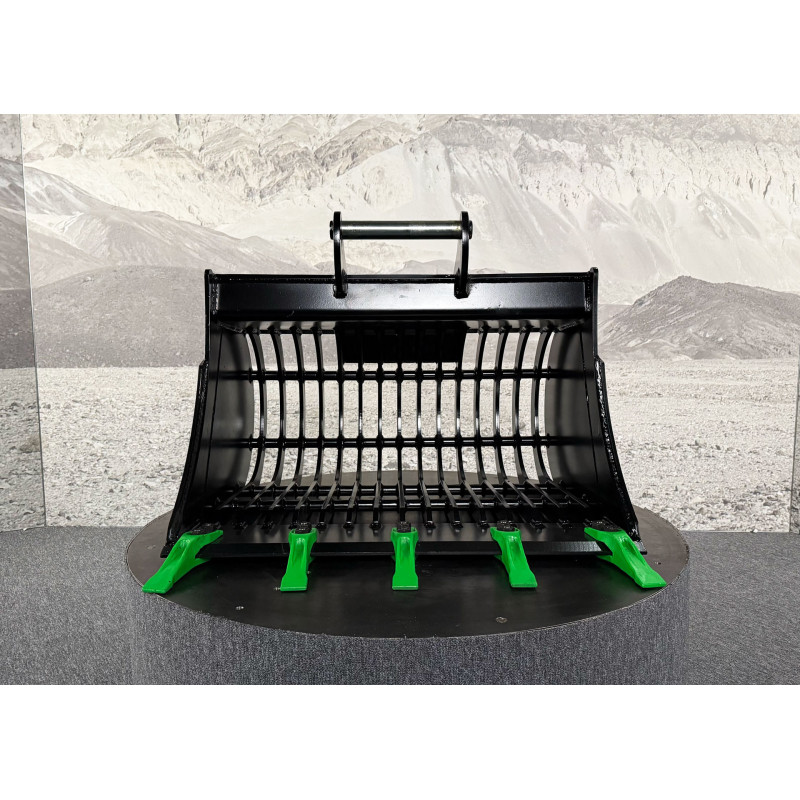

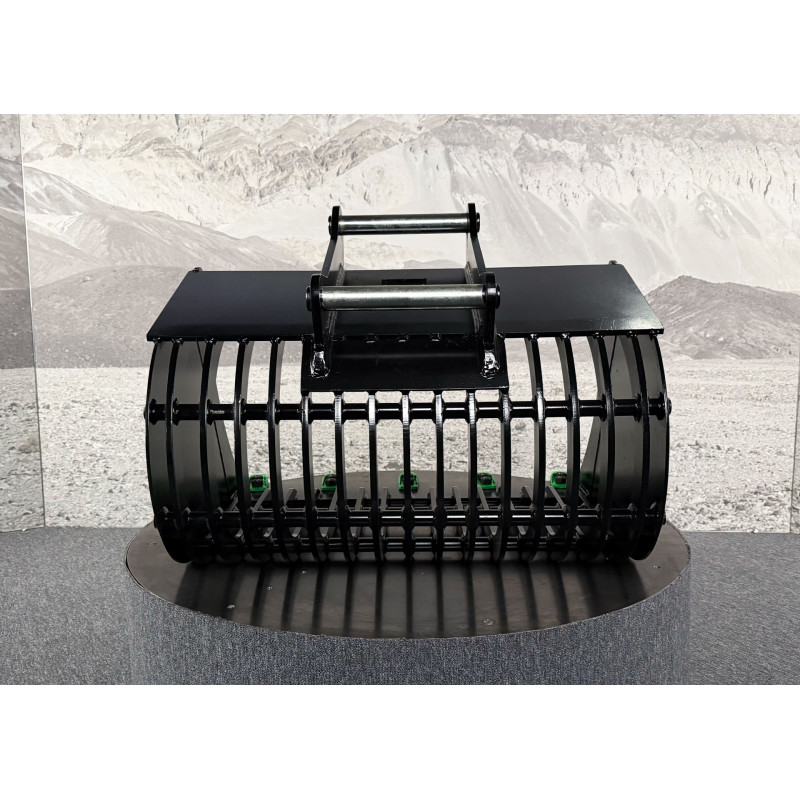

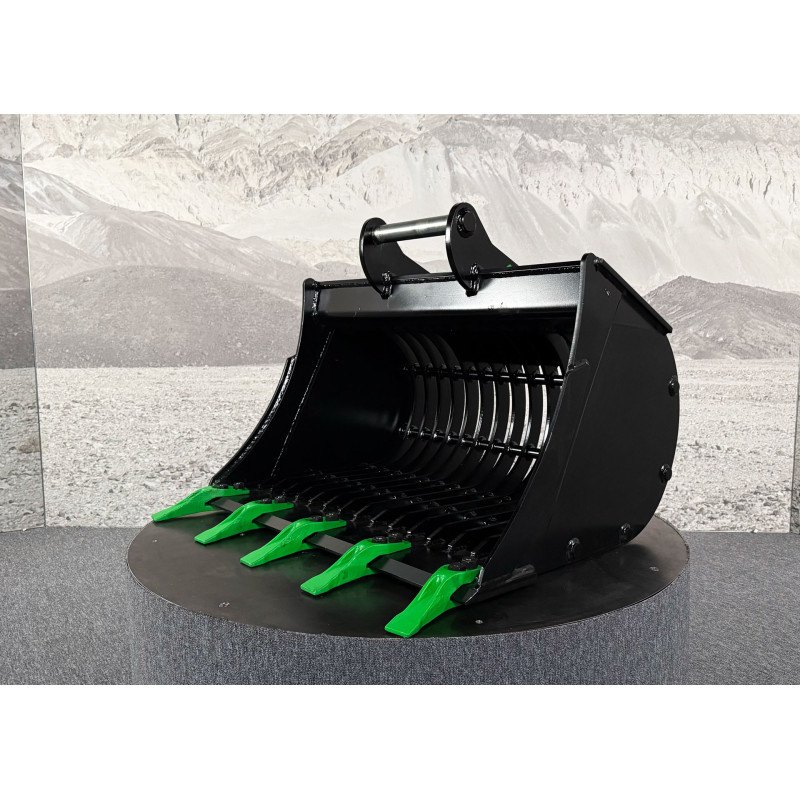

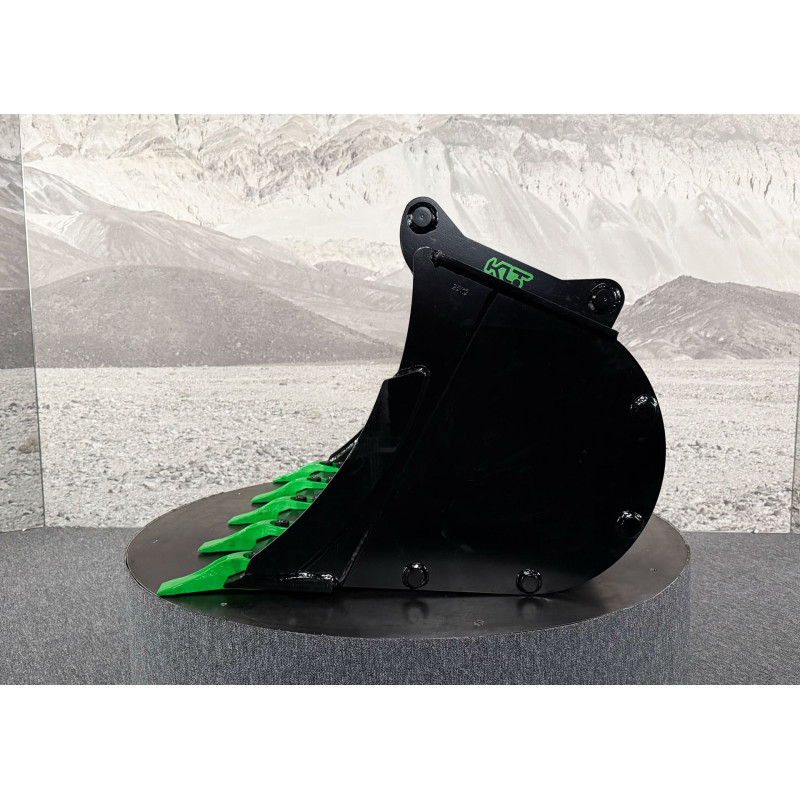

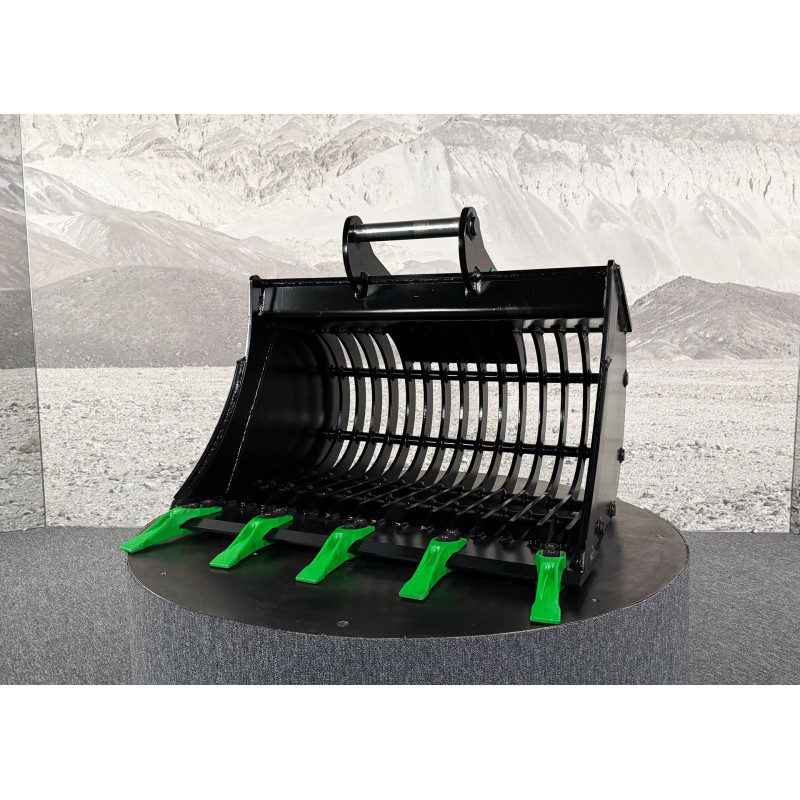

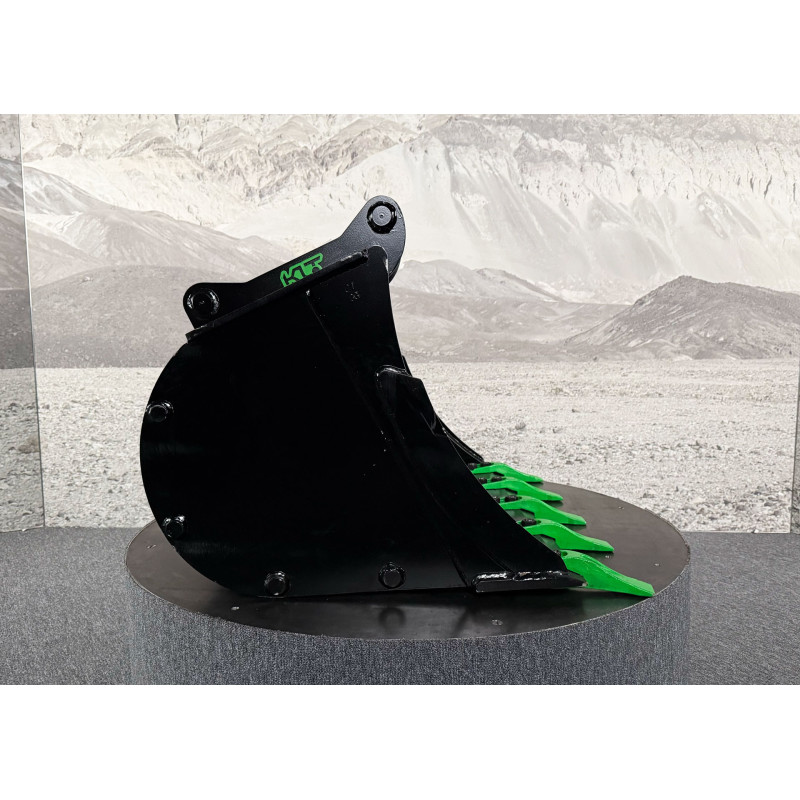

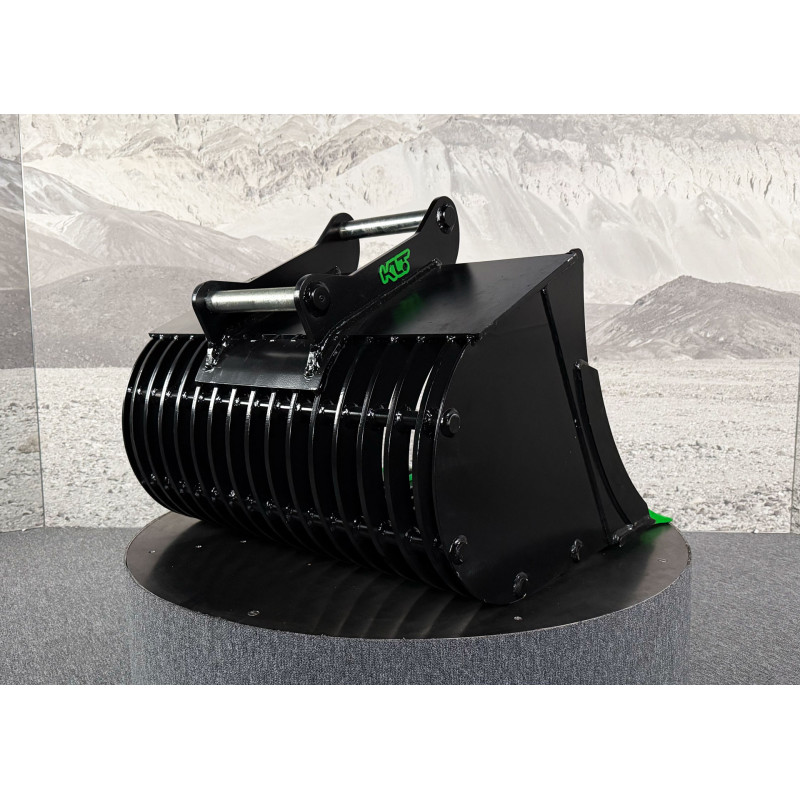

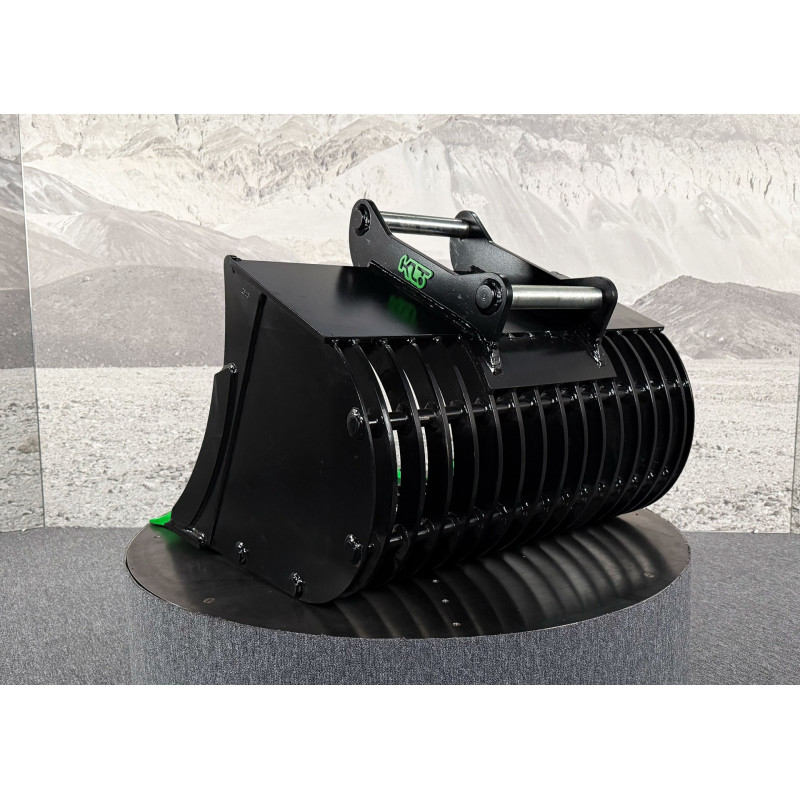

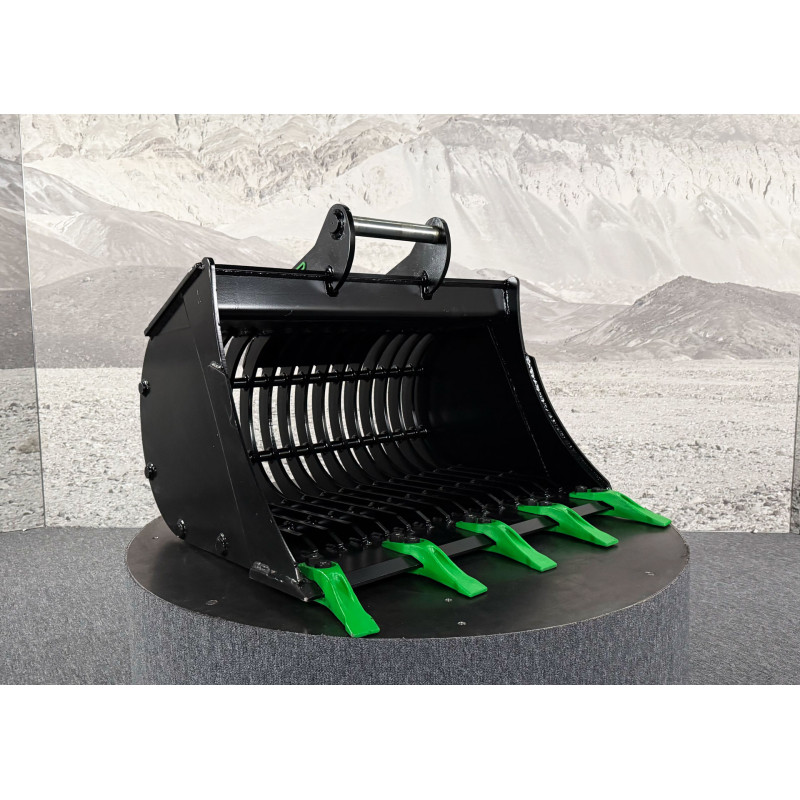

Skeleton bucket 800mm S45 class 6-9t
5,193.06 zł
Tax included
The SBS-S5-V1-800-S45 model is a robust skeleton bucket designed for 6–9-ton excavators and intended for demanding work environments. Its solid ribbed body enables efficient screening, material cleaning and separation without requiring additional sorting equipment. With high wear resistance, reinforced structural points and well-balanced geometry, the SBS-S5 ensures excellent reliability and comfortable operation during earthmoving, cleanup and sorting applications.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 800 | 195 | 246,9 | 5 |
| 1000 | 232 | 320,7 | 5 |
| 1200 | 272 | 394,6 | 6 |

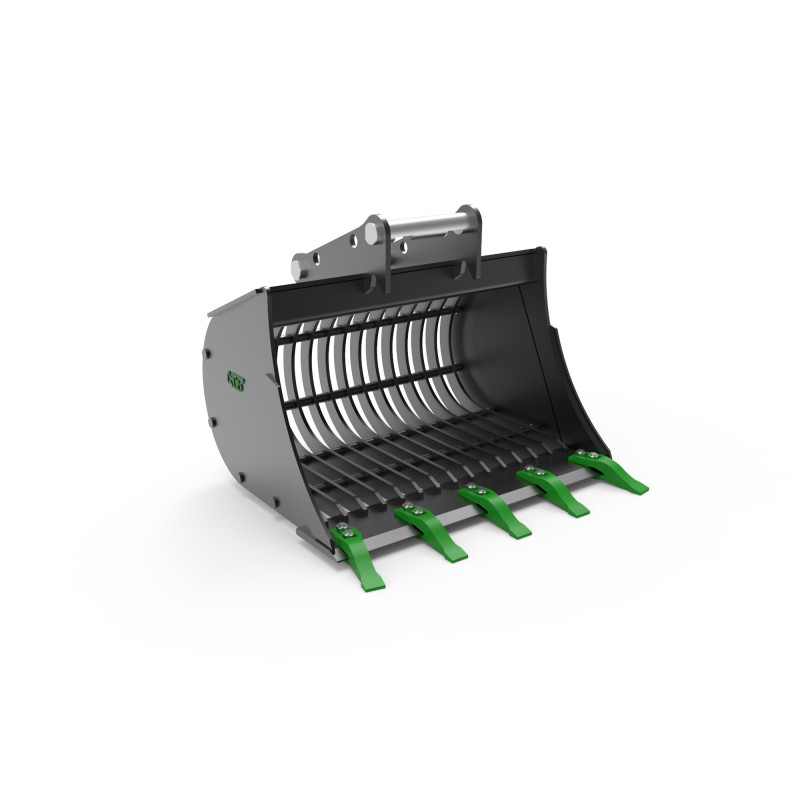

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Ribs: | 12 mm | S355 |
| Cutting edge: | 20 x 220 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 12 mm | S355 |
| Bend plate: | 10 mm | S355 |
| Rib spacing: | 45mm | - |
| Type | ||
| Teeth: | E25 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
SBS-S5-V1-800-S45
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 6-7t
7-8t
8-9t - Adapter
- S45
- Width
- 800mm
- Weight without adapter
- 195kg
- Capacity
- 246,9 l
- Side/rear plate
- 6mm S355
- Front side plate
- 12mm S355
- Side cutters
- 8mm HB400
- Ribs
- 12mm S355
- Rib spacing
- 45mm
- Cutting edge
- 20x200mm HB400
- Top plate
- 12mm S355
- Bend plate
- 10mm S355
- Number of teeth
- 5pcs
- Type of teeth
- E25
