Class: 6-9 T
Width: 1000
Adapter: MS08

Skeleton bucket 1000mm MS08 class 6-8t

Name: Skeleton bucket 1000mm MS08 class 6-8t
Brand: ZMG
SKU: LAP-ZMG4-1000-MS08
Price: 5384.94 PLN
Availability: InStock

5,384.94 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
600	117	193	4
800	157	269	5
900	173	307	5
1000	190	345	5
1100	207	384	6
1200	224	430	6

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Ribs:	10 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	12 mm	HB400
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Rib spacing:	55 mm

	Type
Teeth:	JCB

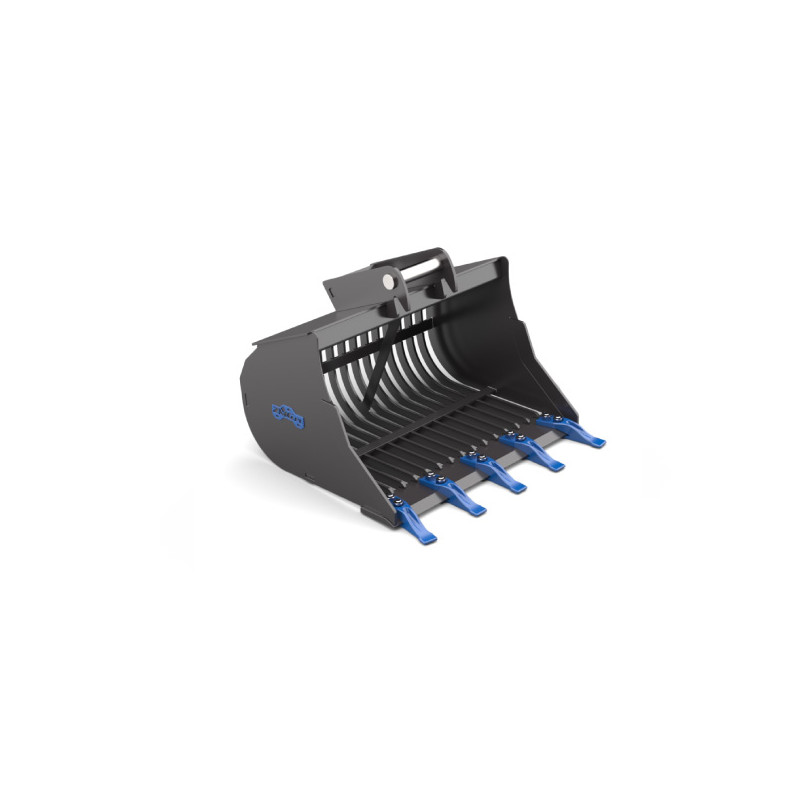

The LAP-ZMG4-1000-MS08 skeleton bucket with a working width of 1000 mm is a specialist tool designed for excavators in the 6–8 t class. It is excellent for soil screening, stone separation, and sorting bulk materials from earth on construction sites and in forestry operations. The Lehnhoff MS08 quick coupler is designed for heavy machines, ensuring secure attachment and rapid tool changes on demanding job sites. The solid welded structure and steel bars guarantee durability and deformation resistance during intensive use.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG4

Reference LAP-ZMG4-1000-MS08

Data sheet

Lead time: up to 3 business weeks
For the machine: 6-7
7-8
Adapter: MS08
Width: 1000
Weight without adapter: 190
Capacity: 345
Side/rear plate: 6 S355
Side cutters: 12 HB400
Ribs: 10 S355
Rib spacing: 55
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 5
Type of teeth: JCB
