Class: 4-6 T
Width: 600
Adapter: MS03SY

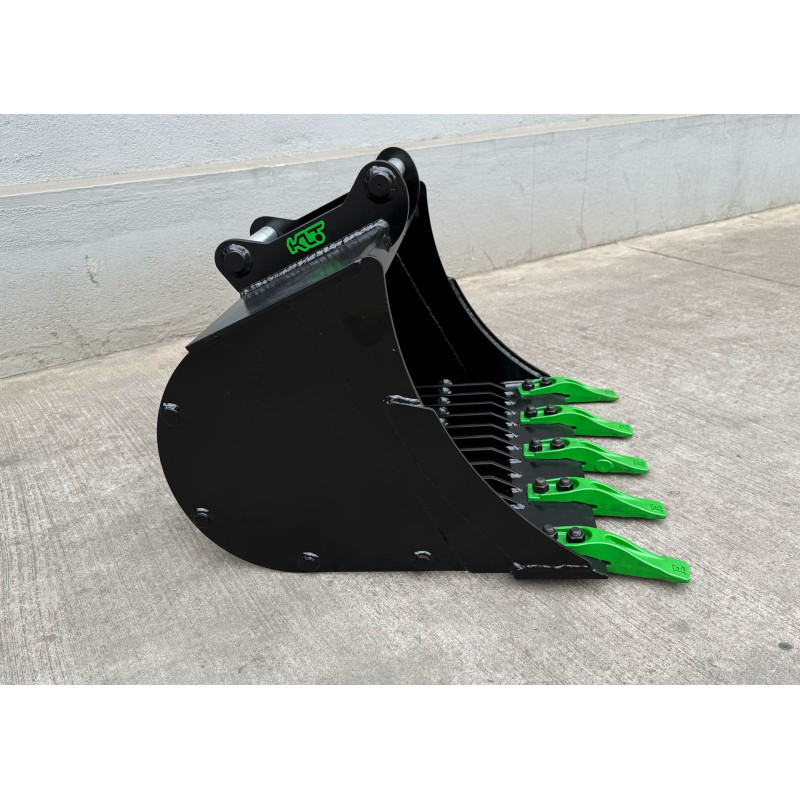

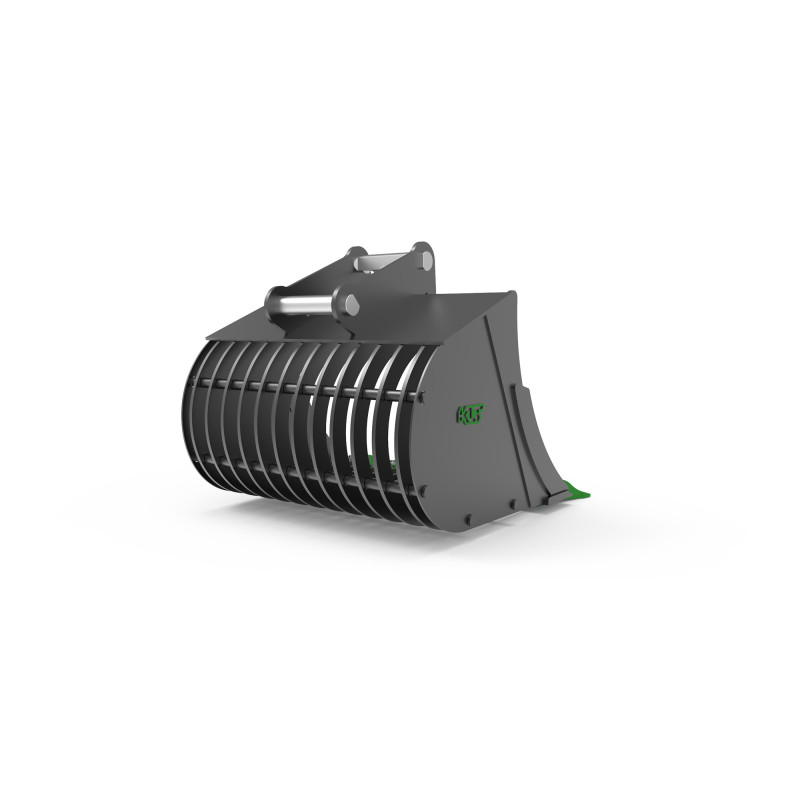

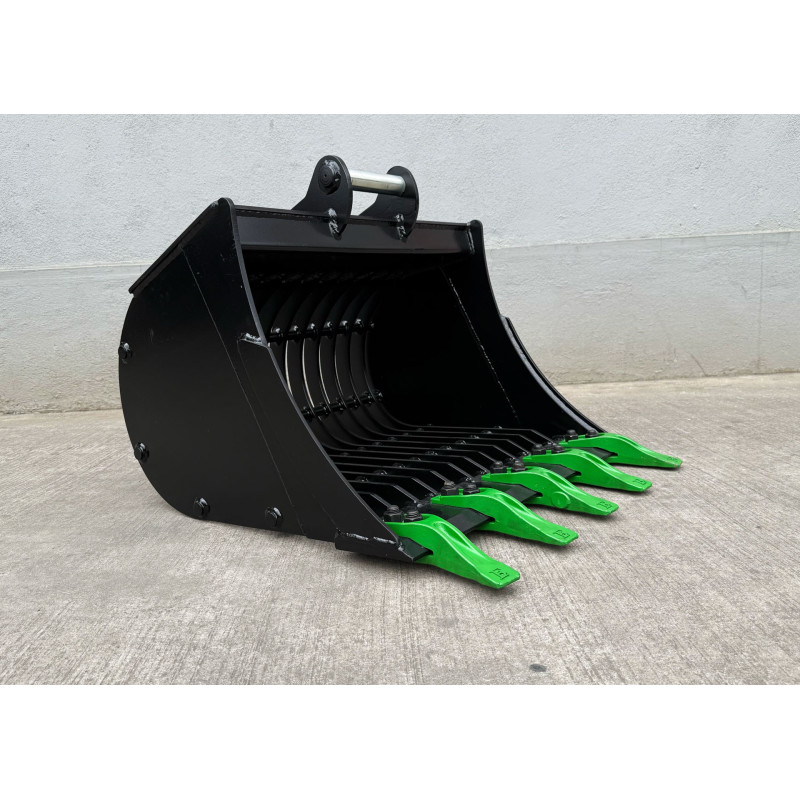

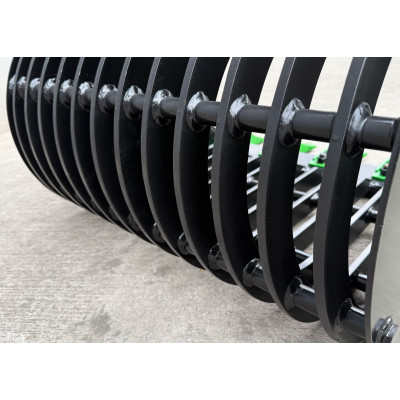

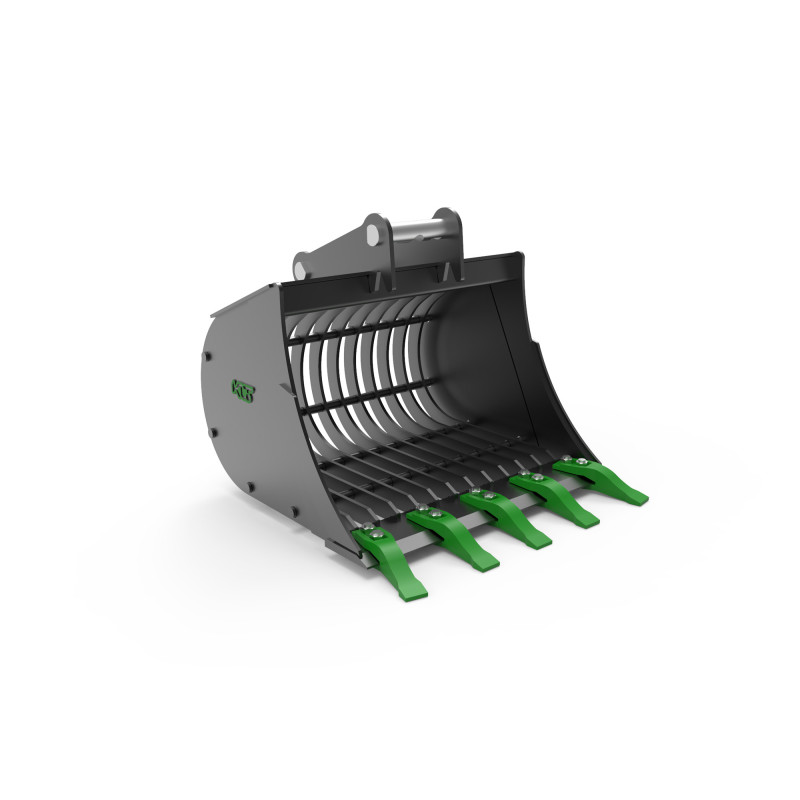

Skeleton bucket 600mm MS03SY class 4-6t

Name: Skeleton bucket 600mm MS03SY class 4-6t
Brand: Kalanto
SKU: SBS-S4-V1-600-MS03SY
Price: 3163.56 PLN
Availability: InStock

3,163.56 zł

Tax included

In stock Lead time: up to 48 hours

Other models:

Width

Adapter

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Ribs:	10 mm	S355
Cutting edge:	20 x 150 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	5 mm	S355
Rib spacing:	45mm	-
	Type
Teeth:	E25

The SBS-S4-V1-600-MS03SY model is a strong and functional skeleton bucket designed for excavators weighing between 4 and 6 tons. Its design, based on a robust ribbed shell, allows for efficient screening of fine fractions from larger elements such as stones, roots or rubble, without the need for additional sorting machines. The SBS-S4 is an indispensable tool on construction sites and in earthmoving, cleanup and land reclamation works.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference SBS-S4-V1-600-MS03SY

Data sheet

Lead time: up to 48 hours
For the machine: 4-5
5-6
Adapter: MS03SY
Width: 600
Weight without adapter: 112
Capacity: 146,2
Side/rear plate: 5 S355
Front side plate: 10 S355
Side cutters: 8 HB400
Ribs: 10 S355
Rib spacing: 45
Cutting edge: 20x150 HB400
Top plate: 8 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: E25

Specific References

EAN13: 5908159221824
