Class: 2-3 T
Width: 500
Adapter: CW05

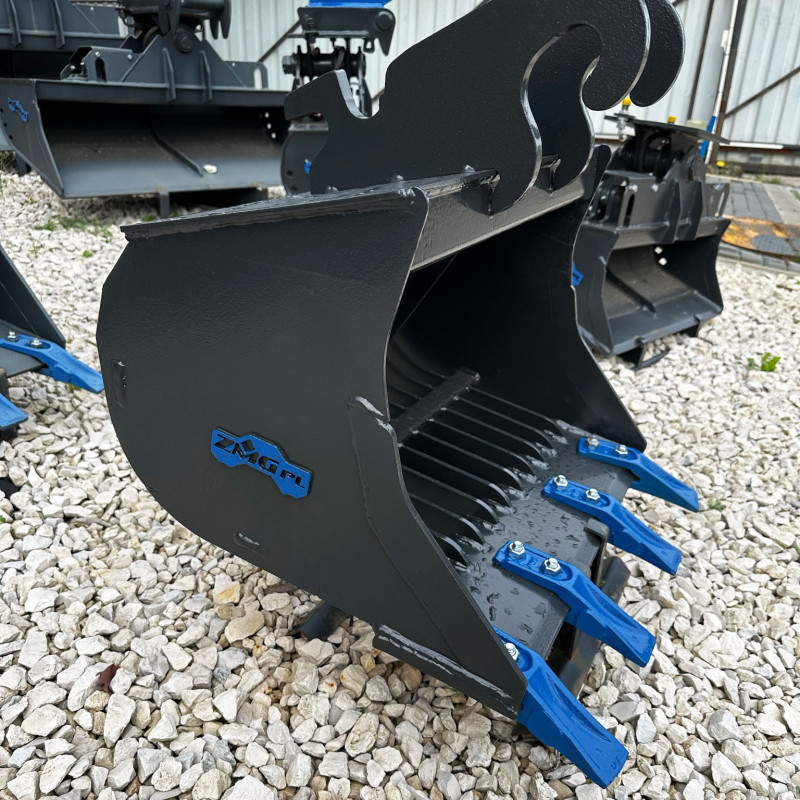

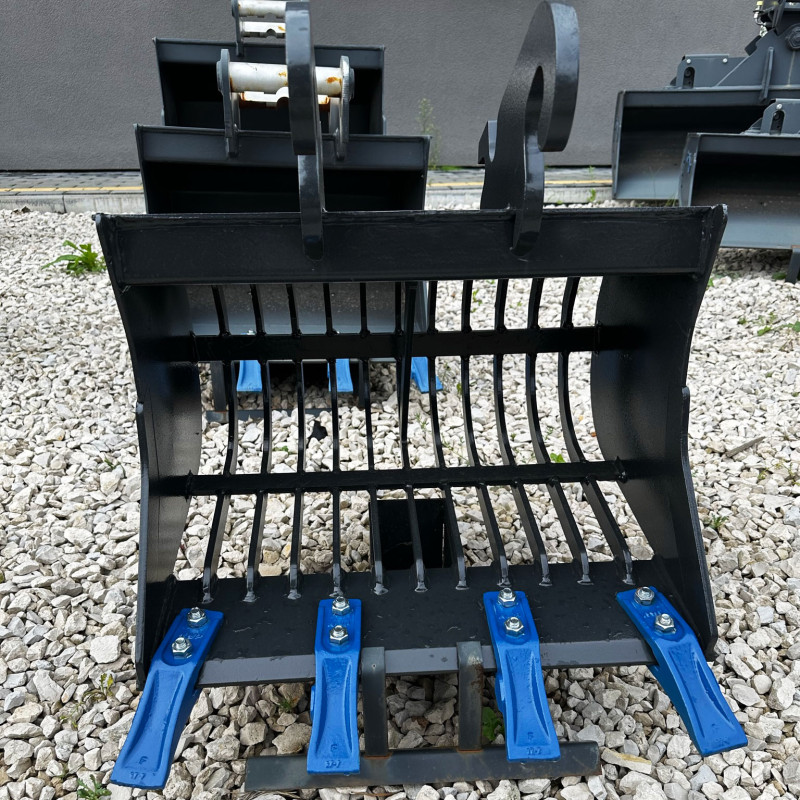

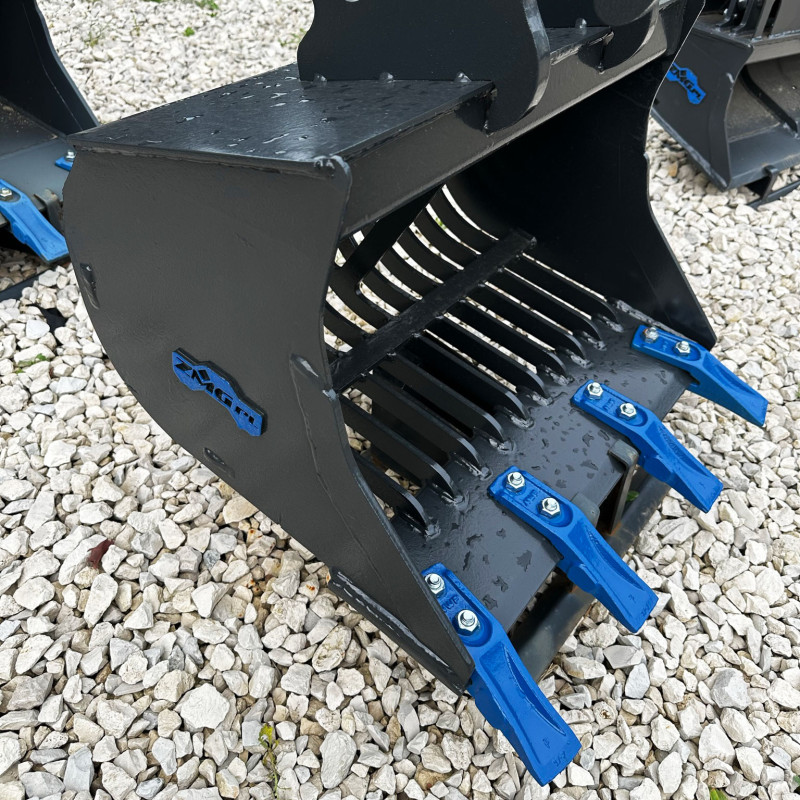

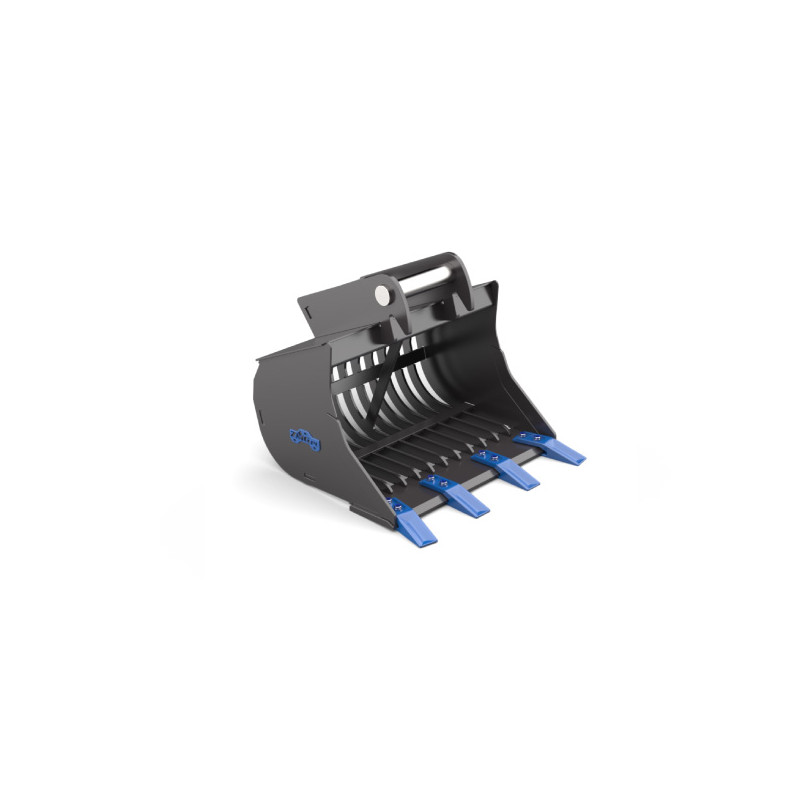

Skeleton bucket 500mm CW05 class 2-3t

Skeleton bucket 500mm CW05 class 2-3t

Skeleton bucket 500mm CW05 class 2-3t

Skeleton bucket 500mm CW05 class 2-3t

Skeleton bucket 500mm CW05 class 2-3t

Skeleton bucket 500mm CW05 class 2-3t

Skeleton bucket 500mm CW05 class 2-3t

Skeleton bucket 500mm CW05 class 2-3t

Skeleton bucket 500mm CW05 class 2-3t

Skeleton bucket 500mm CW05 class 2-3t

Skeleton bucket 500mm CW05 class 2-3t

2,084.85 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

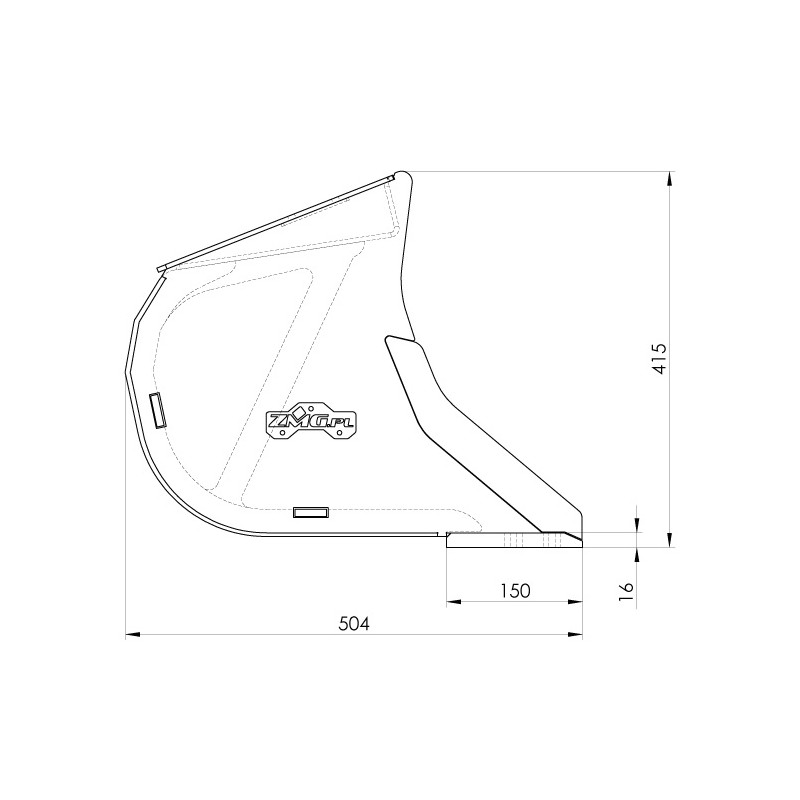

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
500	49	69	4
600	56	85	4
700	64	100	4
800	71	116	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Ribs:	8 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Rib spacing:	40 mm

	Type
Teeth:	JCB Mini

The LAP-ZMG2-500-CW05 skeleton bucket with a working width of 500 mm is a specialist tool designed for small excavators in the 2–3 t class. It is excellent for soil screening, stone separation, and sorting bulk materials from earth on construction sites and in forestry operations. The Verachtert CW05 quick coupler system guarantees a solid and safe machine connection, providing flexibility in attachment selection. The solid welded structure and steel bars guarantee durability and deformation resistance during intensive use.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG2

Reference LAP-ZMG2-500-CW05

Data sheet

Lead time: up to 3 business weeks
For the machine: 2-3
Adapter: CW05
Width: 500
Weight without adapter: 49
Capacity: 69
Side/rear plate: 5 S355
Side cutters: 8 HB400
Ribs: 8 S355
Rib spacing: 40
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: JCB Mini
