Class: 0-2 T
Width: 600
Adapter: MS01

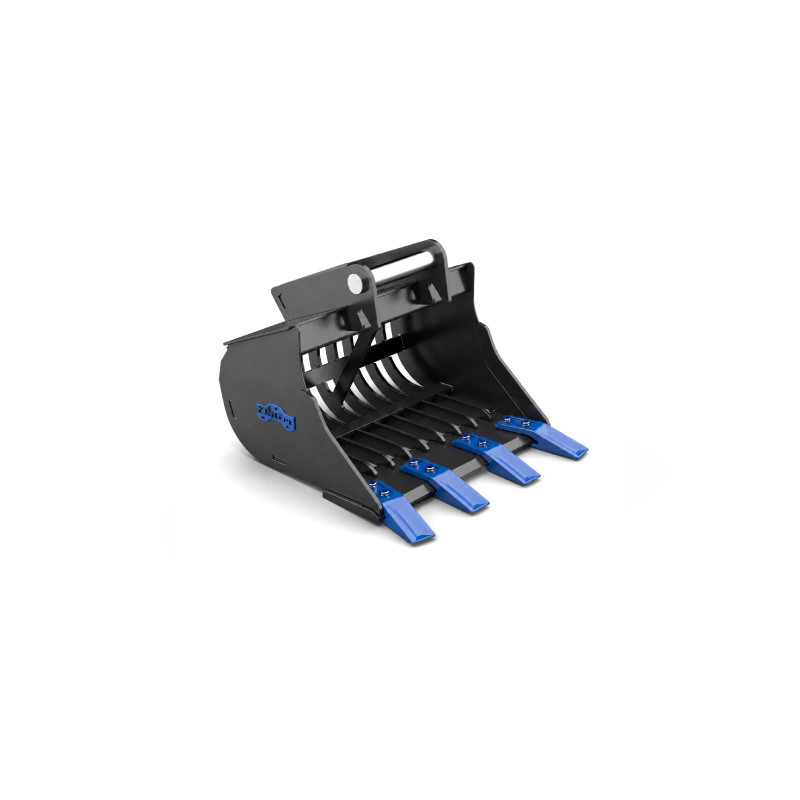

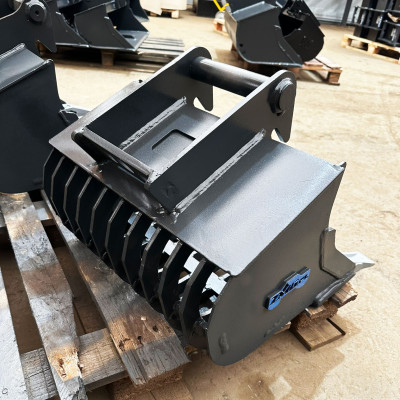

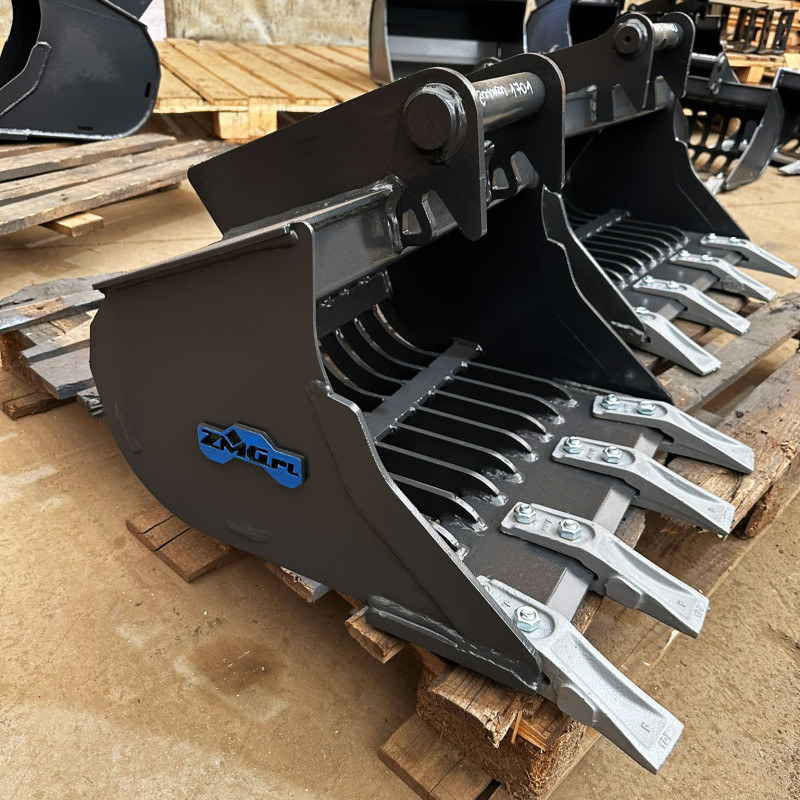

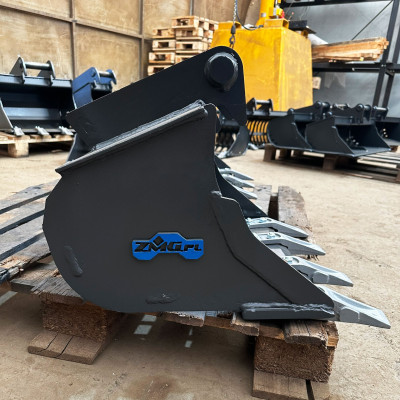

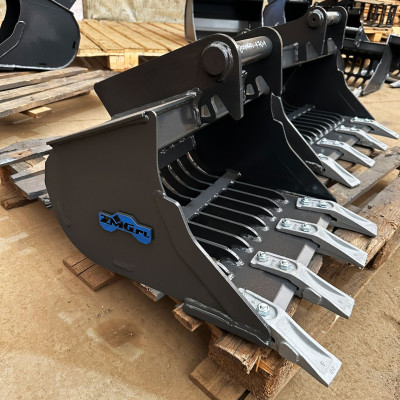

Skeleton bucket 600mm MS01 class 0-2t

Name: Skeleton bucket 600mm MS01 class 0-2t
Brand: ZMG
SKU: LAP-ZMG1-600-MS01
Price: 1857.30 PLN
Availability: InStock

1,857.30 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
500	41	49	4
600	48	61	4
700	54	73	4
800	61	85	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Ribs:	8 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Rib spacing:	40 mm

	Type
Teeth:	JCB Mini

The LAP-ZMG1-600-MS01 series is a 600 mm skeleton bucket dedicated to mini and compact excavators up to 2 t. Openings in the base and sides let fine material fall through freely, making it indispensable for stone-soil separation, recycling, and landscaping work. The Lehnhoff MS01 quick coupler allows fast and safe attachment changes, minimising downtime on site. The solid welded structure and steel bars guarantee durability and deformation resistance during intensive use.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG1

Reference LAP-ZMG1-600-MS01

Data sheet

Lead time: up to 3 business weeks
For the machine: 1-2
Adapter: MS01
Width: 600
Weight without adapter: 48
Capacity: 61
Side/rear plate: 4 S355
Side cutters: 8 HB400
Ribs: 8 S355
Rib spacing: 40
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: JCB Mini

16 other products in the same category:

Class: 2-3 T
Width: 600
Adapter: CW05

ZMG

Skeleton bucket 600mm CW05 class 2-3t

2,301.33 zł

In stock

The LAP-ZMG2-600-CW05 is a 600 mm skeleton bucket created for small excavators in the 2–3 t class. Its open structure allows efficient screening and material separation, essential for aggregate...

Skeleton bucket 700mm with pins class 2-3t

Class: 2-3 T
Width: 700
Adapter: with pins

ZMG

Skeleton bucket 700mm with pins class 2-3t

2,740.44 zł

In stock

The LAP-ZMG2-700-ZSW skeleton bucket with a working width of 700 mm is a specialist tool designed for small excavators in the 2–3 t class. It is excellent for soil screening, stone separation, and...

Class: 0-2 T
Width: 600
Adapter: CW05

ZMG

Skeleton bucket 600mm CW05 class 0-2t

1,983.99 zł

In stock

The LAP-ZMG1-600-CW05 skeleton bucket, 600 mm wide, was designed with mini and compact excavators up to 2 t in mind. The tool is ideal for separating stones from soil, recycling operations, and...

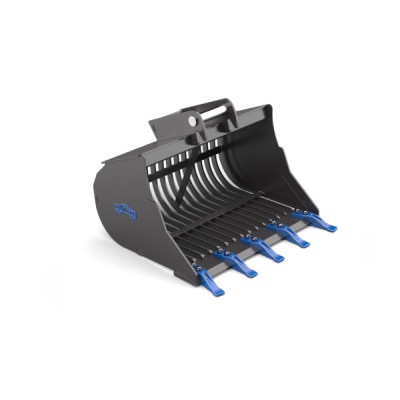

Skeleton bucket 600mm without adapter class 6-8t

Class: 6-9 T
Width: 600
Adapter: Without adapter

ZMG

Skeleton bucket 600mm without adapter class 6-8t

3,163.56 zł

In stock

Model LAP-ZMG4-600-WOA is a 600 mm skeleton bucket dedicated to excavators in the 6–8 t class. Its perforated structure enables efficient aggregate sorting, soil sieving, and selective material...

Class: 6-9 T
Width: 1100
Adapter: MS08

ZMG

Skeleton bucket 1100mm MS08 class 6-8t

5,876.94 zł

In stock

The LAP-ZMG4-1100-MS08 series is a 1100 mm skeleton bucket dedicated to excavators in the 6–8 t class. Openings in the base and sides let fine material fall through freely, making it indispensable...

Skeleton bucket 700mm S30/150 class 0-2t

Class: 0-2 T
Width: 700
Adapter: S30/150

ZMG

Skeleton bucket 700mm S30/150 class 0-2t

2,047.95 zł

In stock

The LAP-ZMG1-700-S30/150 skeleton bucket with a working width of 700 mm is a specialist tool designed for mini and compact excavators up to 2 t. It is excellent for soil screening, stone...

Class: 6-9 T
Width: 800
Adapter: S50

ZMG

Skeleton bucket 800mm S50 class 6-8t

4,617.42 zł

In stock

The LAP-ZMG4-800-S50 series is a 800 mm skeleton bucket dedicated to excavators in the 6–8 t class. Openings in the base and sides let fine material fall through freely, making it indispensable...

Skeleton bucket 1000mm MS03SY class 4-6t

Class: 4-6 T
Width: 1000
Adapter: MS03SY

Kalanto

Skeleton bucket 1000mm MS03SY class 4-6t

4,463.67 zł

In stock

The SBS-S4-V1-1000-MS03SY bucket is a strong and efficient ribbed construction designed for excavators in the 4–6-ton class. Its large ribbed working surface ensures excellent material flow,...

Skeleton bucket 1000mm MS08SY class 8-11t

Class: 6-9 T
Width: 1000
Adapter: MS08SY

ZMG

Skeleton bucket 1000mm MS08SY class 8-11t

7,616.16 zł

In stock

The LAP-ZMG5-1000-MS08SY skeleton bucket, 1000 mm wide, was designed with heavy excavators in the 8–11 t class in mind. The tool is ideal for separating stones from soil, recycling operations, and...

Skeleton bucket 900mm with pins class 3-6t

Class: 4-6 T
Width: 900
Adapter: with pins

ZMG

Skeleton bucket 900mm with pins class 3-6t

4,506.72 zł

In stock

Model LAP-ZMG3-900-ZSW is a 900 mm skeleton bucket dedicated to mini and compact excavators up to 2 t. Its perforated structure enables efficient aggregate sorting, soil sieving, and selective...

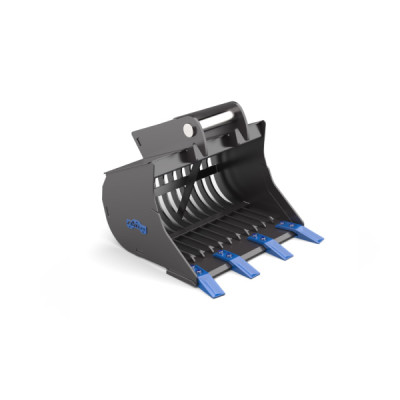

Skeleton bucket 500mm without adapter class 2-3t
