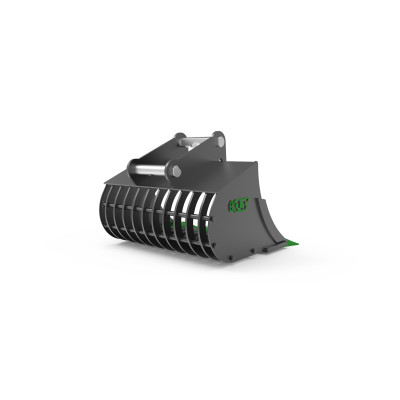

Skeleton bucket 600mm MS01SY class 0-2t
1,718.31 zł
Tax included
The SBS-S1-V1-600-MS01SY model is a lightweight skeleton bucket designed for mini excavators and compact machines weighing between 0 and 2 tons. Its special construction with an ribbed bottom allows for effective material screening, making it an ideal tool for separating stones, debris, and other unwanted fractions during earthworks.
Reinforced design and the use of wear-resistant materials ensure that the SBS-S1 bucket provides high durability and reliability, even during intensive operation.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 600 | 46 | 59 | 4 |
| 800 | 59 | 82 | 5 |
**The image is for illustrative purposes only. The order refers to the product described in the offer.

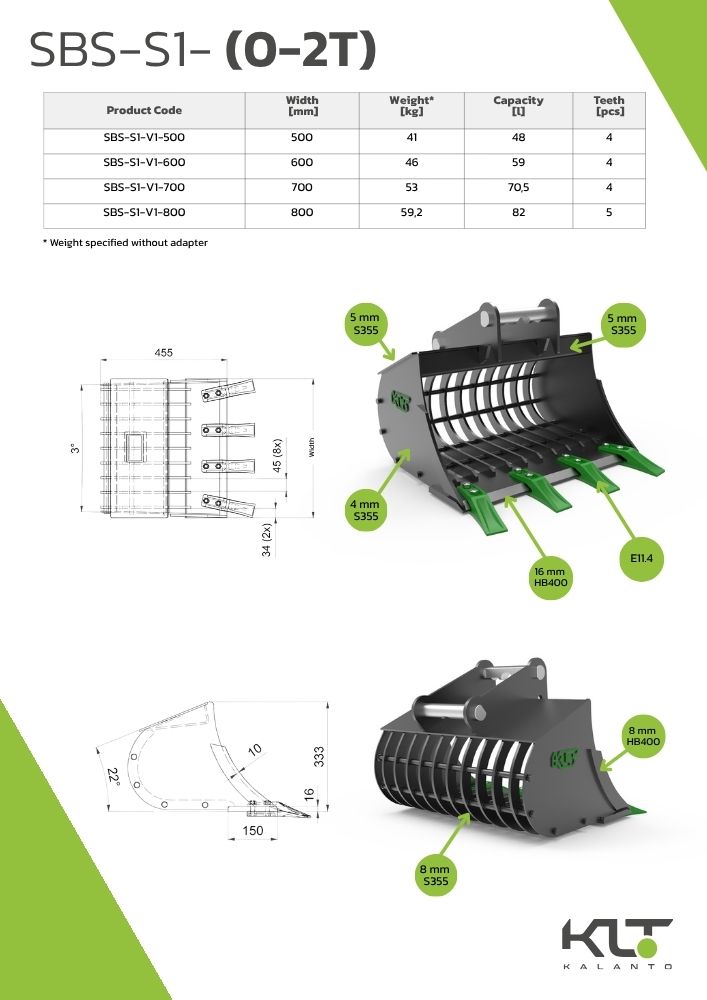

The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Ribs: | 8 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Rib spacing: | 45mm | - |
| Type | ||
| Teeth: | E11.4 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
SBS-S1-V1-600-MS01SY
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 0-2t
3-4t - Adapter
- MS01SY
- Width
- 600mm
- Weight without adapter
- 46kg
- Capacity
- 59 l
- Side/rear plate
- 4mm S355
- Side cutters
- 8mm HB400
- Ribs
- 8mm S355
- Rib spacing
- 45mm
- Cutting edge
- 16x150mm HB400
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 4pcs
- Type of teeth
- E11.4
