Class: 6-9 T
Width: 1200
Adapter: Without adapter

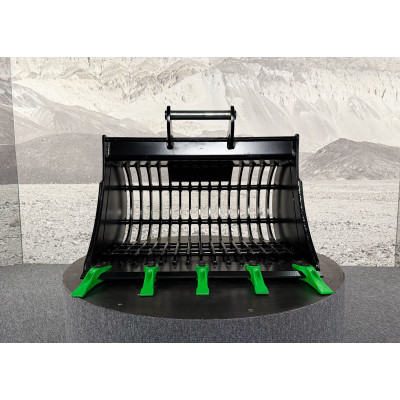

Skeleton bucket 1200mm without adapter class 6-9t

Skeleton bucket 1200mm without adapter class 6-9t

Name: Skeleton bucket 1200mm without adapter class 6-9t
Brand: Kalanto
SKU: SBS-S5-V1-1200-WOA
Price: 6657.99 PLN
Availability: InStock

6,657.99 zł

Tax included

In stock Lead time: up to 48 hours

Other models:

Width

Adapter

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Ribs:	12 mm	S355
Cutting edge:	20 x 220 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	12 mm	S355
Bend plate:	10 mm	S355
Rib spacing:	45mm	-
	Type
Teeth:	E25

The SBS-S5-V1-1200-WOA model is a large, heavy-duty skeleton bucket created for intensive use with 6–9-ton excavators. Its ribbed shell ensures effective separation of soil, rubble, stones and other unwanted fractions, significantly improving sorting and cleanup processes. With its refined construction, abrasion resistance and high structural rigidity, the bucket excels in earthmoving, land reclamation and all applications where material quality and screening performance are critical.

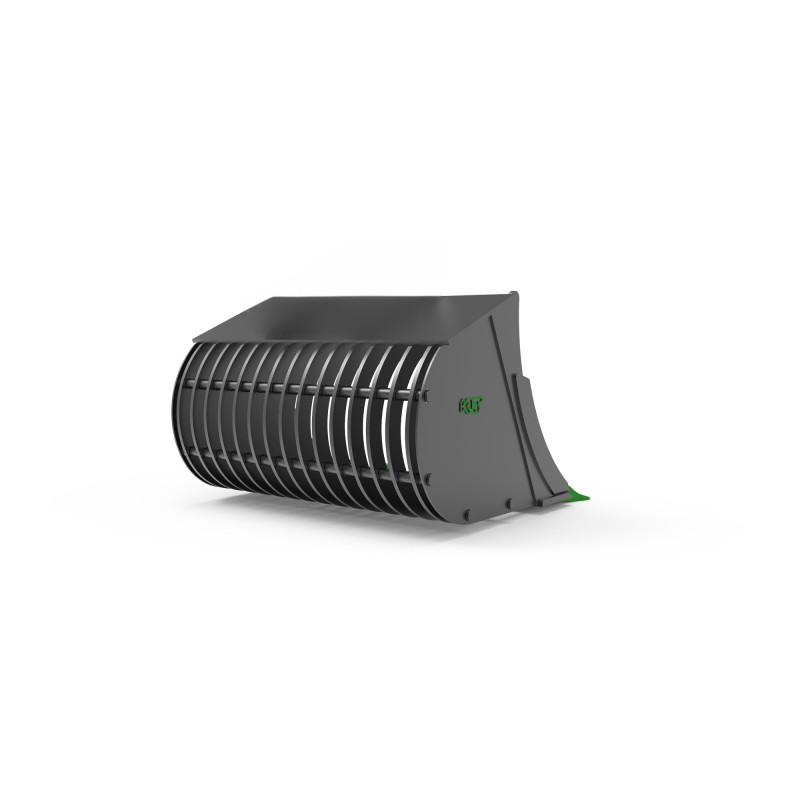

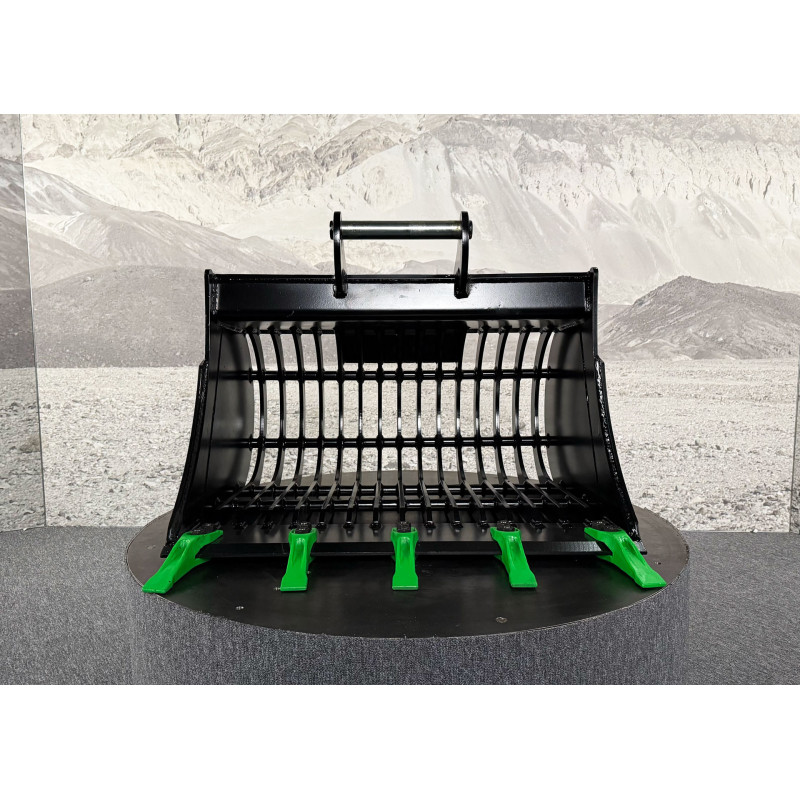

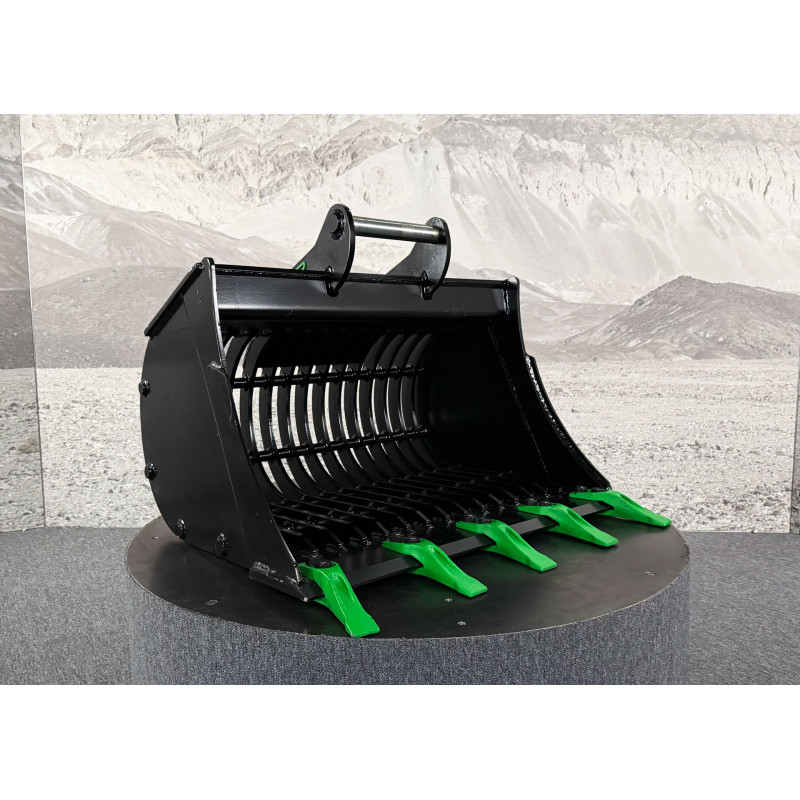

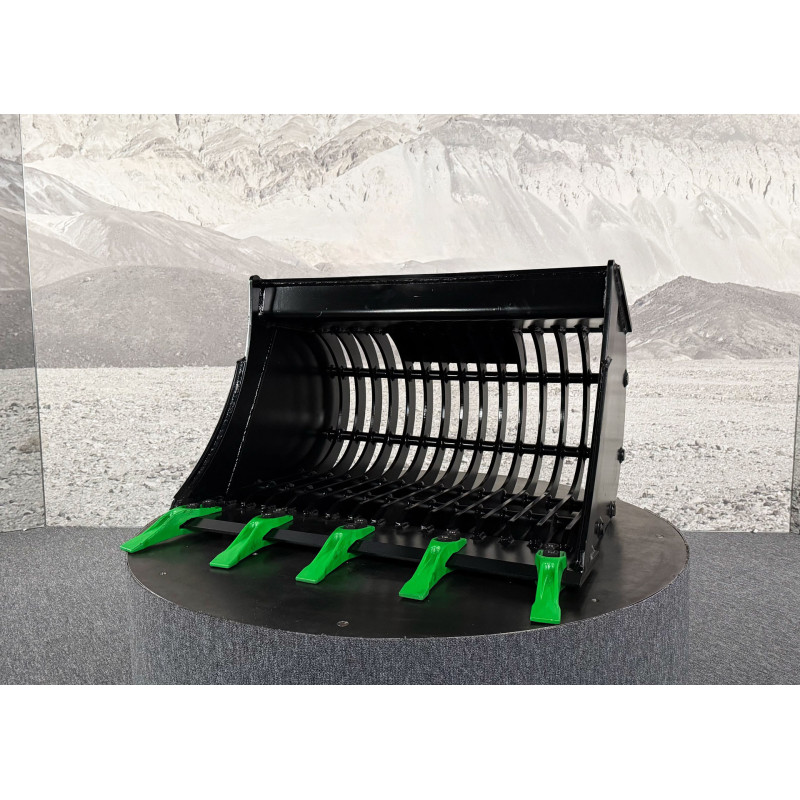

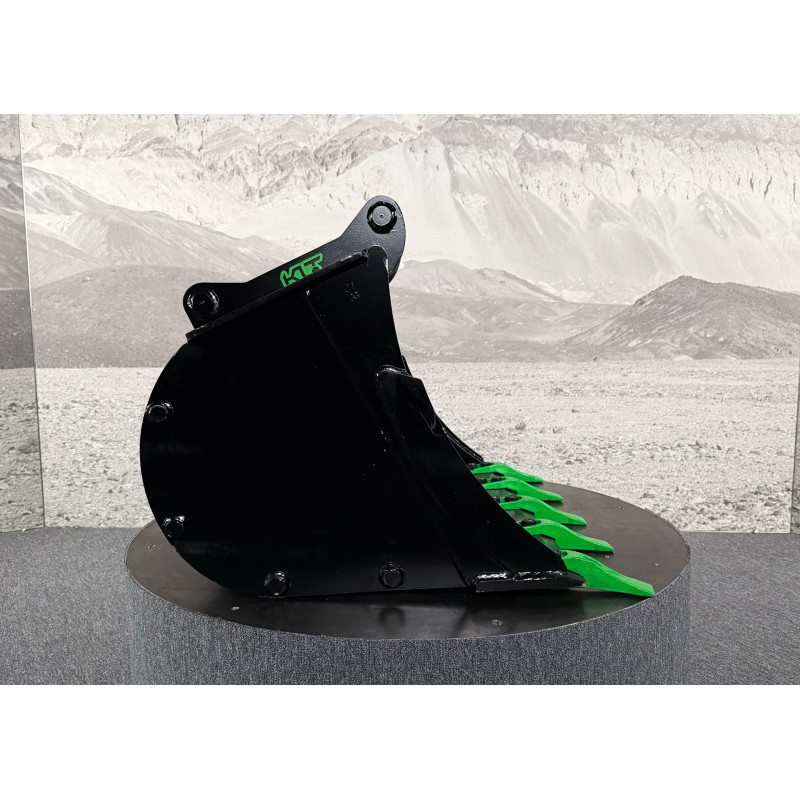

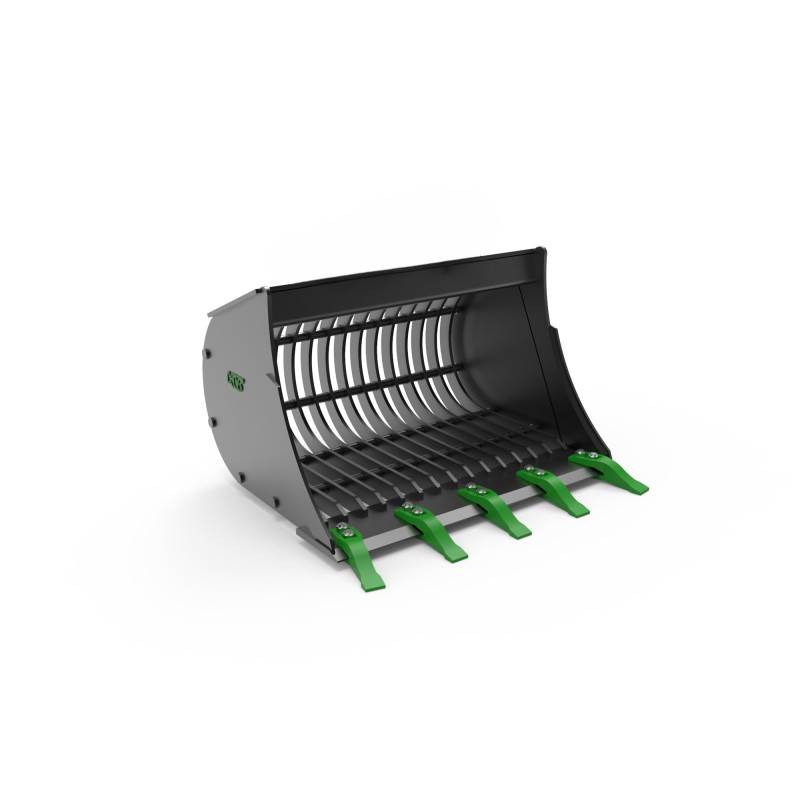

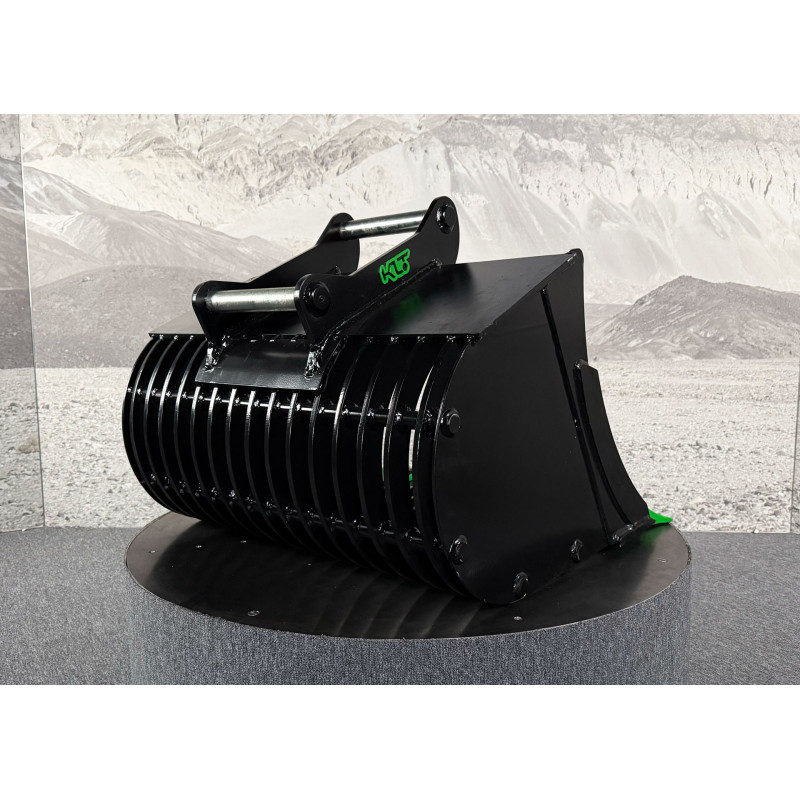

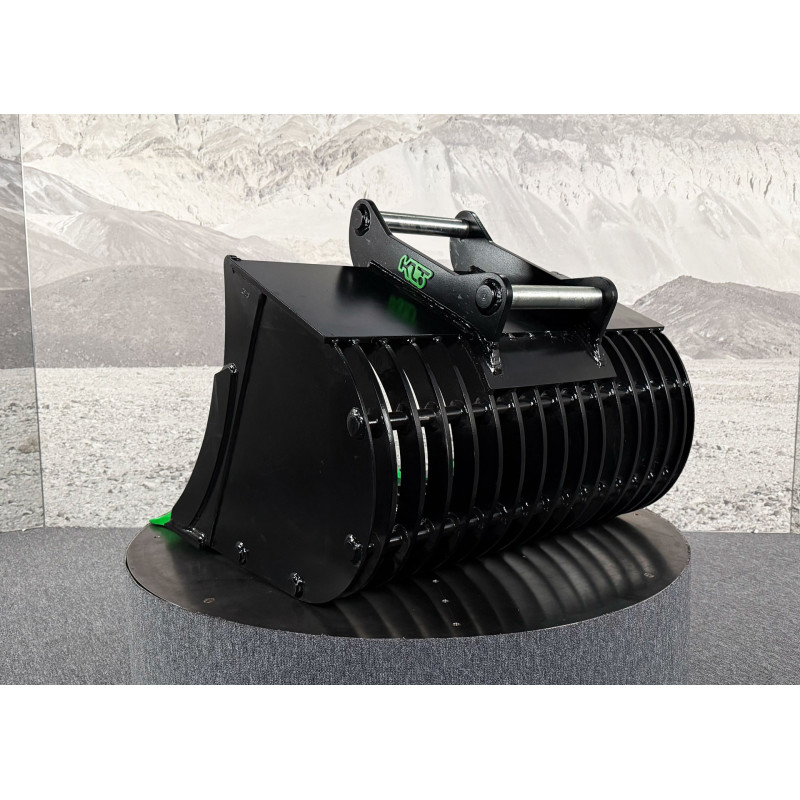

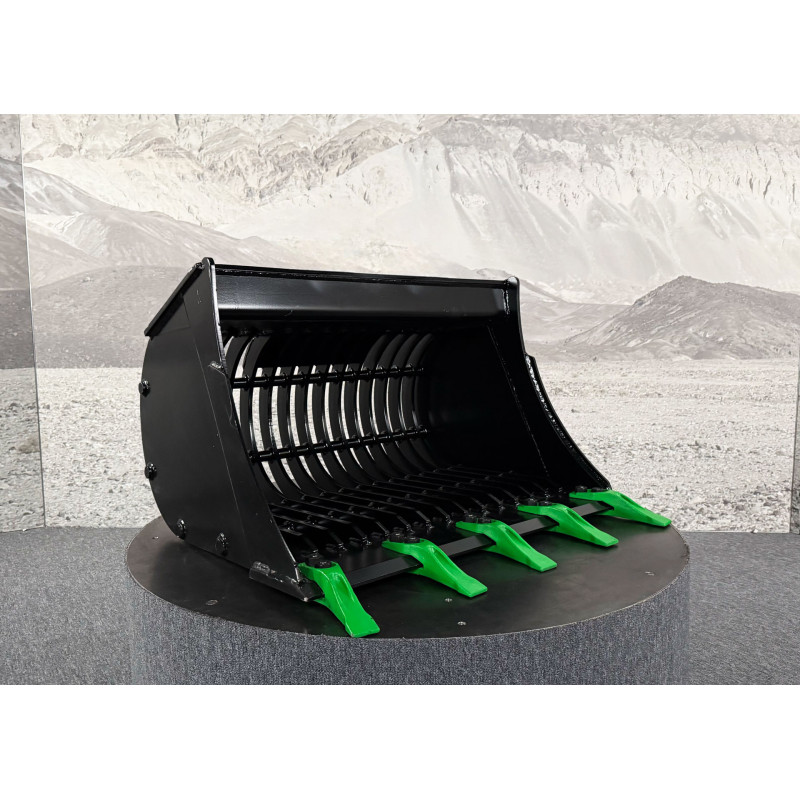

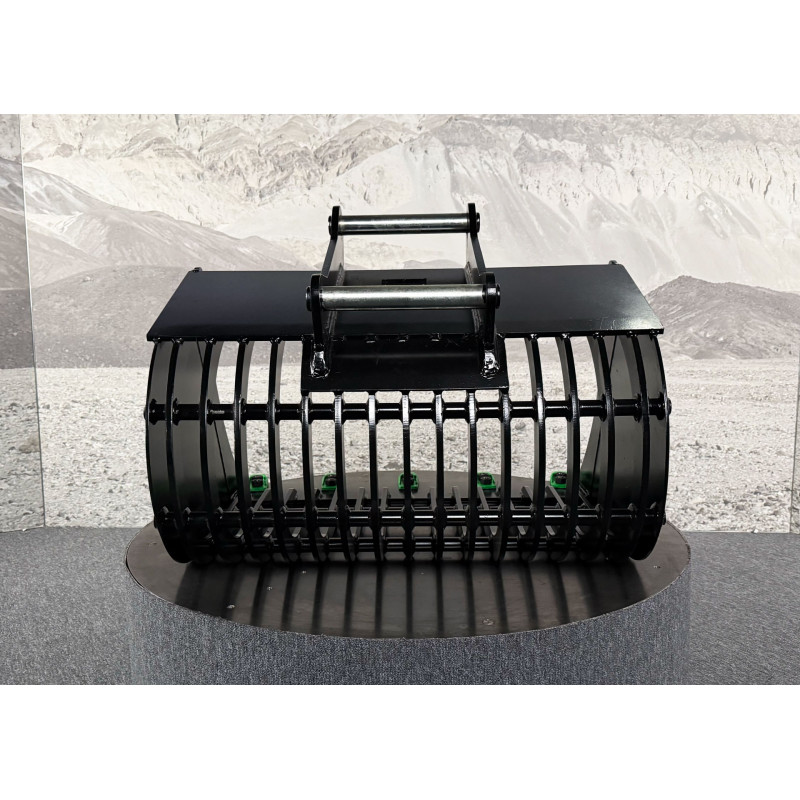

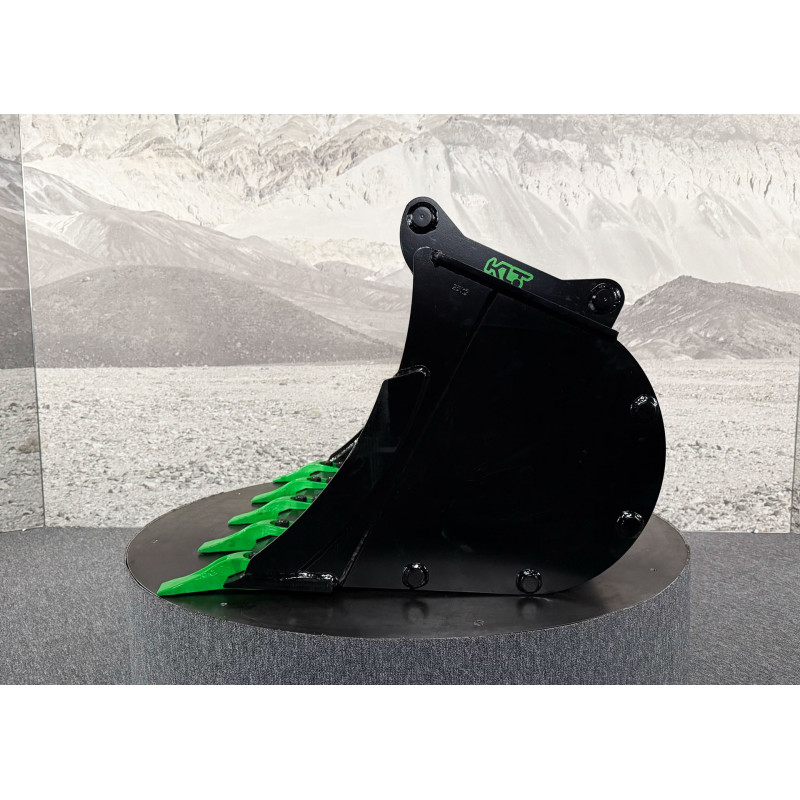

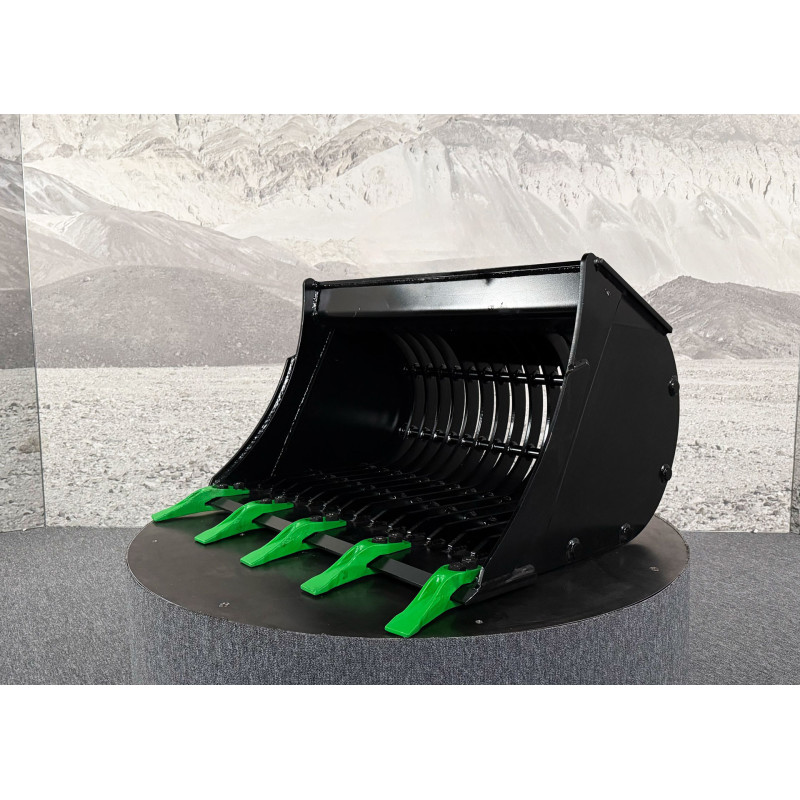

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference SBS-S5-V1-1200-WOA

Data sheet

Lead time: up to 48 hours
For the machine: 6-7
7-8
8-9
Adapter: Without adapter
Width: 1200
Weight without adapter: 272
Capacity: 394,6
Side/rear plate: 6 S355
Front side plate: 12 S355
Side cutters: 8 HB400
Ribs: 12 S355
Rib spacing: 45
Cutting edge: 20x200 HB400
Top plate: 12 S355
Bend plate: 10 S355
Number of teeth: 6
Type of teeth: E25

Specific References

EAN13: 5908159221954
