Class: 2-3 T
Width: 1000
Adapter: MS03SY

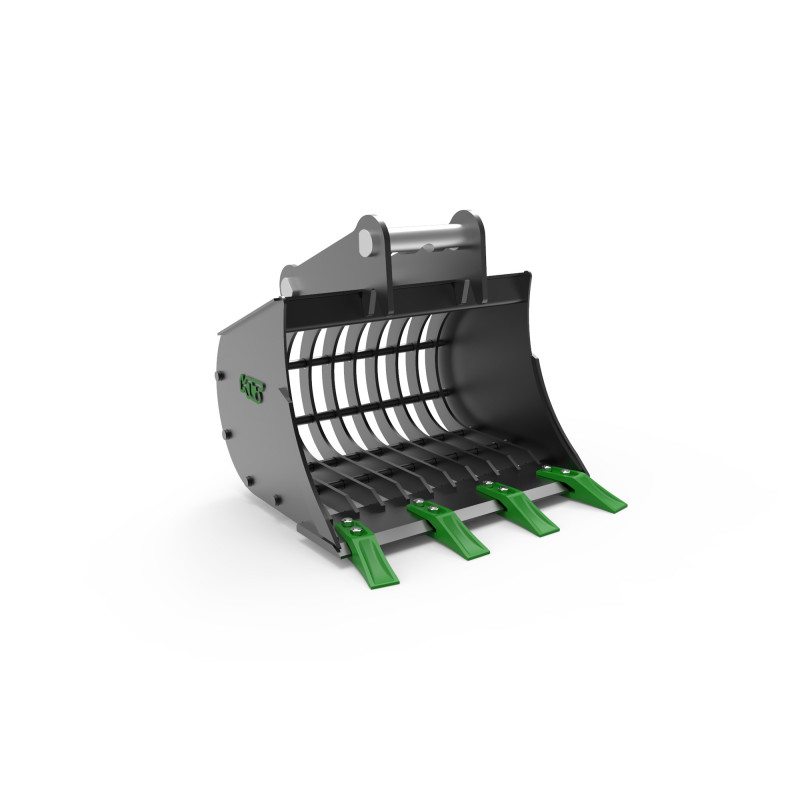

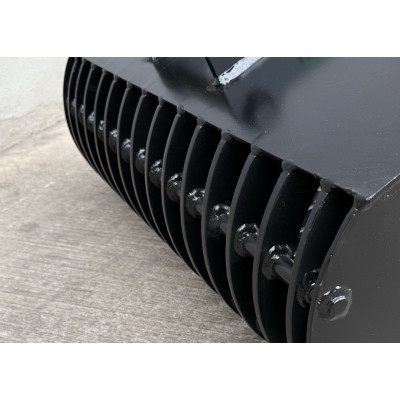

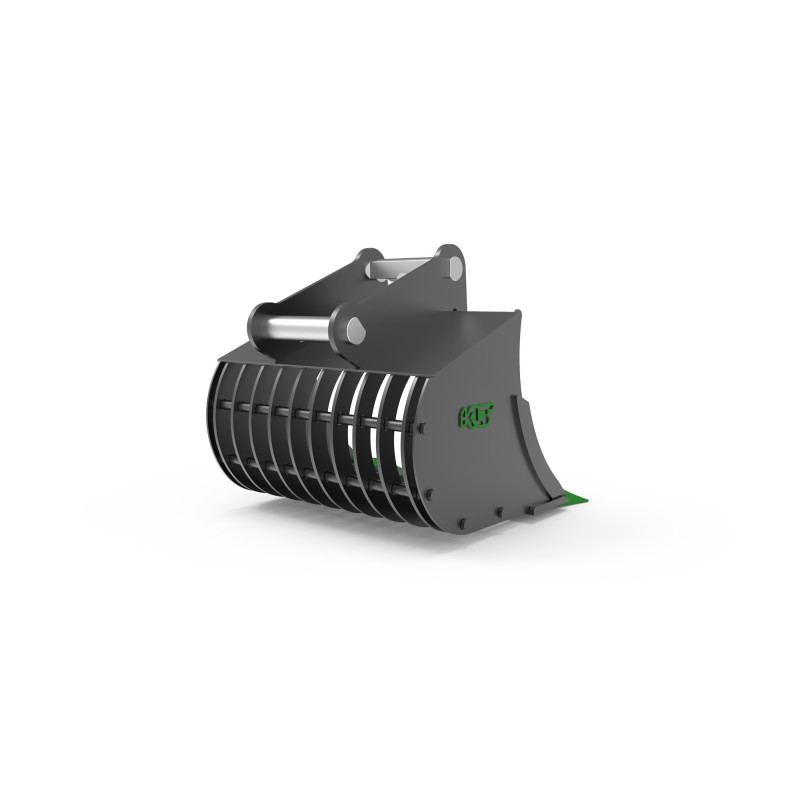

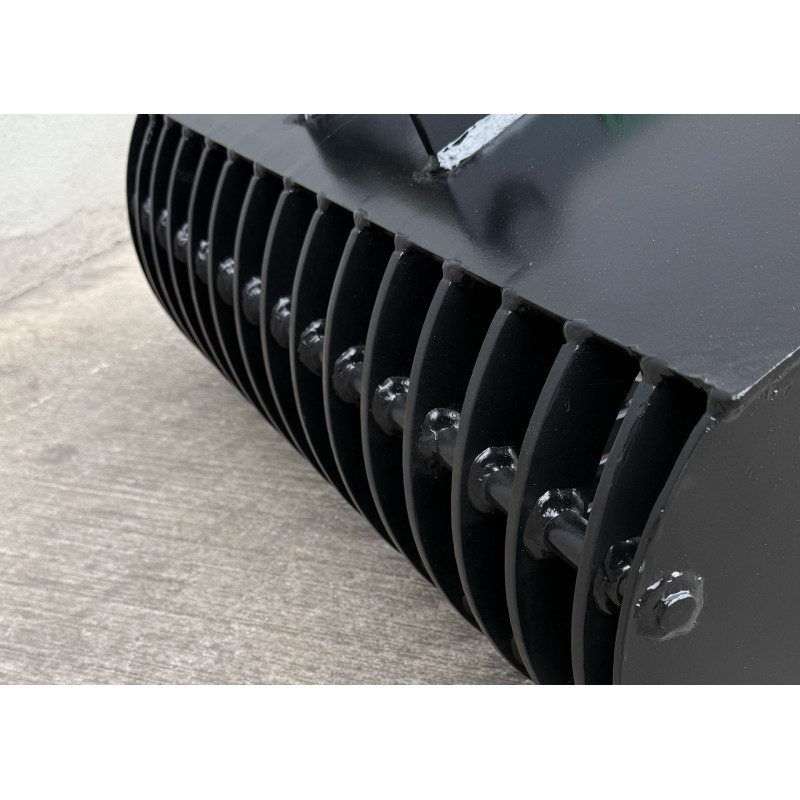

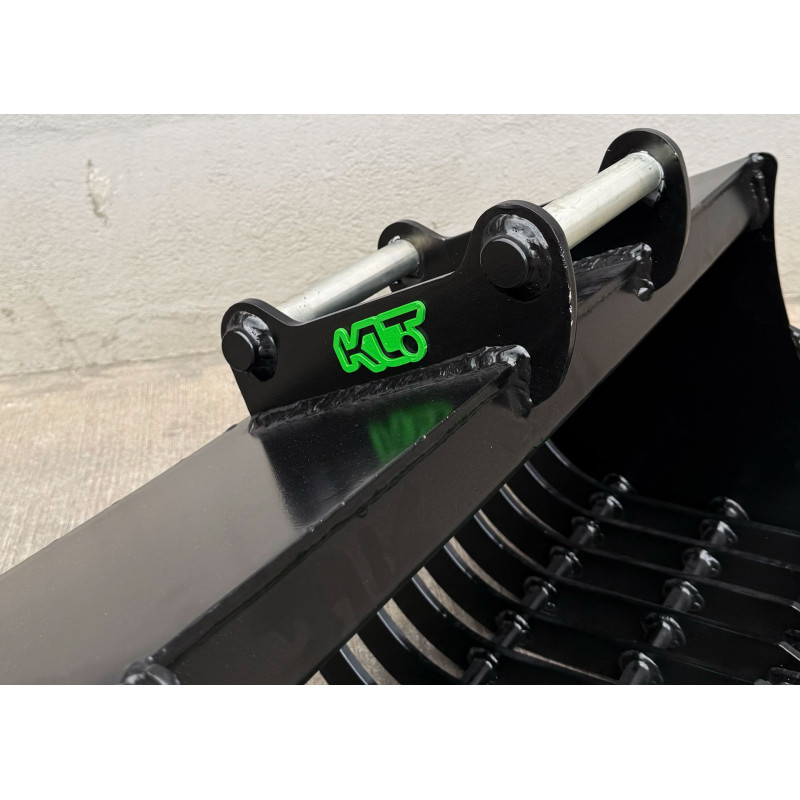

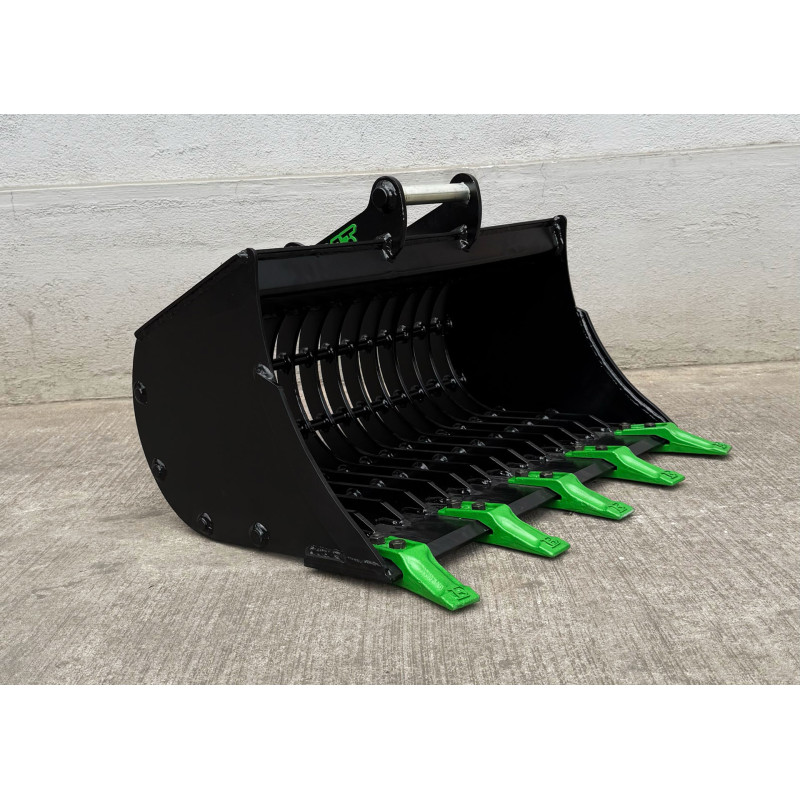

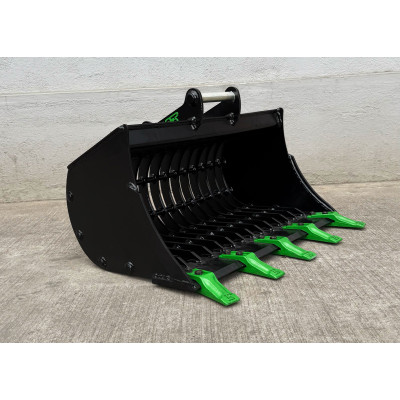

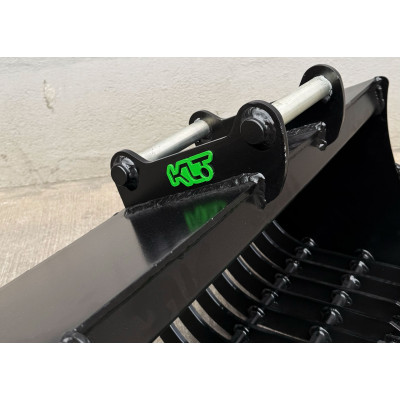

Skeleton bucket 1000mm MS03SY class 2-3t

Skeleton bucket 1000mm MS03SY class 2-3t

Skeleton bucket 1000mm MS03SY class 2-3t

Skeleton bucket 1000mm MS03SY class 2-3t

Skeleton bucket 1000mm MS03SY class 2-3t

Skeleton bucket 1000mm MS03SY class 2-3t

Skeleton bucket 1000mm MS03SY class 2-3t

Skeleton bucket 1000mm MS03SY class 2-3t

Skeleton bucket 1000mm MS03SY class 2-3t

Skeleton bucket 1000mm MS03SY class 2-3t

Skeleton bucket 1000mm MS03SY class 2-3t

3,070.08 zł

Tax included

In stock Lead time: up to 48 hours

Other models:

Width

Adapter

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Ribs:	8 mm	S355
Cutting edge:	16 x 150 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Rib spacing:	45mm	-
	Type
Teeth:	E11.4

The SBS-S2-V1-1000-MS03SY model is a screening skeleton bucket designed for mini excavators and compact excavators weighing between 2 and 3 tons. Its specially engineered ribbed structure allows for efficient separation of soil from larger fractions such as stones, rubble, and organic debris. Durable materials and well-thought-out geometry provide high resistance to wear and mechanical damage while maintaining low overall weight. It is ideal for gardening work, cleanup tasks, and light material sorting on construction sites.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference SBS-S2-V1-1000-MS03SY

Data sheet

Lead time: up to 48 hours
For the machine: 2-3
Adapter: MS03SY
Width: 1000
Weight without adapter: 97
Capacity: 145,5
Side/rear plate: 5 S355
Side cutters: 8 HB400
Ribs: 8 S355
Rib spacing: 45
Cutting edge: 16x150 HB400
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 5
Type of teeth: E11.4

Specific References

EAN13: 5908159221688
