  • Class: 2-3 T
  • Width: 700
  • Adapter: Without adapter
Skeleton bucket 700mm without adapter class 2-3t
Skeleton bucket 700mm without adapter class 2-3t
Skeleton bucket 700mm without adapter class 2-3t
Skeleton bucket 700mm without adapter class 2-3t
Skeleton bucket 700mm without adapter class 2-3t
    Skeleton bucket 700mm without adapter class 2-3t
    Skeleton bucket 700mm without adapter class 2-3t
    Skeleton bucket 700mm without adapter class 2-3t
    Skeleton bucket 700mm without adapter class 2-3t
    Skeleton bucket 700mm without adapter class 2-3t

Skeleton bucket 700mm without adapter class 2-3t

2,184.48 zł
Tax included
In stock Lead time: up to 3 business weeks

Other models:

Width
Adapter

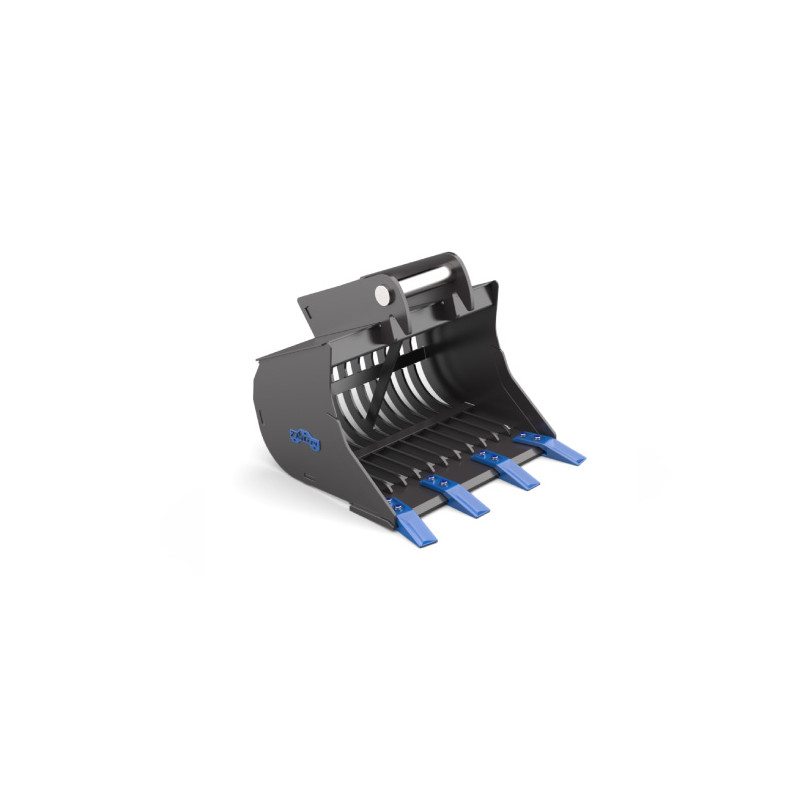

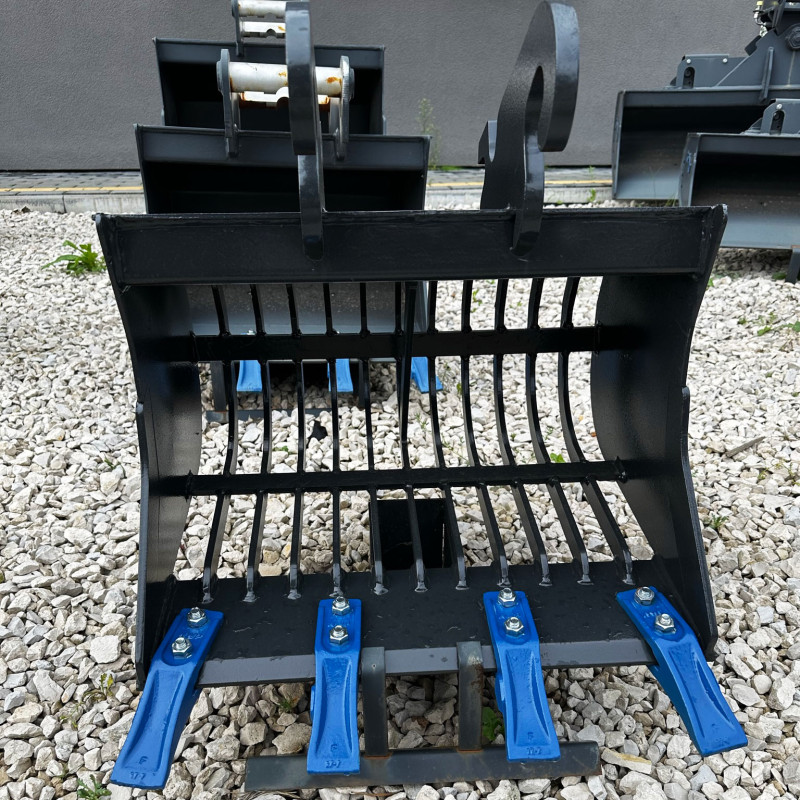

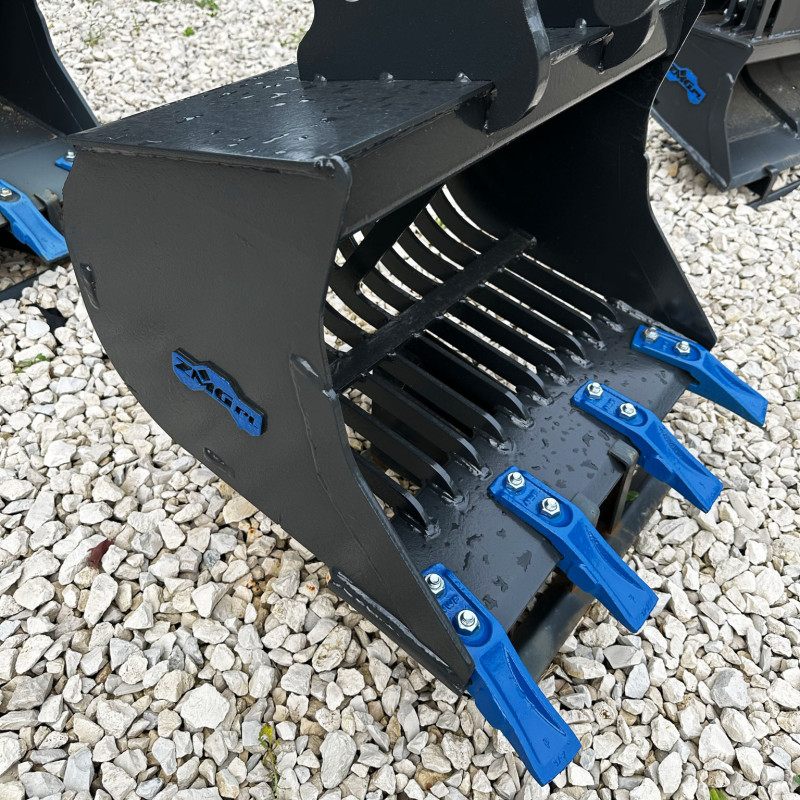

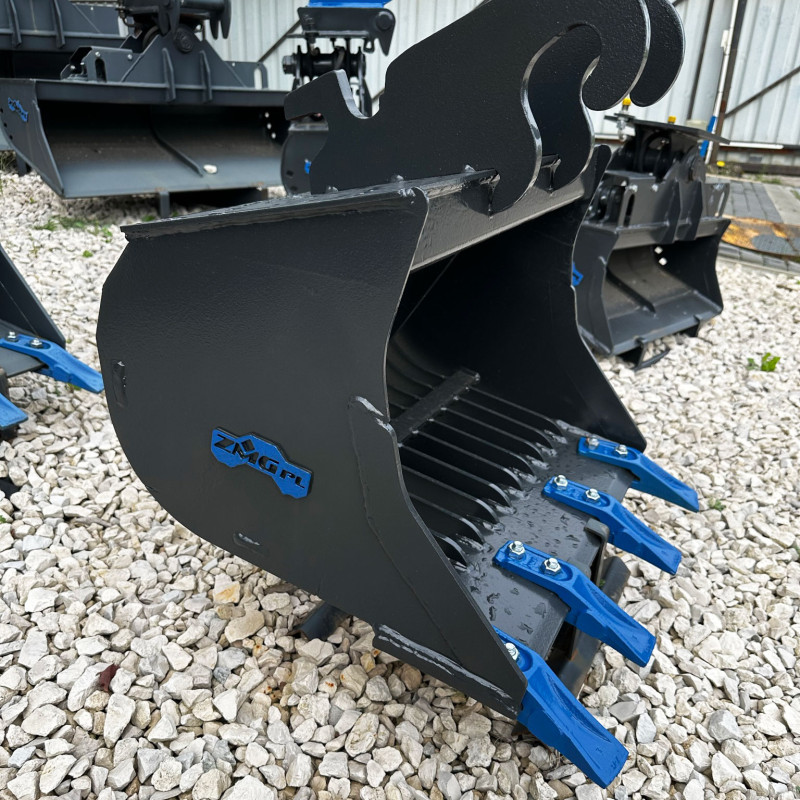

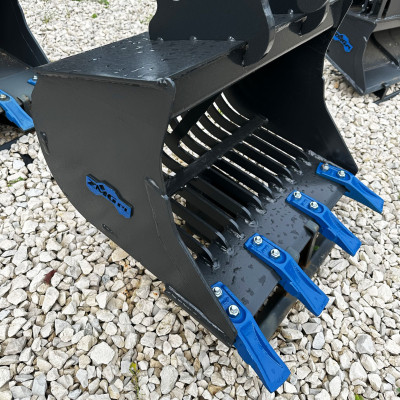

The LAP-ZMG2-700-WOA is a 700 mm skeleton bucket created for small excavators in the 2–3 t class. Its open structure allows efficient screening and material separation, essential for aggregate sorting, scrap handling, and secondary material processing. The adapterless version is designed for direct mounting on the excavator arm, eliminating intermediate components and reducing total attachment weight. The steel frame and reinforced S355 steel bars ensure long service life even when working with hard, abrasive materials.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Quantity
Add to wishlist

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG2

LAP-ZMG2-700-WOA

Data sheet

Lead time
up to 3 business weeks
For the machine
2-3
Adapter
Without adapter
Width
700
Weight without adapter
64
Capacity
100
Side/rear plate
5 S355
Side cutters
8 HB400
Ribs
8 S355
Rib spacing
40
Cutting edge
16 HB500
Top plate
5 S355
Bend plate
5 S355
Number of teeth
4
Type of teeth
JCB Mini
