Class: 6-9 T
Width: 900
Adapter: Without adapter

Skeleton bucket 900mm without adapter class 6-8t

Skeleton bucket 900mm without adapter class 6-8t

Name: Skeleton bucket 900mm without adapter class 6-8t
Brand: ZMG
SKU: LAP-ZMG4-900-WOA
Price: 4205.37 PLN
Availability: InStock

4,205.37 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
600	117	193	4
800	157	269	5
900	173	307	5
1000	190	345	5
1100	207	384	6
1200	224	430	6

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Ribs:	10 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	12 mm	HB400
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Rib spacing:	55 mm

	Type
Teeth:	JCB

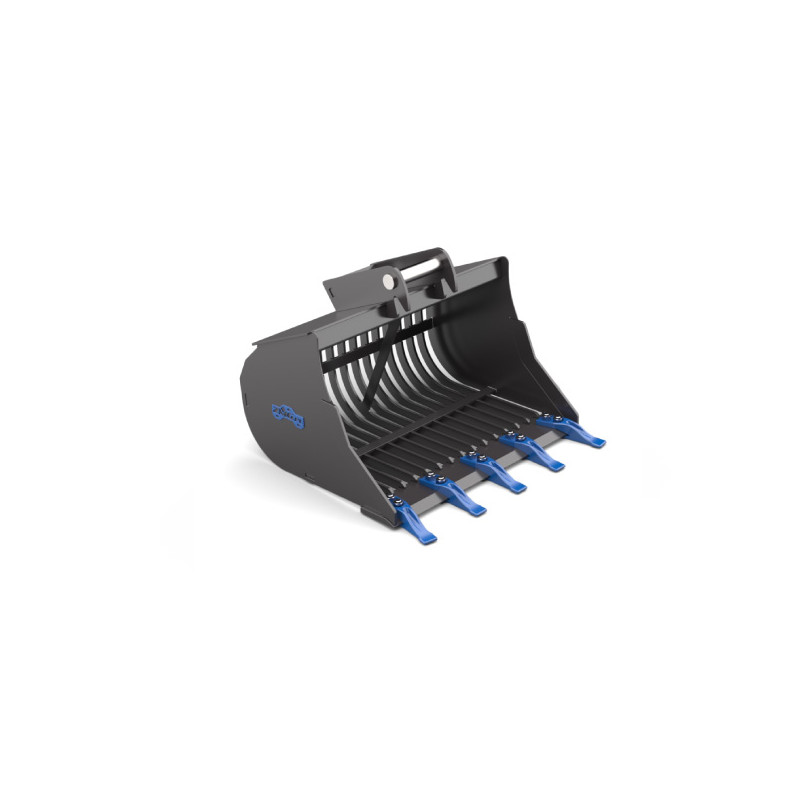

The LAP-ZMG4-900-WOA skeleton bucket, 900 mm wide, was designed with excavators in the 6–8 t class in mind. The tool is ideal for separating stones from soil, recycling operations, and collecting organic material in forest and agricultural settings. The adapterless version is designed for direct mounting on the excavator arm, eliminating intermediate components and reducing total attachment weight. High-quality steel and careful welding technology ensure the bucket retains its shape and working properties over a long service life.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG4

Reference LAP-ZMG4-900-WOA

Data sheet

Lead time: up to 3 business weeks
For the machine: 6-7
7-8
Adapter: Without adapter
Width: 900
Weight without adapter: 173
Capacity: 307
Side/rear plate: 6 S355
Side cutters: 12 HB400
Ribs: 10 S355
Rib spacing: 55
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 5
Type of teeth: JCB
