Class: 0-2 T
Width: 800
Adapter: MS01SY

Skeleton bucket 800mm MS01SY class 0-2t

Name: Skeleton bucket 800mm MS01SY class 0-2t
Brand: ZMG
SKU: LAP-ZMG1-800-MS01SY
Price: 2428.02 PLN
Availability: InStock

2,428.02 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
500	41	49	4
600	48	61	4
700	54	73	4
800	61	85	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Ribs:	8 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Rib spacing:	40 mm

	Type
Teeth:	JCB Mini

The LAP-ZMG1-800-MS01SY is a 800 mm skeleton bucket created for mini and compact excavators up to 2 t. Its open structure allows efficient screening and material separation, essential for aggregate sorting, scrap handling, and secondary material processing. The hydraulic Lehnhoff MS01SY quick coupler allows attachment changes directly from the cab without leaving the machine – maximum convenience and safety. High-quality steel and careful welding technology ensure the bucket retains its shape and working properties over a long service life.

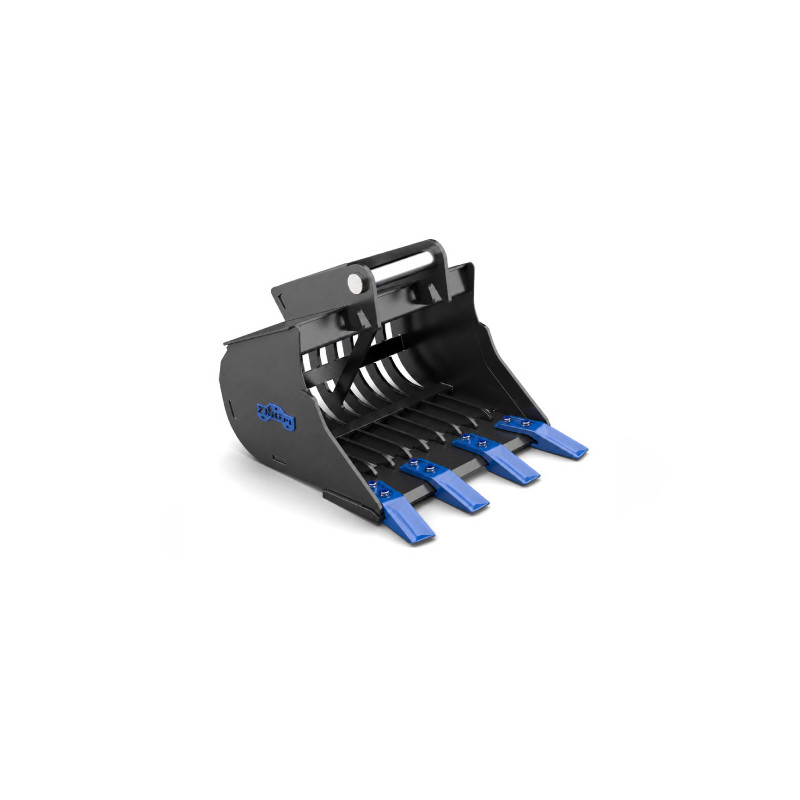

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG1

Reference LAP-ZMG1-800-MS01SY

Data sheet

Lead time: up to 3 business weeks
For the machine: 0-1
1-2
Adapter: MS01SY
Width: 800
Weight without adapter: 61
Capacity: 85
Side/rear plate: 4 S355
Side cutters: 8 HB400
Ribs: 8 S355
Rib spacing: 40
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 5
Type of teeth: JCB Mini
