Hydraulic ditch cleaning bucket 1400mm MS03SY class 2-3t
4,493.19 zł
Tax included

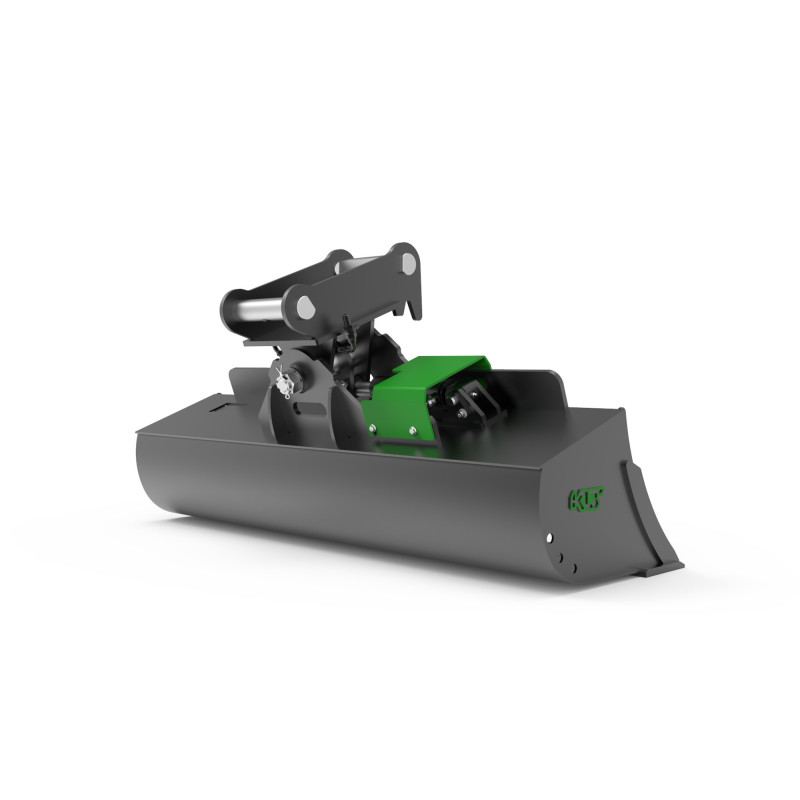

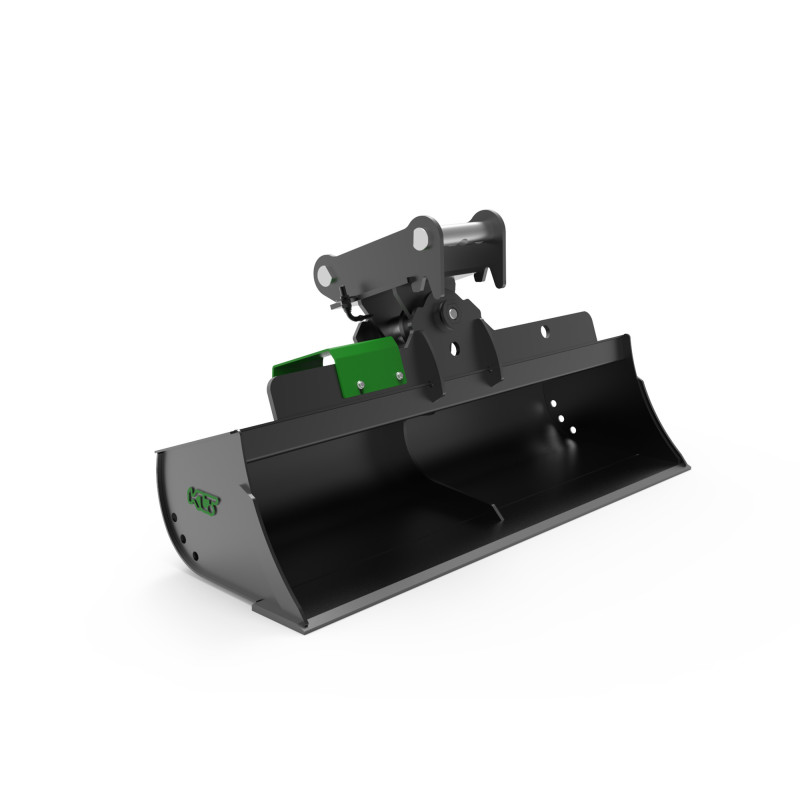

The THBS-S2-V1-1400-MS03SY hydraulic tilt bucket is engineered for mini excavators and compact machines weighing 2–3 tons. Its built-in hydraulic cylinder enables accurate side tilting, making it easier to grade surfaces, form slopes, and clean ditches without moving the excavator. With its well-designed proportions and sturdy construction, the bucket provides excellent work efficiency and resistance to intensive loads. It performs exceptionally well in both cleanup operations and tasks requiring high precision.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 133 | 144,1 |
| 1400 | 146 | 170,2 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Internal reinforcement: | 10mm | S355 |
| Type | ||
| Hydraulic connectors: | M14x1.5. |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
THBS-S2-V1-1400-MS03SY
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 2-3t
- Adapter
- MS03SY
- Width
- 1400mm
- Weight without adapter
- 146kg
- Capacity
- 170,2 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
- Hydraulic connectors
- M14x1.5
