Reference: AD-WOP-M10
The AD-WOP-M10 model, compatible with the Martin M10 system, offers functionality in a version without a base plate. It is a durable, precisely manufactured adapter that enables quick mounting of large attachments, ensuring high performance and reliable operation in demanding conditions.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 200 | 215 |
| 1300 | 210 | 235 |
| 1400 | 220 | 254 |
| 1500 | 230 | 273 |
| 1600 | 240 | 293 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 8 mm | S355 |
| Type | ||
| Hydraulic connectors: | M18x1.5 |

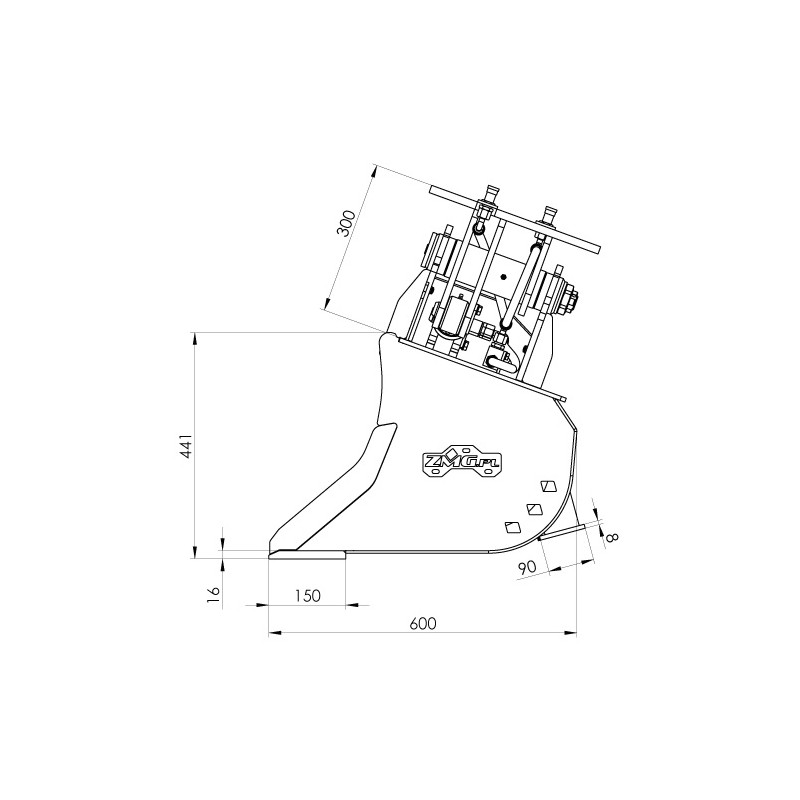

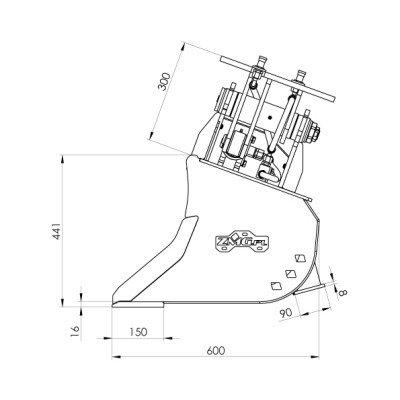

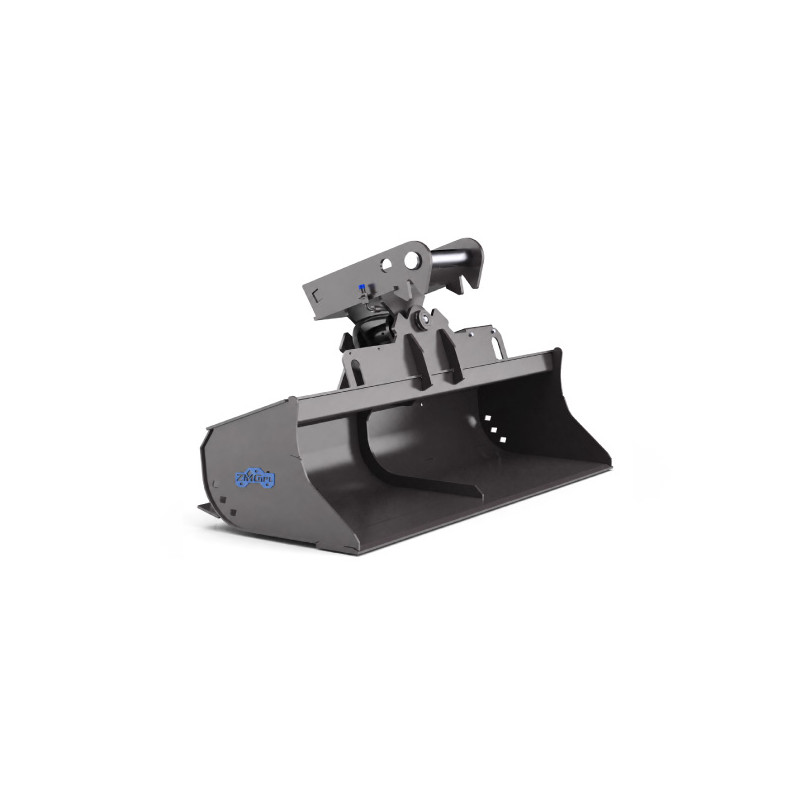

Model LSH-ZMG4-1600-M10 is a 1600 mm hydraulic ditch cleaning bucket dedicated to excavators in the 6–10 t class. The hydraulically adjustable working angle allows slope forming at any inclination, ditch cleaning, and finishing work from a single operator position. The MartinM10 adapter ensures M10 system compatibility, allowing seamless attachment mounting on machines equipped with this standard. High-quality steel and precision hydraulic system manufacturing ensure the hydraulic bucket maintains full functionality over a long period of intensive use.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
