- Class: 4-6 T
- Width: 1300
- Adapter: CW10
Kalanto
293 products
ZMG
886 products
Solid Hitch
117 products
Ray Attachments
41 products
Zixor
View brand
Product catalogues
View and download →
Product catalogues
View and download →
Reference: AD-WOP-CW10
The AD-WOP-CW10 is a base-plate-free design fully compatible with the Verachtert CW10 standard. It ensures quick and secure connection of work tools and maintains durability even under intensive use. A practical option for operators who prefer a lighter and more flexible setup.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] |
Pin spacing [mm] |
|
|---|---|---|---|
| CW05 | 40 | 180 | 200 |
| CW10 | 50 | 320 | 300 |
| CW20/30/40 | 60 | 560 | 475 |
The main components are made of the following materials and thicknesses:
| CW05 | CW10 | CW20/30/40 | ||||
| Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 20mm | S355 | 20mm | S355 | 35mm | HB400 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 164 | 172 |
| 1300 | 172 | 187 |
| 1400 | 180 | 202 |
| 1500 | 188 | 217 |
| 1600 | 197 | 232 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 6 mm | S355 |
| Type | ||
| Hydraulic connectors: | M18x1.5 |

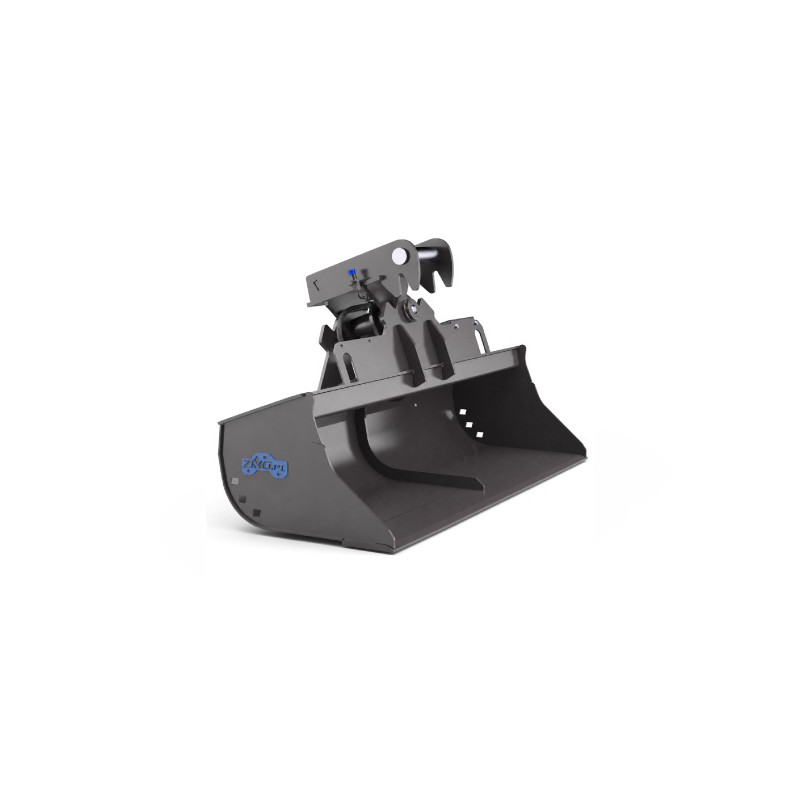

The LSH-ZMG3-1300-CW10 hydraulic ditch cleaning bucket, 1300 mm wide, is a versatile tool for medium-class excavators of 4–6 t. Its hydraulically adjustable angle makes it ideal for slope profiling, cross-section shaping, and drainage ditch work. The Verachtert CW10 quick coupler system, designed for heavier applications, provides reliable and stable attachment-to-machine connection. S355 steel construction, reinforced edges, and a reliable hydraulic cylinder guarantee working precision and long tool life even in demanding terrain.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
