Reference: AD-WOP-MS03
Based on the Lehnhoff MS03 standard, the AD-WOP-MS03 is a base-plate-free design offering high durability and quick tool coupling. It guarantees smooth operation even in demanding working conditions.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] |
Pin spacing* [mm] |
|
|---|---|---|---|
| MS01 | 40 | 185 | 225 |
| MS01SY | 40 | 185 | 255 |
| MS03 | 50 | 205 | 283,6 |
| MS03SY | 50 | 205 | 322 |
| MS08 | 60 | 295 | 381 |
| MS08SY | 60 | 297 | 434 |
The main components are made of the following materials and thicknesses:
| MS01 | MS01SY | MS03 | MS03SY | MS08 | MS08SY | |||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 10mm | S355 | 12mm | S355 | 12mm | S355 | 16mm | S355 | 16mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 164 | 172 |
| 1300 | 172 | 187 |
| 1400 | 180 | 202 |
| 1500 | 188 | 217 |
| 1600 | 197 | 232 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 6 mm | S355 |
| Type | ||
| Hydraulic connectors: | M18x1.5 |

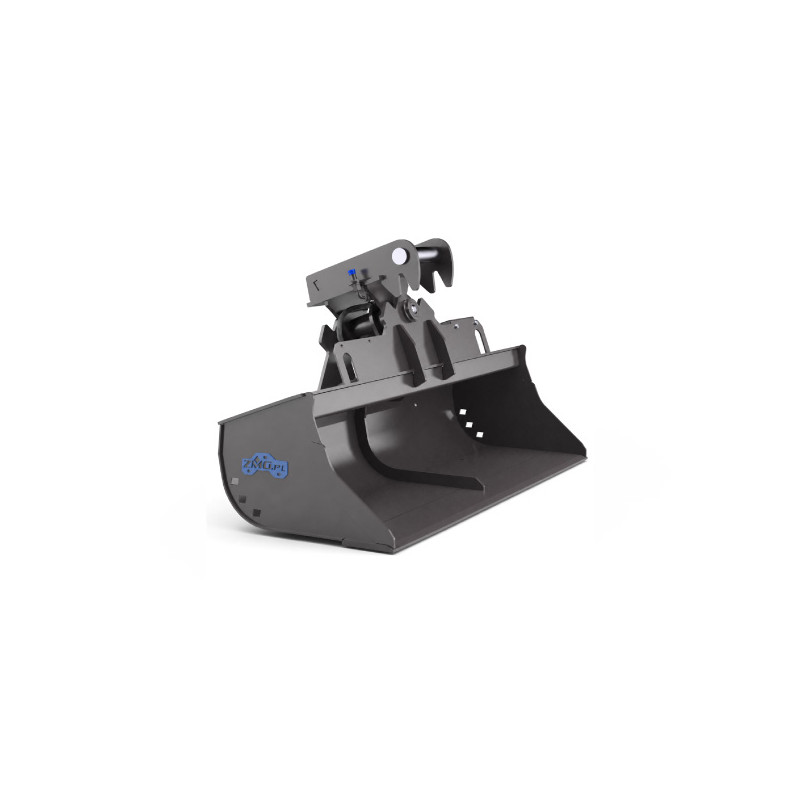

The LSH-ZMG3-1600-MS03 is a 1600 mm hydraulic ditch cleaning bucket for medium-class excavators of 4–6 t. Hydraulic angle adjustment allows precise forming of slopes, excavations, ditches, and any variable-gradient feature without repositioning the excavator. The Lehnhoff MS03 quick coupler provides reliable attachment and efficient tool changes for medium-class machines. S355 steel construction, reinforced edges, and a reliable hydraulic cylinder guarantee working precision and long tool life even in demanding terrain.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
