- Class: 3-4 T
- Width: 1300
- Adapter: Without adapter
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1000 | 106 | 111 |
| 1100 | 111 | 123 |
| 1200 | 117 | 135 |
| 1300 | 122 | 146 |
| 1400 | 128 | 158 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Type | ||
| Hydraulic connectors: | M18x1.5 |

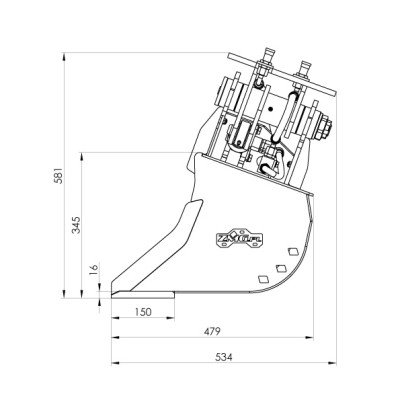

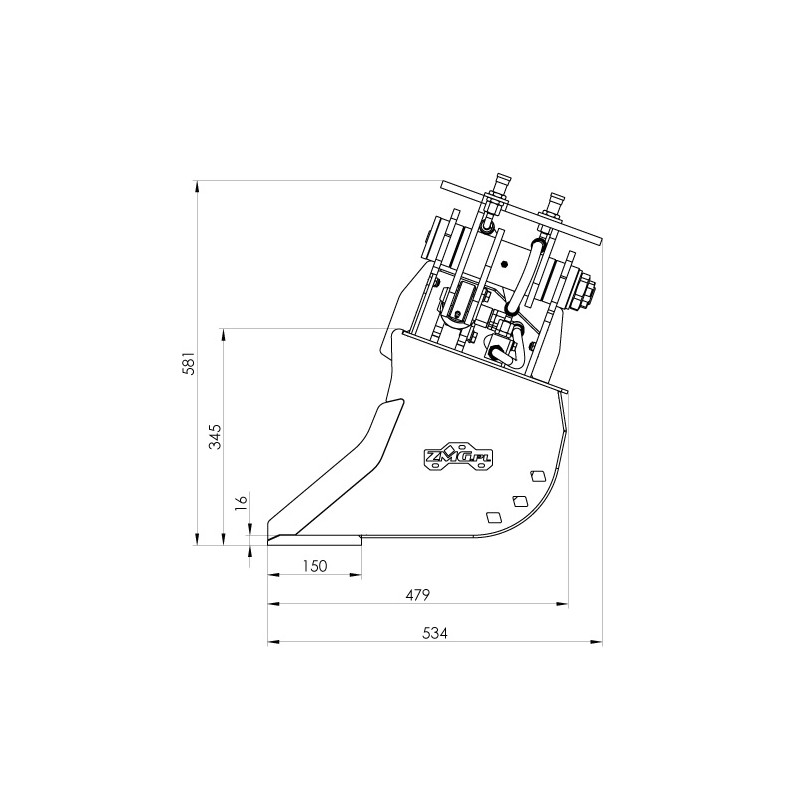

The LSH-ZMG2-1300-WOA is a 1300 mm hydraulic ditch cleaning bucket for excavators in the 2–4 t class. Hydraulic angle adjustment allows precise forming of slopes, excavations, ditches, and any variable-gradient feature without repositioning the excavator. The adapterless version is designed for direct mounting on the excavator arm, eliminating intermediate components and reducing total attachment weight. High-quality steel and precision hydraulic system manufacturing ensure the hydraulic bucket maintains full functionality over a long period of intensive use.

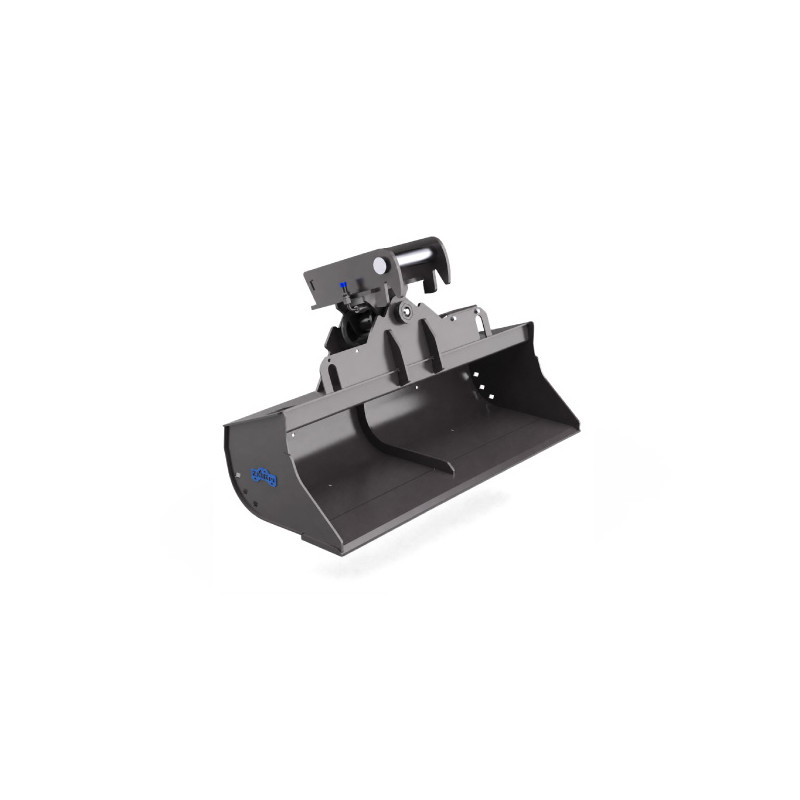

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Data sheet
