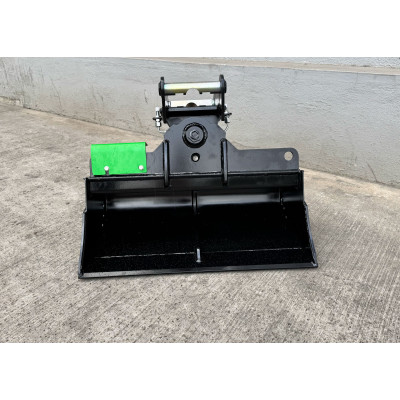

Hydraulic ditch cleaning bucket 800mm S30/180 class 0-2t
2,778.57 zł
Tax included
The THBS-S1-V1-800-S30/180 is a lightweight and practical hydraulic tilting grading bucket dedicated to mini excavators up to 2 tons. It excels in precision finishing, cleaning narrow terrain areas and shaping small slopes or ditches. The hydraulic cylinder enables smooth working-angle adjustment, enhancing accuracy and job efficiency. A strong and well-built structure guarantees a long service life even during heavy operation.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 800 | 88 | 68,5 |
| 1000 | 97 | 86,5 |
| 1200 | 108 | 104,5 |
* The given bucket weight does not include the weight of the adapter.

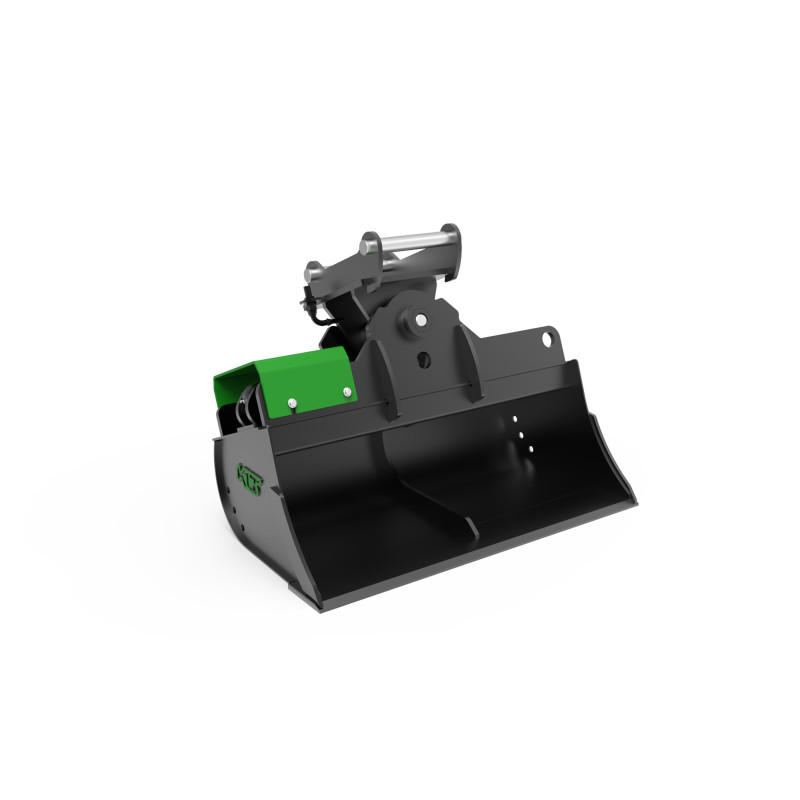

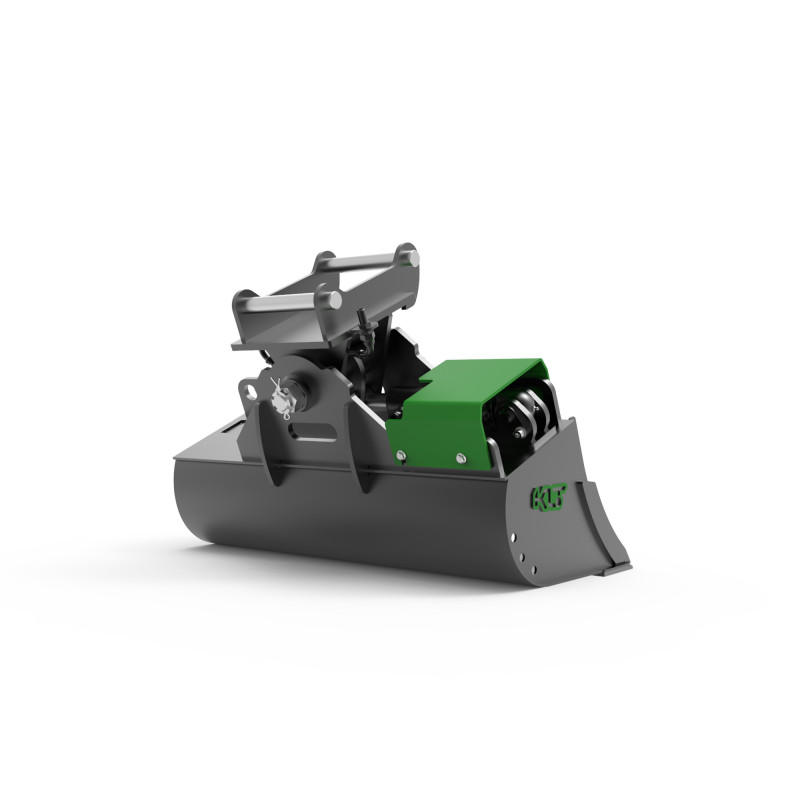

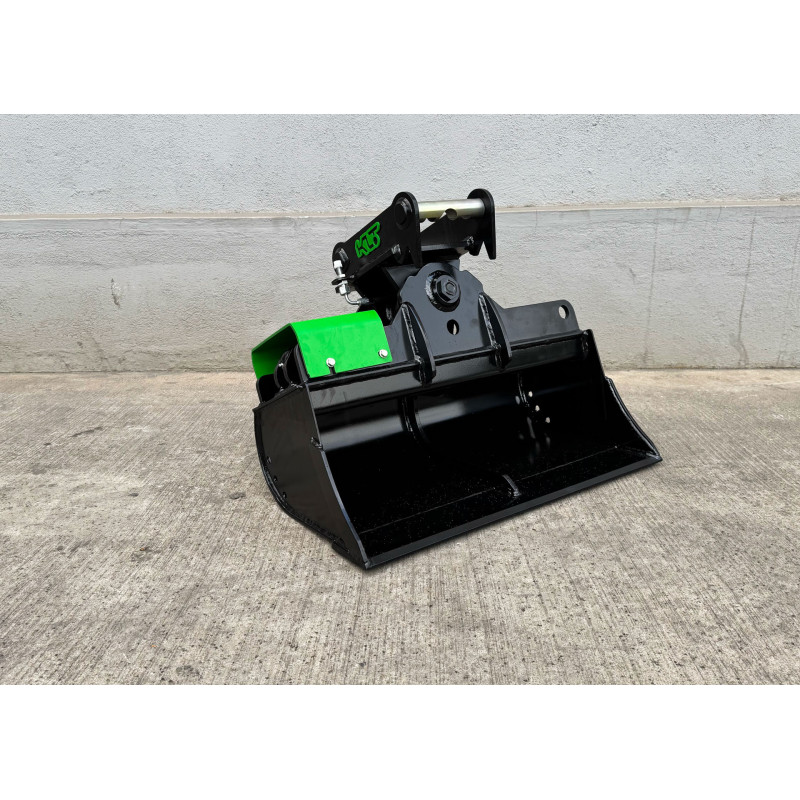

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 12 x 110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Internal reinforcement: | 10mm | S355 |
| Type | ||

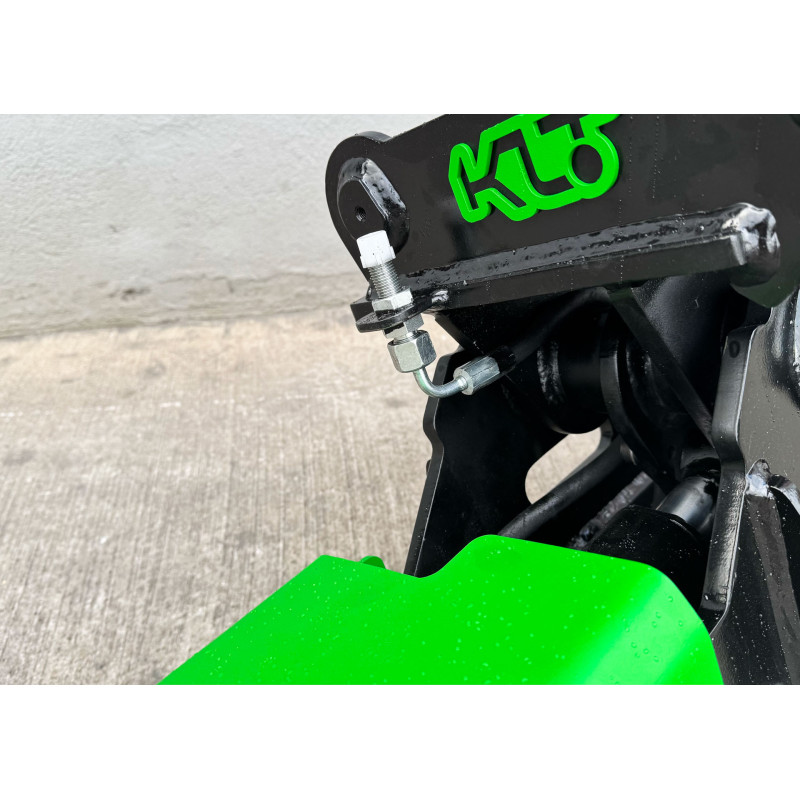

| Hydraulic connectors: | M14x1.5. |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
THBS-S1-V1-800-S30/180
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 0-2t
3-4t - Adapter
- S30/180
- Width
- 800mm
- Weight without adapter
- 88kg
- Capacity
- 68,5 l
- Side/rear plate
- 4mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 4mm S355
- Cutting edge
- 12x110mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
- Hydraulic connectors
- M14x1.5
