- Class: 0-2 T
- Width: 800
- Adapter: MS01SY
Reference: AD-WOP-MS01SY
The AD-WOP-MS01SY adapter, compliant with the MS01SY system, allows fast tool switching without the need for a base plate. It is an ideal option for users seeking maximum functionality, minimal weight, and high versatility.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] |
Pin spacing* [mm] |
|
|---|---|---|---|
| MS01 | 40 | 185 | 225 |
| MS01SY | 40 | 185 | 255 |
| MS03 | 50 | 205 | 283,6 |
| MS03SY | 50 | 205 | 322 |
| MS08 | 60 | 295 | 381 |
| MS08SY | 60 | 297 | 434 |
The main components are made of the following materials and thicknesses:
| MS01 | MS01SY | MS03 | MS03SY | MS08 | MS08SY | |||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 10mm | S355 | 12mm | S355 | 12mm | S355 | 16mm | S355 | 16mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 800 | 84 | 59 |
| 900 | 88 | 70 |
| 1000 | 93 | 75 |
| 1100 | 97 | 83 |
| 1200 | 102 | 91 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 12 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Type | ||

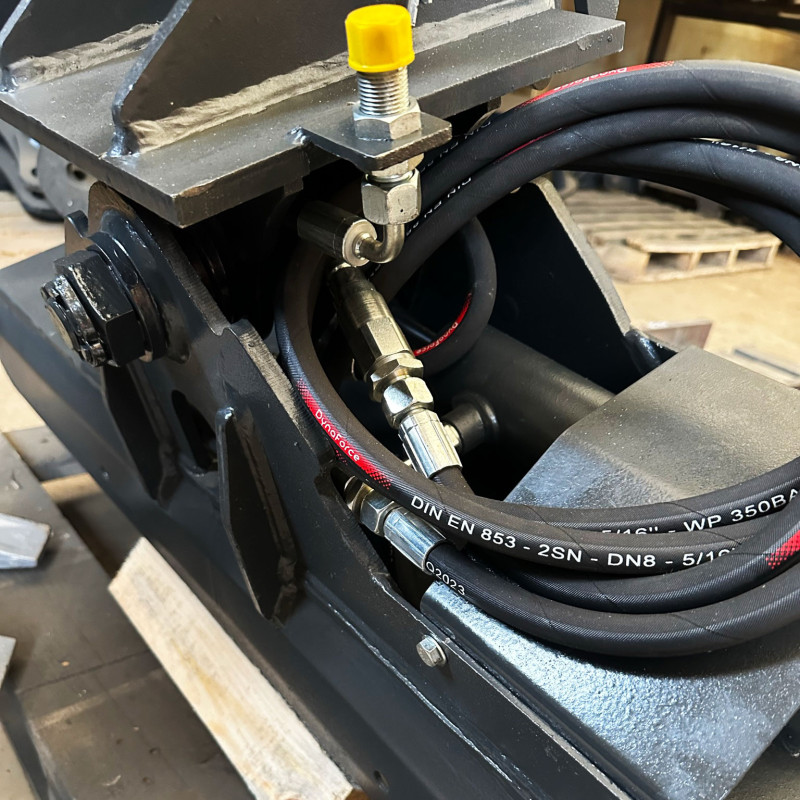

| Hydraulic connectors: | M18x1.5 |

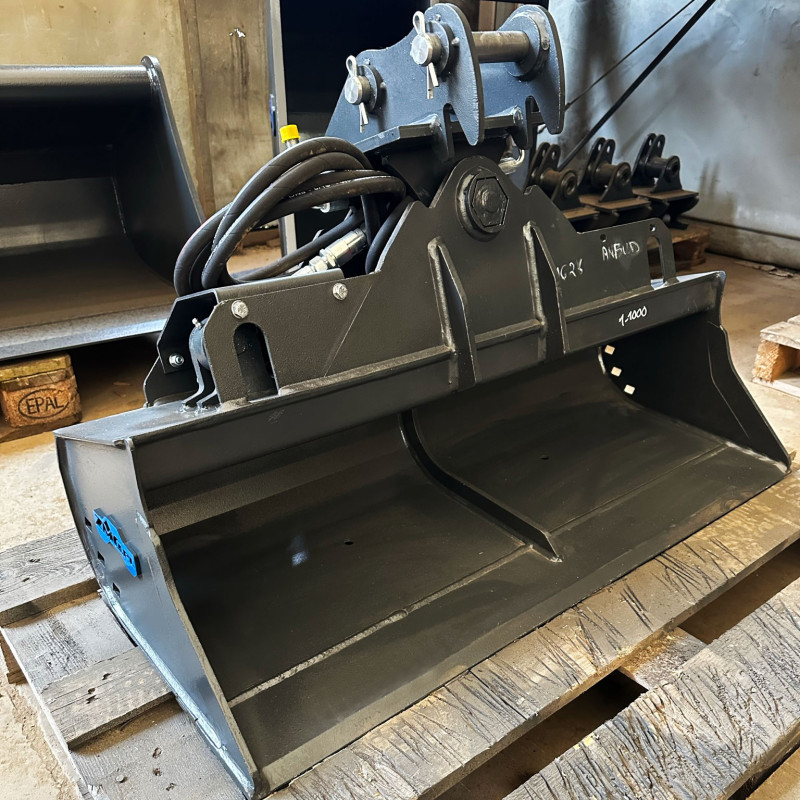

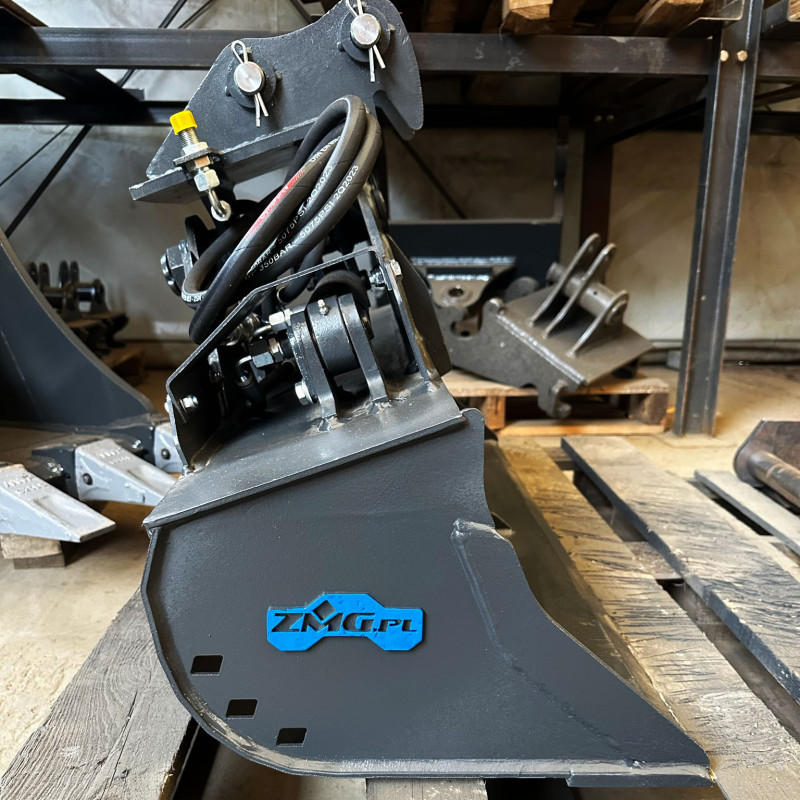

The LSH-ZMG1-800-MS01SY hydraulic ditch cleaning bucket with a working width of 800 mm is an advanced tool designed for mini and compact excavators up to 2 t. Its hydraulic tilt adjustment enables precise slope profiling, ditch cleaning, and terrain shaping without repositioning the machine. The hydraulic Lehnhoff MS01SY quick coupler allows attachment changes directly from the cab without leaving the machine – maximum convenience and safety. High-quality steel and precision hydraulic system manufacturing ensure the hydraulic bucket maintains full functionality over a long period of intensive use.

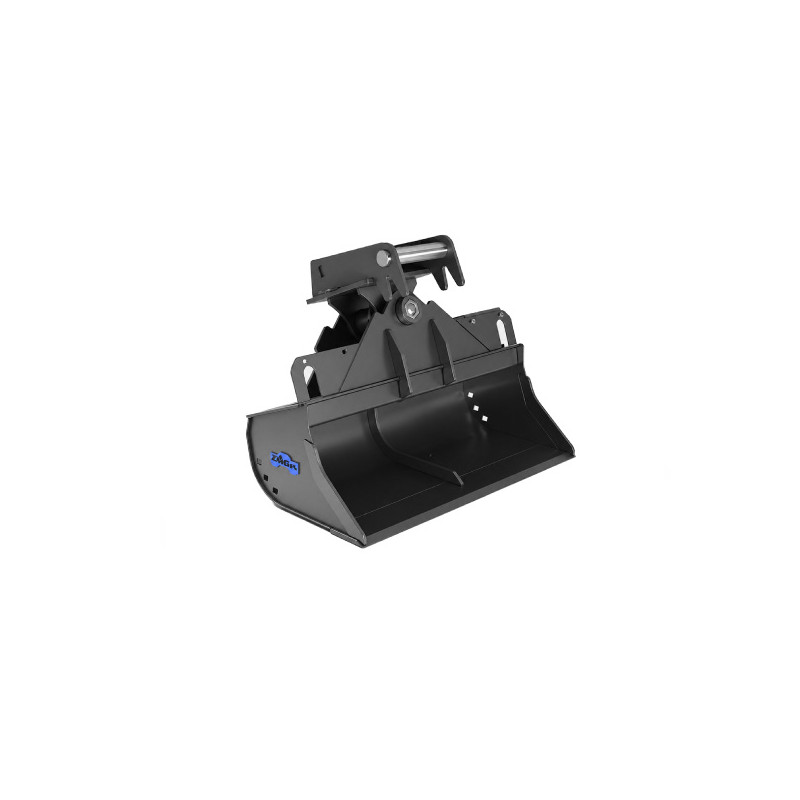

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
