Hydraulic ditch cleaning bucket 1200mm MS03SY class 3-4t
5,136.48 zł
Tax included

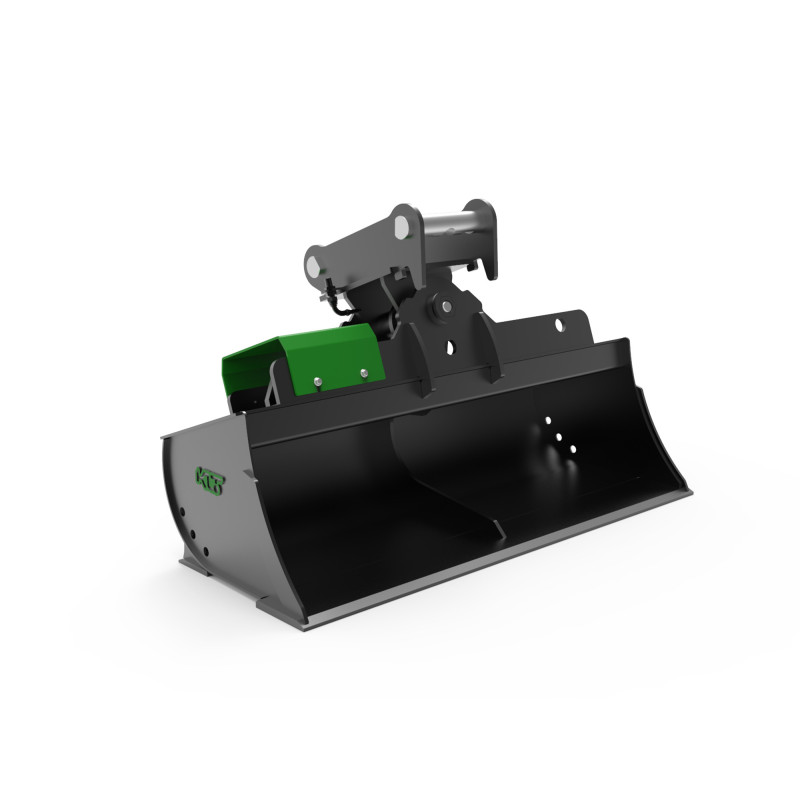

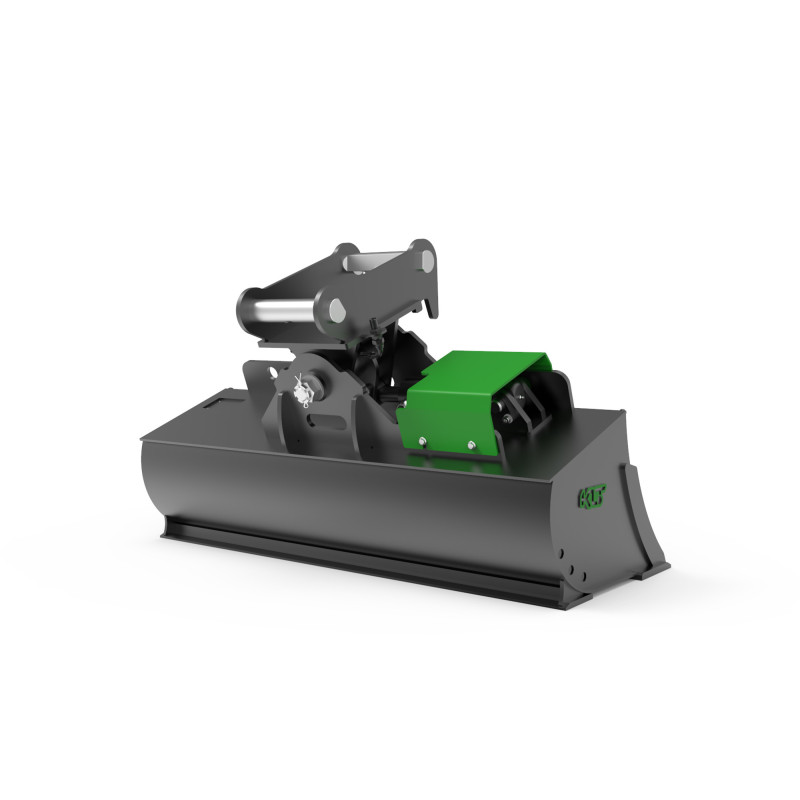

The THBS-S3-V1-1200-MS03SY-RB is a classic hydraulic tilt bucket designed for precise earthmoving tasks using excavators weighing between 3 and 4 tons. An additional feature of this model is the rear blade, which allows the operator to level the ground while reversing, significantly increasing efficiency and reducing working time. The hydraulic tilting mechanism enables smooth angle adjustment, offering excellent maneuverability even in confined areas. Reinforcements in key structural points ensure durability and reliable performance in everyday construction work.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 169 | 162 |
| 1400 | 187 | 191,3 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Rear blade: | 12x110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 6 mm | S355 |
| Bend plate: | 6 mm | S355 |
| Internal reinforcement: | 10 mm | S355 |
| Type | ||
| Hydraulic connectors: | M16x1.5. |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
THBS-S3-V1-1200-MS03SY-RB
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 3-4t
- Adapter
- MS03SY
- Width
- 1200mm
- Weight without adapter
- 169kg
- Capacity
- 162 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Rear blade
- 12x110mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 6mm S355
- Bend plate
- 6mm S355
- Hydraulic connectors
- M16x1.5
