Hydraulic ditch cleaning bucket 1400mm S40 class 3-4t
5,628.48 zł
Tax included
The THBS-S3-V1-1400-S40-RB is a robust hydraulic tilting grading bucket equipped with a hydraulic tilt system, intended for excavators in the 3–4-ton operating class. Thanks to the practical rear blade, the bucket enables efficient leveling and finishing work while reversing, significantly speeding up operations. The hydraulic tilting function allows precise control of the working angle, making the bucket ideal for use in tight or uneven areas. With a reinforced, heavy-duty build, it is perfectly suited for everyday construction demands.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 169 | 162 |
| 1400 | 187 | 191,3 |
* The given bucket weight does not include the weight of the adapter.

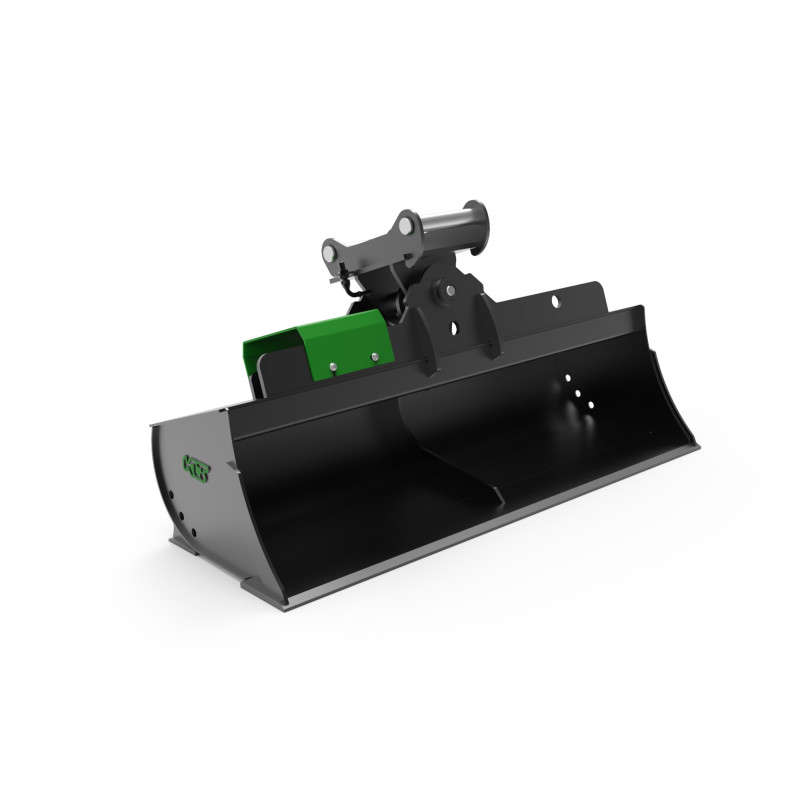

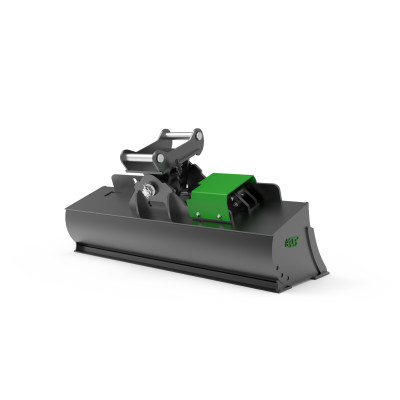

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Rear blade: | 12x110mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 6 mm | S355 |
| Bend plate: | 6 mm | S355 |
| Internal reinforcement: | 10mm | S355 |
| Type | ||
| Hydraulic connectors: | M16x1.5. |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
THBS-S3-V1-1400-S40-RB
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 3-4t
- Adapter
- S40
- Width
- 1400mm
- Weight without adapter
- 187kg
- Capacity
- 191,3 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Rear blade
- 12x110mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 6mm S355
- Bend plate
- 6mm S355
- Hydraulic connectors
- M16x1.5
