- Class: 0-2 T
- Width: 1200
- Adapter: S30/180
- Out of stock
Kalanto
293 products
ZMG
886 products
Solid Hitch
117 products
Ray Attachments
41 products
Zixor
View brand
Product catalogues
View and download →
Product catalogues
View and download →
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 800 | 88 | 68,5 |
| 1000 | 97 | 86,5 |
| 1200 | 108 | 104,5 |
* The given bucket weight does not include the weight of the adapter.

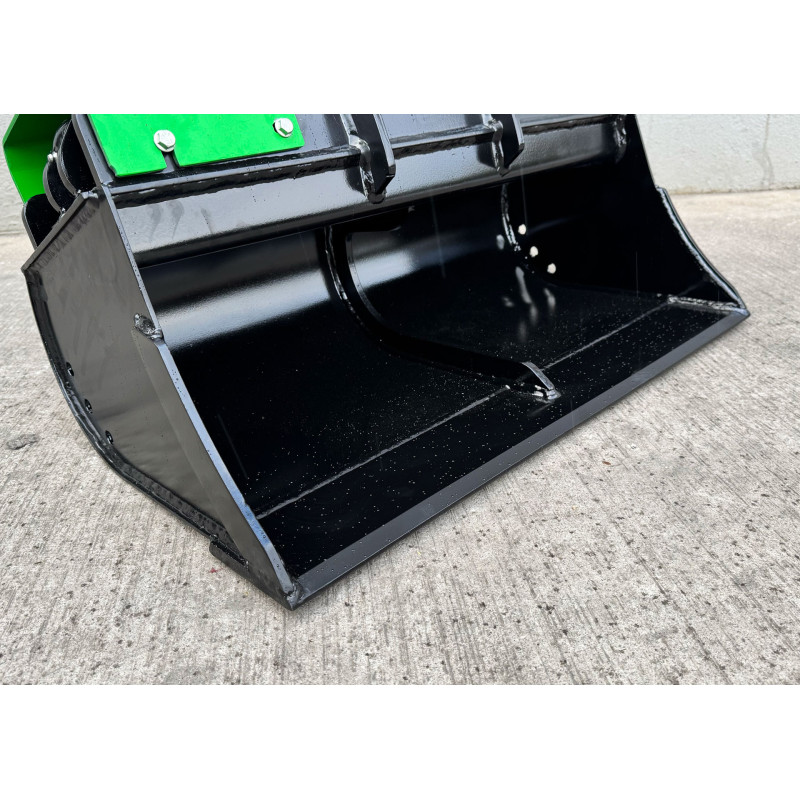

The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 12 x 110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Internal reinforcement: | 10mm | S355 |
| Type | ||

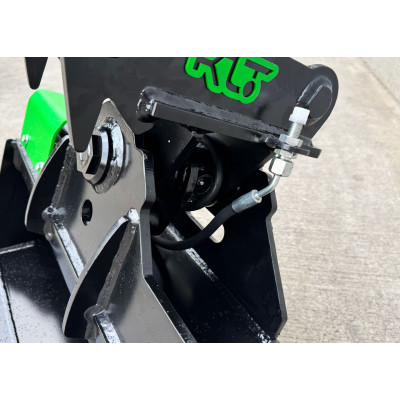

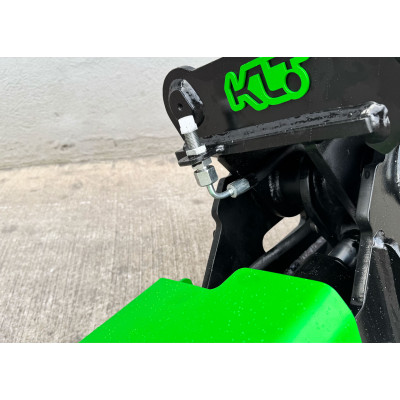

| Hydraulic connectors: | M14x1.5. |

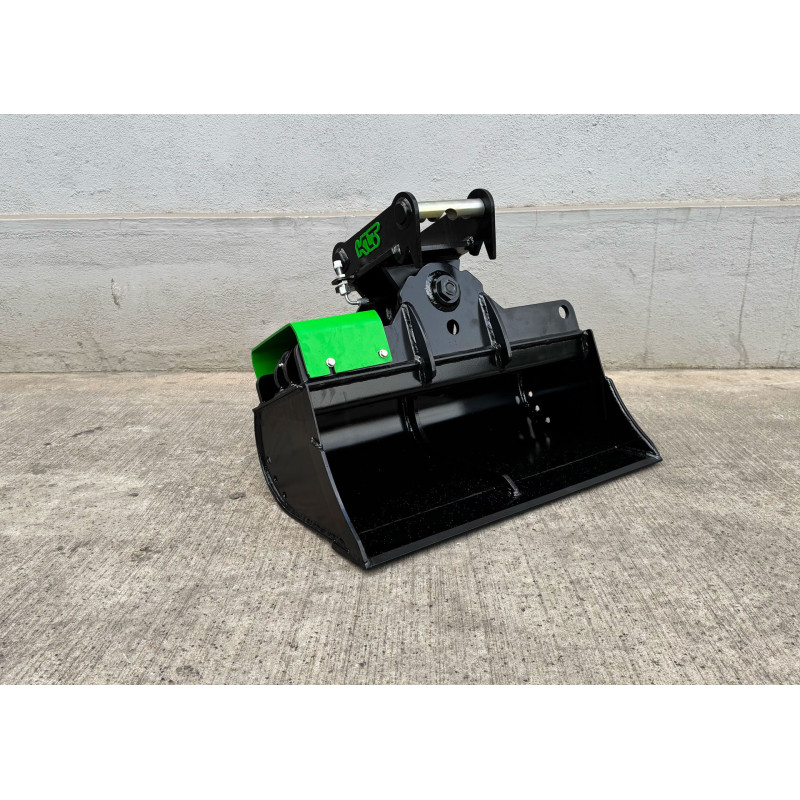

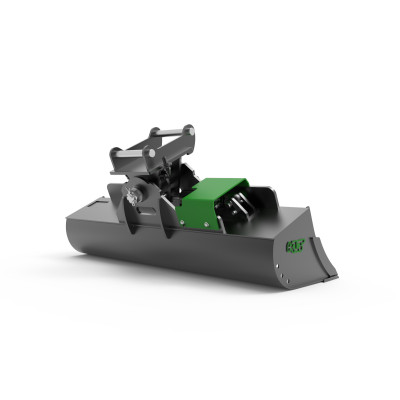

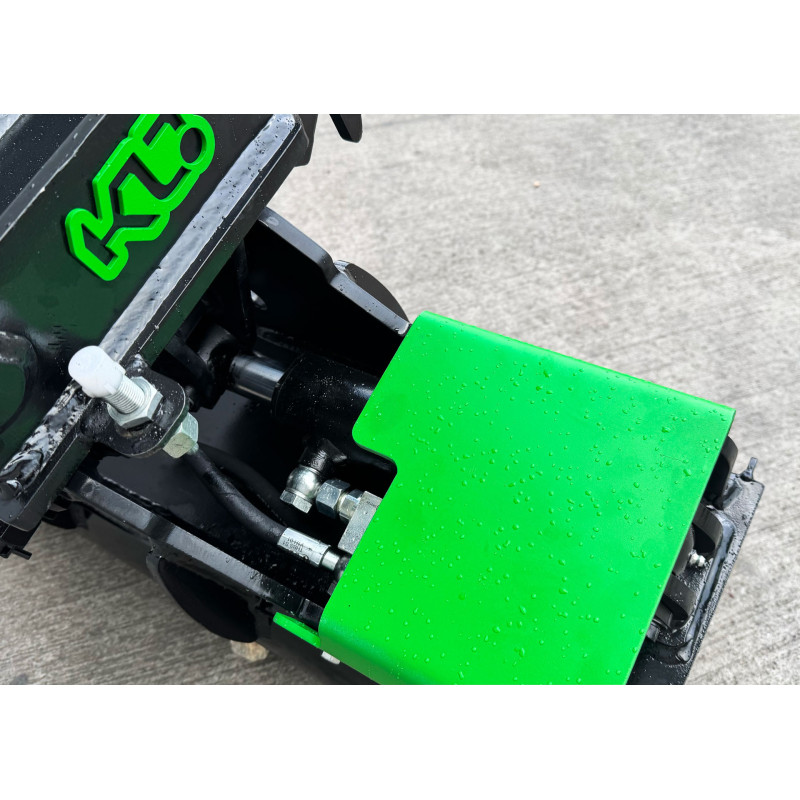

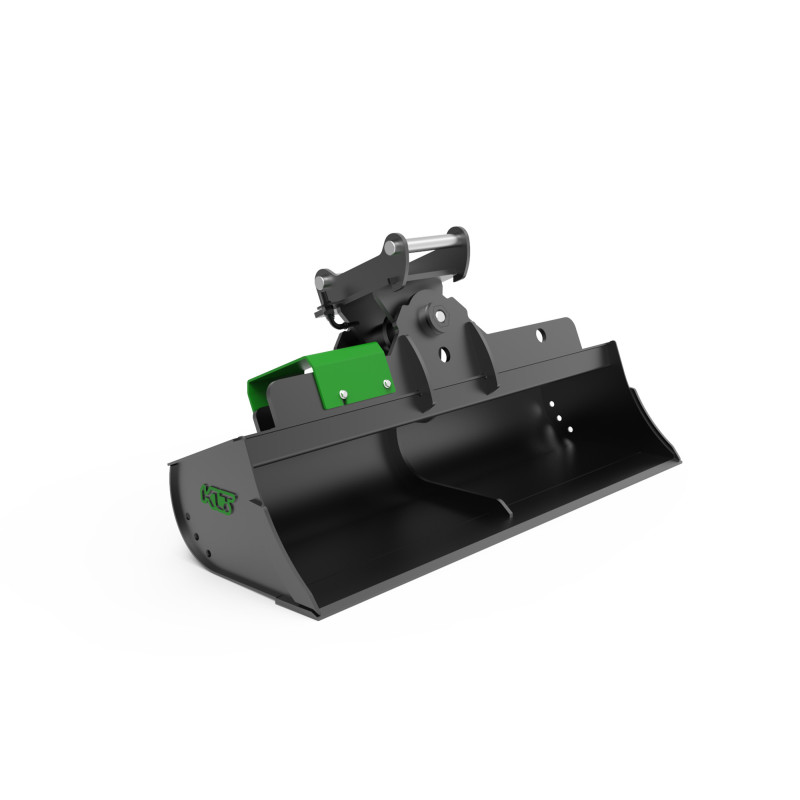

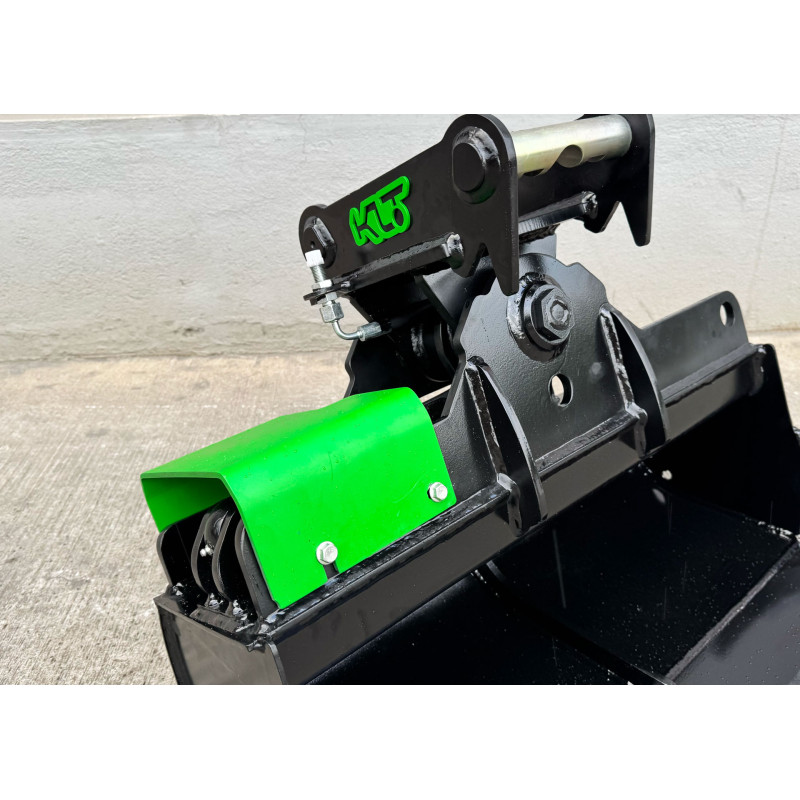

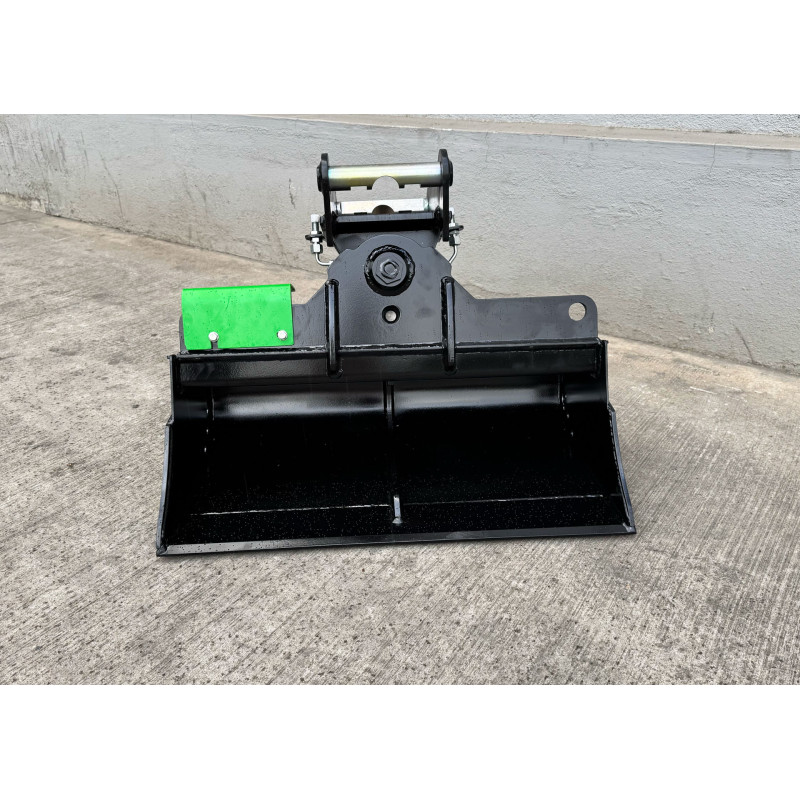

The THBS-S1-V1-1200-S30/180 is a high-efficiency hydraulic tilting grading bucket designed for quick and accurate profiling of larger surfaces using mini excavators up to 2 tons. Ideal for terrain shaping, slope smoothing and roadside or ditch maintenance. Its hydraulic tilt system provides excellent control on uneven terrain and in restricted working environments. The robust steel build guarantees long service life and resistance to demanding workloads.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Data sheet
