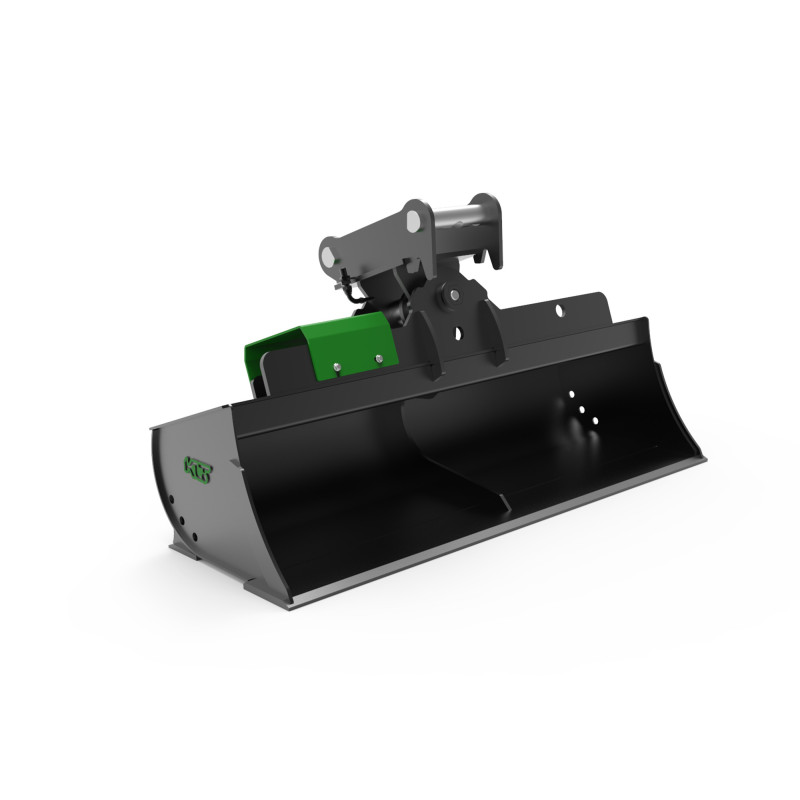

Hydraulic ditch cleaning bucket 1400mm MS03SY class 3-4t
5,628.48 zł
Tax included
The THBS-S3-V1-1400-MS03SY-RB hydraulic tilt bucket is engineered for excavators weighing 3–4 tons, offering excellent precision for grading slopes and leveling ground. The integrated rear blade enhances productivity by allowing effective back-dragging and smoothing while reversing. The hydraulic tilting mechanism ensures smooth angle adjustment during operation. Its reinforced structure, strengthened at key stress points, provides long-lasting durability and reliable performance under heavy use.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 169 | 162 |
| 1400 | 187 | 191,3 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Rear blade: | 12x110mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 6 mm | S355 |
| Bend plate: | 6 mm | S355 |
| Internal reinforcement: | 10mm | S355 |
| Type | ||
| Hydraulic connectors: | M16x1.5. |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
THBS-S3-V1-1400-MS03SY-RB
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 3-4t
- Adapter
- MS03SY
- Width
- 1400mm
- Weight without adapter
- 187kg
- Capacity
- 191,3 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Rear blade
- 12x110mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 6mm S355
- Bend plate
- 6mm S355
- Hydraulic connectors
- M16x1.5
