- Class: 2-4 T
- Width: 1400
- Adapter: MS03SY
Reference: AD-WOP-MS03SY
The AD-WOP-MS03SY is a lightweight yet strong adapter built for the Lehnhoff MS03SY system. It offers fast tool connection without a base plate, making it a perfect choice for operators who value versatility and efficiency.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] |
Pin spacing* [mm] |
|
|---|---|---|---|
| MS01 | 40 | 185 | 225 |
| MS01SY | 40 | 185 | 255 |
| MS03 | 50 | 205 | 283,6 |
| MS03SY | 50 | 205 | 322 |
| MS08 | 60 | 295 | 381 |
| MS08SY | 60 | 297 | 434 |
The main components are made of the following materials and thicknesses:
| MS01 | MS01SY | MS03 | MS03SY | MS08 | MS08SY | |||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 10mm | S355 | 12mm | S355 | 12mm | S355 | 16mm | S355 | 16mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1000 | 106 | 111 |
| 1100 | 111 | 123 |
| 1200 | 117 | 135 |
| 1300 | 122 | 146 |
| 1400 | 128 | 158 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Type | ||
| Hydraulic connectors: | M18x1.5 |

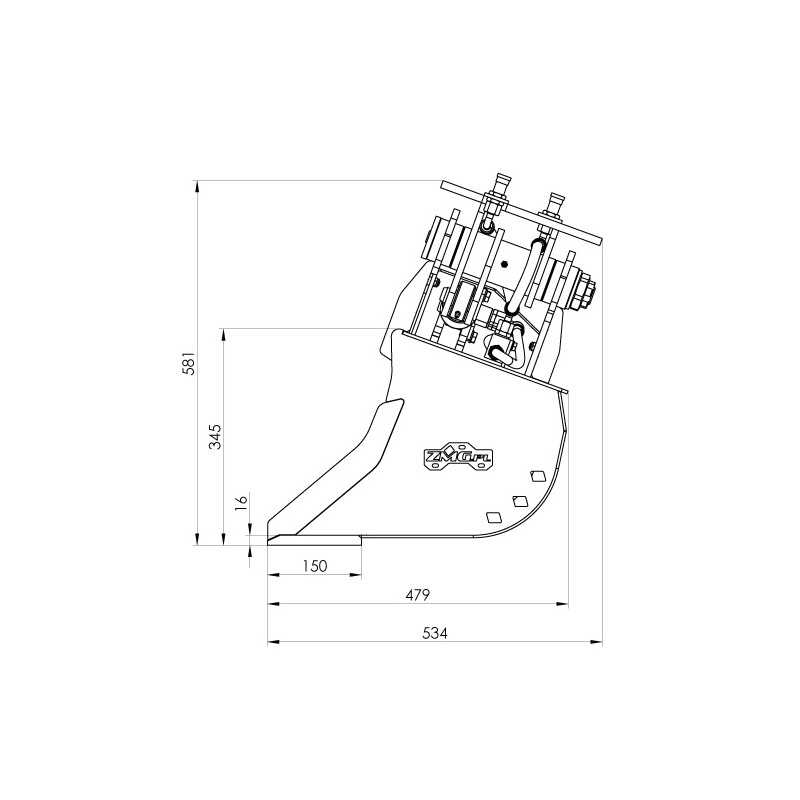

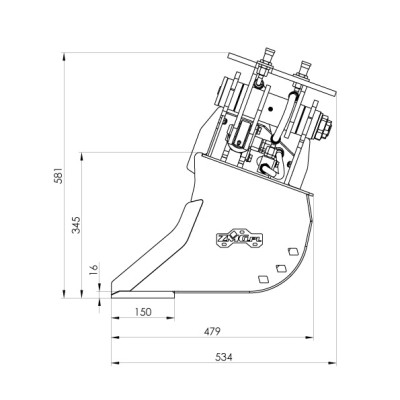

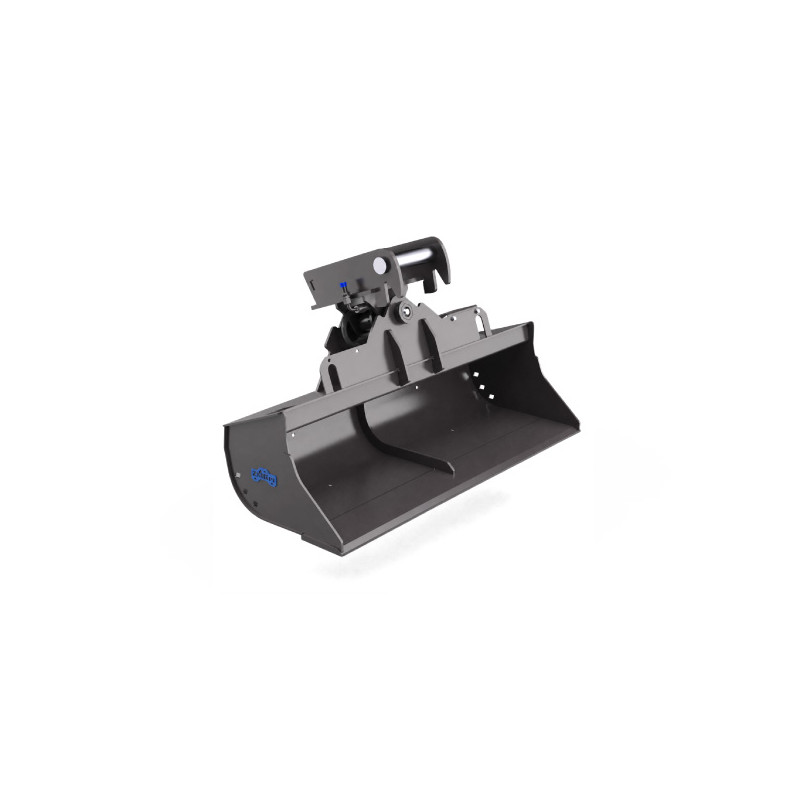

The LSH-ZMG2-1400-MS03SY hydraulic ditch cleaning bucket, 1400 mm wide, is a versatile tool for excavators in the 2–4 t class. Its hydraulically adjustable angle makes it ideal for slope profiling, cross-section shaping, and drainage ditch work. The hydraulic Lehnhoff MS03SY quick coupler lets the operator change attachments without leaving the cab, increasing productivity and safety. High-quality steel and precision hydraulic system manufacturing ensure the hydraulic bucket maintains full functionality over a long period of intensive use.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Data sheet
