Class: 0-2 T
Width: 1000
Adapter: CW05

Hydraulic ditch cleaning bucket 1000mm CW05 class 0-2t

Hydraulic ditch cleaning bucket 1000mm CW05 class 0-2t

Hydraulic ditch cleaning bucket 1000mm CW05 class 0-2t

Hydraulic ditch cleaning bucket 1000mm CW05 class 0-2t

Hydraulic ditch cleaning bucket 1000mm CW05 class 0-2t

Hydraulic ditch cleaning bucket 1000mm CW05 class 0-2t

Hydraulic ditch cleaning bucket 1000mm CW05 class 0-2t

Hydraulic ditch cleaning bucket 1000mm CW05 class 0-2t

Hydraulic ditch cleaning bucket 1000mm CW05 class 0-2t

Hydraulic ditch cleaning bucket 1000mm CW05 class 0-2t

Hydraulic ditch cleaning bucket 1000mm CW05 class 0-2t

3,131.58 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]
800	84	59
900	88	70
1000	93	75
1100	97	83
1200	102	91

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Roll sheet:	4 mm	S355
Cutting edge:	12 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355

	Type

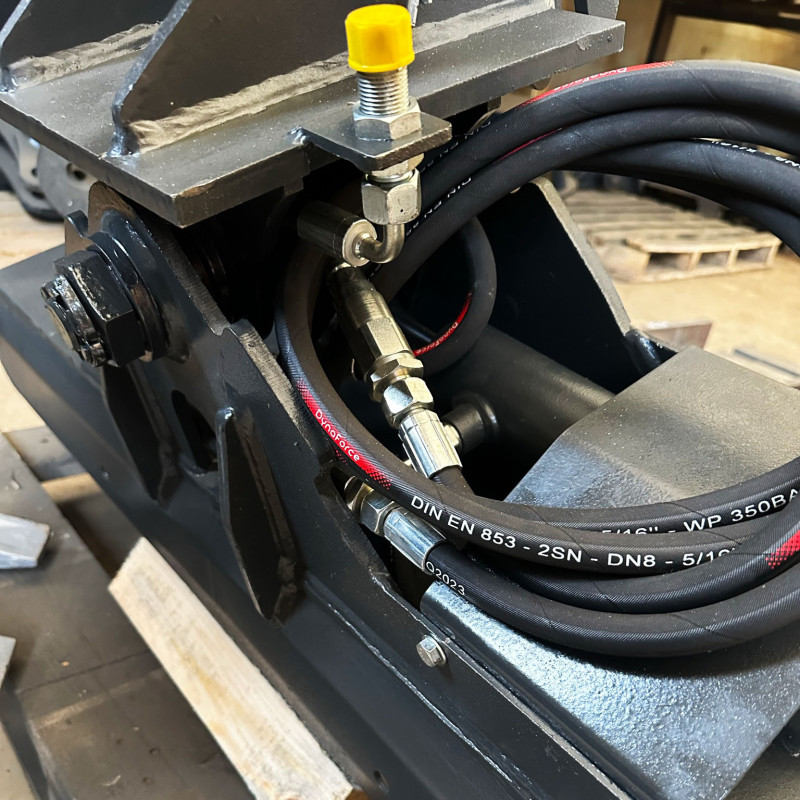

Hydraulic connectors:	M18x1.5

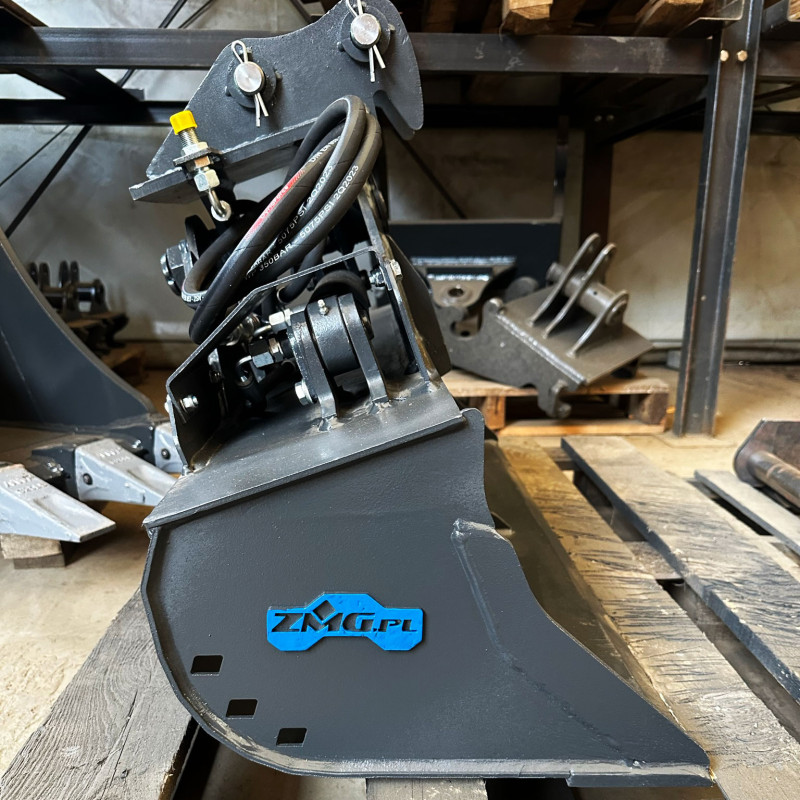

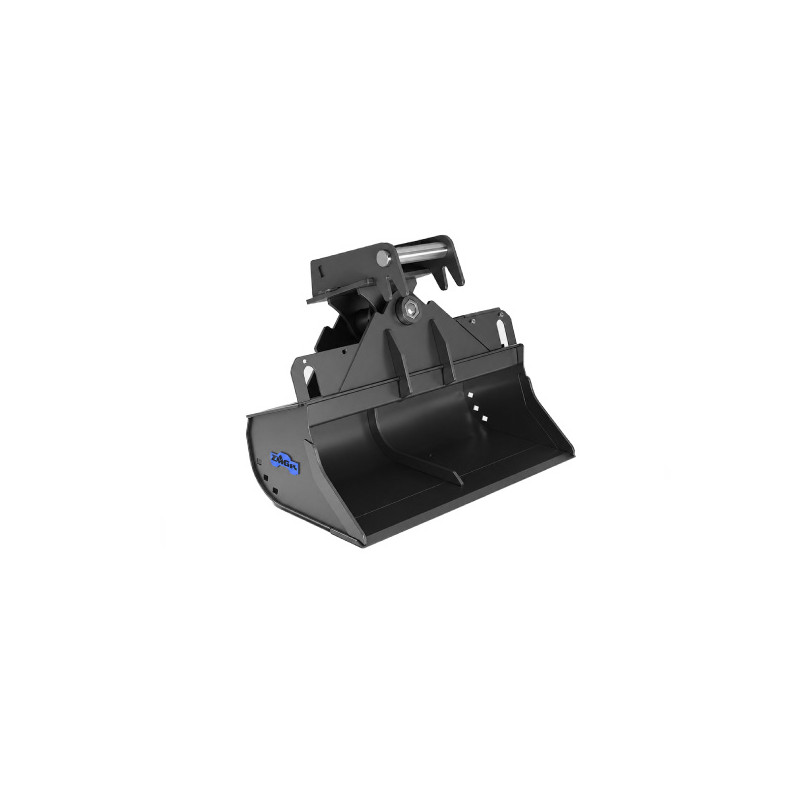

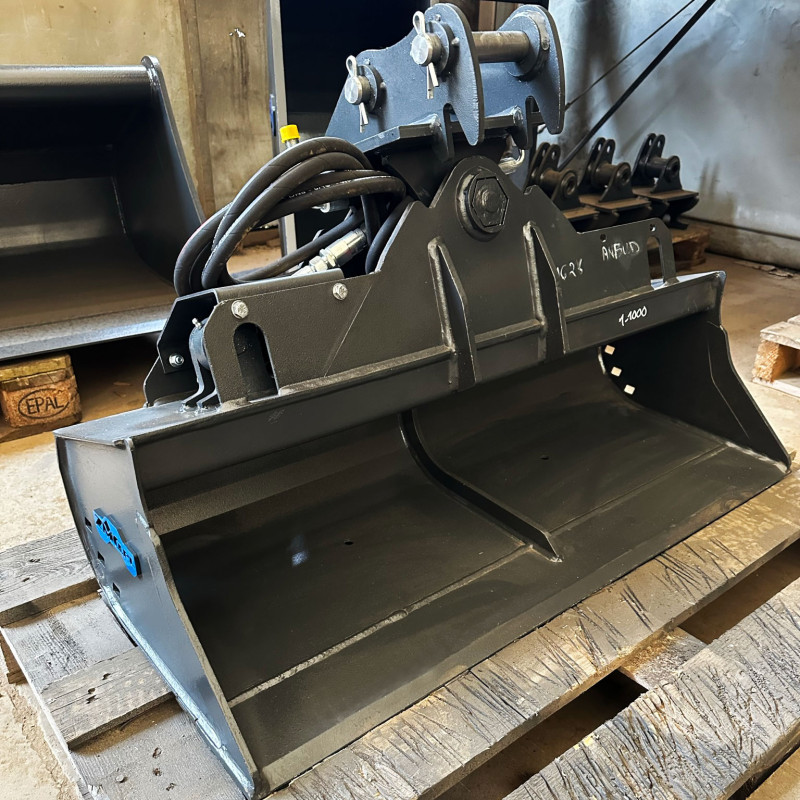

The LSH-ZMG1-1000-CW05 hydraulic ditch cleaning bucket with a working width of 1000 mm is an advanced tool designed for mini and compact excavators up to 2 t. Its hydraulic tilt adjustment enables precise slope profiling, ditch cleaning, and terrain shaping without repositioning the machine. The Verachtert CW05 quick coupler system guarantees a solid and safe machine connection, providing flexibility in attachment selection. S355 steel construction, reinforced edges, and a reliable hydraulic cylinder guarantee working precision and long tool life even in demanding terrain.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LSH-ZMG1

Reference LSH-ZMG1-1000-CW05

Data sheet

Lead time: up to 3 business weeks
For the machine: 0-1
1-2
Adapter: CW05
Width: 1000
Weight without adapter: 93
Capacity: 75
Side/rear plate: 4 S355
Side cutters: 8 HB400
Roll sheet: 4 S355
Cutting edge: 12 HB500
Top plate: 5 S355
Bend plate: 5 S355
Hydraulic connectors: M18x1.5
