- Class: 0-2 T
- Width: 1000
- Adapter: Without adapter
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 800 | 84 | 59 |
| 900 | 88 | 70 |
| 1000 | 93 | 75 |
| 1100 | 97 | 83 |
| 1200 | 102 | 91 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 12 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Type | ||

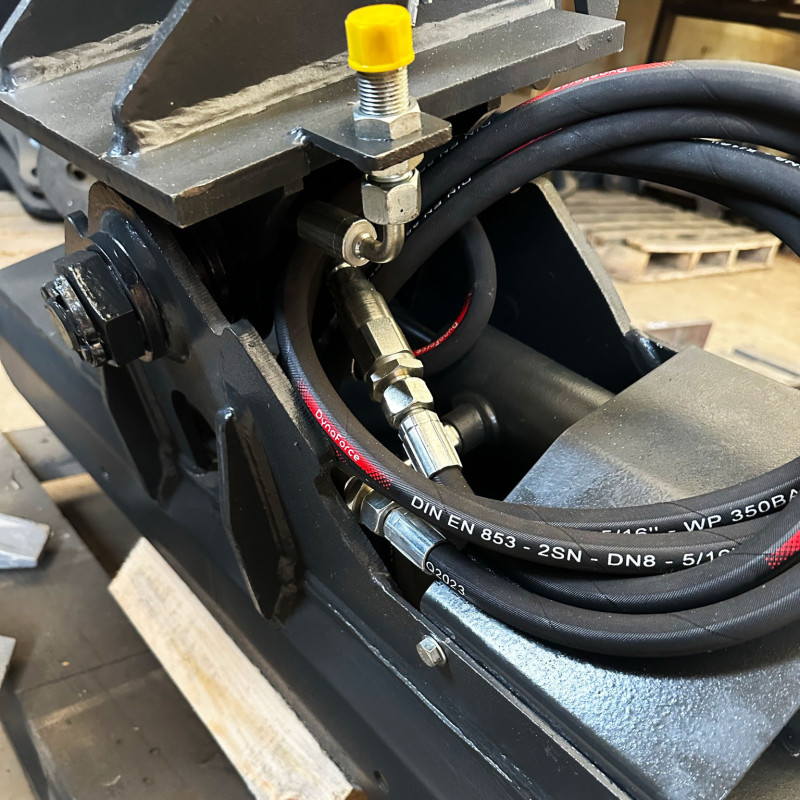

| Hydraulic connectors: | M18x1.5 |

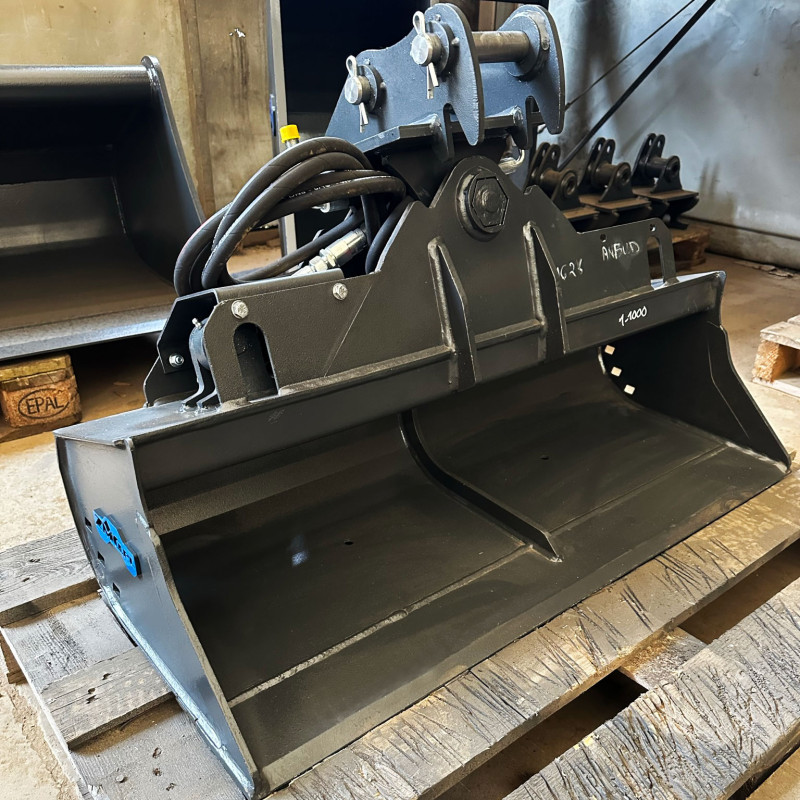

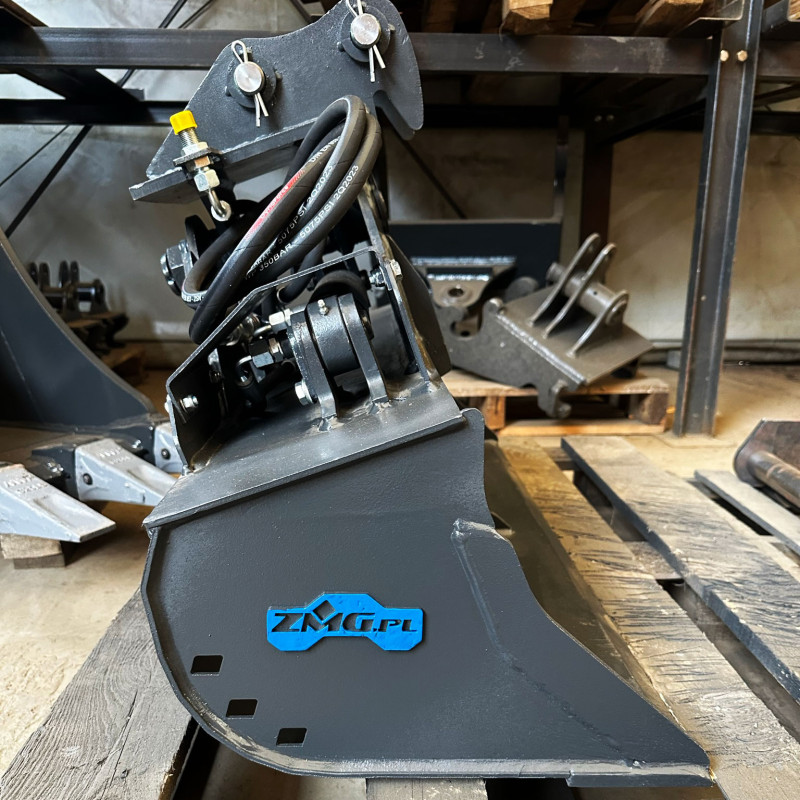

The LSH-ZMG1-1000-WOA hydraulic ditch cleaning bucket, 1000 mm wide, is a versatile tool for mini and compact excavators up to 2 t. Its hydraulically adjustable angle makes it ideal for slope profiling, cross-section shaping, and drainage ditch work. The adapterless version is designed for direct mounting on the excavator arm, eliminating intermediate components and reducing total attachment weight. S355 steel construction, reinforced edges, and a reliable hydraulic cylinder guarantee working precision and long tool life even in demanding terrain.

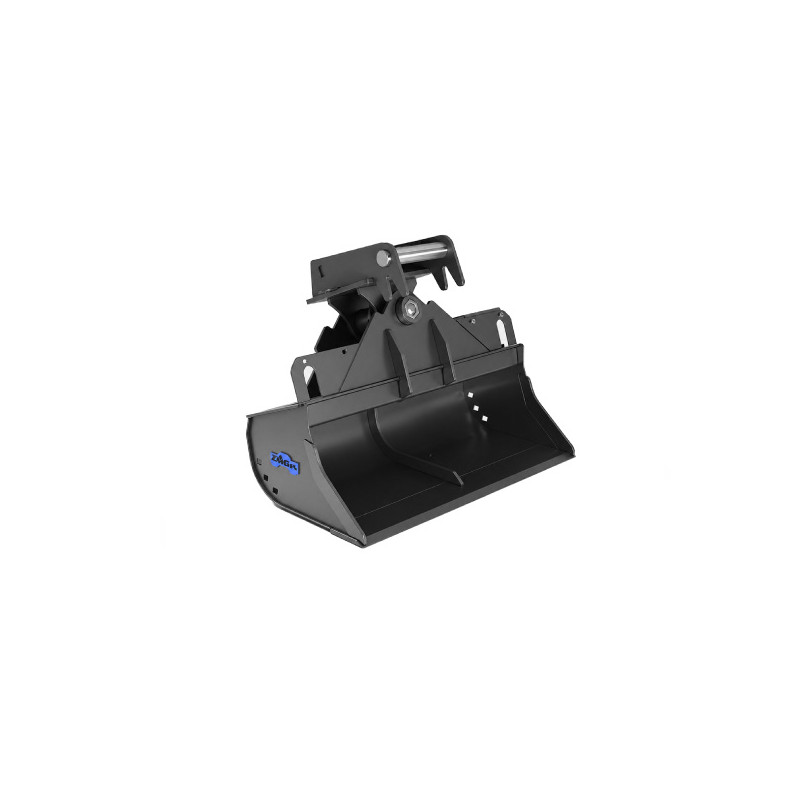

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
