Reference: AD-WOP-MS08
The AD-WOP-MS08 model delivers MS08 system functionality in a base-plate-free design. This sturdy and precisely manufactured adapter enables fast and trouble-free tool connection in harsh working environments.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] |
Pin spacing* [mm] |
|
|---|---|---|---|
| MS01 | 40 | 185 | 225 |
| MS01SY | 40 | 185 | 255 |
| MS03 | 50 | 205 | 283,6 |
| MS03SY | 50 | 205 | 322 |
| MS08 | 60 | 295 | 381 |
| MS08SY | 60 | 297 | 434 |
The main components are made of the following materials and thicknesses:
| MS01 | MS01SY | MS03 | MS03SY | MS08 | MS08SY | |||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 10mm | S355 | 12mm | S355 | 12mm | S355 | 16mm | S355 | 16mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 200 | 215 |
| 1300 | 210 | 235 |
| 1400 | 220 | 254 |
| 1500 | 230 | 273 |
| 1600 | 240 | 293 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 8 mm | S355 |
| Type | ||
| Hydraulic connectors: | M18x1.5 |

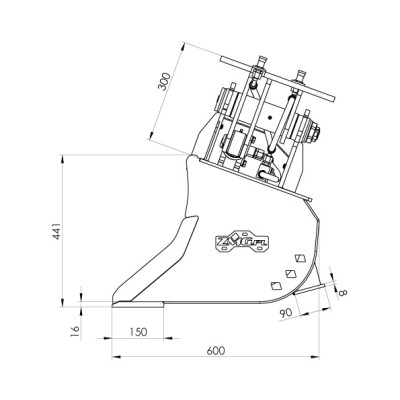

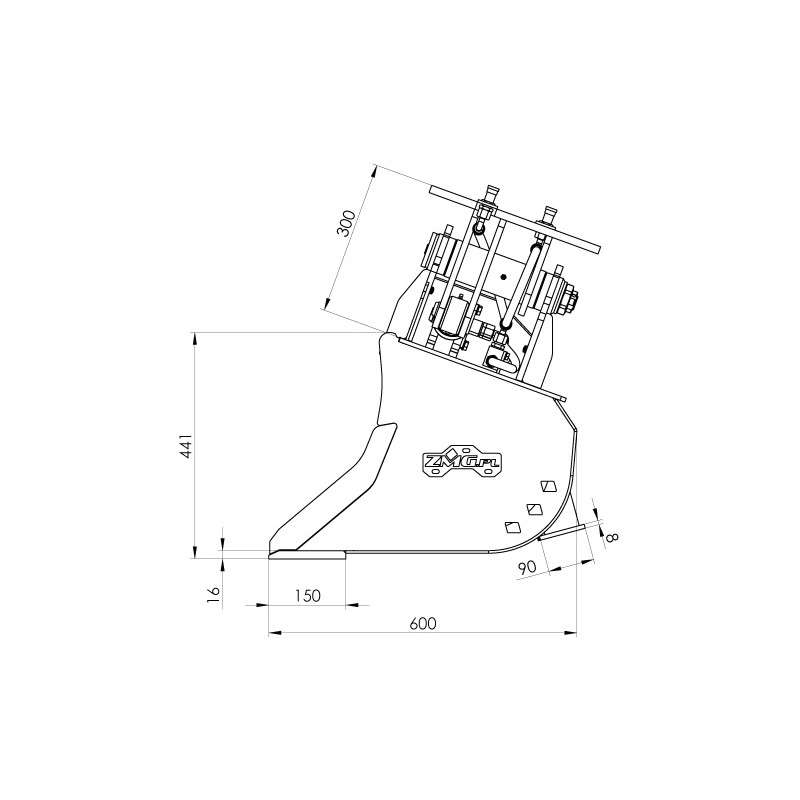

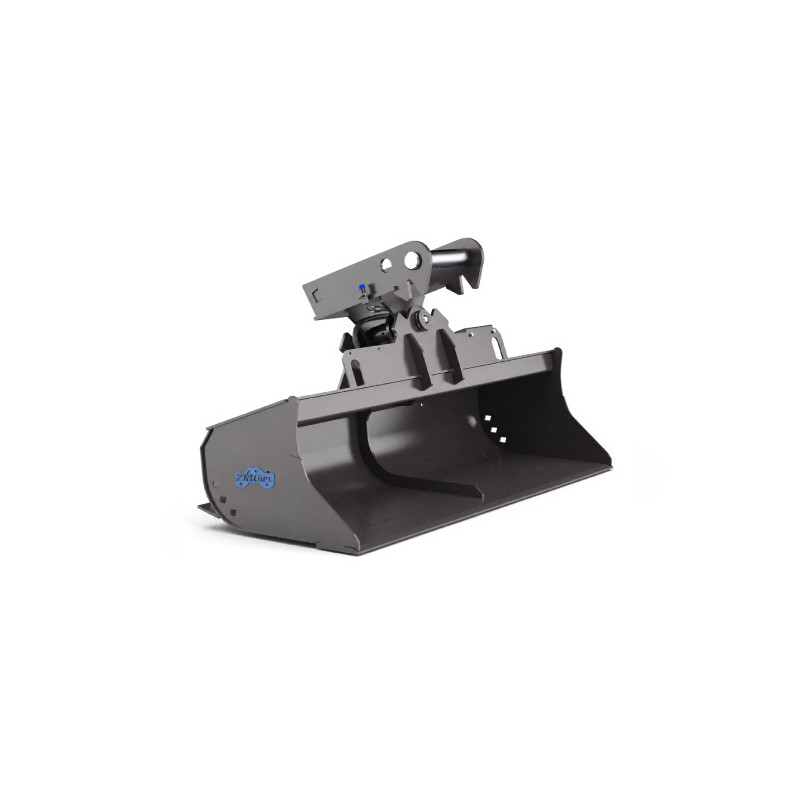

The LSH-ZMG4-1400-MS08 is a 1400 mm hydraulic ditch cleaning bucket for excavators in the 6–10 t class. Hydraulic angle adjustment allows precise forming of slopes, excavations, ditches, and any variable-gradient feature without repositioning the excavator. The Lehnhoff MS08 quick coupler is designed for heavy machines, ensuring secure attachment and rapid tool changes on demanding job sites. S355 steel construction, reinforced edges, and a reliable hydraulic cylinder guarantee working precision and long tool life even in demanding terrain.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
