Hydraulic ditch cleaning bucket 1400mm S45 class 4-6t
7,147.53 zł
Tax included

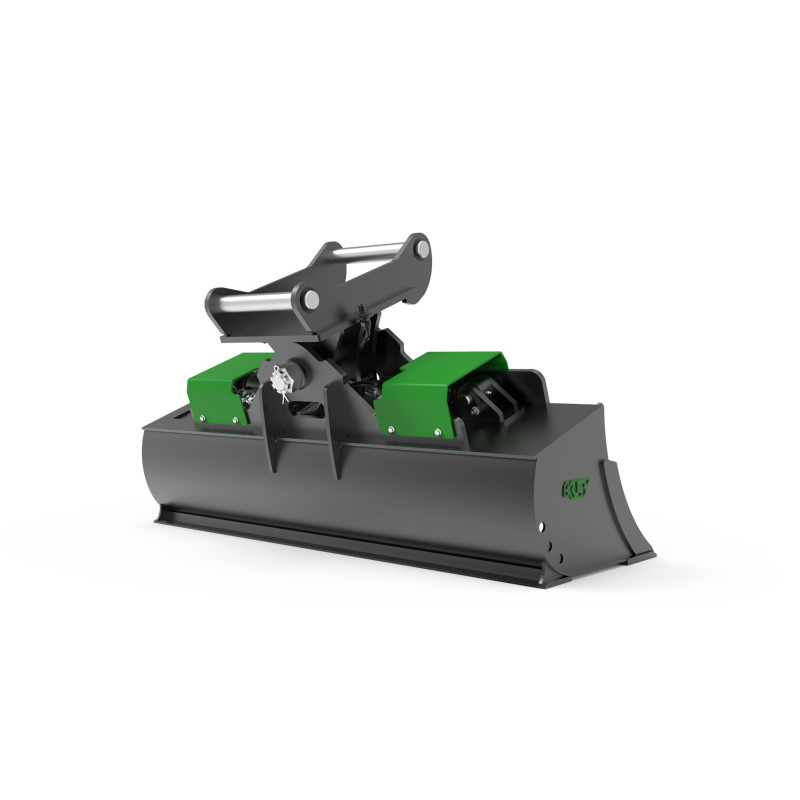

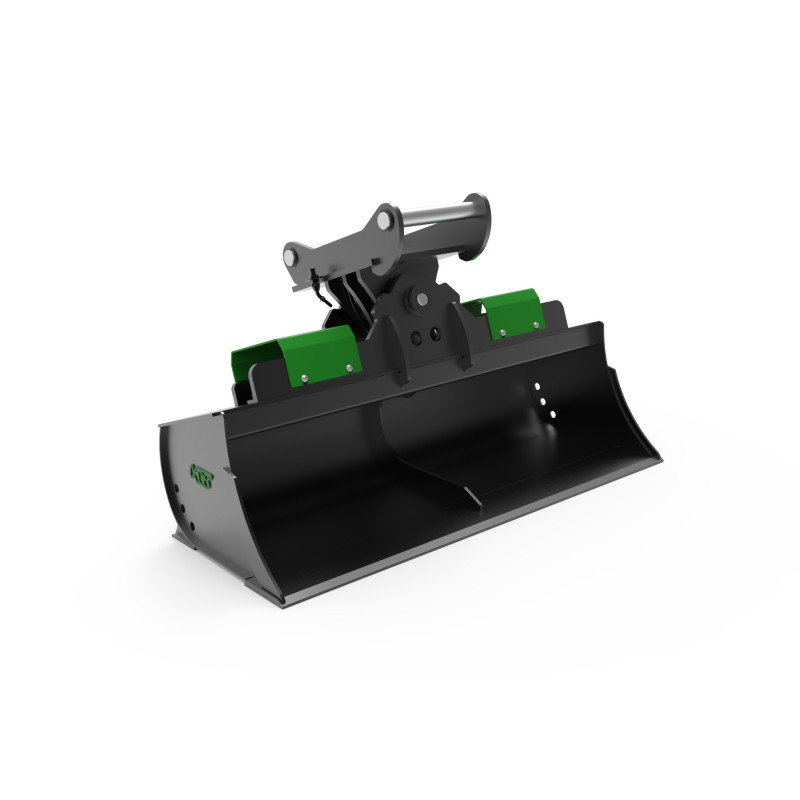

The THBS-S4-V1-1400-S45-RB is a highly durable hydraulic tilting grading bucket intended for mini and compact excavators in the 4–6 ton class. It is equipped with a dual-cylinder hydraulic system that ensures balanced force distribution and exceptional stability even under heavy load conditions. The integrated rear blade enables efficient leveling while reversing, significantly reducing job time. The reinforced structure, made from wear-resistant materials, makes this bucket ideal for challenging terrain and demanding daily use.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1400 | 241 | 221,5 |
| 1600 | 262 | 255,5 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Rear blade: | 12x110mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 6 mm | S355 |
| Internal reinforcement: | 10mm | S355 |
| Type | ||
| Hydraulic connectors: | M16x1.5. |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
THBS-S4-V1-1400-S45-RB
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 4-5t
5-6t - Adapter
- S45
- Width
- 1400mm
- Weight without adapter
- 241kg
- Capacity
- 221,5 l
- Side/rear plate
- 6mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Rear blade
- 12x110mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 8mm S355
- Bend plate
- 6mm S355
- Hydraulic connectors
- M16x1.5
