- Class: 0-2 T
- Width: 800
- Adapter: MS01SY
- Out of stock
Reference: AD-WOP-MS01SY
The AD-WOP-MS01SY adapter, compliant with the MS01SY system, allows fast tool switching without the need for a base plate. It is an ideal option for users seeking maximum functionality, minimal weight, and high versatility.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] |
Pin spacing* [mm] |
|
|---|---|---|---|
| MS01 | 40 | 185 | 225 |
| MS01SY | 40 | 185 | 255 |
| MS03 | 50 | 205 | 283,6 |
| MS03SY | 50 | 205 | 322 |
| MS08 | 60 | 295 | 381 |
| MS08SY | 60 | 297 | 434 |
The main components are made of the following materials and thicknesses:
| MS01 | MS01SY | MS03 | MS03SY | MS08 | MS08SY | |||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 10mm | S355 | 12mm | S355 | 12mm | S355 | 16mm | S355 | 16mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 800 | 88 | 68,5 |
| 1000 | 97 | 86,5 |
| 1200 | 108 | 104,5 |
* The given bucket weight does not include the weight of the adapter.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 12 x 110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Internal reinforcement: | 10mm | S355 |
| Type | ||

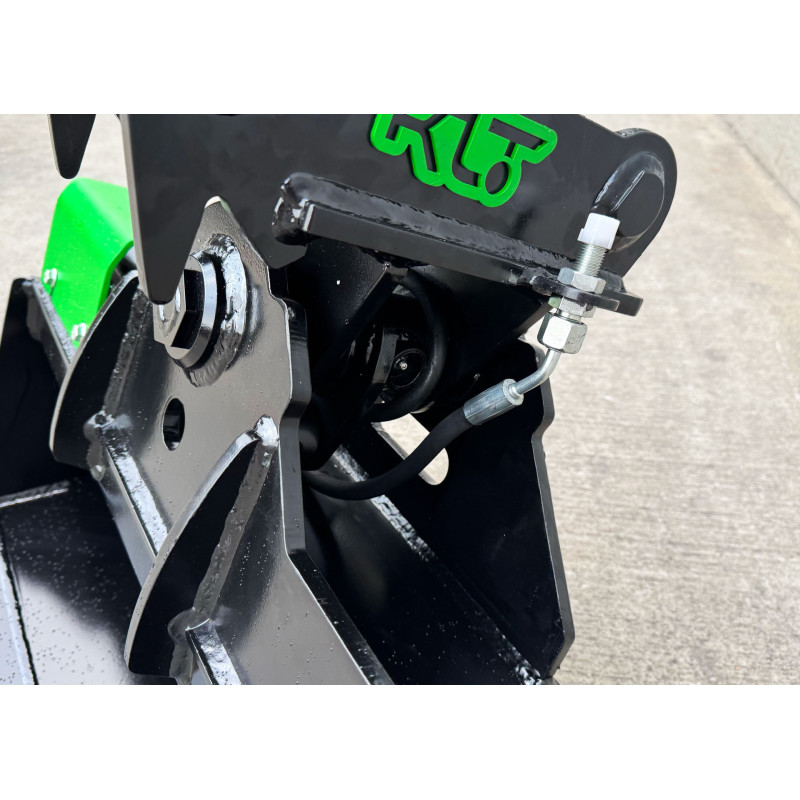

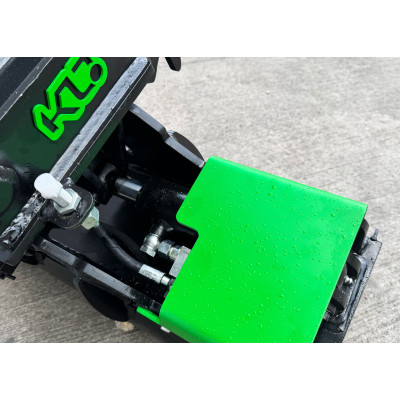

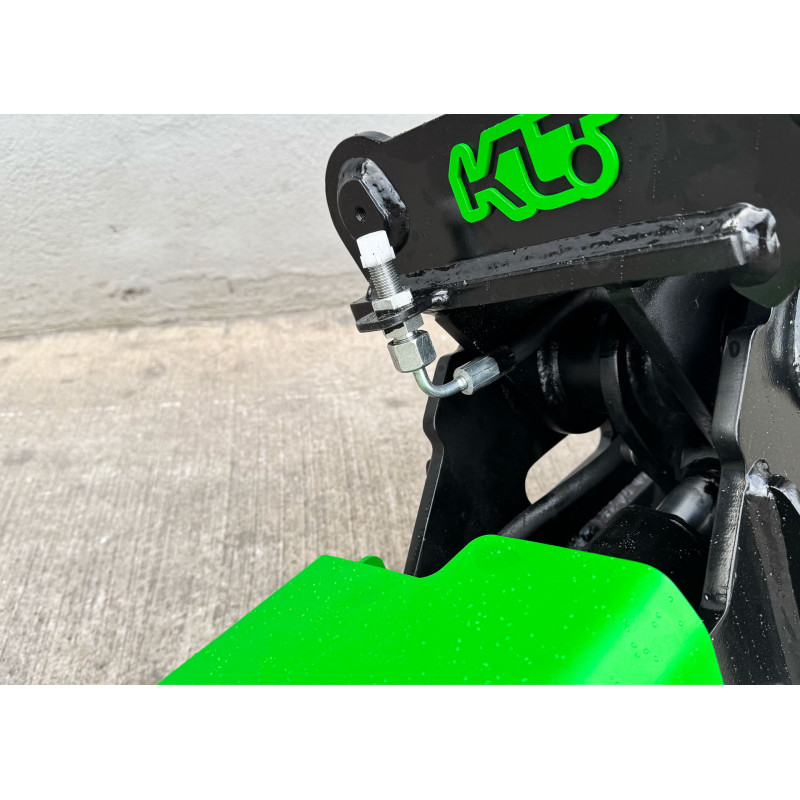

| Hydraulic connectors: | M14x1.5. |

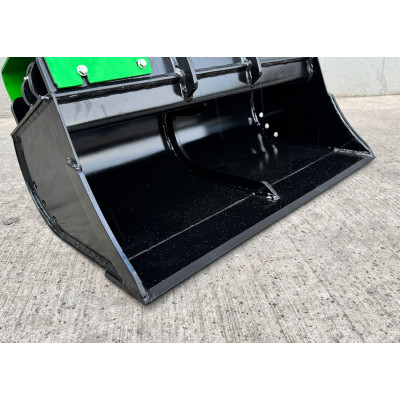

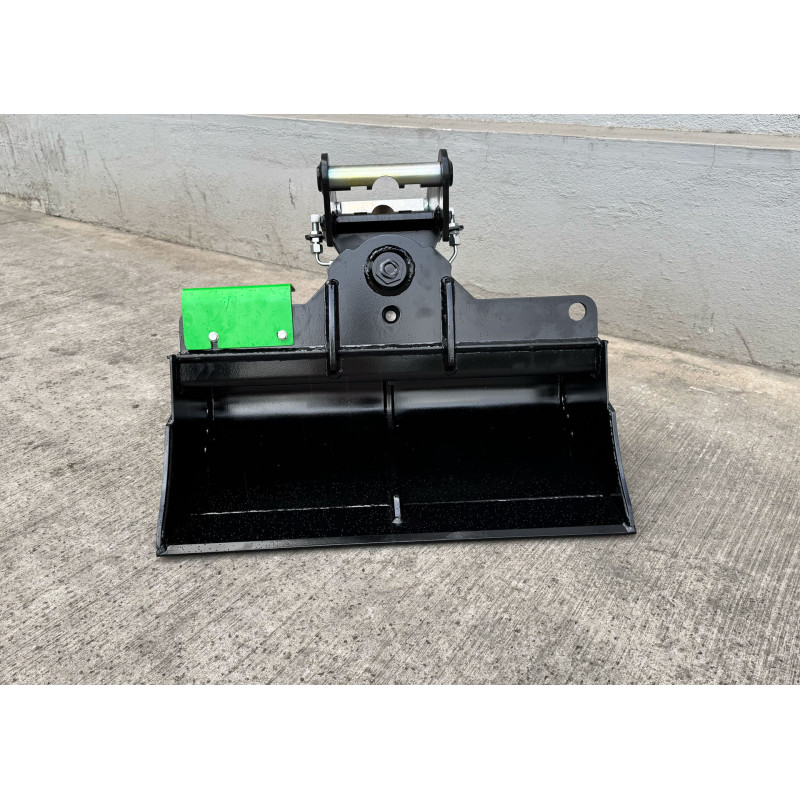

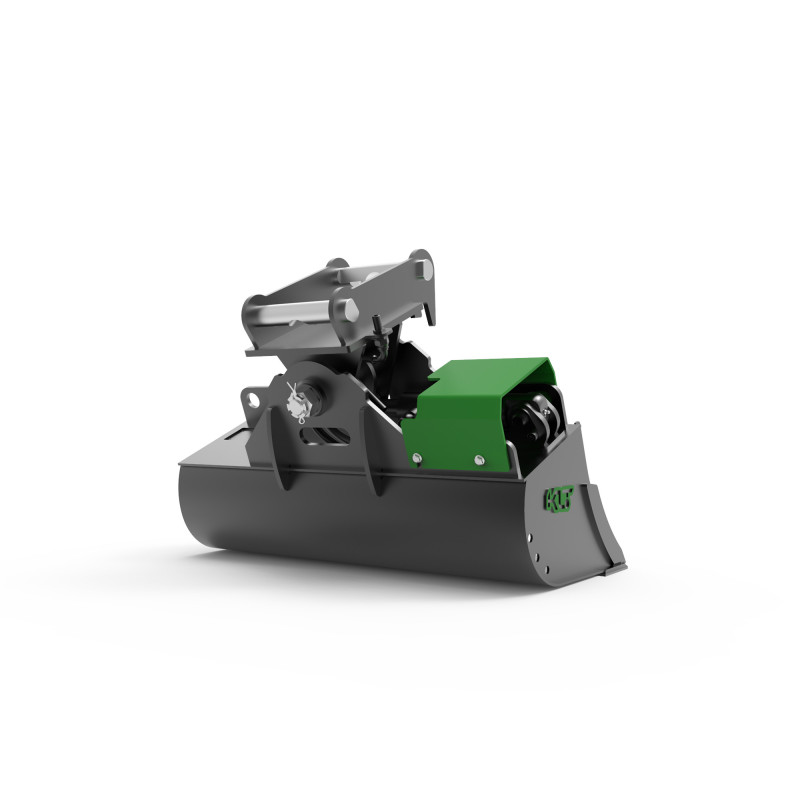

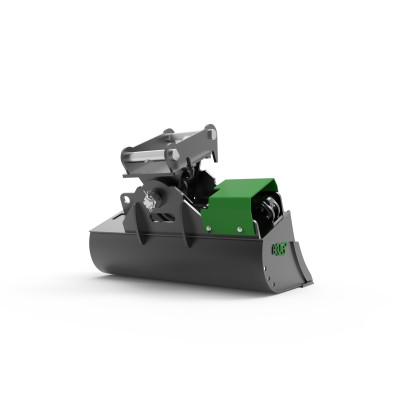

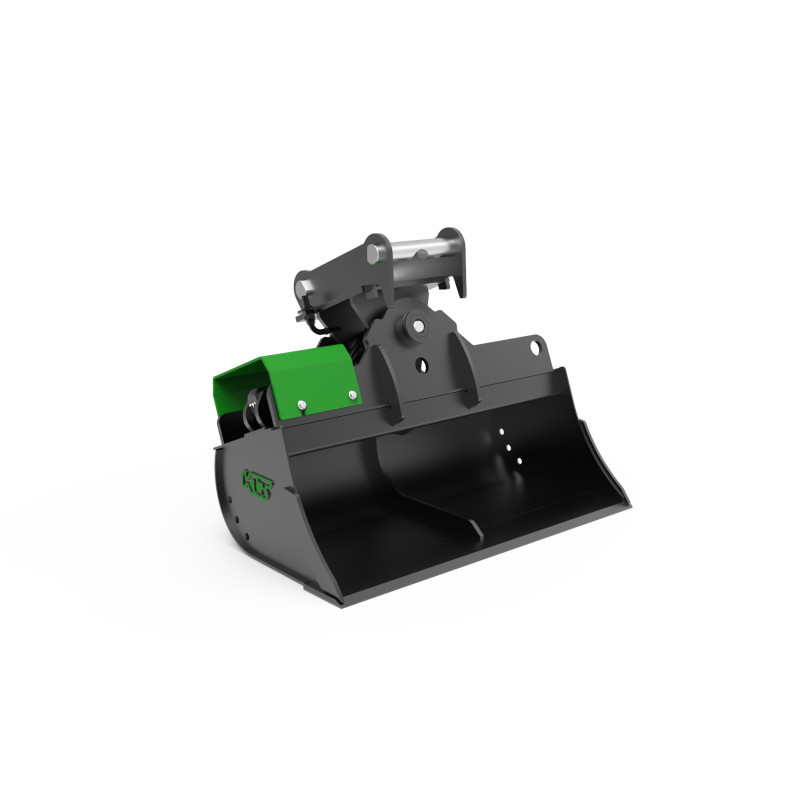

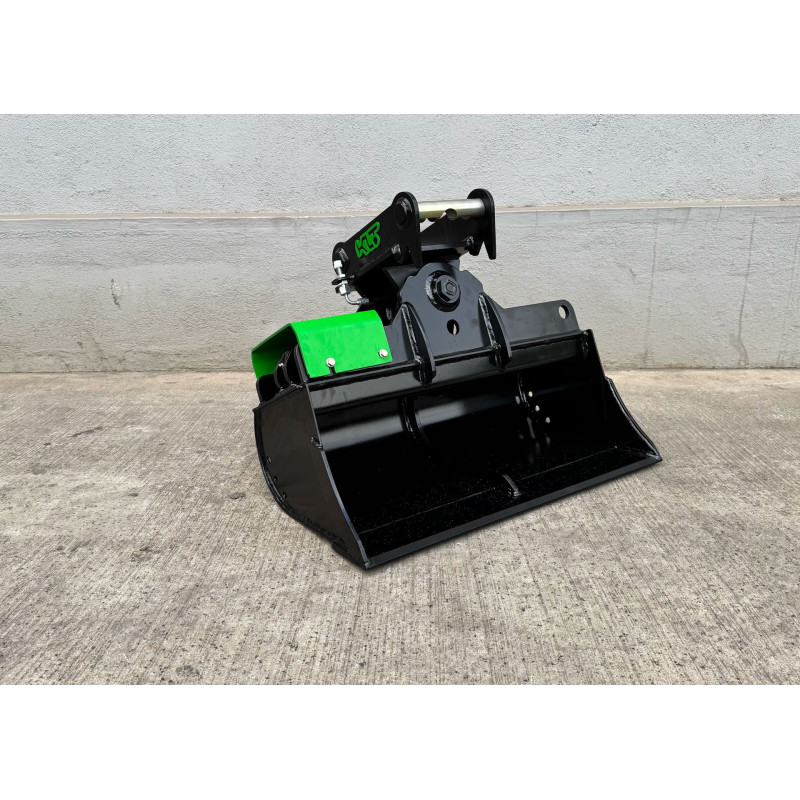

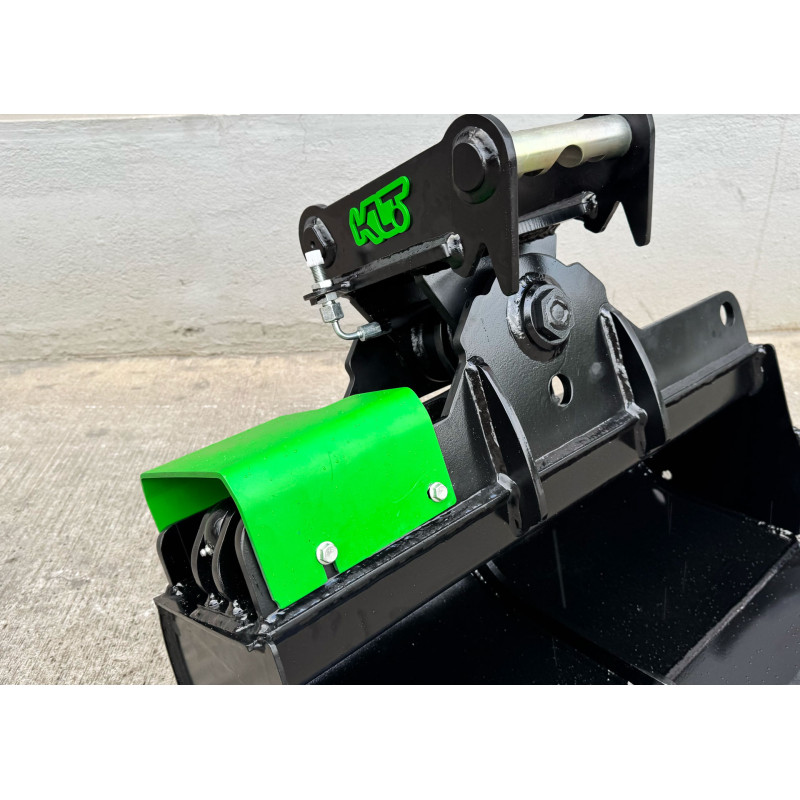

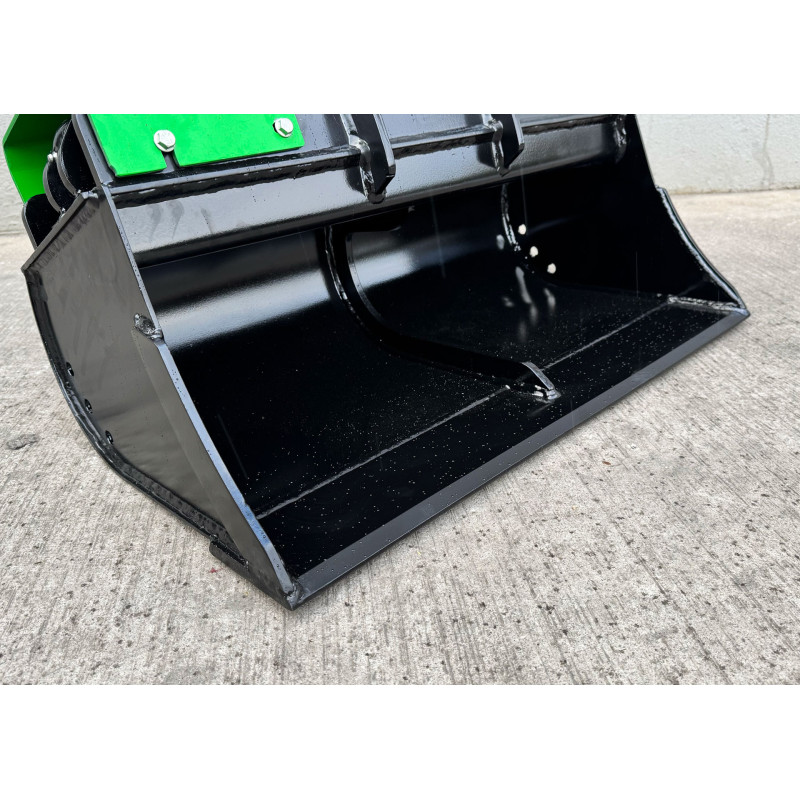

The THBS-S1-V1-800-MS01SY is a compact hydraulic tilt bucket designed for highly precise work in tight or difficult-to-reach areas. The narrower width makes it perfect for detailed finishing, cleaning narrow ditches or shaping smaller slope sections. The hydraulic tilt mechanism increases operator comfort and enables precise angle adjustments to suit varying ground conditions. Durable steel construction ensures reliability even under intensive use.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Data sheet
