Reference: AD-WOP-MS03
Based on the Lehnhoff MS03 standard, the AD-WOP-MS03 is a base-plate-free design offering high durability and quick tool coupling. It guarantees smooth operation even in demanding working conditions.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] |
Pin spacing* [mm] |
|
|---|---|---|---|
| MS01 | 40 | 185 | 225 |
| MS01SY | 40 | 185 | 255 |
| MS03 | 50 | 205 | 283,6 |
| MS03SY | 50 | 205 | 322 |
| MS08 | 60 | 295 | 381 |
| MS08SY | 60 | 297 | 434 |
The main components are made of the following materials and thicknesses:
| MS01 | MS01SY | MS03 | MS03SY | MS08 | MS08SY | |||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 10mm | S355 | 12mm | S355 | 12mm | S355 | 16mm | S355 | 16mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 164 | 172 |
| 1300 | 172 | 187 |
| 1400 | 180 | 202 |
| 1500 | 188 | 217 |
| 1600 | 197 | 232 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 6 mm | S355 |
| Type | ||
| Hydraulic connectors: | M18x1.5 |

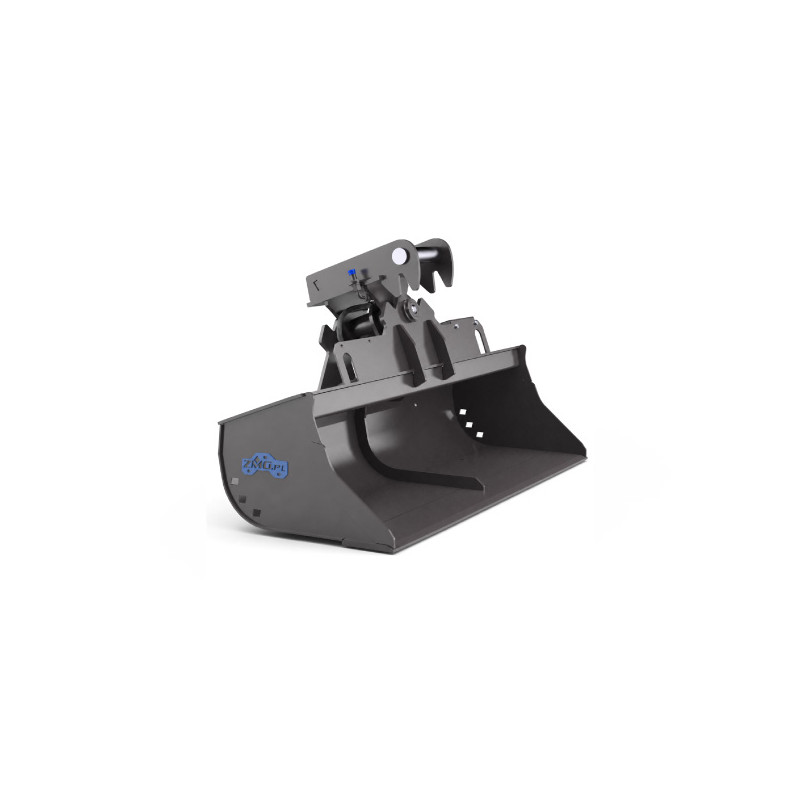

Model LSH-ZMG3-1500-MS03 is a 1500 mm hydraulic ditch cleaning bucket dedicated to medium-class excavators of 4–6 t. The hydraulically adjustable working angle allows slope forming at any inclination, ditch cleaning, and finishing work from a single operator position. The Lehnhoff MS03 quick coupler provides reliable attachment and efficient tool changes for medium-class machines. Solid steel frame and reliable hydraulic system ensure durability and consistent work results on every type of slope.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
