- Class: 3-4 T
- Width: 1100
- Adapter: M03
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1000 | 106 | 111 |
| 1100 | 111 | 123 |
| 1200 | 117 | 135 |
| 1300 | 122 | 146 |
| 1400 | 128 | 158 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Type | ||
| Hydraulic connectors: | M18x1.5 |

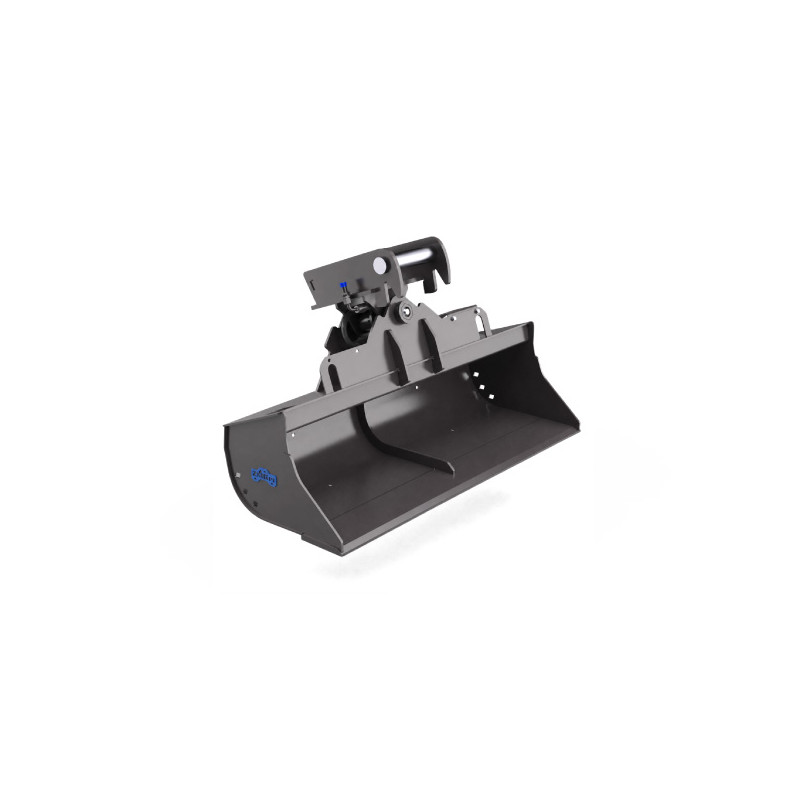

The LSH-ZMG2-1100-M03 hydraulic ditch cleaning bucket with a working width of 1100 mm is an advanced tool designed for excavators in the 2–4 t class. Its hydraulic tilt adjustment enables precise slope profiling, ditch cleaning, and terrain shaping without repositioning the machine. The Martin M03 adapter (compatible with SW10, CM30) ensures wide compatibility with machines equipped with this popular quick coupler system. S355 steel construction, reinforced edges, and a reliable hydraulic cylinder guarantee working precision and long tool life even in demanding terrain.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
