Class: 0-2 T
Width: 1200
Adapter: M03

Hydraulic ditch cleaning bucket 1200mm M03 class 0-2t

Hydraulic ditch cleaning bucket 1200mm M03 class 0-2t

Hydraulic ditch cleaning bucket 1200mm M03 class 0-2t

Hydraulic ditch cleaning bucket 1200mm M03 class 0-2t

Hydraulic ditch cleaning bucket 1200mm M03 class 0-2t

Hydraulic ditch cleaning bucket 1200mm M03 class 0-2t

Hydraulic ditch cleaning bucket 1200mm M03 class 0-2t

Hydraulic ditch cleaning bucket 1200mm M03 class 0-2t

Hydraulic ditch cleaning bucket 1200mm M03 class 0-2t

Hydraulic ditch cleaning bucket 1200mm M03 class 0-2t

Hydraulic ditch cleaning bucket 1200mm M03 class 0-2t

3,343.14 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]
800	84	59
900	88	70
1000	93	75
1100	97	83
1200	102	91

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Roll sheet:	4 mm	S355
Cutting edge:	12 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355

	Type

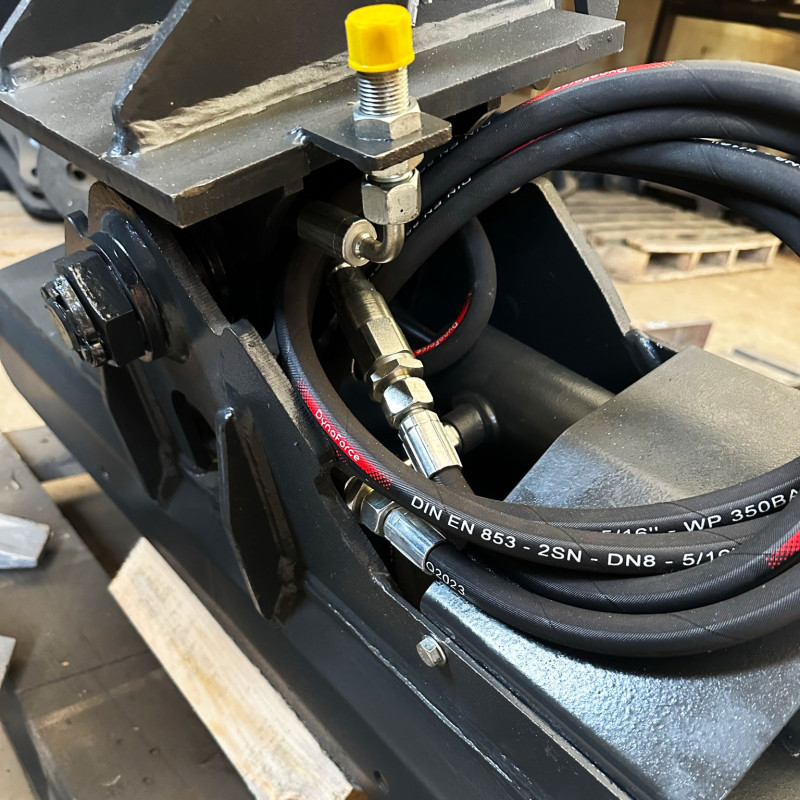

Hydraulic connectors:	M18x1.5

The LSH-ZMG1-1200-M03 series is a 1200 mm hydraulic ditch cleaning bucket for mini and compact excavators up to 2 t. The hydraulic rotation mechanism allows free adjustment of the working angle, delivering high precision in slope profiling, ditch cleaning, and finishing work. The Martin M03 adapter (compatible with SW10, CM30) ensures wide compatibility with machines equipped with this popular quick coupler system. Solid steel frame and reliable hydraulic system ensure durability and consistent work results on every type of slope.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LSH-ZMG1

Reference LSH-ZMG1-1200-M03

Data sheet

Lead time: up to 3 business weeks
For the machine: 0-1
1-2
Adapter: M03
Width: 1200
Weight without adapter: 102
Capacity: 91
Side/rear plate: 4 S355
Side cutters: 8 HB400
Roll sheet: 4 S355
Cutting edge: 12 HB500
Top plate: 5 S355
Bend plate: 5 S355
Hydraulic connectors: M18x1.5
