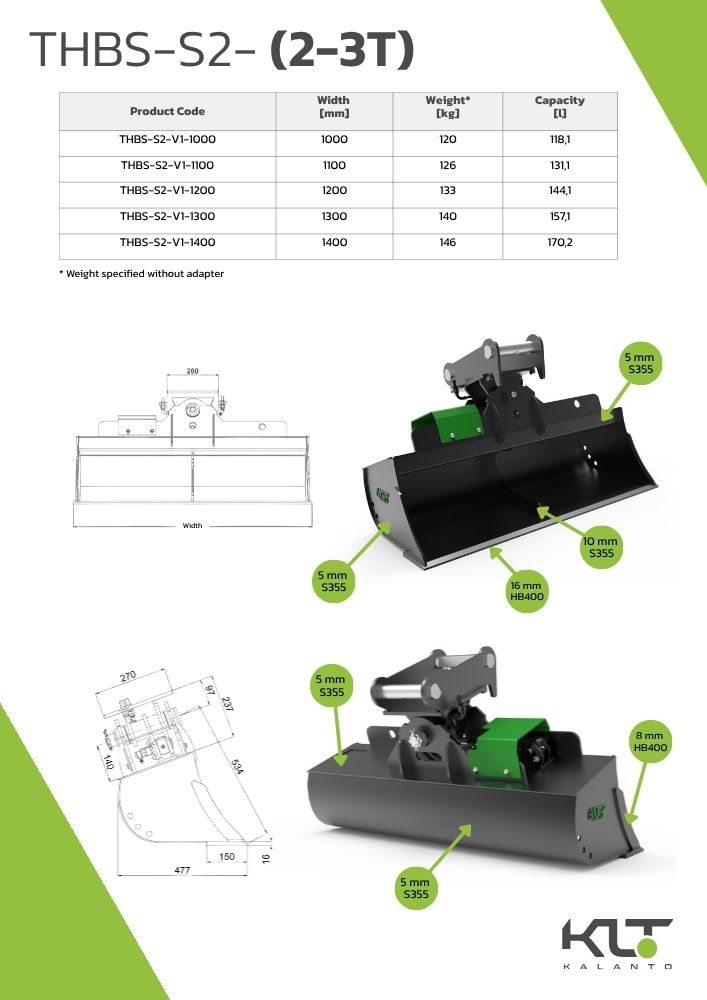

| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 133 | 144,1 |
| 1400 | 146 | 170,2 |
* The given bucket weight does not include the weight of the adapter.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Internal reinforcement: | 10mm | S355 |
| Type | ||
| Hydraulic connectors: | M14x1.5. |

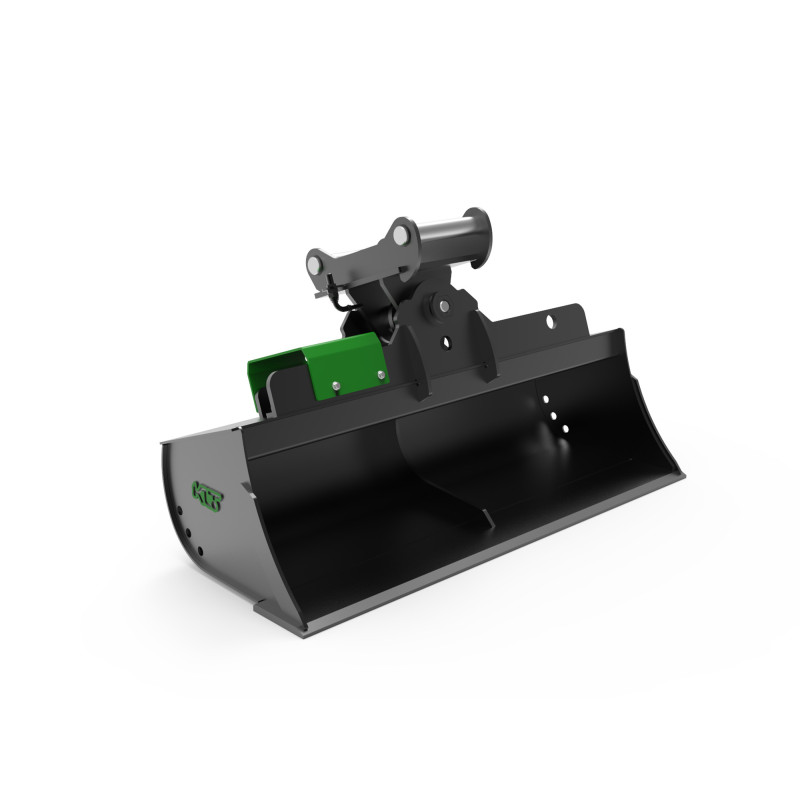

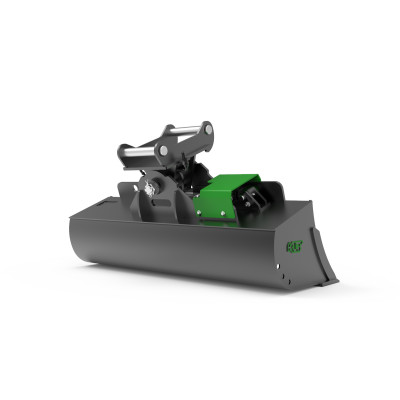

The THBS-S2-V1-1200-S40 model is a robust hydraulic tilting grading bucket intended for mini and compact excavators in the 2–3 ton class. Equipped with an integrated hydraulic cylinder, it offers smooth side tilting for enhanced precision when profiling terrain, shaping slopes, or cleaning ditches—without the need to reposition the machine. Its optimized design ensures high performance and outstanding durability under heavy use. A perfect choice for finishing work as well as demanding earthmoving tasks.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
