Class: 6-9 T
Width: 1600
Adapter: M10

Out of stock

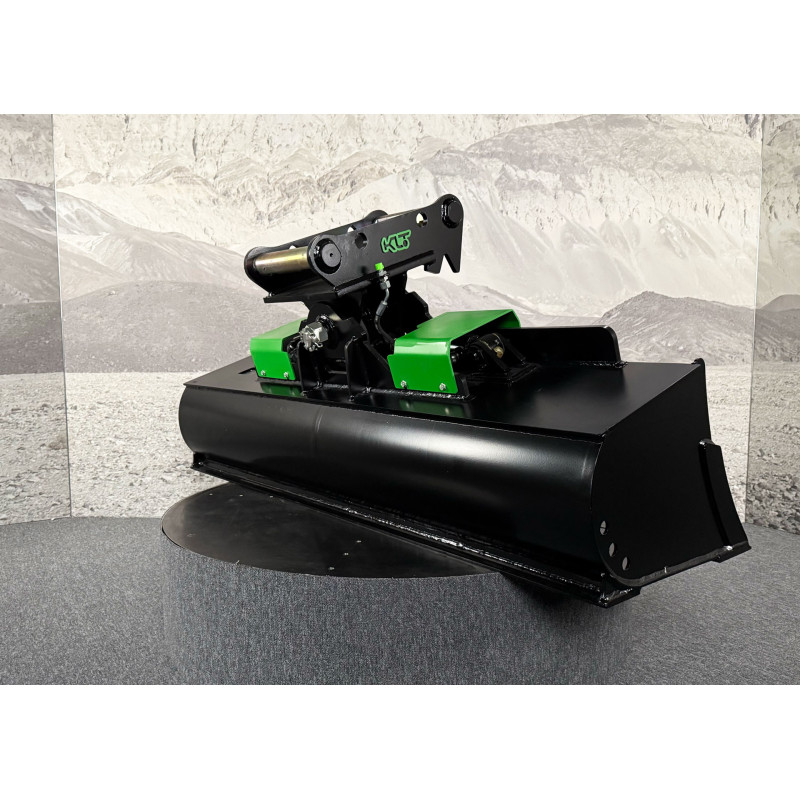

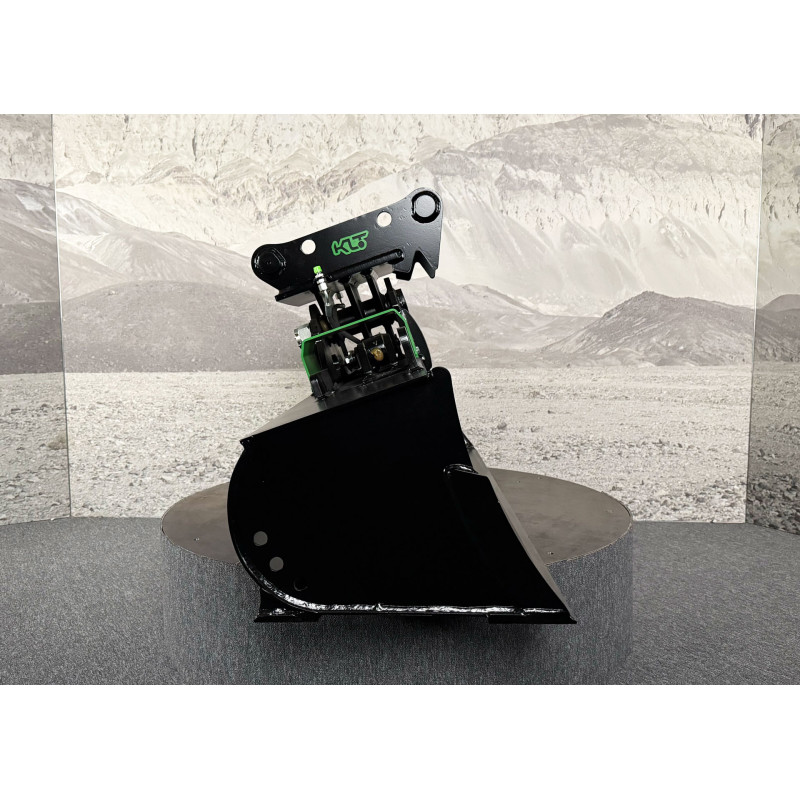

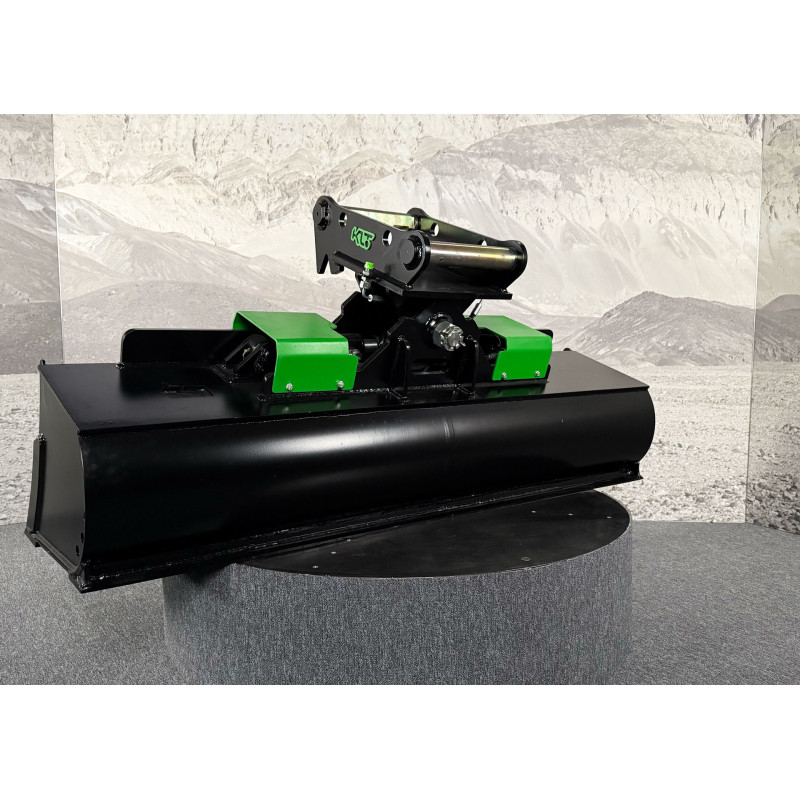

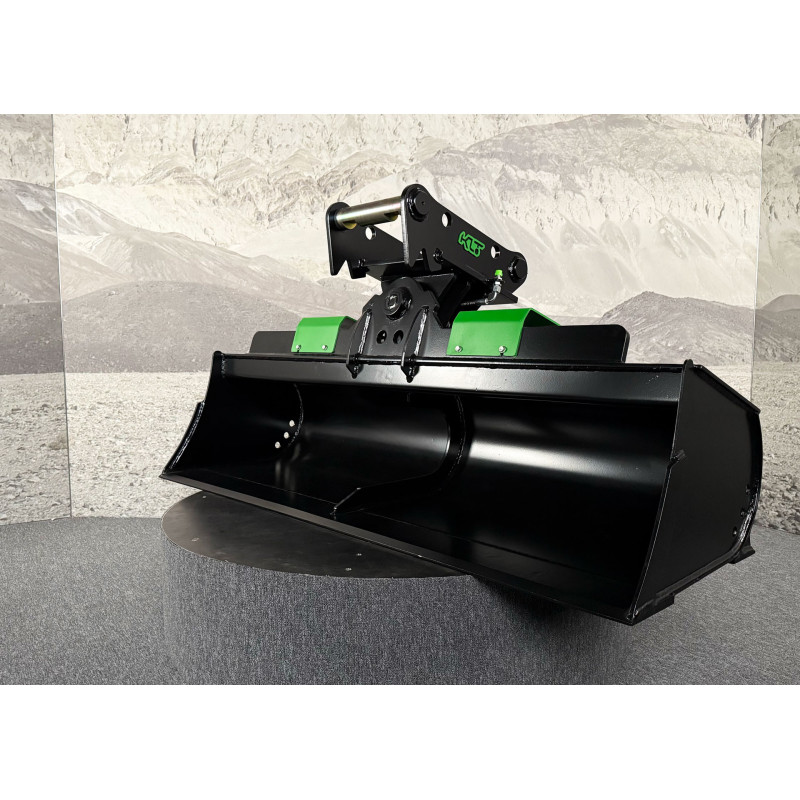

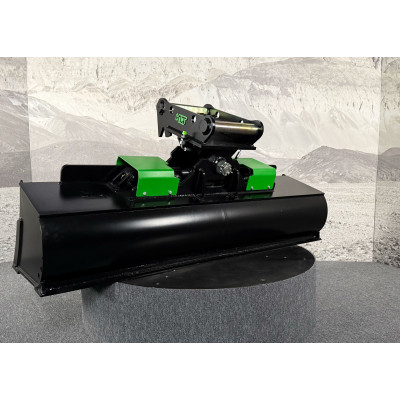

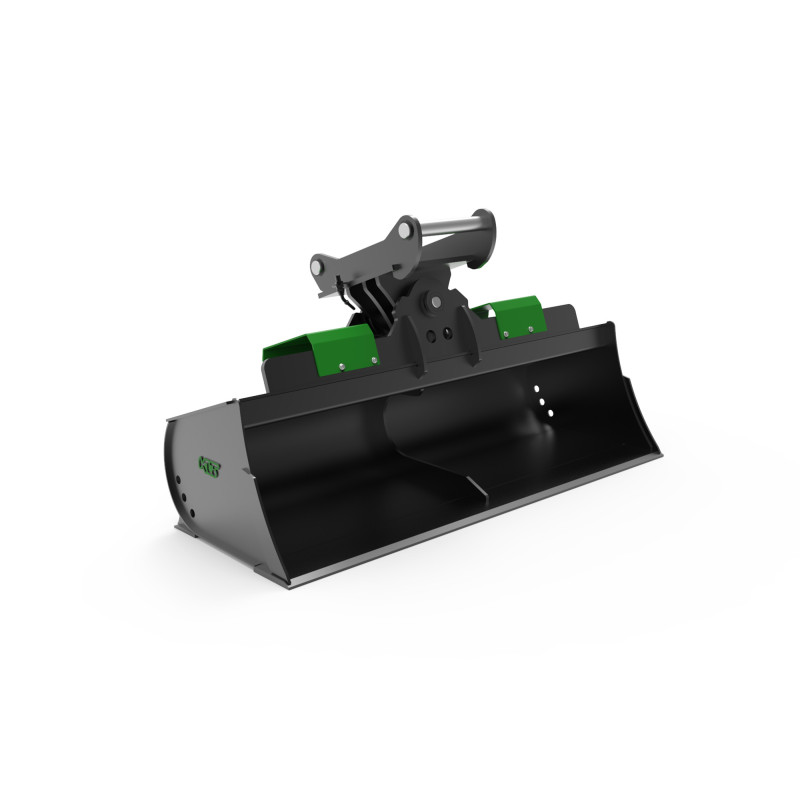

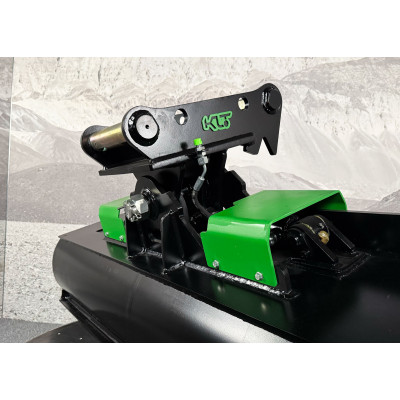

Hydraulic ditch cleaning bucket 1600mm M10 class 6-9t

Hydraulic ditch cleaning bucket 1600mm M10 class 6-9t

Name: Hydraulic ditch cleaning bucket 1600mm M10 class 6-9t
Brand: Kalanto
SKU: THBS-S5-V1-1600-M10-RB
Price: 9108.15 PLN
Availability: OutOfStock

9,108.15 zł Tax included

Out of stock Lead time up to 7 business days

Other models:

Width

Adapter

Adapter parameters

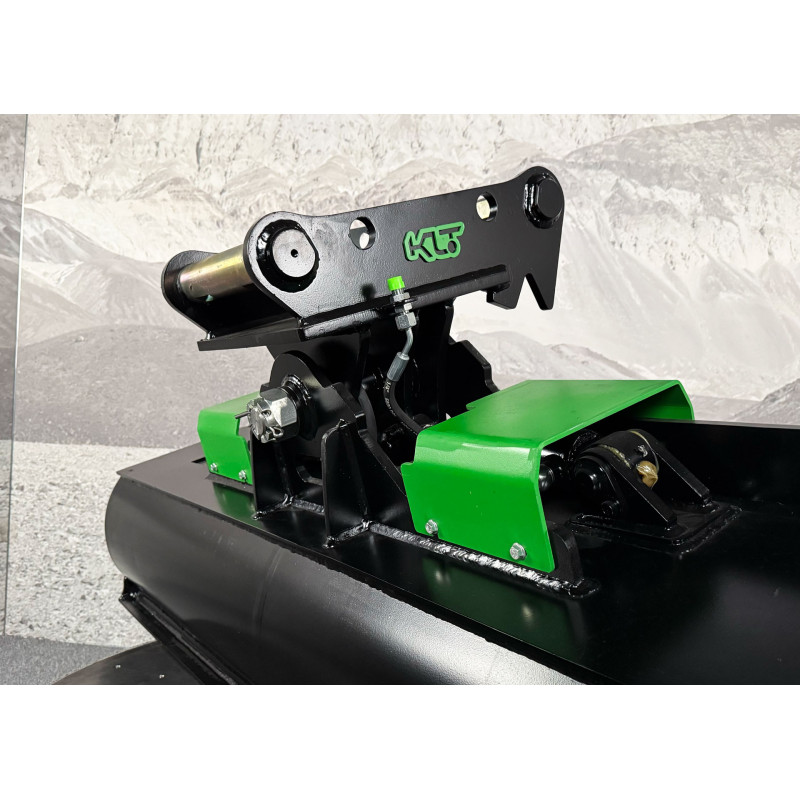

Adapter compatible with the Martin system- M10 with base plate

Reference: AD-WP-M10

The AD-WP-M10 is a heavy-duty adapter designed according to the Martin M10 standard and equipped with a reinforced base plate. Suitable for larger excavators, it provides stable attachment, efficient force transfer, and reliable performance during demanding tasks.

Lead time: up to 48 hours
For the machine: 4-5, 5-6, 6-7, 7-8, 8-9, 9-10
Adapter: M10
Side plate: 16 S355
Base plate: 20 S355
Pin diameter: 50
Inner width: 232
Pin spacing: 292
Weight: 41

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
M02	30	161	170
M03	35	184	180
M10	50	232	292

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Parameters

The main components are made of the following materials and thicknesses:

	M02		M03		M10
	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	10mm	S355	12mm	S355	16mm	S355
Base plate:	16mm	S355	16mm	S355	20mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]
1600	297	315,1
1800	317	357

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	16 x 150 mm	HB400

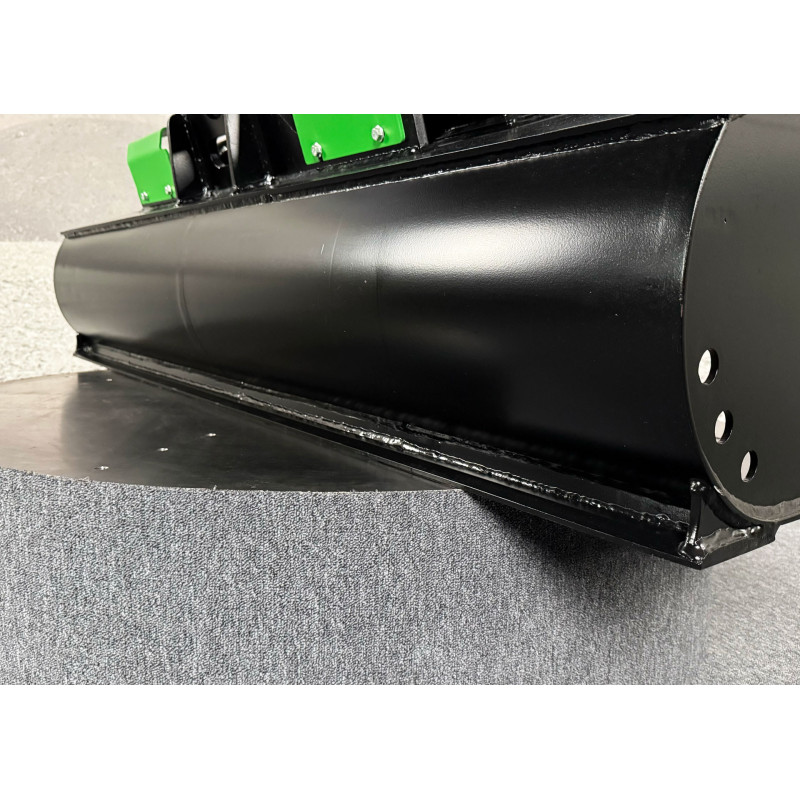

Rear blade:	12x110mm	HB400
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	8 mm	S355
Internal reinforcement:	10mm	S355
	Type
Hydraulic connectors:	M16x1.5.

Watch video (2)

Alternative products with a different lead time:

up to 3 business weeks Class: 6-10 T ZMG 7,606.32 zł

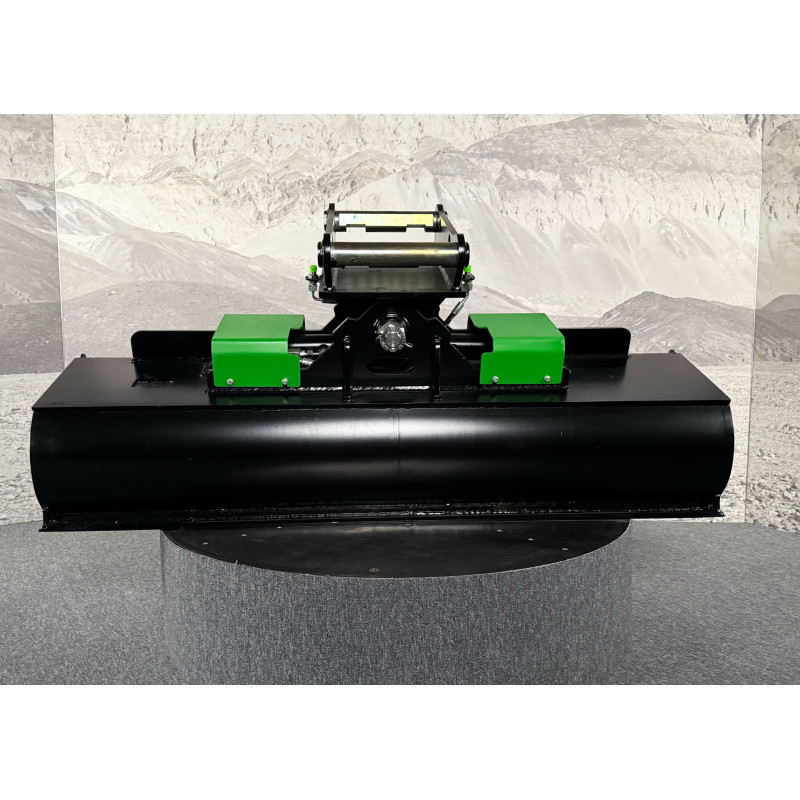

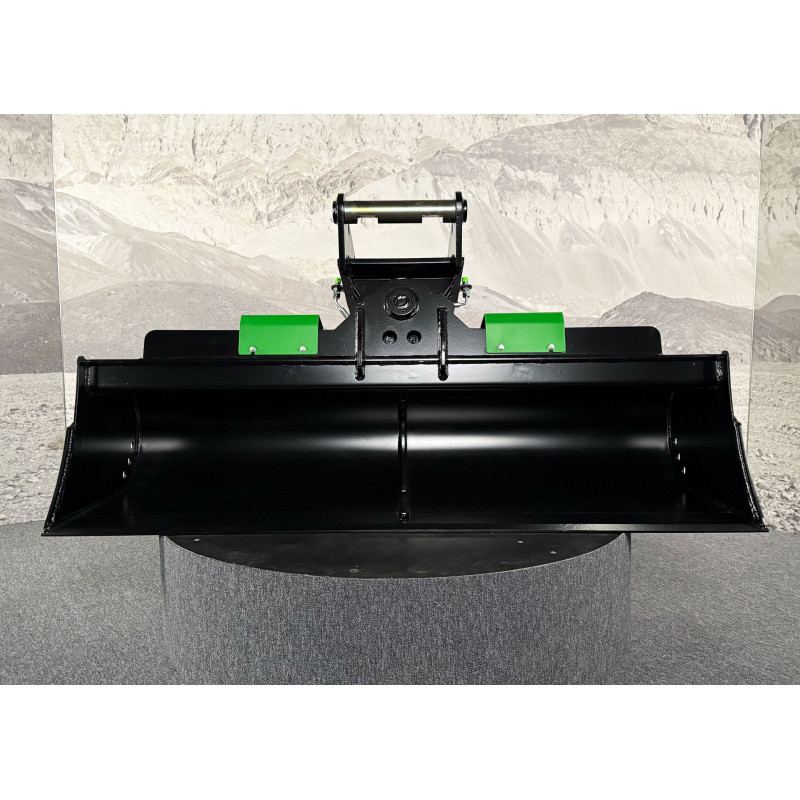

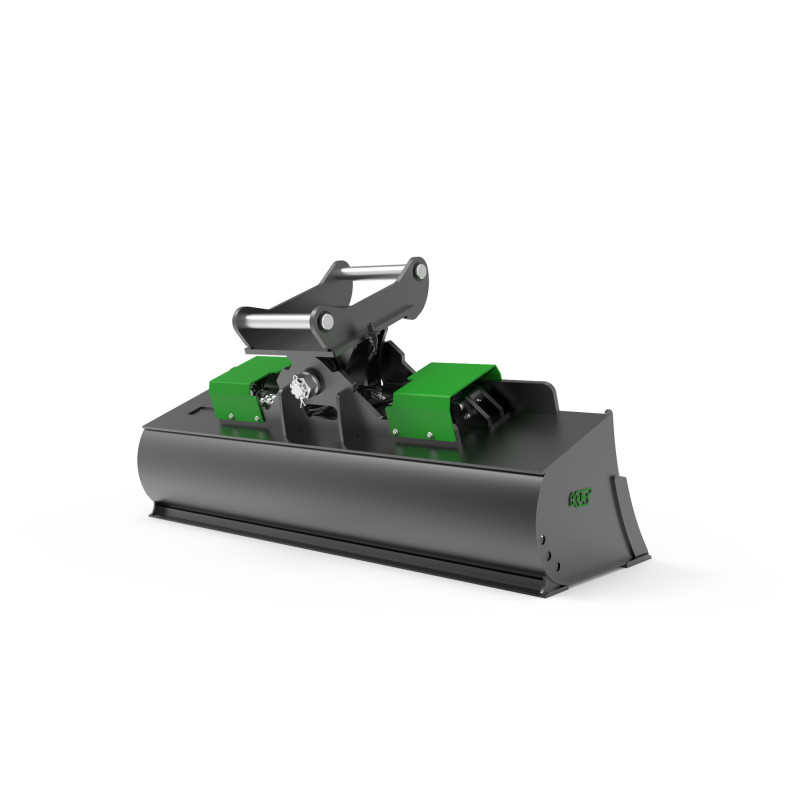

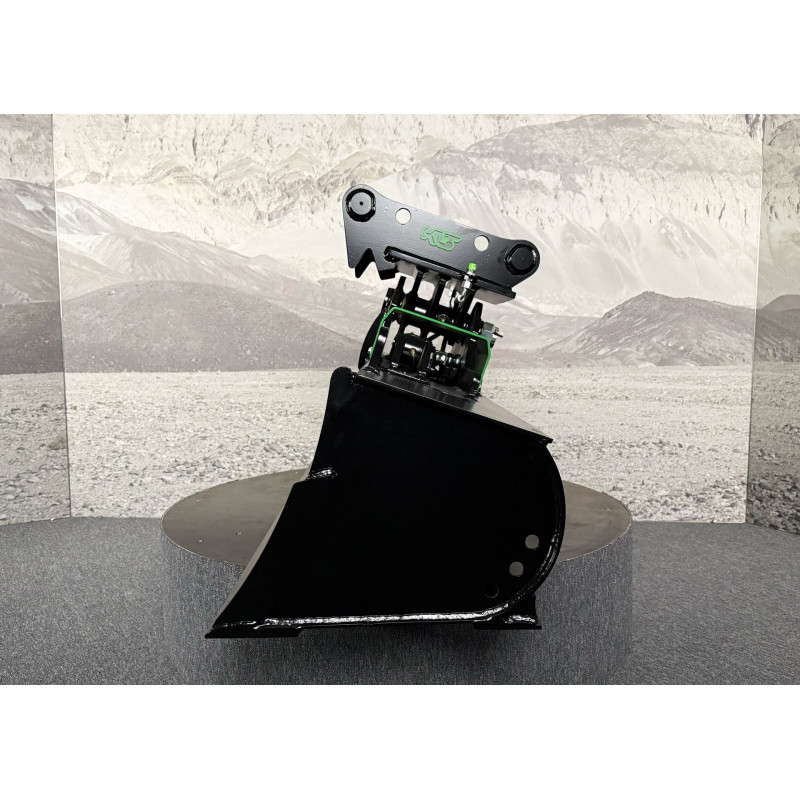

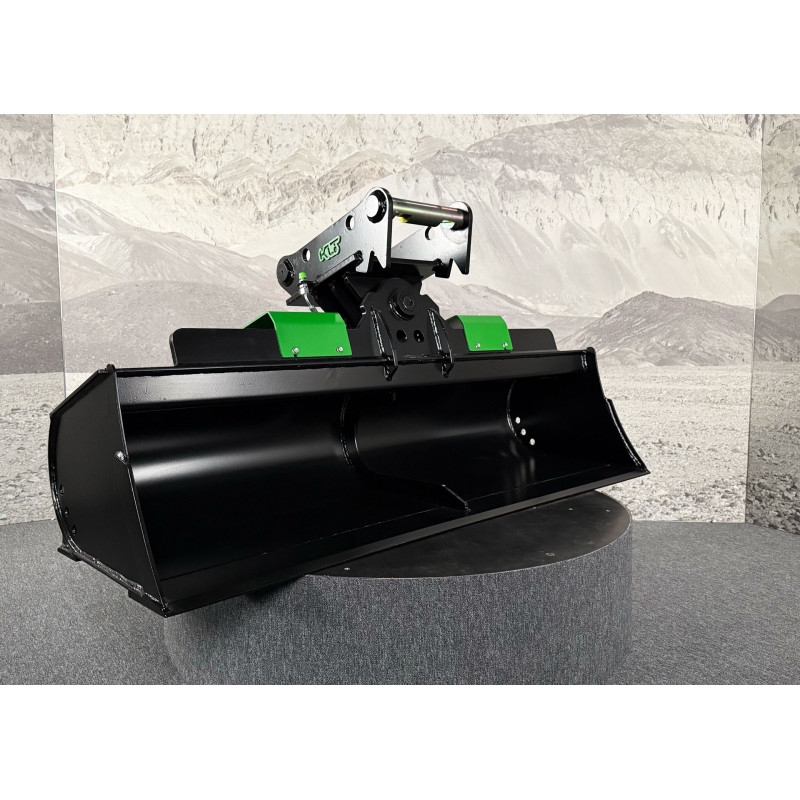

The THBS-S5-V1-1600-M10-RB is a robust hydraulic tilting grading bucket intended for 6–9-ton excavators. Equipped with dual hydraulic cylinders, it distributes tilting forces evenly, providing excellent stability even under heavy loads and during steep-angle operation. The integrated rear blade enables smooth surface leveling while reversing, increasing work efficiency and reducing task duration. Built from highly wear-resistant materials, the bucket ensures reliability in demanding ground-shaping applications.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference THBS-S5-V1-1600-M10-RB

Data sheet

Lead time: up to 7 business days
For the machine: 6-7
7-8
8-9
Adapter: M10
Width: 1600
Weight without adapter: 297
Capacity: 315,1
Side/rear plate: 6 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Cutting edge: 16x150 HB400
Rear blade: 12x110 HB400
Internal reinforcement: 10 S355
Top plate: 8 S355
Bend plate: 8 S355
Hydraulic connectors: M16x1.5

Watch the videos
