| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 169 | 162 |
| 1400 | 187 | 191,3 |
* The given bucket weight does not include the weight of the adapter.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Rear blade: | 12x110mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 6 mm | S355 |
| Bend plate: | 6 mm | S355 |
| Internal reinforcement: | 10mm | S355 |
| Type | ||
| Hydraulic connectors: | M16x1.5. |

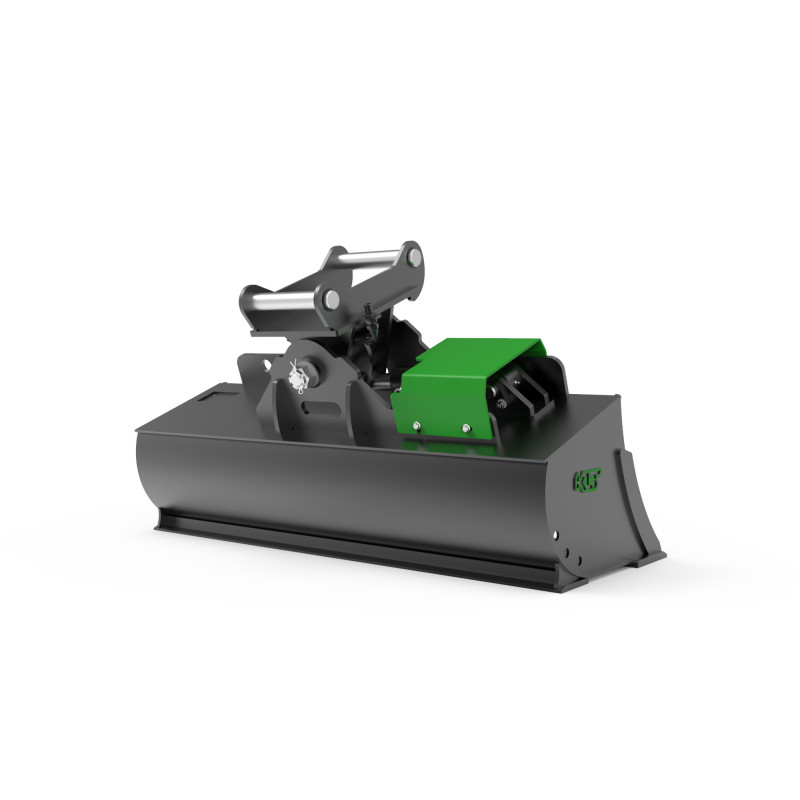

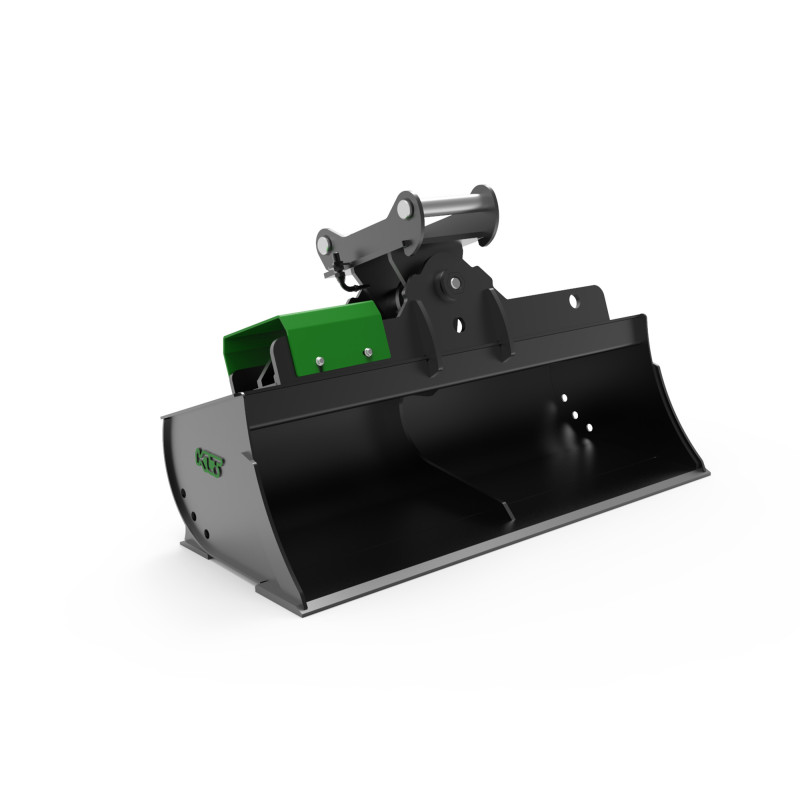

The THBS-S3-V1-1200-S40-RB is a modern tilting grading bucket designed for excavators in the 3–4-ton range. Its standout feature is the rear leveling blade, which allows efficient ground smoothing even when reversing, greatly improving productivity. The hydraulic cylinder provides precise side tilting, enabling accurate terrain shaping and easy handling in tight spaces. The reinforced construction ensures high durability and dependable performance in daily construction tasks.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
