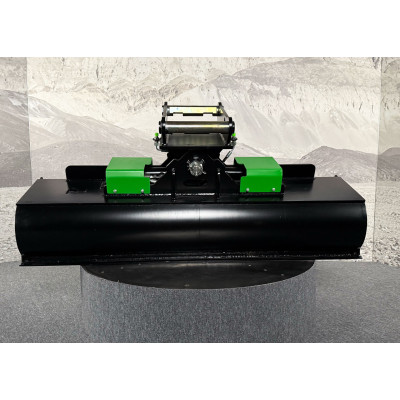

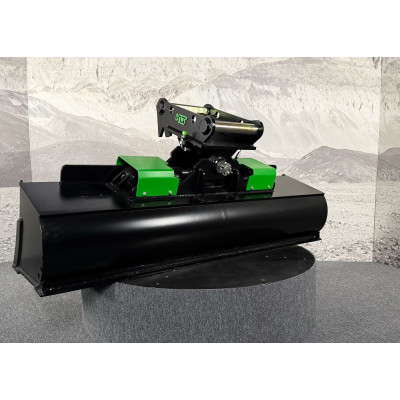

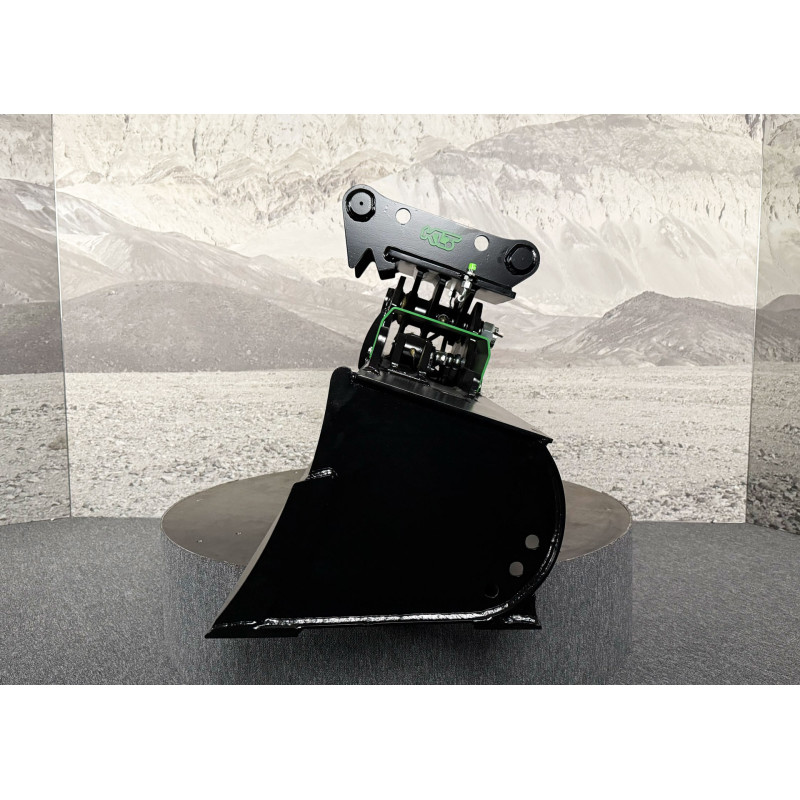

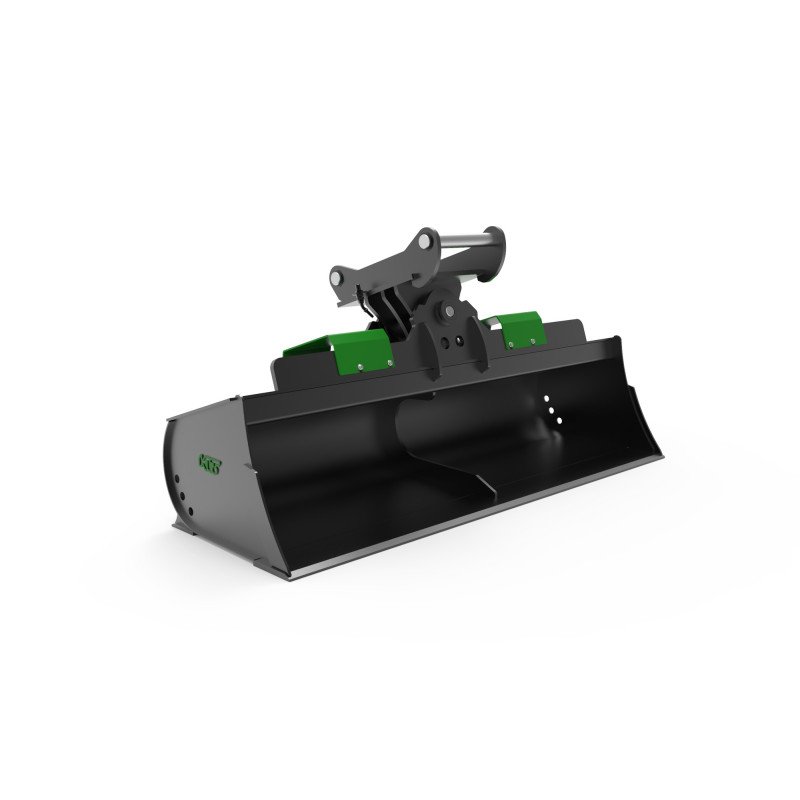

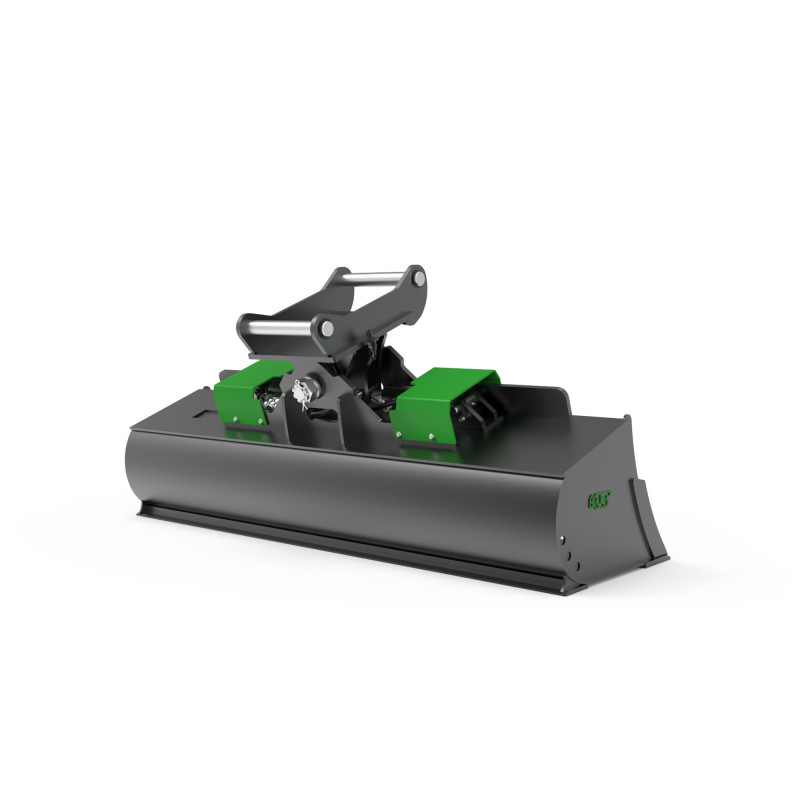

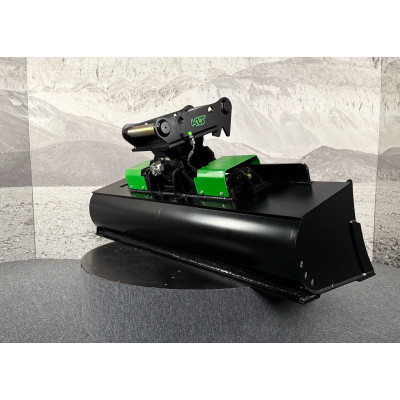

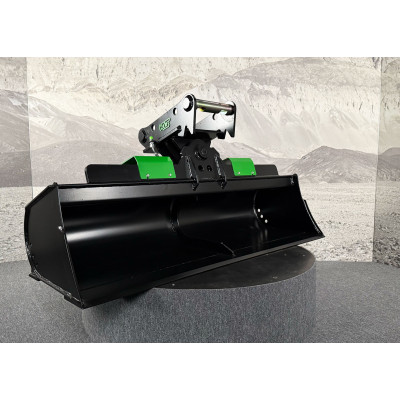

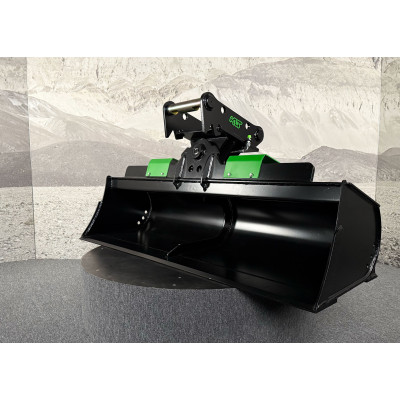

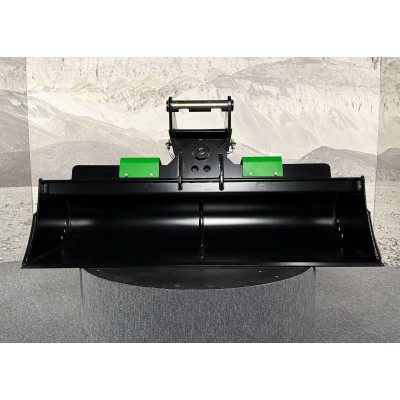

Hydraulic ditch cleaning bucket 1800mm S45 class 6-9t
9,669.03 zł
Tax included

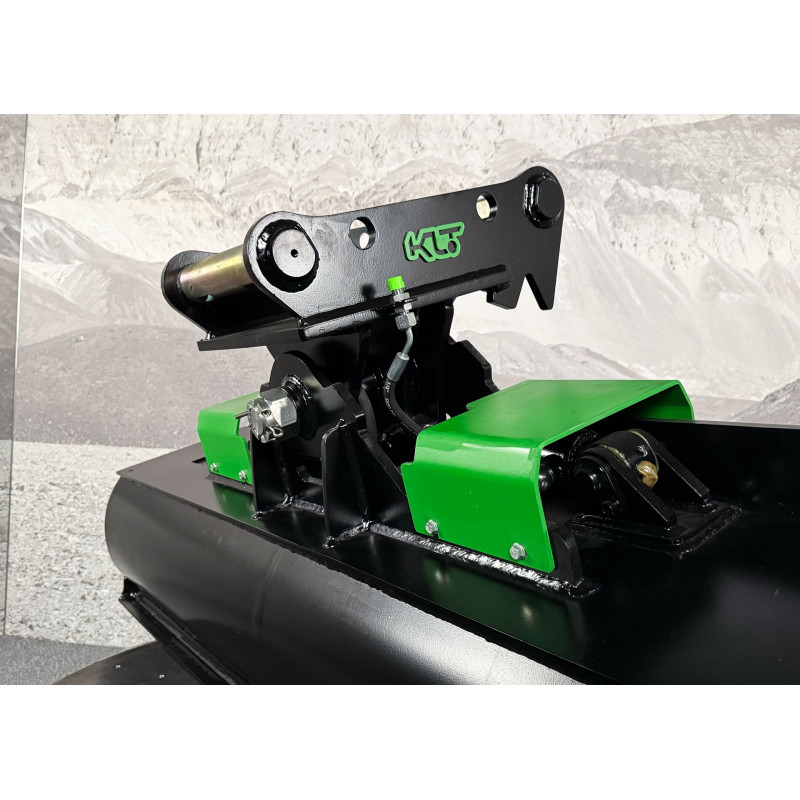

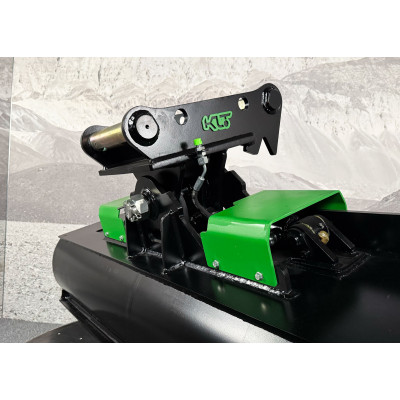

The THBS-S5-V1-1800-S45-RB is a solid and high-performance hydraulic tilting grading bucket designed for heavy-duty use with 6–9-ton excavators. Its two hydraulic cylinders ensure stable and consistent tilt operation, providing precise angle control and smooth maneuverability. The rear blade supports two-direction work, significantly speeding up terrain profiling tasks. With reinforced, wear-resistant structural components, the bucket offers long service life and dependable performance in challenging field conditions.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1600 | 297 | 315,1 |
| 1800 | 317 | 357 |
* The given bucket weight does not include the weight of the adapter.

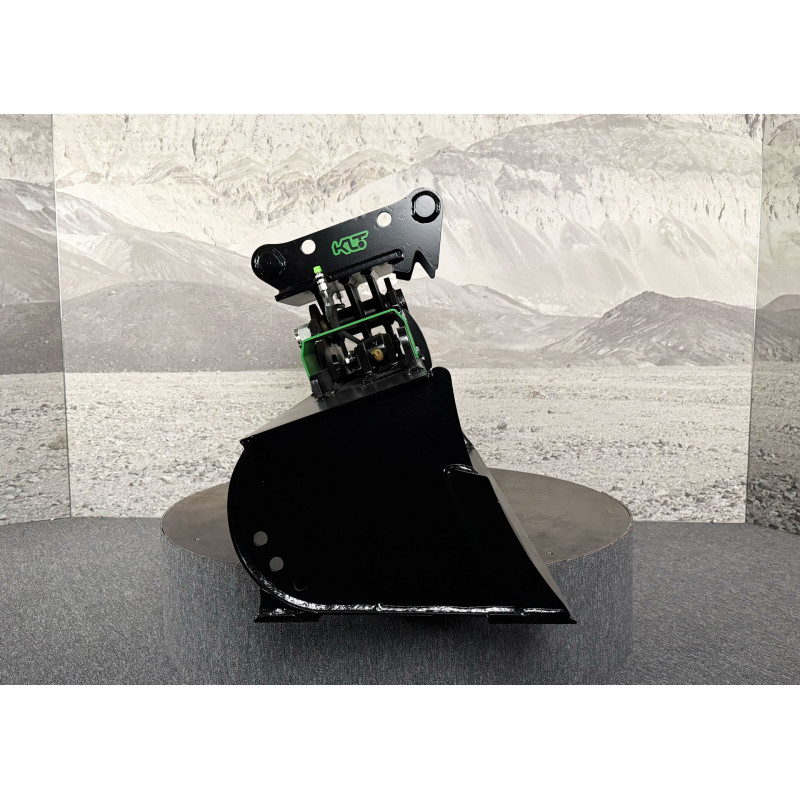

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |

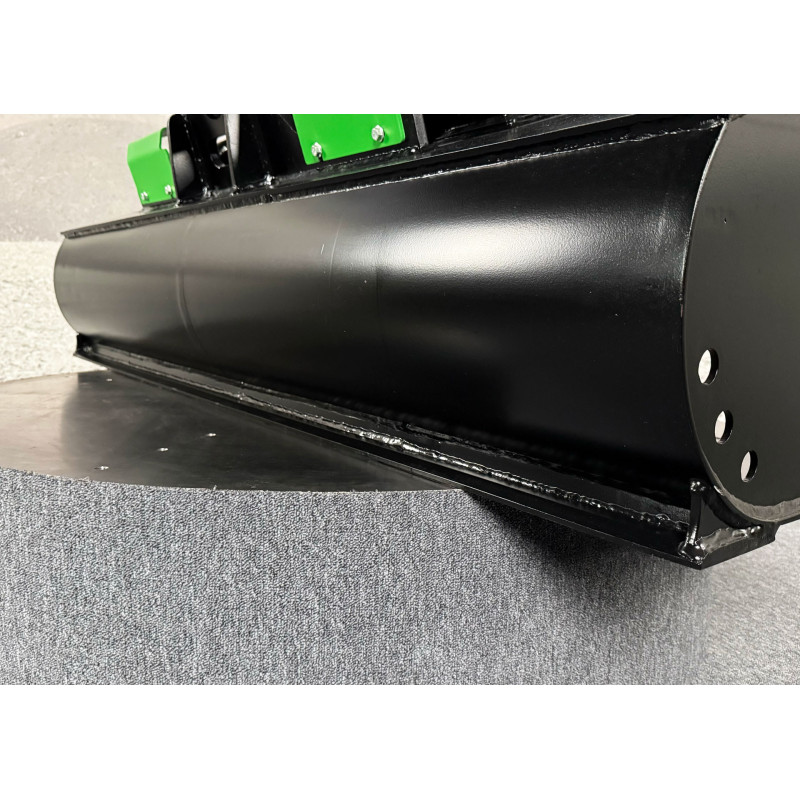

| Rear blade: | 12x110mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 8 mm | S355 |
| Internal reinforcement: | 10mm | S355 |
| Type | ||
| Hydraulic connectors: | M16x1.5. |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
THBS-S5-V1-1800-S45-RB
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 6-7t
7-8t
8-9t - Adapter
- S45
- Width
- 1800mm
- Weight without adapter
- 317kg
- Capacity
- 357 l
- Side/rear plate
- 6mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Rear blade
- 12x110mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 8mm S355
- Bend plate
- 8mm S355
- Hydraulic connectors
- M16x1.5
