- Class: 3-4 T
- Width: 1300
- Adapter: MS03
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1000 | 106 | 111 |
| 1100 | 111 | 123 |
| 1200 | 117 | 135 |
| 1300 | 122 | 146 |
| 1400 | 128 | 158 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Type | ||
| Hydraulic connectors: | M18x1.5 |

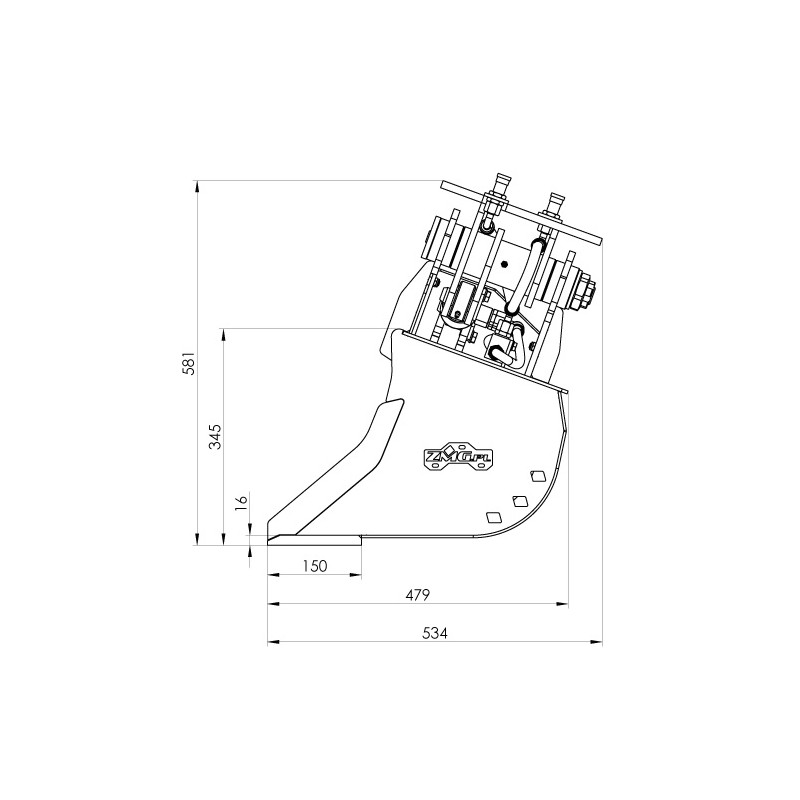

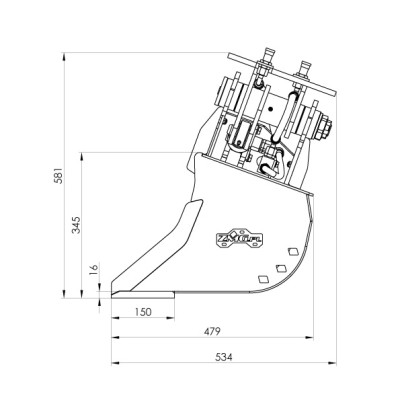

The LSH-ZMG2-1300-MS03 series is a 1300 mm hydraulic ditch cleaning bucket for excavators in the 2–4 t class. The hydraulic rotation mechanism allows free adjustment of the working angle, delivering high precision in slope profiling, ditch cleaning, and finishing work. The Lehnhoff MS03 quick coupler provides reliable attachment and efficient tool changes for medium-class machines. Solid steel frame and reliable hydraulic system ensure durability and consistent work results on every type of slope.

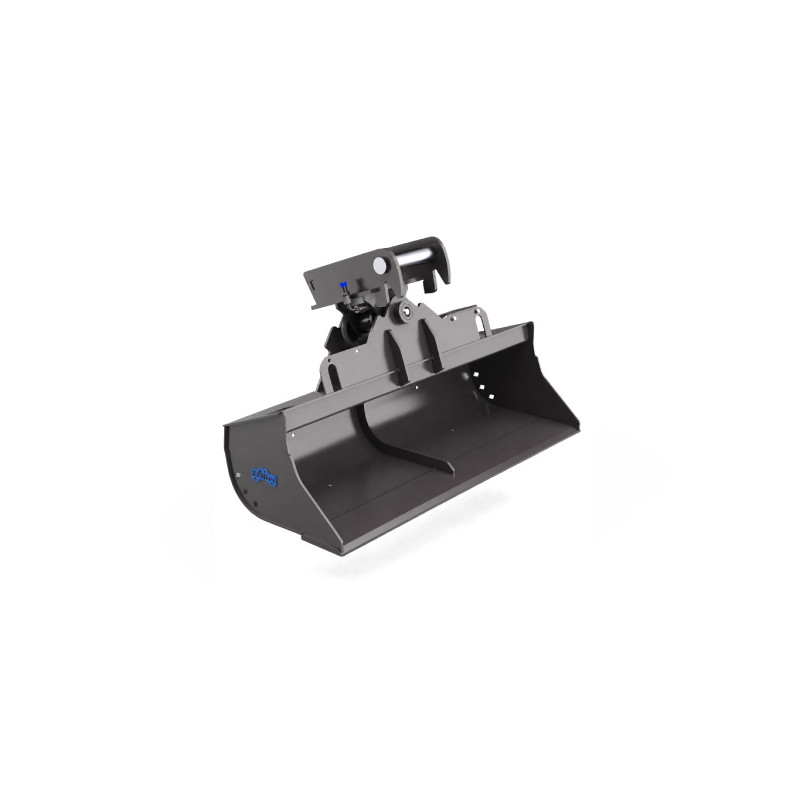

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
