- Class: 4-6 T
- Width: 1500
- Adapter: with pins
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 164 | 172 |
| 1300 | 172 | 187 |
| 1400 | 180 | 202 |
| 1500 | 188 | 217 |
| 1600 | 197 | 232 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 6 mm | S355 |
| Type | ||
| Hydraulic connectors: | M18x1.5 |

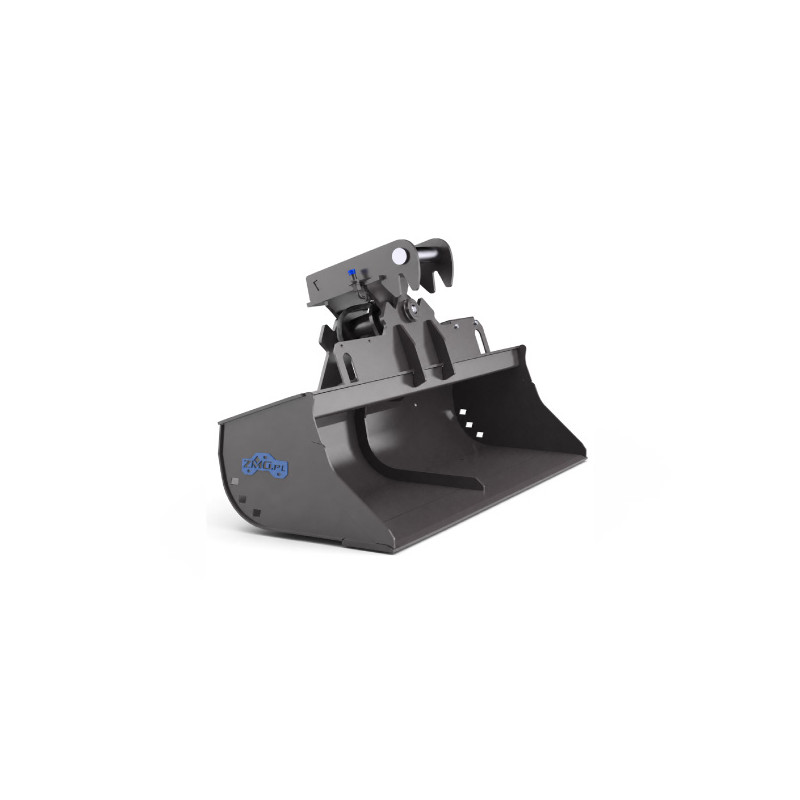

The LSH-ZMG3-1500-ZSW is a 1500 mm hydraulic ditch cleaning bucket for medium-class excavators of 4–6 t. Hydraulic angle adjustment allows precise forming of slopes, excavations, ditches, and any variable-gradient feature without repositioning the excavator. Pin mounting provides a traditional, proven and robust connection between the attachment and the excavator arm, independent of any quick coupler system. Solid steel frame and reliable hydraulic system ensure durability and consistent work results on every type of slope.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Data sheet
