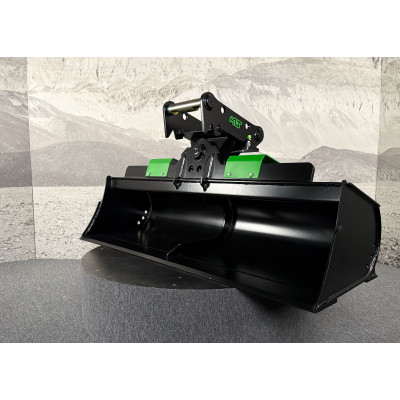

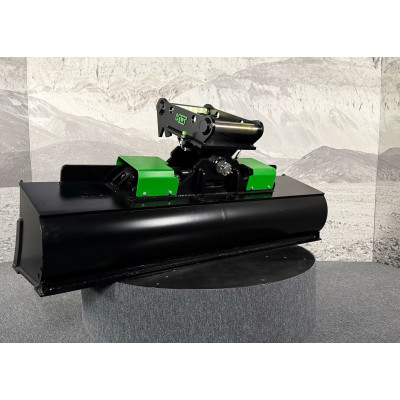

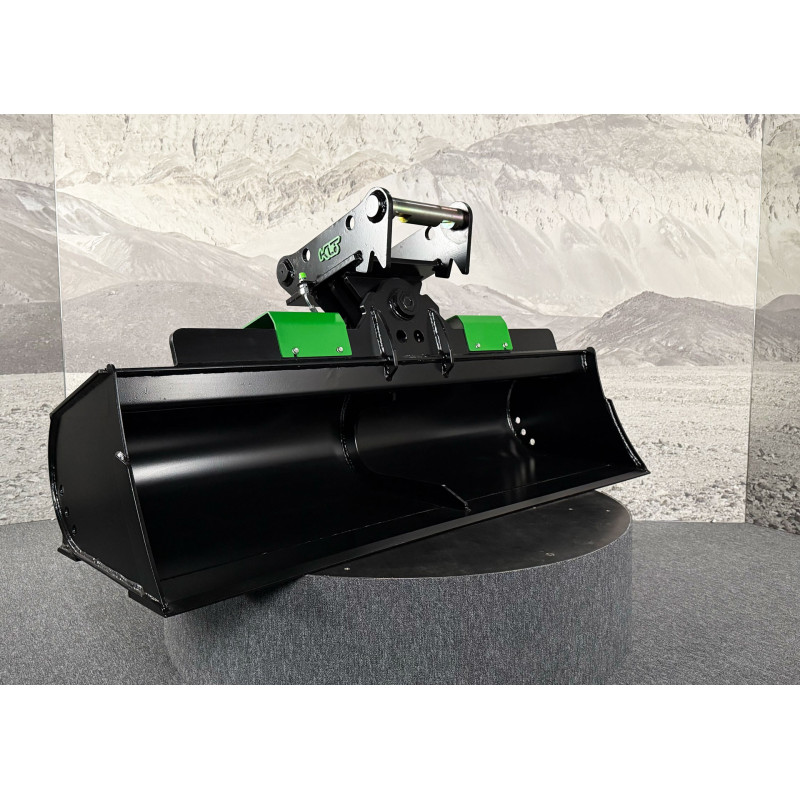

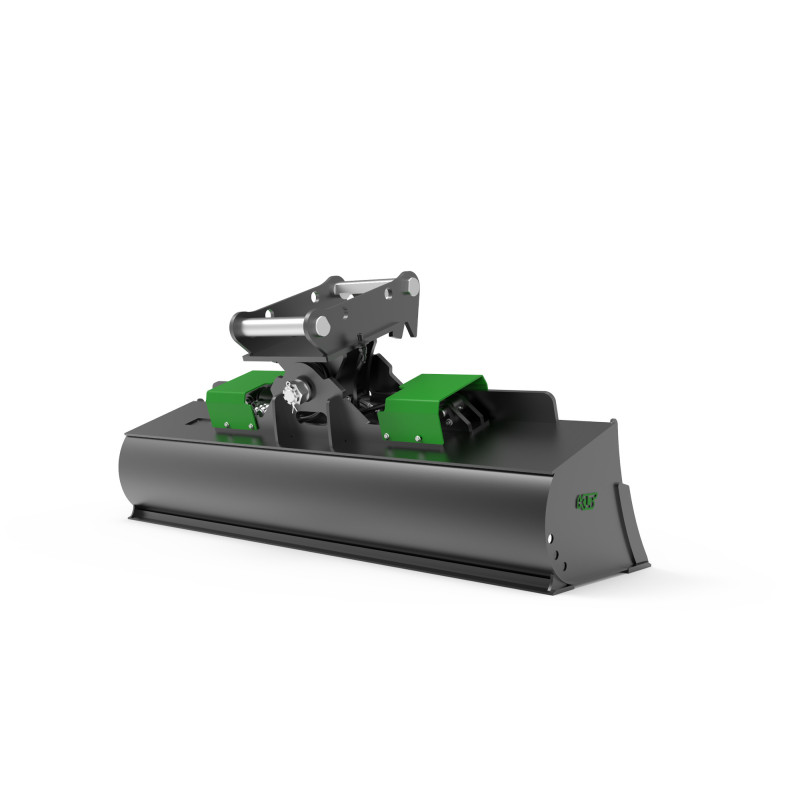

Hydraulic ditch cleaning bucket 1800mm MS08SY class 6-9t
9,669.03 zł
Tax included

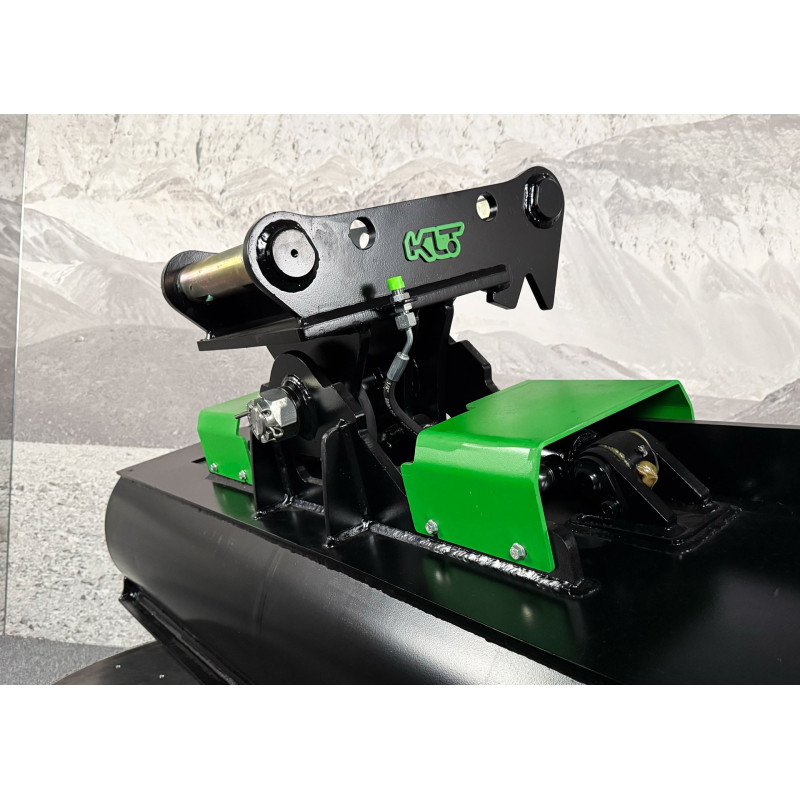

The THBS-S5-V1-1800-MS08SY-RB hydraulic tilt bucket is designed for precise terrain work with excavators weighing 6–9 tons. Its dual-cylinder system delivers balanced tilting force across the entire mechanism, improving control and reducing strain on structural components. The rear leveling blade allows effective grading and smoothing even during reverse movement. Thanks to its durable construction made from abrasion-resistant materials, the bucket is ideal for intensive, everyday use on construction sites.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1600 | 297 | 315,1 |
| 1800 | 317 | 357 |
* The given bucket weight does not include the weight of the adapter.

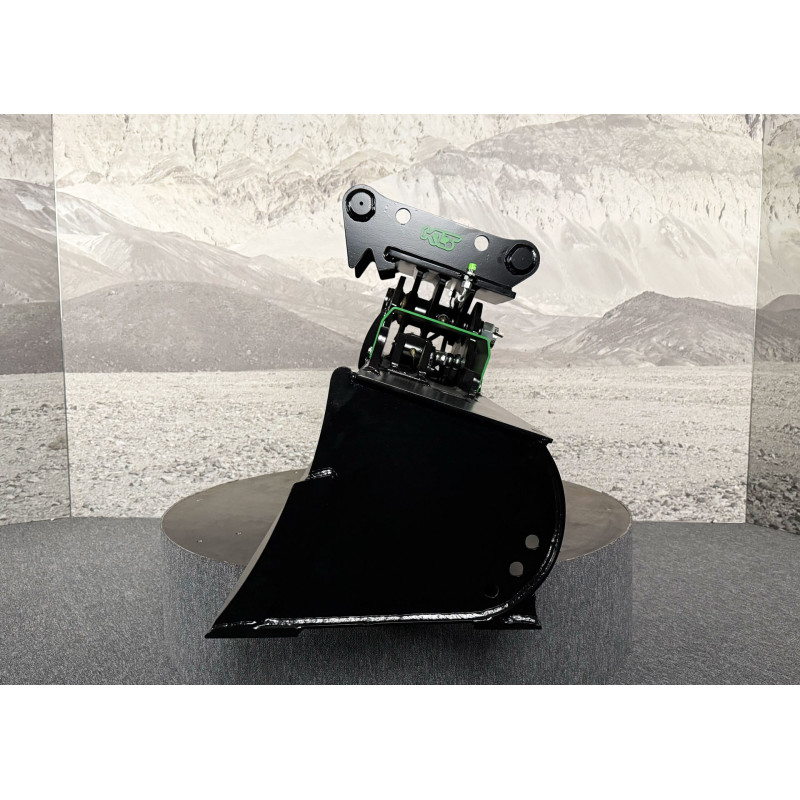

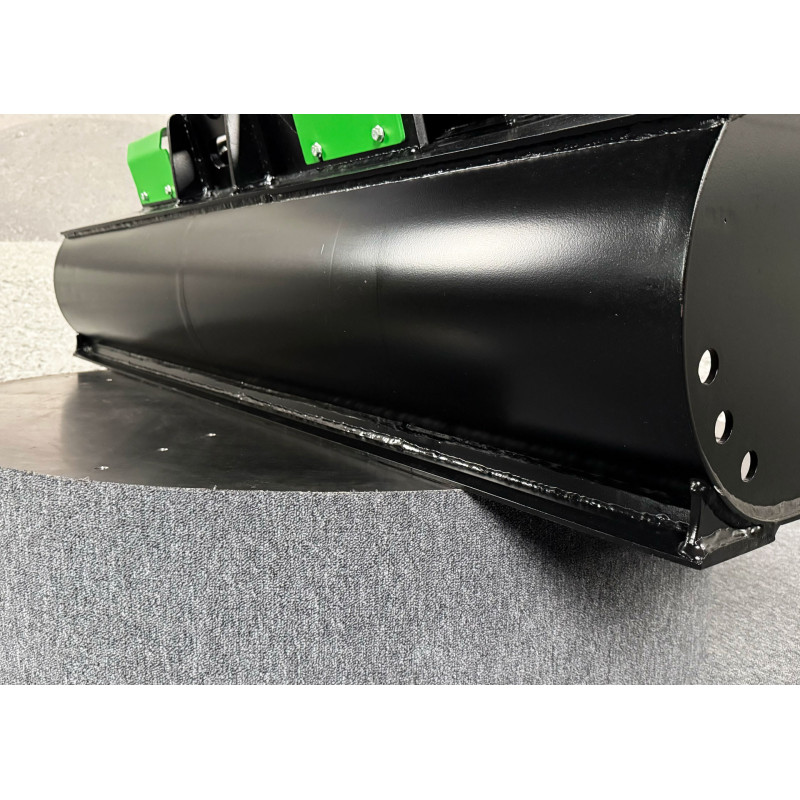

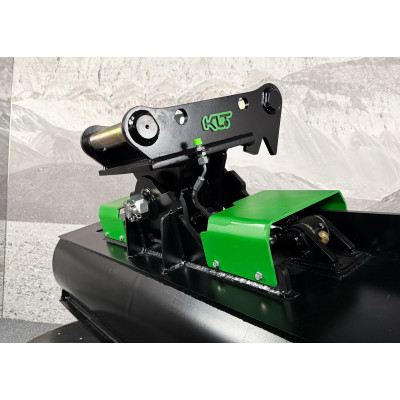

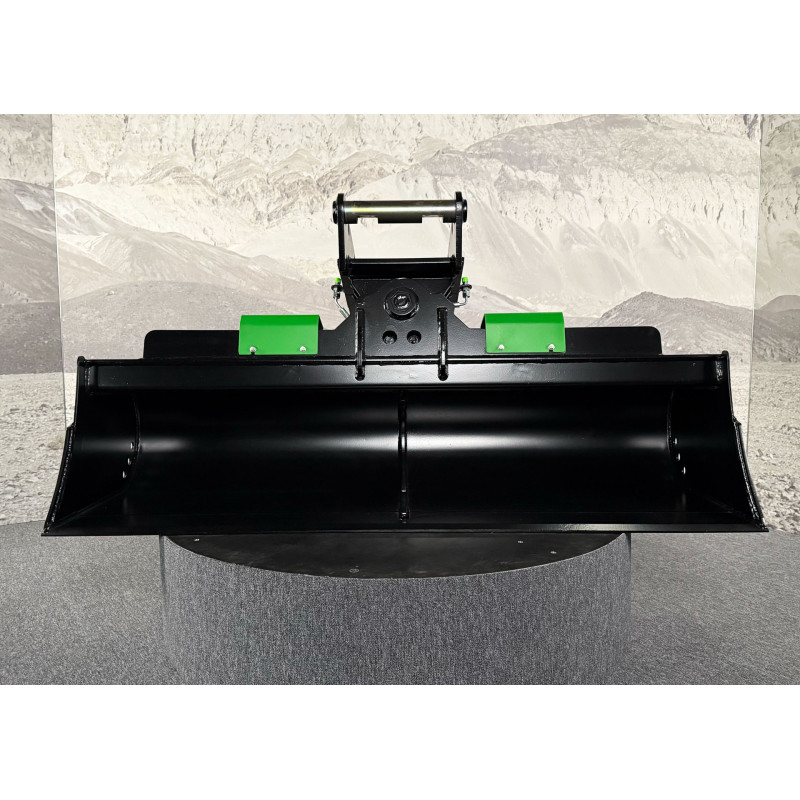

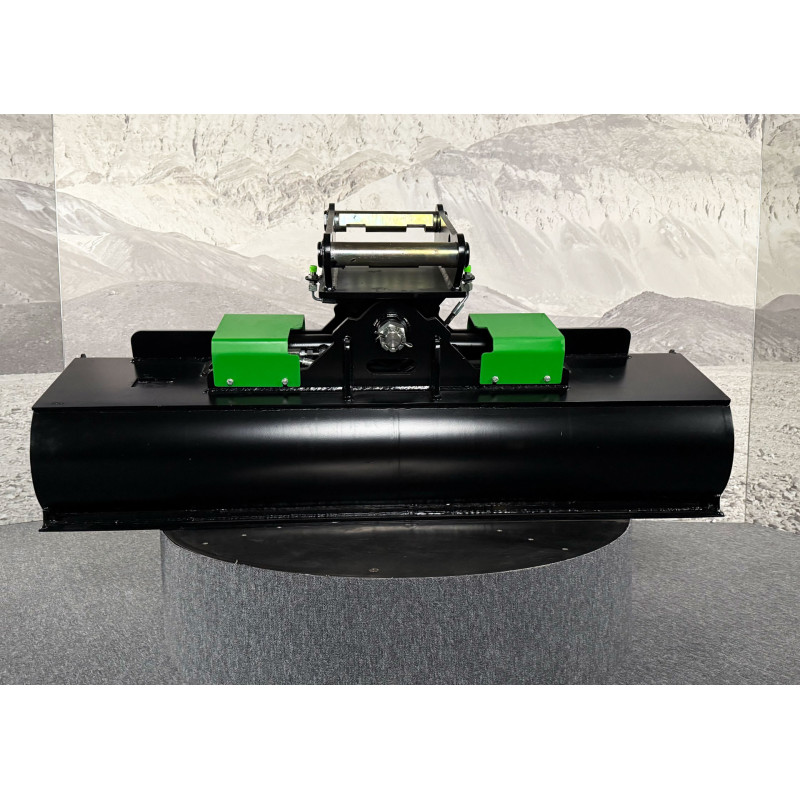

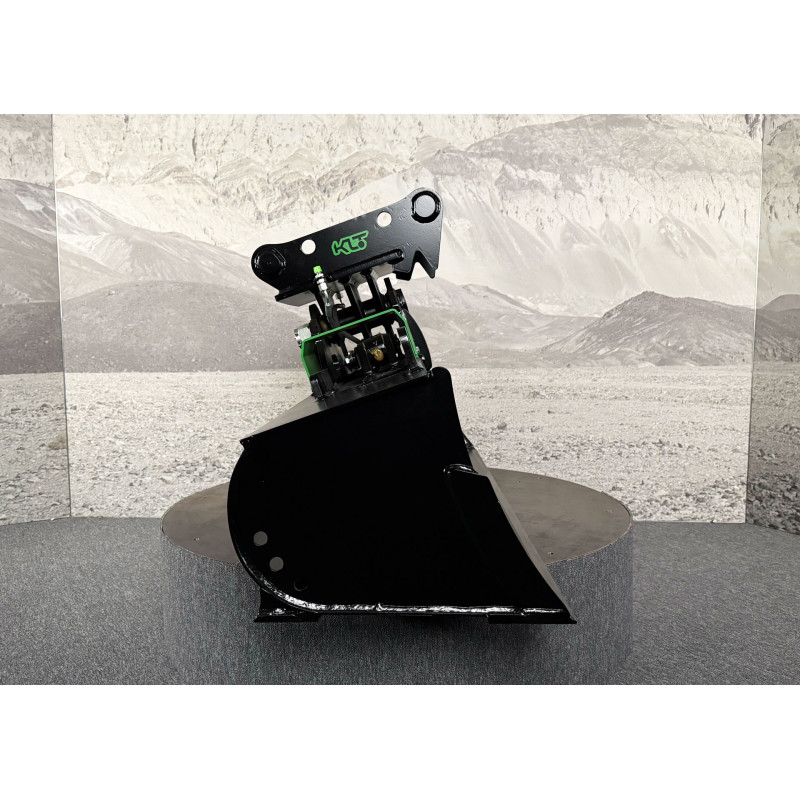

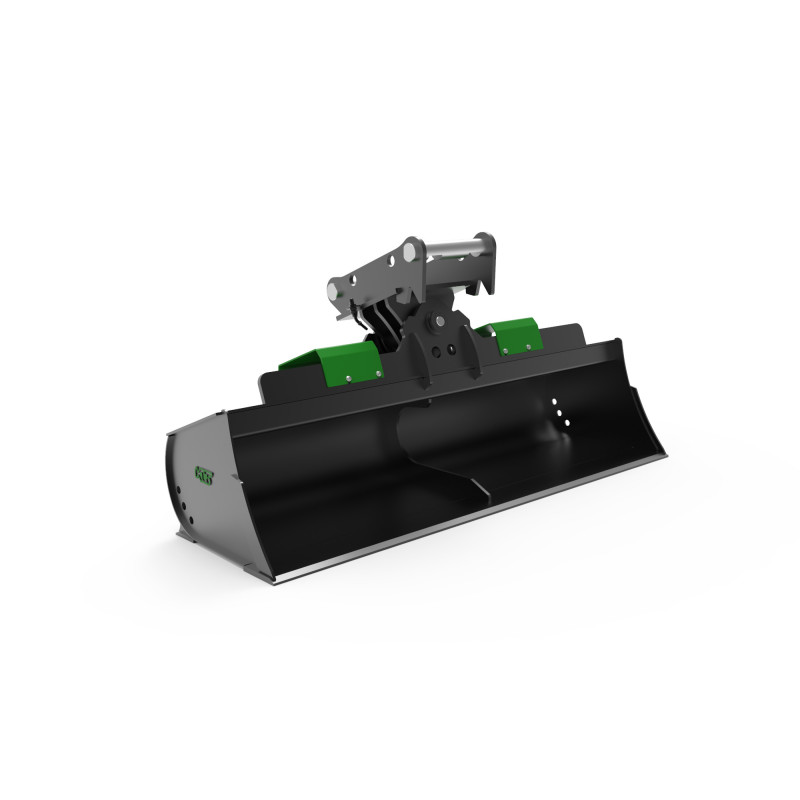

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Rear blade: | 12x110mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 8 mm | S355 |
| Internal reinforcement: | 10mm | S355 |
| Type | ||
| Hydraulic connectors: | M16x1.5. |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
THBS-S5-V1-1800-MS08SY-RB
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 6-7t
7-8t
8-9t - Adapter
- MS08SY
- Width
- 1800mm
- Weight without adapter
- 317kg
- Capacity
- 357 l
- Side/rear plate
- 6mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Rear blade
- 12x110mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 8mm S355
- Bend plate
- 8mm S355
- Hydraulic connectors
- M16x1.5
