Hydraulic ditch cleaning bucket 1400mm S40 class 2-3t
4,493.19 zł
Tax included

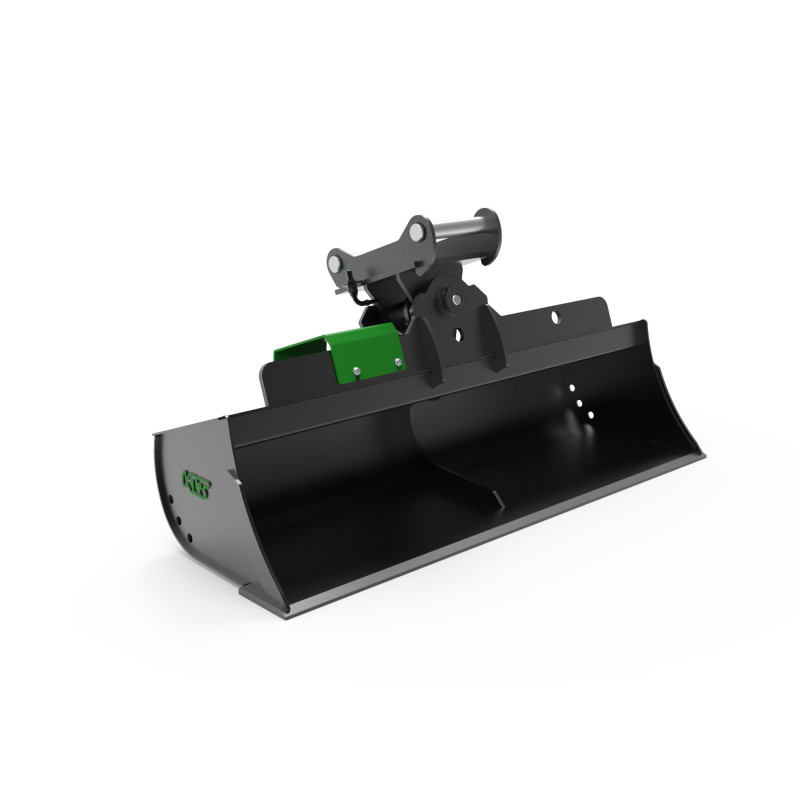

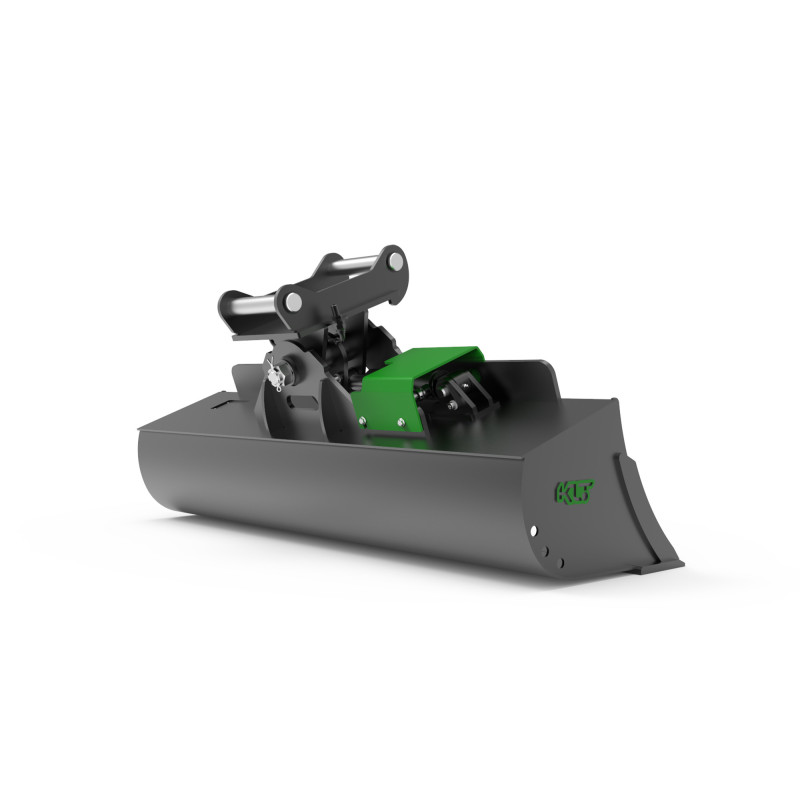

The THBS-S2-V1-1400-S40 is a durable hydraulic tilting grading bucket featuring a hydraulic tilting system, suitable for mini and compact excavators in the 2–3 ton range. The hydraulic cylinder allows for smooth lateral tilting, significantly improving terrain leveling, slope formation, and ditch cleaning without repositioning the machine. Its strong construction and carefully designed geometry ensure high productivity and long service life. It is an excellent tool for precise earthworks and light finishing tasks.
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 133 | 144,1 |
| 1400 | 146 | 170,2 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Internal reinforcement: | 10mm | S355 |
| Type | ||
| Hydraulic connectors: | M14x1.5. |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
THBS-S2-V1-1400-S40
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 2-3t
- Adapter
- S40
- Width
- 1400mm
- Weight without adapter
- 146kg
- Capacity
- 170,2 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 5mm S355
- Cutting edge
- 16x150mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
- Hydraulic connectors
- M14x1.5
