Class: 6-9 T
Width: 1600
Adapter: CW10

Out of stock

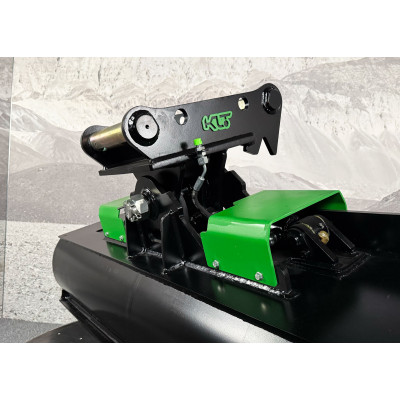

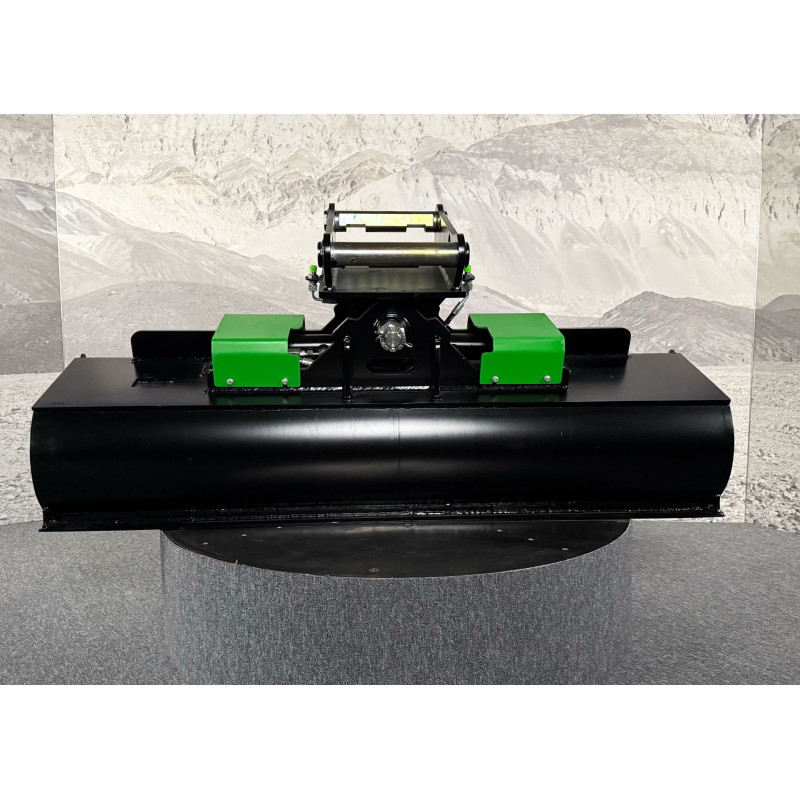

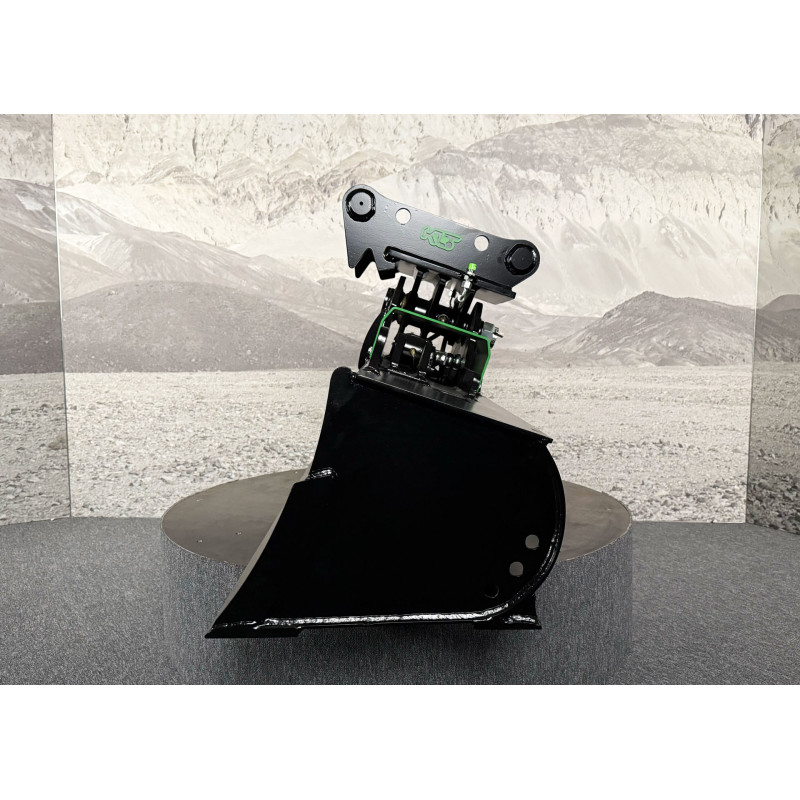

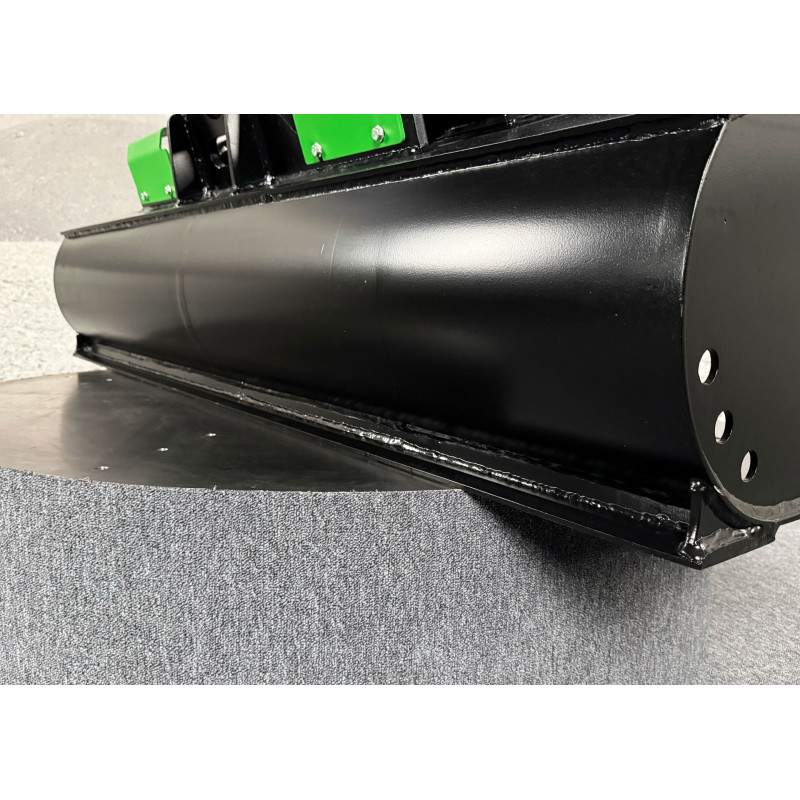

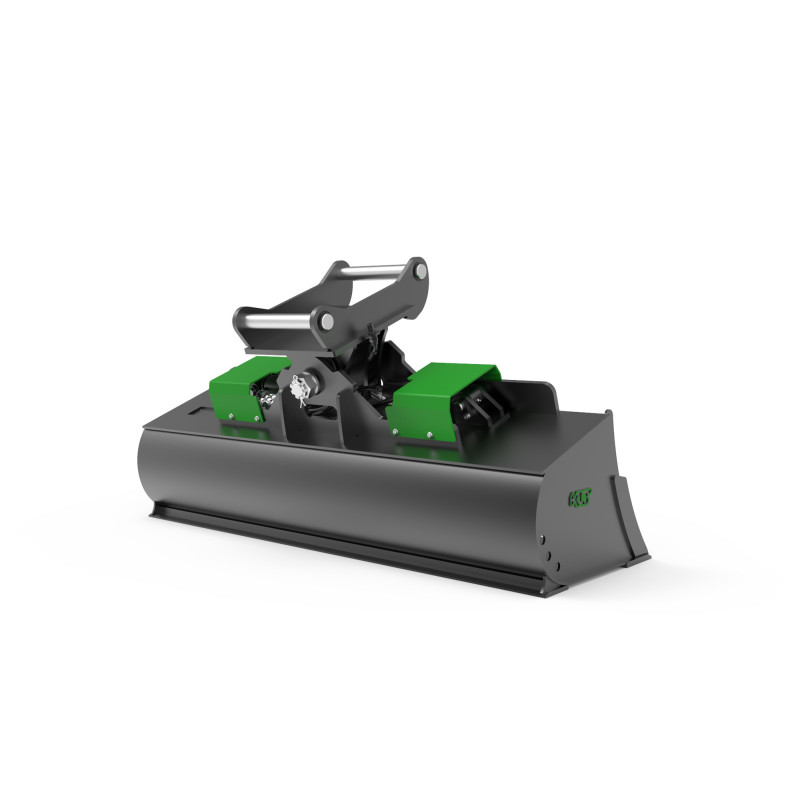

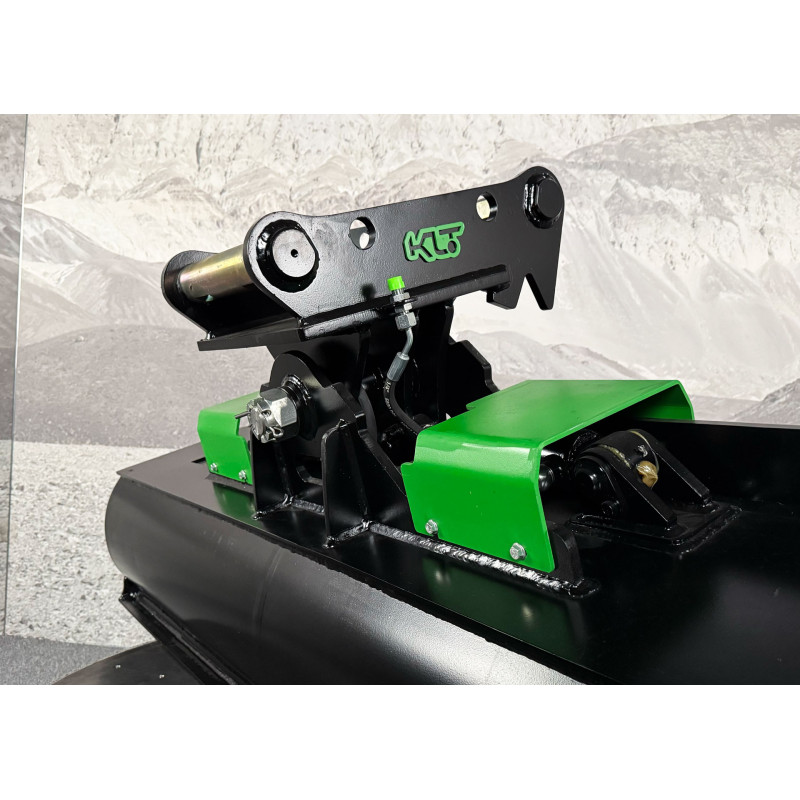

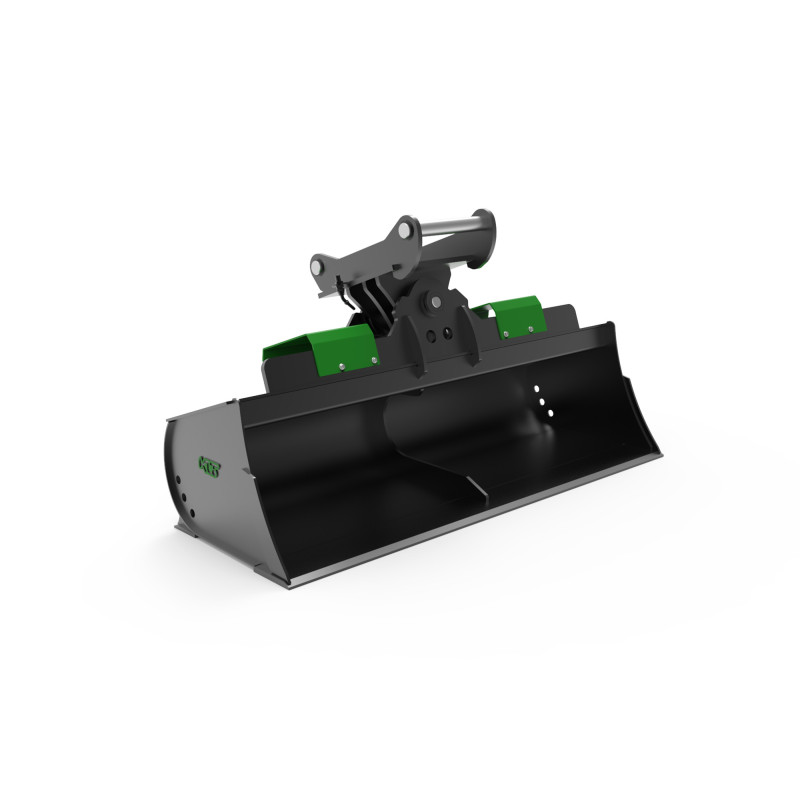

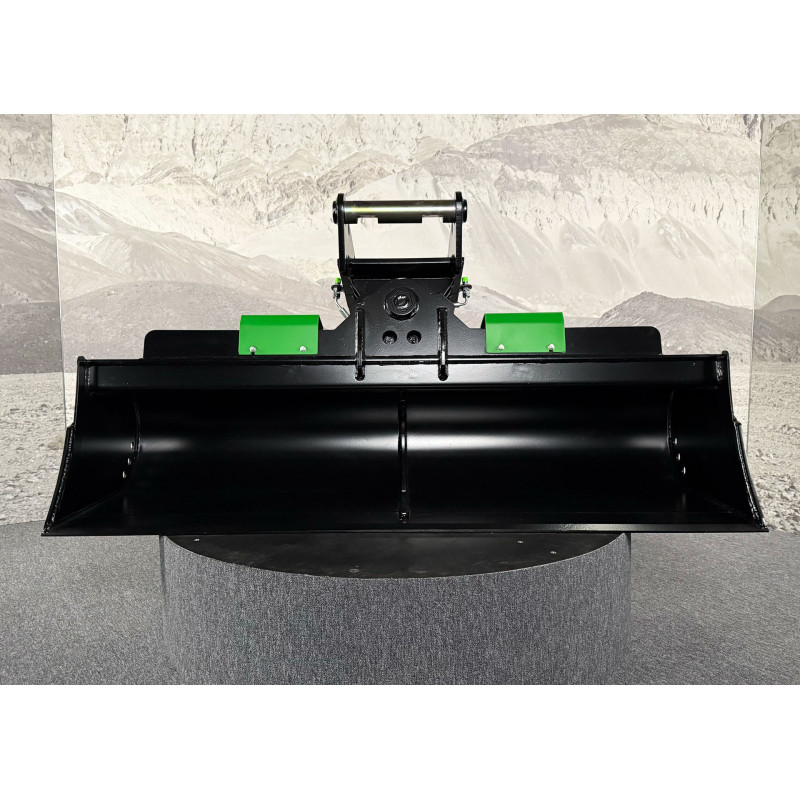

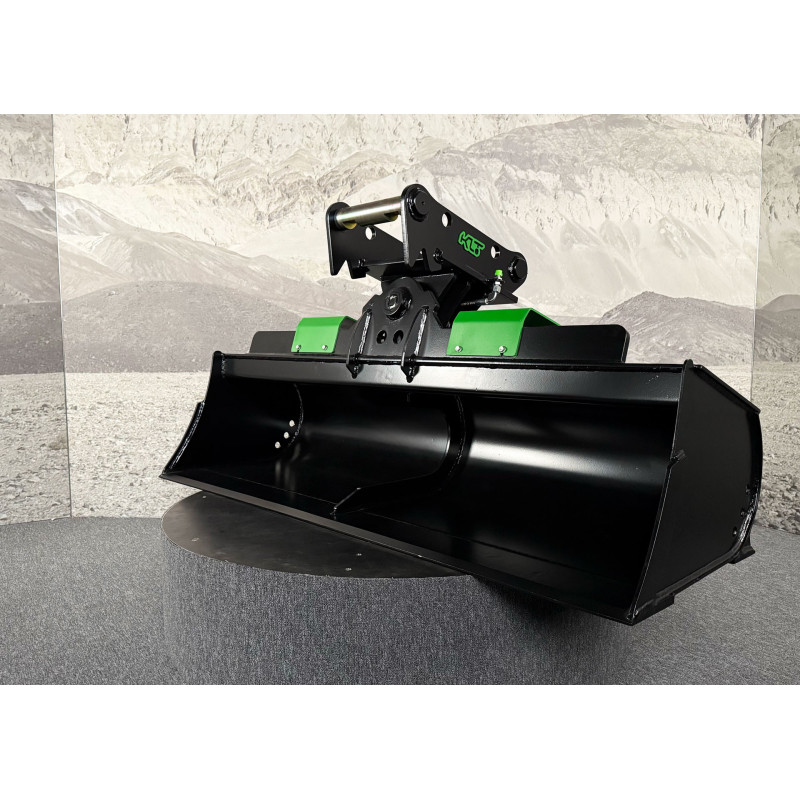

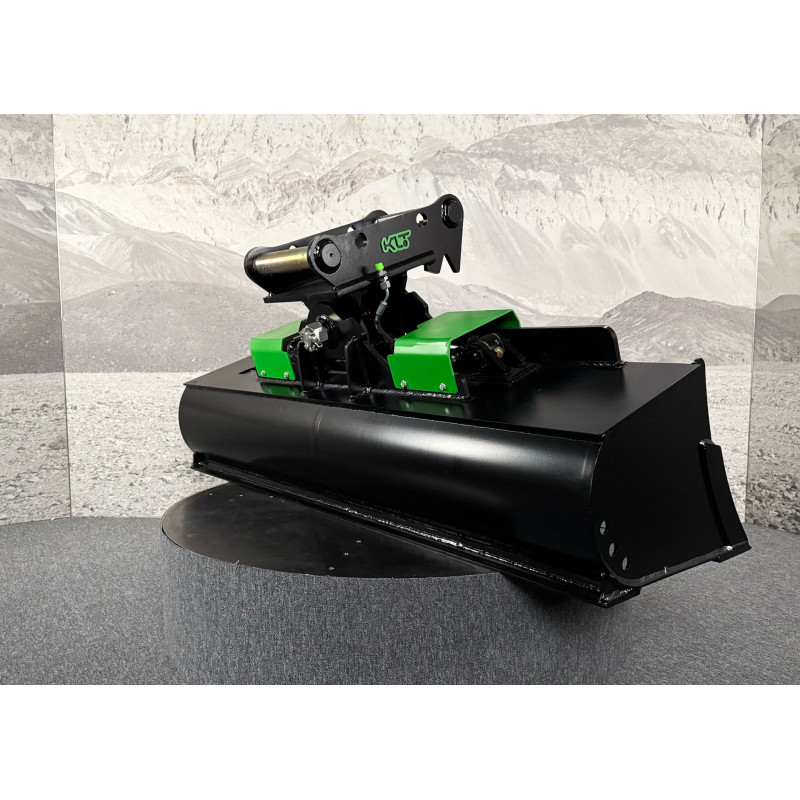

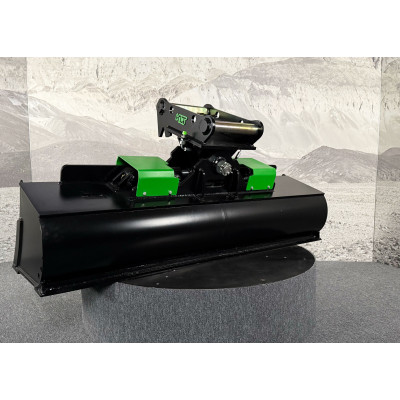

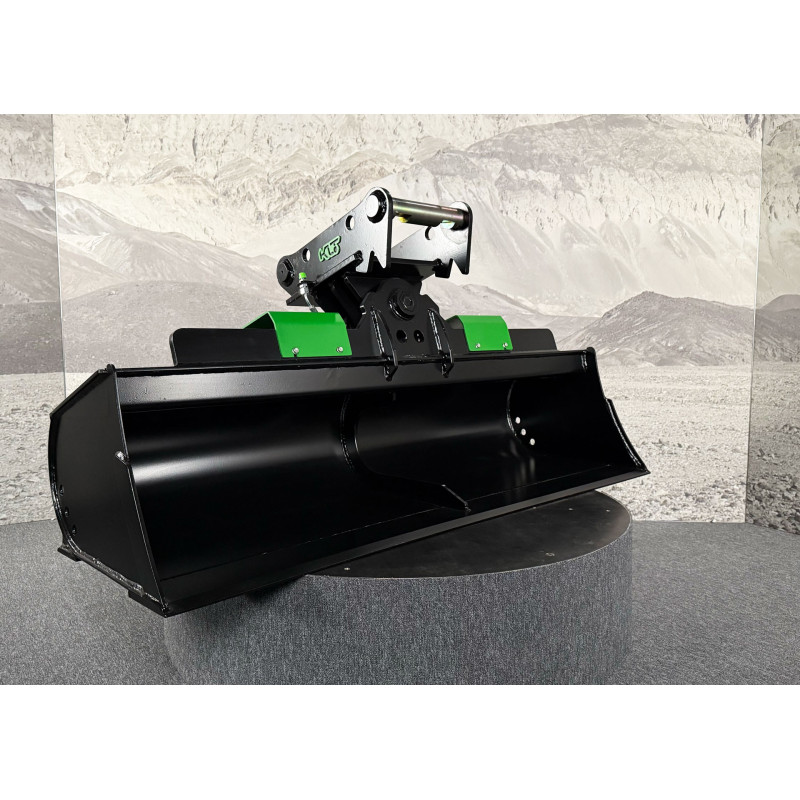

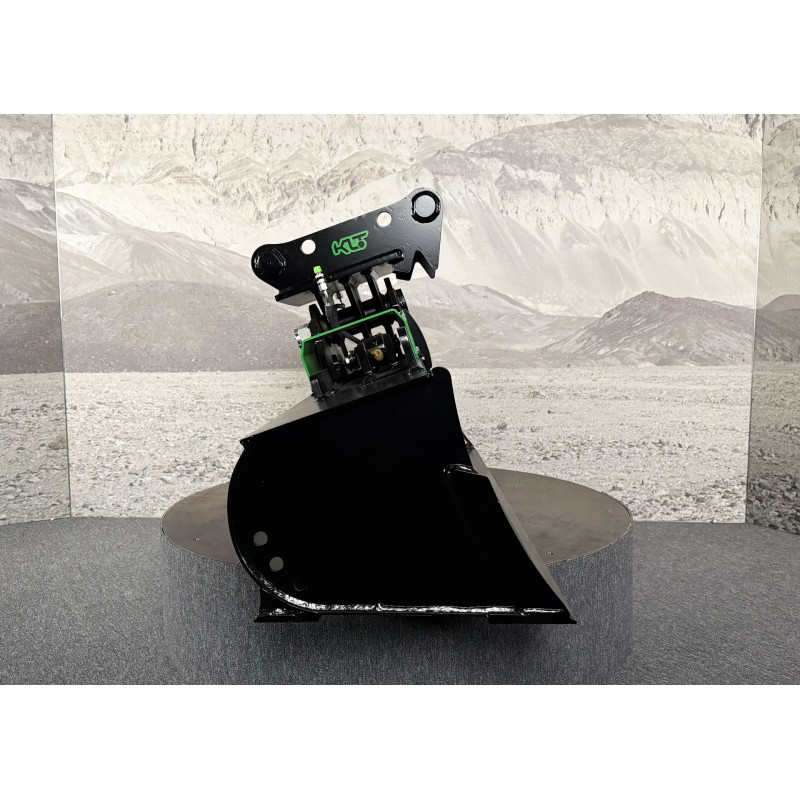

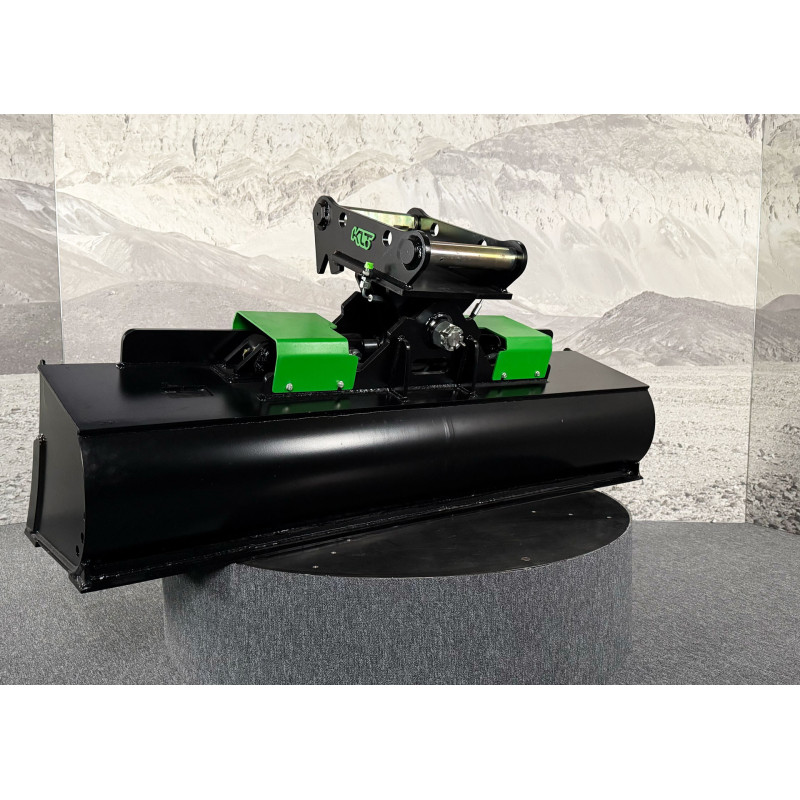

Hydraulic ditch cleaning bucket 1600mm CW10 class 6-9t

Hydraulic ditch cleaning bucket 1600mm CW10 class 6-9t

Name: Hydraulic ditch cleaning bucket 1600mm CW10 class 6-9t
Brand: Kalanto
SKU: THBS-S5-V1-1600-CW10-RB
Price: 9108.15 PLN
Availability: OutOfStock

9,108.15 zł Tax included

Out of stock Lead time up to 7 business days

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Verachtert system- CW10 without base plate

Reference: AD-WOP-CW10

The AD-WOP-CW10 is a base-plate-free design fully compatible with the Verachtert CW10 standard. It ensures quick and secure connection of work tools and maintains durability even under intensive use. A practical option for operators who prefer a lighter and more flexible setup.

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Lead time: up to 48 hours
For the machine: 4-5, 5-6, 6-7, 7-8, 8-9, 9-10, 10-11
Adapter: CW10
Side plate: 20 S355
Pin diameter: 50
Inner width: 320
Pin spacing: 560
Weight: 16

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
CW05	40	180	200
CW10	50	320	300
CW20/30/40	60	560	475

Parameters

The main components are made of the following materials and thicknesses:

	CW05		CW10		CW20/30/40
	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	35mm	HB400

Specification

Width [mm]	Weight* [kg]	Capacity [l]
1600	297	315,1
1800	317	357

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	16 x 150 mm	HB400
Rear blade:	12x110mm	HB400
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	8 mm	S355
Internal reinforcement:	10mm	S355
	Type
Hydraulic connectors:	M16x1.5.

Watch video (2)

Alternative products with a different lead time:

up to 3 business weeks Class: 6-10 T ZMG 7,606.32 zł

The THBS-S5-V1-1600-CW10-RB is a robust hydraulic tilting grading bucket intended for 6–9-ton excavators. Equipped with dual hydraulic cylinders, it distributes tilting forces evenly, providing excellent stability even under heavy loads and during steep-angle operation. The integrated rear blade enables smooth surface leveling while reversing, increasing work efficiency and reducing task duration. Built from highly wear-resistant materials, the bucket ensures reliability in demanding ground-shaping applications.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference THBS-S5-V1-1600-CW10-RB

Data sheet

Lead time: up to 7 business days
For the machine: 6-7
7-8
8-9
Adapter: CW10
Width: 1600
Weight without adapter: 297
Capacity: 315,1
Side/rear plate: 6 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Cutting edge: 16x150 HB400
Rear blade: 12x110 HB400
Internal reinforcement: 10 S355
Top plate: 8 S355
Bend plate: 8 S355
Hydraulic connectors: M16x1.5

Watch the videos
