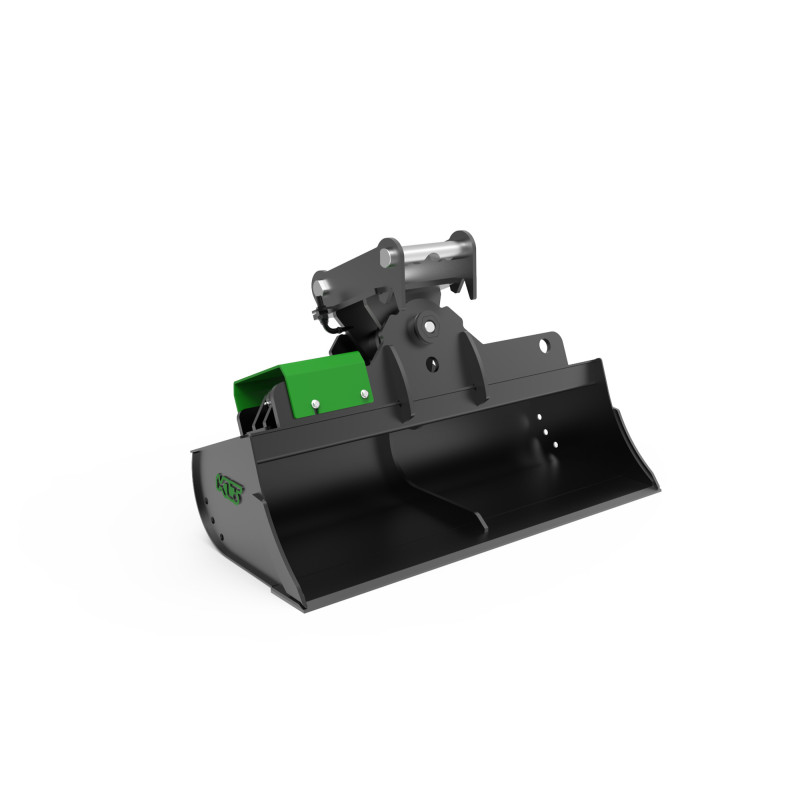

Hydraulic ditch cleaning bucket 1000mm MS01SY class 0-2t
3,043.02 zł
Tax included

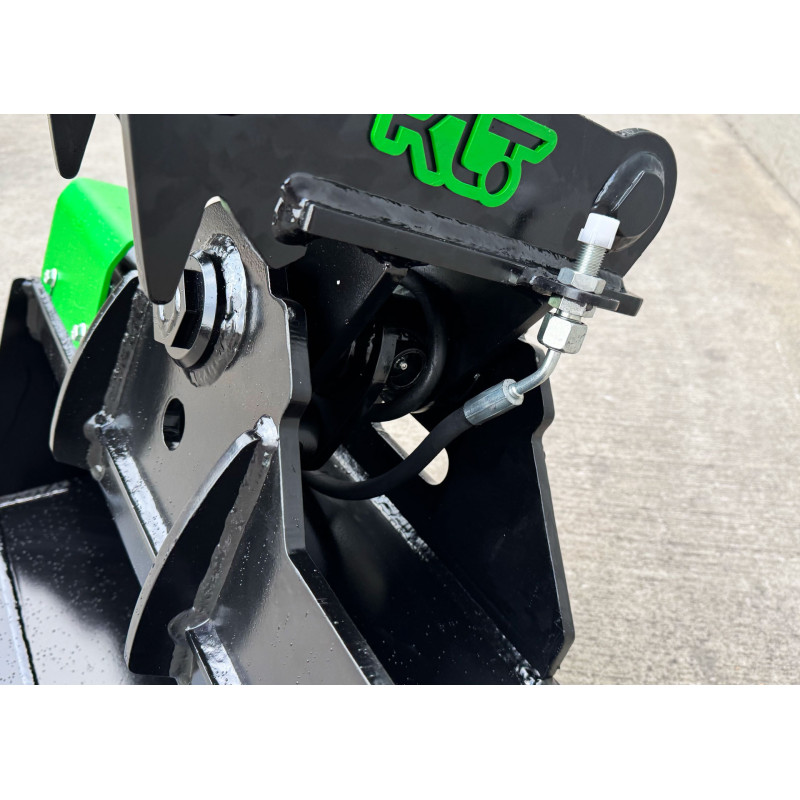

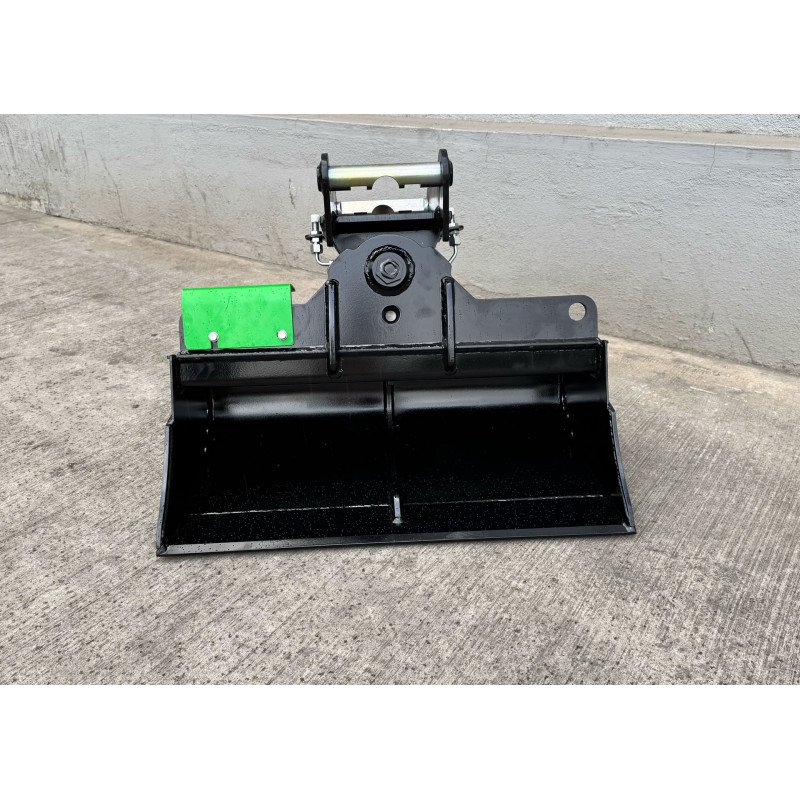

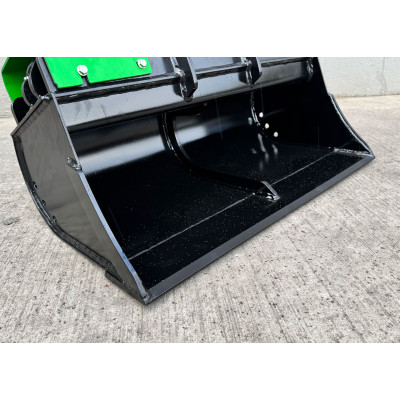

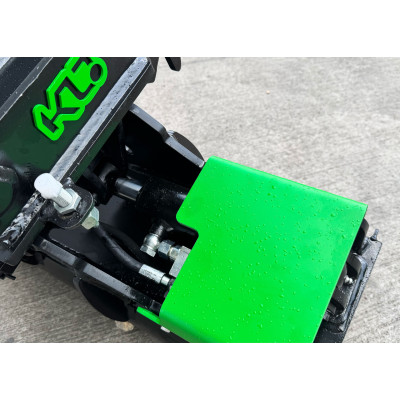

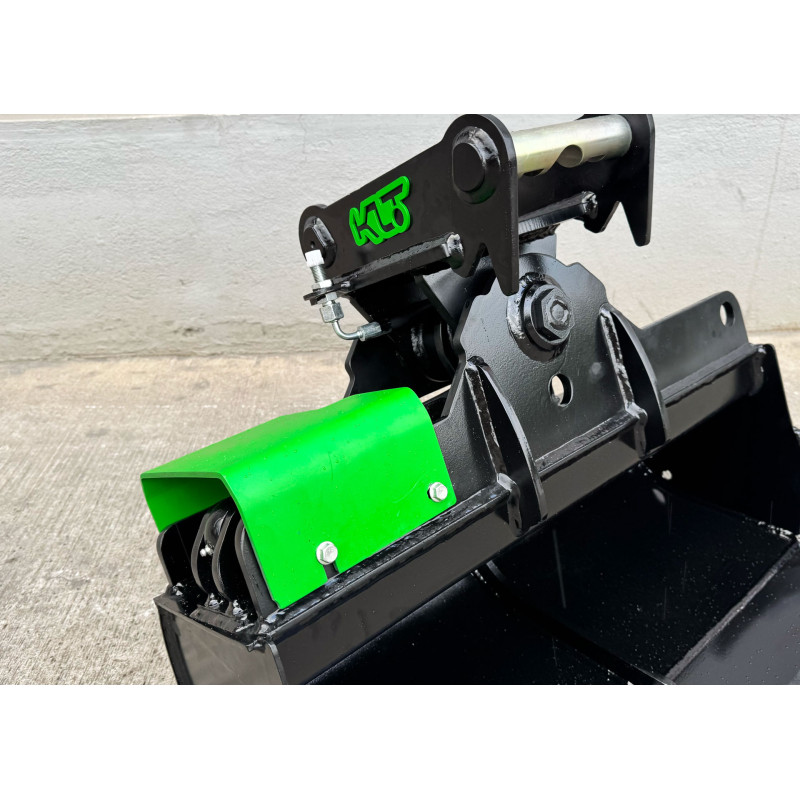

The THBS-S1-V1-1000-MS01SY hydraulic tilt bucket is designed for precise terrain shaping, slope profiling and ditch cleaning with mini excavators up to 2 tons. Equipped with a hydraulic cylinder, it allows the operator to adjust the working angle, significantly increasing versatility and comfort—especially in tight spaces and uneven terrain.

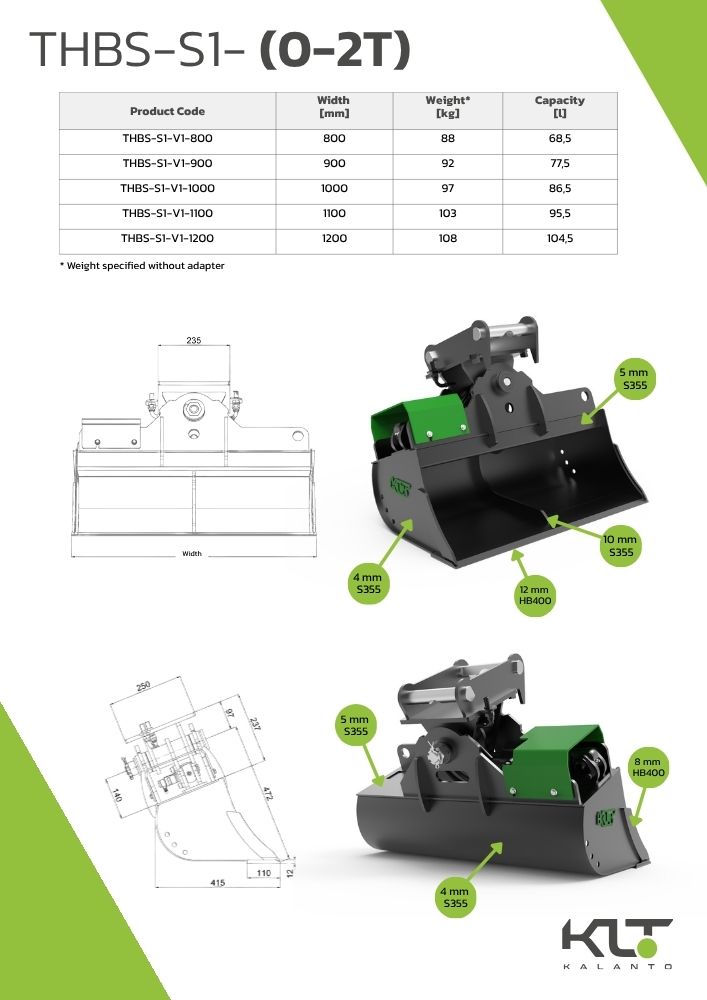

| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 800 | 88 | 68,5 |
| 1000 | 97 | 86,5 |
| 1200 | 108 | 104,5 |
* The given bucket weight does not include the weight of the adapter.

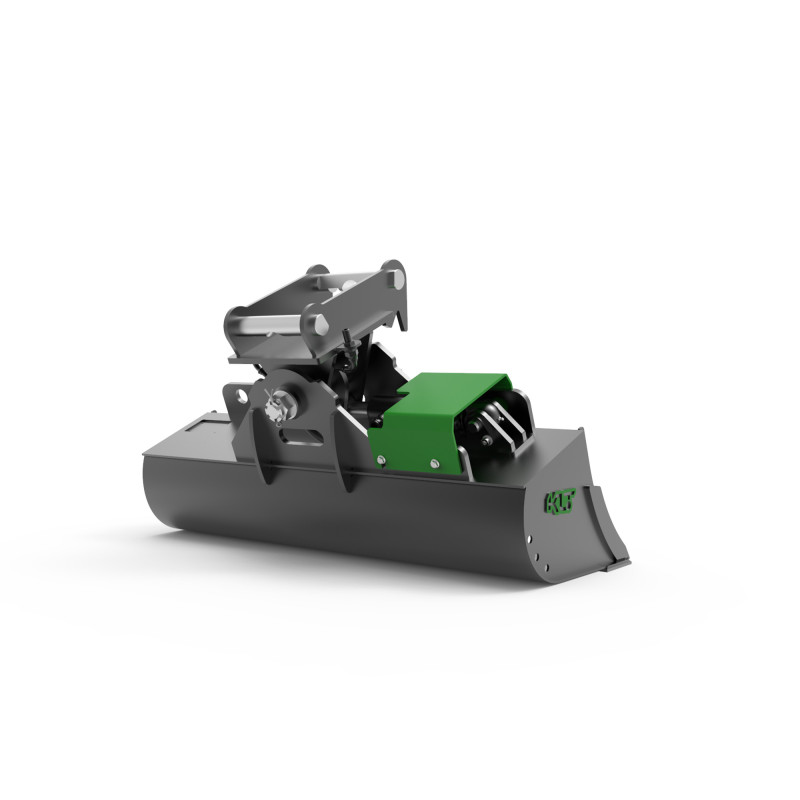

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 12 x 110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Internal reinforcement: | 10mm | S355 |
| Type | ||

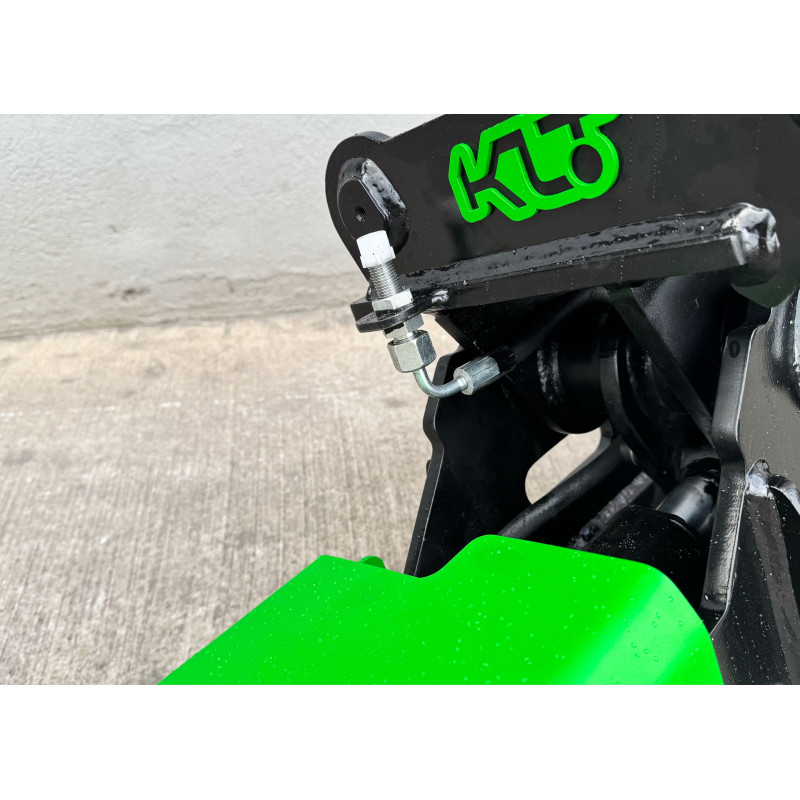

| Hydraulic connectors: | M14x1.5. |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
THBS-S1-V1-1000-MS01SY
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 0-2t
3-4t - Adapter
- MS01SY
- Width
- 1000mm
- Weight without adapter
- 97kg
- Capacity
- 86,5 l
- Side/rear plate
- 4mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 4mm S355
- Cutting edge
- 12x110mm HB400
- Internal reinforcement
- 10mm S355
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
- Hydraulic connectors
- M14x1.5
