- Class: 0-2 T
- Width: 1200
- Adapter: Without adapter
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 800 | 88 | 68,5 |
| 1000 | 97 | 86,5 |
| 1200 | 108 | 104,5 |
* The given bucket weight does not include the weight of the adapter.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 12 x 110 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Internal reinforcement: | 10mm | S355 |
| Type | ||
| Hydraulic connectors: | M14x1.5. |

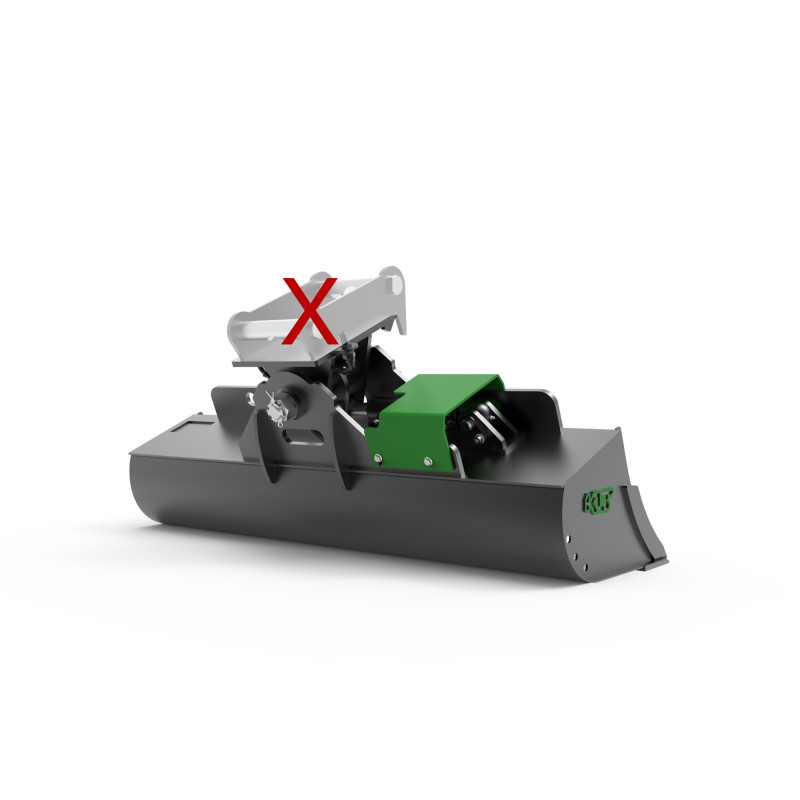

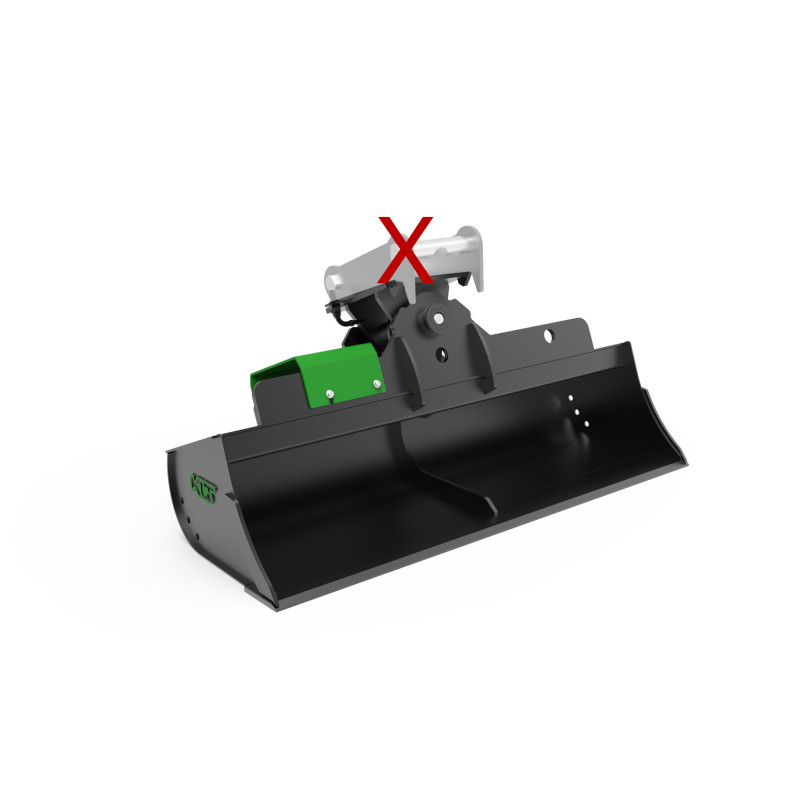

The THBS-S1-V1-1200-WOA hydraulic tilt bucket is designed for operators who require maximum precision and a wider working width. It performs exceptionally well in large-scale leveling, forming wide slopes and cleaning ditches. The hydraulically adjustable tilt function allows flexible working angles, increasing efficiency and adaptability to various site conditions. The reinforced steel construction ensures long-lasting durability and reliable performance.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
