Reference: AD-WOP-CW10
The AD-WOP-CW10 is a base-plate-free design fully compatible with the Verachtert CW10 standard. It ensures quick and secure connection of work tools and maintains durability even under intensive use. A practical option for operators who prefer a lighter and more flexible setup.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] |
Pin spacing [mm] |
|
|---|---|---|---|
| CW05 | 40 | 180 | 200 |
| CW10 | 50 | 320 | 300 |
| CW20/30/40 | 60 | 560 | 475 |
The main components are made of the following materials and thicknesses:
| CW05 | CW10 | CW20/30/40 | ||||
| Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 20mm | S355 | 20mm | S355 | 35mm | HB400 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 164 | 172 |
| 1300 | 172 | 187 |
| 1400 | 180 | 202 |
| 1500 | 188 | 217 |
| 1600 | 197 | 232 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 6 mm | S355 |
| Type | ||
| Hydraulic connectors: | M18x1.5 |

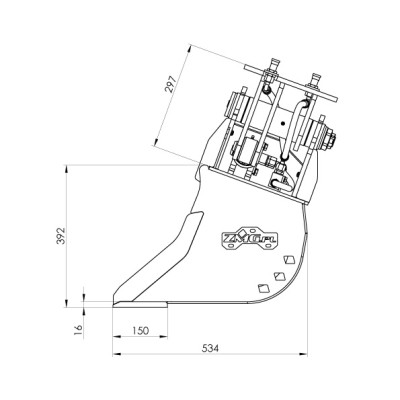

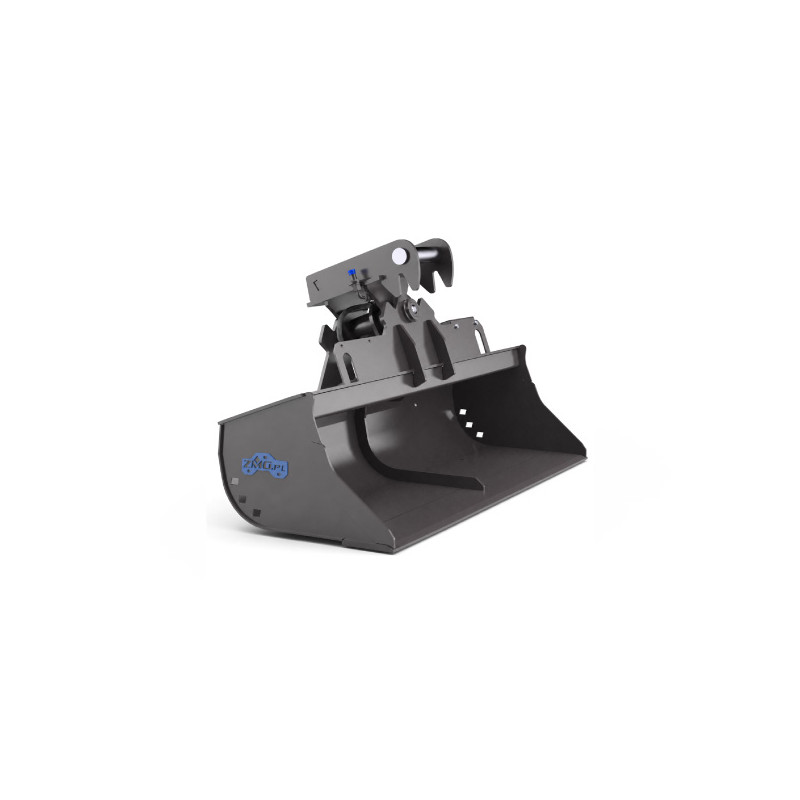

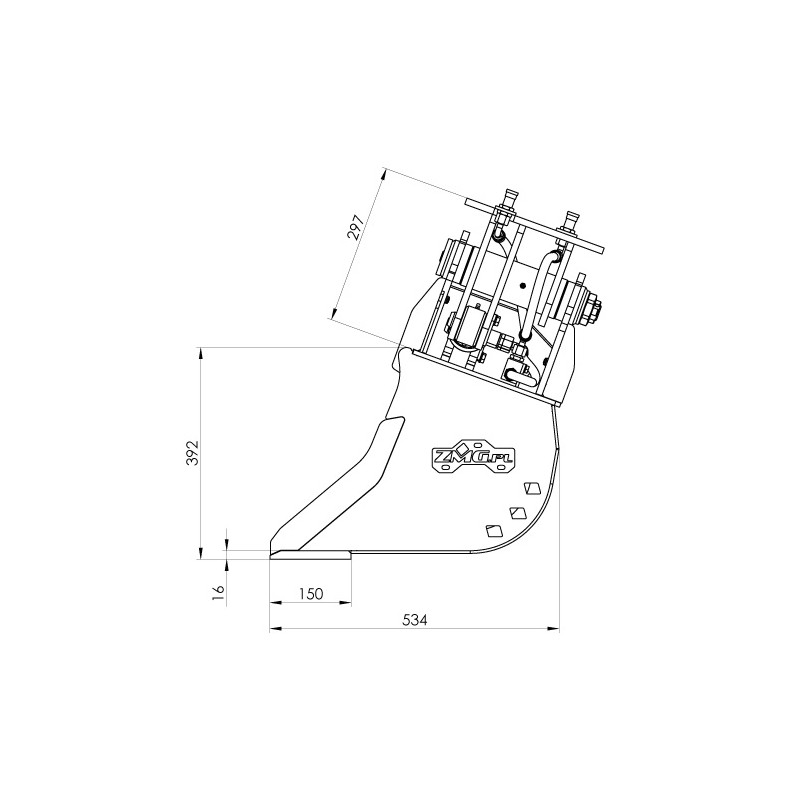

The LSH-ZMG3-1500-CW10 series is a 1500 mm hydraulic ditch cleaning bucket for medium-class excavators of 4–6 t. The hydraulic rotation mechanism allows free adjustment of the working angle, delivering high precision in slope profiling, ditch cleaning, and finishing work. The Verachtert CW10 quick coupler system, designed for heavier applications, provides reliable and stable attachment-to-machine connection. Solid steel frame and reliable hydraulic system ensure durability and consistent work results on every type of slope.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
