Reference: AD-WOP-M03
AD-WOP-M03 is a lightweight, base-plate-free adapter compatible with the Martin M03 system. Its solid construction and precise alignment allow quick tool mounting while offering high versatility and strong load resistance.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] | Pin spacing [mm] | |
|---|---|---|---|
| M02 | 30 | 161 | 170 |
| M03 | 35 | 184 | 180 |
| M10 | 50 | 232 | 292 |
*The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| M02 | M03 | M10 | ||||
| Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 12mm | S355 | 16mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 800 | 84 | 59 |
| 900 | 88 | 70 |
| 1000 | 93 | 75 |
| 1100 | 97 | 83 |
| 1200 | 102 | 91 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 12 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Type | ||

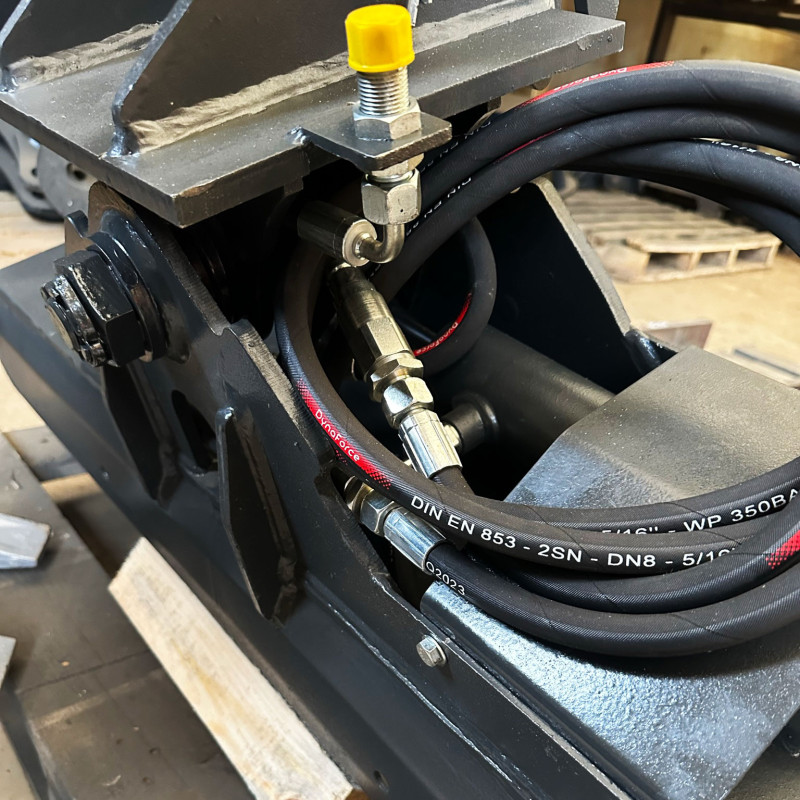

| Hydraulic connectors: | M18x1.5 |

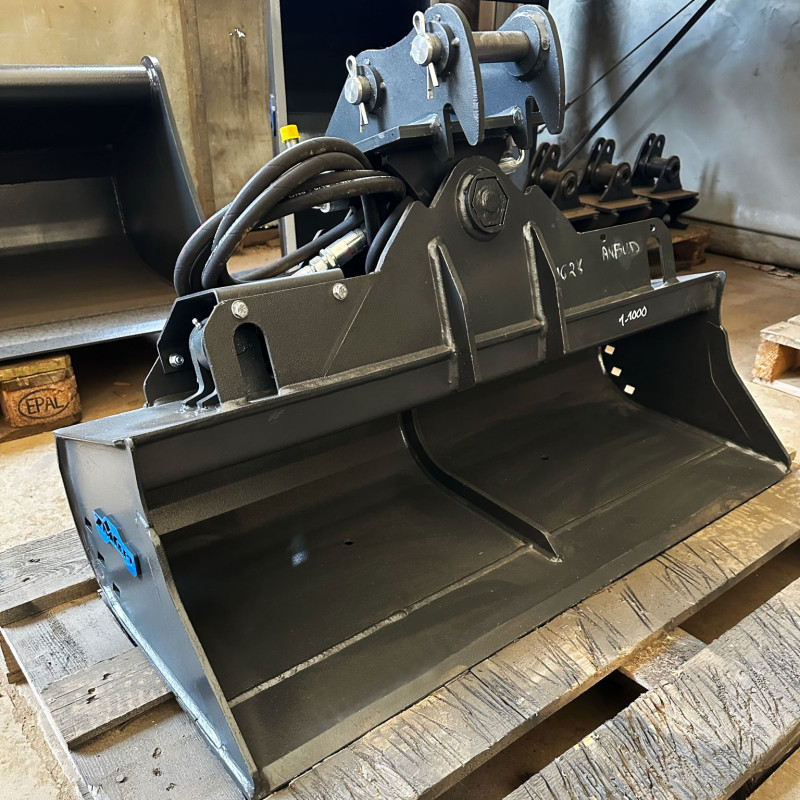

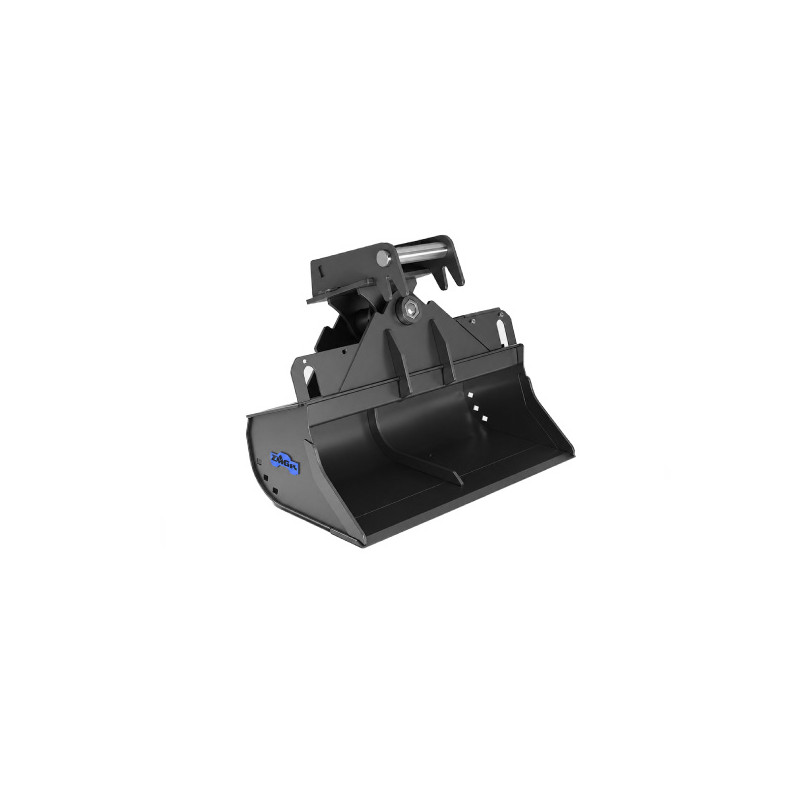

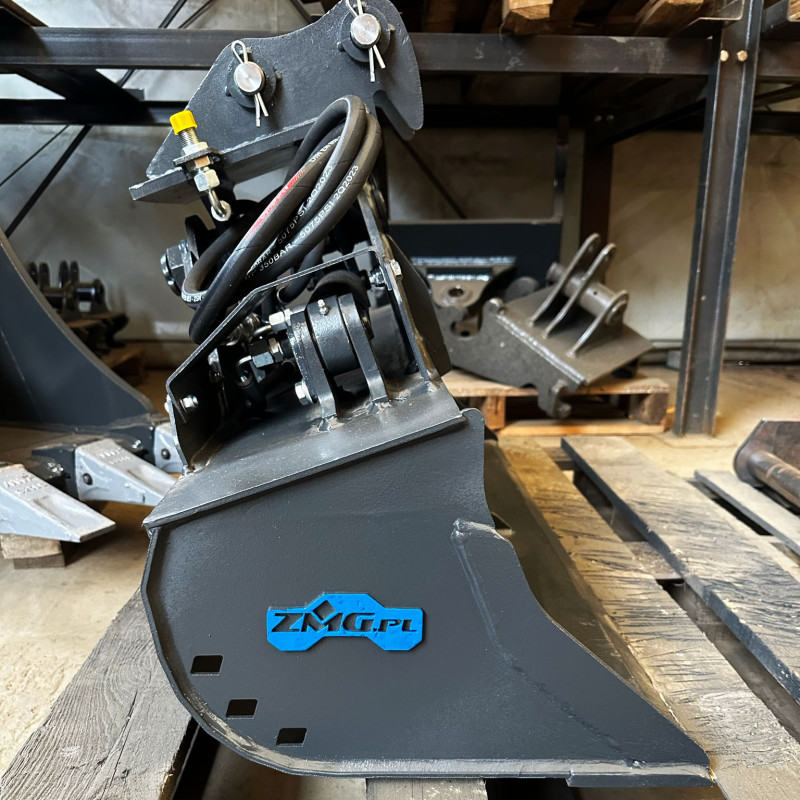

Model LSH-ZMG1-1100-M03 is a 1100 mm hydraulic ditch cleaning bucket dedicated to mini and compact excavators up to 2 t. The hydraulically adjustable working angle allows slope forming at any inclination, ditch cleaning, and finishing work from a single operator position. The Martin M03 adapter (compatible with SW10, CM30) ensures wide compatibility with machines equipped with this popular quick coupler system. High-quality steel and precision hydraulic system manufacturing ensure the hydraulic bucket maintains full functionality over a long period of intensive use.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
