Reference: AD-WOP-MS08SY
Built for the MS08SY system, the AD-WOP-MS08SY is a durable base-plate-free adapter. It provides high precision during attachment and enables rapid tool coupling, significantly reducing retooling time.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] |
Pin spacing* [mm] |
|
|---|---|---|---|
| MS01 | 40 | 185 | 225 |
| MS01SY | 40 | 185 | 255 |
| MS03 | 50 | 205 | 283,6 |
| MS03SY | 50 | 205 | 322 |
| MS08 | 60 | 295 | 381 |
| MS08SY | 60 | 297 | 434 |
The main components are made of the following materials and thicknesses:
| MS01 | MS01SY | MS03 | MS03SY | MS08 | MS08SY | |||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 10mm | S355 | 12mm | S355 | 12mm | S355 | 16mm | S355 | 16mm | S355 |
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 200 | 215 |
| 1300 | 210 | 235 |
| 1400 | 220 | 254 |
| 1500 | 230 | 273 |
| 1600 | 240 | 293 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 8 mm | S355 |
| Type | ||
| Hydraulic connectors: | M18x1.5 |

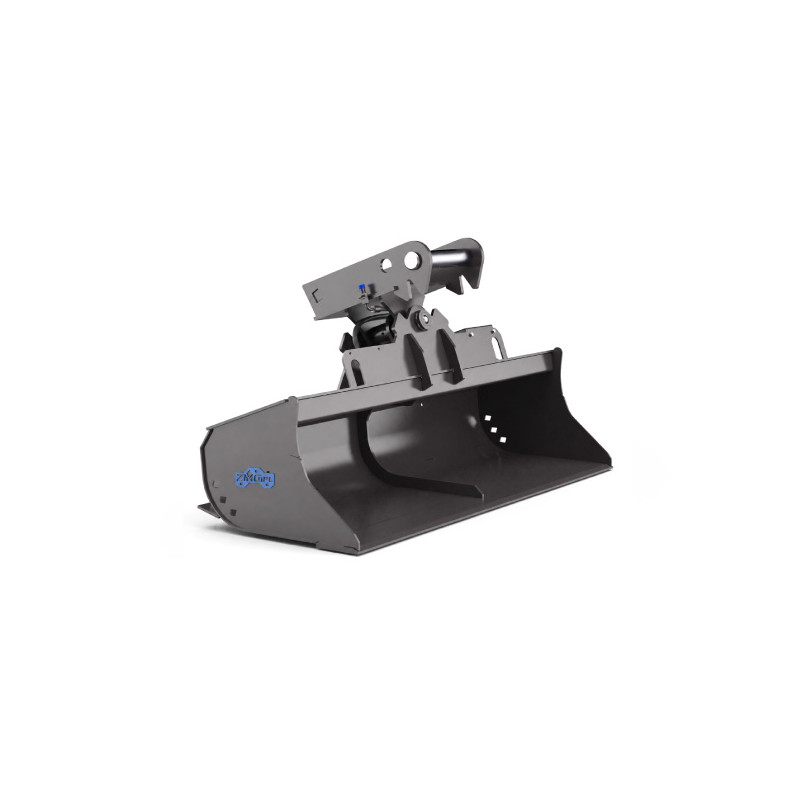

Model LSH-ZMG4-1500-MS08SY is a 1500 mm hydraulic ditch cleaning bucket dedicated to excavators in the 6–10 t class. The hydraulically adjustable working angle allows slope forming at any inclination, ditch cleaning, and finishing work from a single operator position. The hydraulic Lehnhoff MS08SY quick coupler enables operators to swap heavy attachments directly from the cab, eliminating manual coupling and improving safety. High-quality steel and precision hydraulic system manufacturing ensure the hydraulic bucket maintains full functionality over a long period of intensive use.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Data sheet
