- Class: 6-9 T
- Width: 1500
- Adapter: MS08
| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 1200 | 200 | 215 |
| 1300 | 210 | 235 |
| 1400 | 220 | 254 |
| 1500 | 230 | 273 |
| 1600 | 240 | 293 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 8 mm | S355 |
| Type | ||
| Hydraulic connectors: | M18x1.5 |

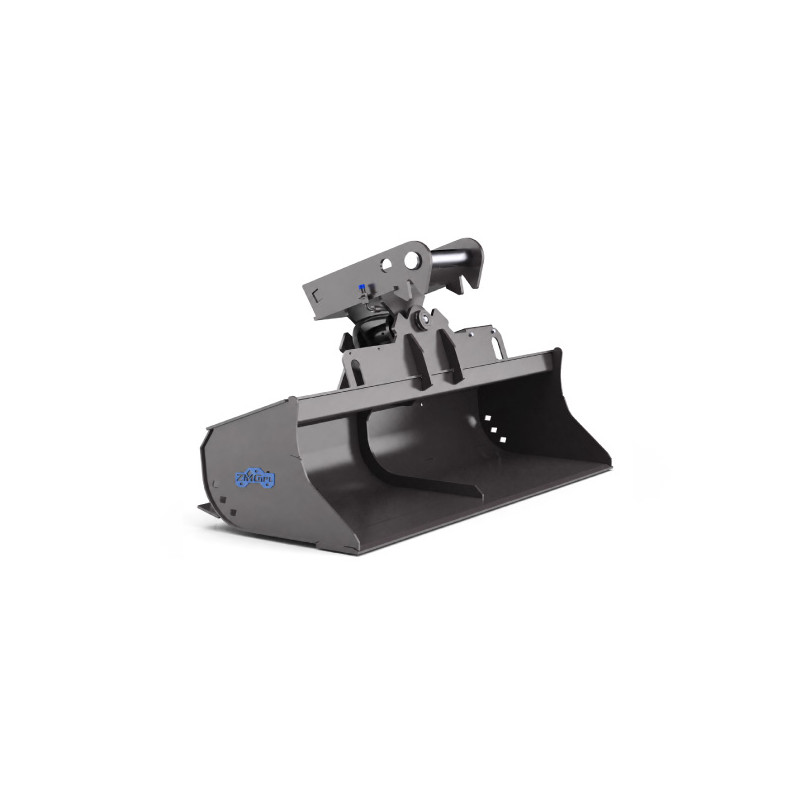

The LSH-ZMG4-1500-MS08 hydraulic ditch cleaning bucket with a working width of 1500 mm is an advanced tool designed for excavators in the 6–10 t class. Its hydraulic tilt adjustment enables precise slope profiling, ditch cleaning, and terrain shaping without repositioning the machine. The Lehnhoff MS08 quick coupler is designed for heavy machines, ensuring secure attachment and rapid tool changes on demanding job sites. High-quality steel and precision hydraulic system manufacturing ensure the hydraulic bucket maintains full functionality over a long period of intensive use.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Data sheet
