Skeleton bucket 800mm MS01SY class 0-2t
2,131.59 zł
Tax included

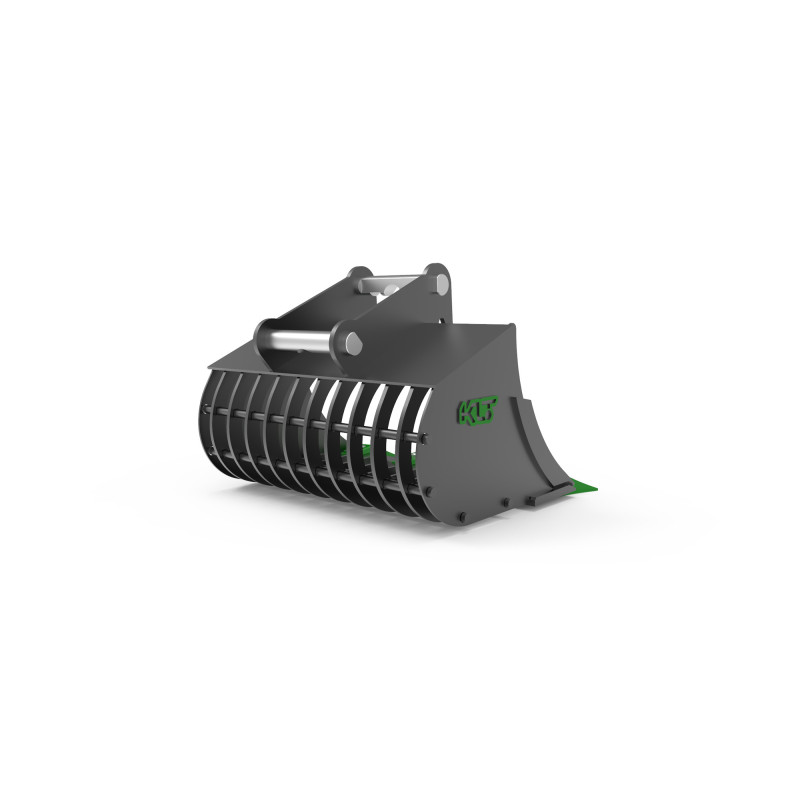

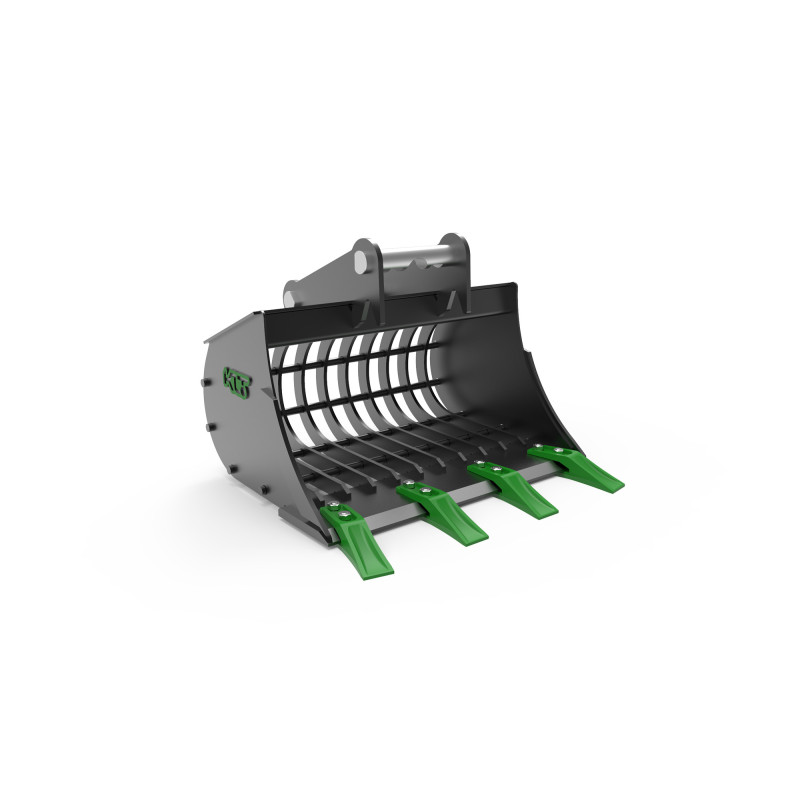

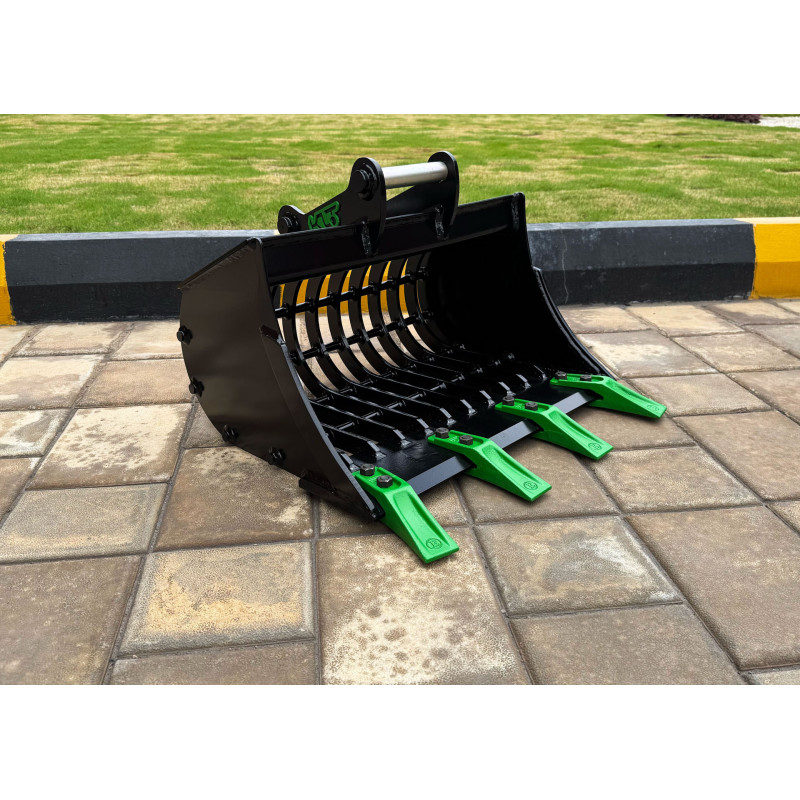

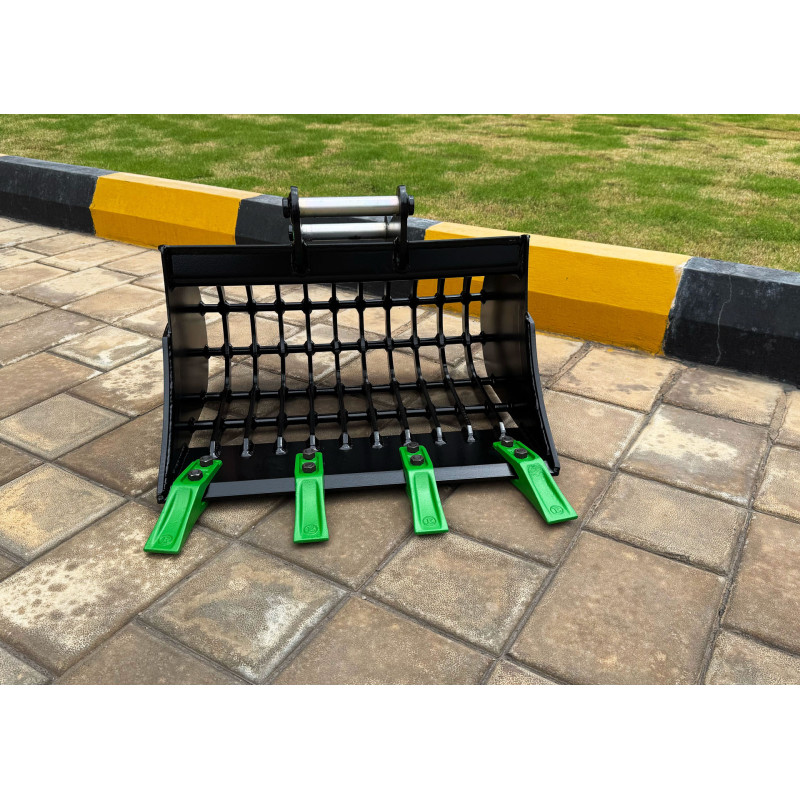

The SBS-S1-V1-800-MS01SY is a lightweight yet robust skeleton bucket designed for mini excavators and compact machines with an operating weight of up to 2 tons. Its open, ribbed bottom enables fast and precise material screening, making it perfect for separating stones, rubble, and unwanted fractions during excavation work. Thanks to its reinforced structure and wear-resistant components, the bucket guarantees long service life and dependable performance even in demanding conditions.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 600 | 46 | 59 | 4 |
| 800 | 59 | 82 | 5 |
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Ribs: | 8 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Rib spacing: | 45mm | - |
| Type | ||
| Teeth: | E11.4 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
SBS-S1-V1-800-MS01SY
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 0-2t
3-4t - Adapter
- MS01SY
- Width
- 800mm
- Weight without adapter
- 59kg
- Capacity
- 82 l
- Side/rear plate
- 4mm S355
- Side cutters
- 8mm HB400
- Ribs
- 8mm S355
- Rib spacing
- 45mm
- Cutting edge
- 16x150mm HB400
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 5pcs
- Type of teeth
- E11.4
